Powersoft Mezzo 324 AD เพาเวอร์แอมป์ขนาดกะทัดรัด 320 วัตต์ 4 แชนแนล พร้อม DSP และ Dante
ราคา : 64,800 บาท
Description

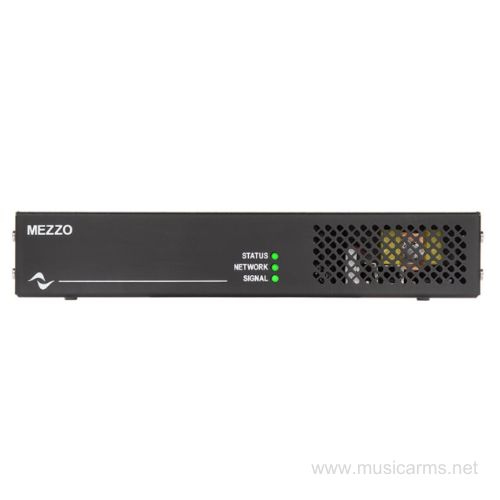

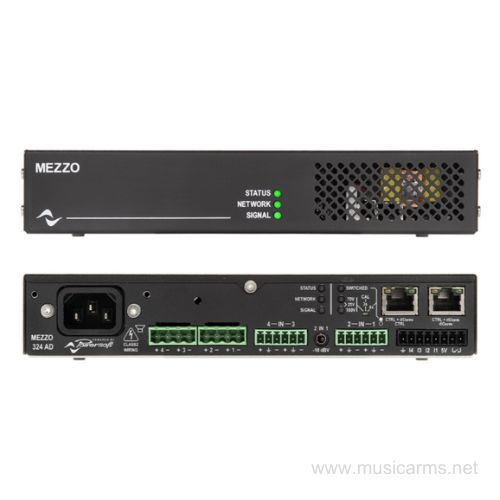

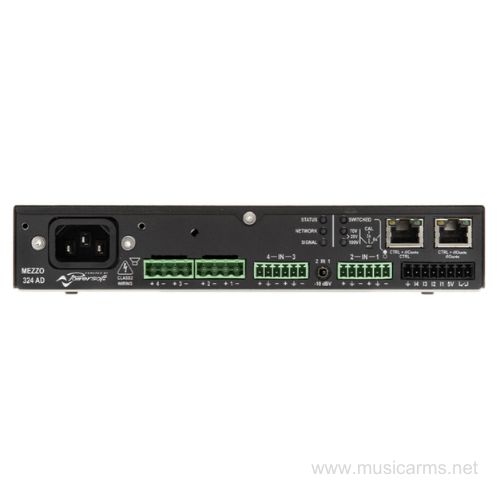

Powersoft Mezzo 324 AD: Compact 4-Channel 320W Installation Amplifier with DSP and Dante™/AES67
The Powersoft Mezzo 324 AD is a compact 4-channel installation amplifier delivering a total output of 320 watts, featuring integrated DSP and full support for Dante™ / AES67 networked audio. It is designed for installations in ceiling spaces, wall boxes, or other limited areas where high-quality audio and full remote system control are required.
Equipped with Auto-Setup functionality, the amplifier automatically optimizes Gain, Limiter, and High-Pass Filter settings, reducing commissioning time. Its Power-Sharing technology enables flexible power distribution between channels, while Dante™/AES67 compatibility ensures seamless integration into modern networked AV systems.
Key Features
- 4-Channel Installation Amplifier with Built-in DSP: 320 watts total output for small to medium installed sound systems.
- Dante™ and AES67 Support: Professional networked audio connectivity.
- Automatic Setup: Auto-adjusts Gain, Limiter, and High-Pass Filter for optimized performance.
- Power-Sharing Technology: Flexible power allocation across output channels.
- External Control and Monitoring: Fully compatible with professional system management platforms.
- Compact Form Factor: Flexible mounting options for ceiling, wall, or rack installations with included mounting accessories.
Who Is the Powersoft Mezzo 324 AD For?
- AV System Integrators: Seeking a compact network-enabled amplifier with integrated DSP.
- Space-Constrained Installations: Ideal for ceiling cavities, wall enclosures, or small equipment rooms.
- Commercial and Educational Facilities: Requiring centralized, network-based audio control.
Conclusion: A Space-Saving Networked Amplifier for Professional Installations
The Powersoft Mezzo 324 AD combines 320 watts of output power, intelligent DSP processing, and Dante™/AES67 network capability in a compact chassis. It is a flexible and professional solution for modern AV installations that demand high performance and efficient space utilization.
Specification
4-Channel Power Amplifier with DSP & Audio Networking Specifications |
|
|---|---|
| Number of Channels | 4-channel |
| Total Output Power | 320 W |
| Output Power per Channel | 80 W @ 2Ω / 4Ω / 8Ω |
| Maximum Unclipped Output Voltage | 142 Vpeak |
| Maximum Output Current | 15.6 Apeak |
| Amplifier Topology | Class-D |
| Power Supply | Universal Switching Mode Power Supply (SMPS) with PFC |
| Mains Operating Voltage | 90–264 VAC |
| Cooling System | Passive Convection (Fanless) |
| Signal Processing | Integrated DSP |
| Audio Networking | Dante™ / AES67 |
| Key Features | Auto Setup, Power Sharing, Remote Monitoring |
ข้อมูลสินค้า
Powersoft Mezzo 324 AD: แอมป์ติดตั้ง 4 แชนแนล 320 วัตต์ พร้อม DSP และ Dante™/AES67
Powersoft Mezzo 324 AD คือแอมป์ติดตั้งแบบ 4 แชนแนล ขนาดกะทัดรัด กำลังขับรวม 320 วัตต์ พร้อม DSP ภายใน และรองรับระบบเสียงผ่านเครือข่าย Dante™ / AES67 เหมาะสำหรับงานติดตั้งในฝ้าเพดาน กล่องผนัง หรือพื้นที่จำกัดที่ต้องการระบบเสียงคุณภาพสูง พร้อมการควบคุมและมอนิเตอร์จากภายนอกอย่างเต็มรูปแบบ
ตัวเครื่องมาพร้อมฟังก์ชัน Auto-Setup ที่ช่วยปรับ Gain, Limiter และ High-Pass Filter โดยอัตโนมัติ ลดเวลาในการติดตั้งและเซ็ตระบบ อีกทั้งยังมีเทคโนโลยี Power-Sharing สำหรับแบ่งกำลังขับระหว่างแชนแนลได้อย่างยืดหยุ่น รองรับงาน Professional AV ที่ต้องการความเป็นระเบียบและประสิทธิภาพสูงในขนาดที่กะทัดรัด
คุณสมบัติเด่น
- แอมป์ติดตั้ง 4 แชนแนล พร้อม DSP ในตัว: กำลังขับรวม 320 วัตต์ รองรับงานระบบเสียงขนาดเล็กถึงกลาง
- รองรับ Dante™ และ AES67: เชื่อมต่อระบบ Audio Network ได้อย่างมืออาชีพ
- Auto-Setup อัตโนมัติ: ปรับ Gain, Limiter และ High-Pass Filter เพื่อประสิทธิภาพสูงสุด
- Power-Sharing Technology: แบ่งกำลังขับระหว่างแต่ละแชนแนลได้ตามความเหมาะสมของโหลดลำโพง
- รองรับการควบคุมและมอนิเตอร์ภายนอก: บริหารจัดการระบบผ่านโครงข่ายควบคุมได้เต็มรูปแบบ
- ดีไซน์คอมแพค: ติดตั้งได้ทั้งฝ้าเพดาน ผนัง หรือในแร็ค ด้วยอุปกรณ์ยึดติดที่ให้มา
Powersoft Mezzo 324 AD เหมาะกับใคร?
- System Integrator: ที่ต้องการแอมป์ Network Audio ขนาดเล็ก พร้อม DSP ในตัว
- งานติดตั้งในพื้นที่จำกัด: เช่น ฝ้าเพดาน กล่องผนัง หรือห้องอุปกรณ์ขนาดเล็ก
- ร้านค้า ห้องเรียน และพื้นที่เชิงพาณิชย์: ที่ต้องการระบบเสียงแบบเครือข่ายที่เสถียรและควบคุมได้จากส่วนกลาง
สรุป: แอมป์ Network ขนาดเล็ก สำหรับงานติดตั้งที่ต้องการความยืดหยุ่นสูง
Powersoft Mezzo 324 AD ผสานกำลังขับ 320 วัตต์ เข้ากับ DSP อัจฉริยะ และการรองรับ Dante™/AES67 ในตัวเดียว เหมาะสำหรับงานติดตั้ง Professional AV ที่ต้องการคุณภาพเสียงสูง การจัดการผ่านเครือข่าย และความยืดหยุ่นในการติดตั้งในพื้นที่จำกัด
รายละเอียดคุณสมบัติ
รายละเอียดสินค้า เพาเวอร์แอมป์ 4 แชนแนล พร้อม DSP และระบบ Audio Network |
|
|---|---|
| จำนวนแชนแนล | 4 แชนแนล |
| กำลังขับรวมทั้งหมด | 320 วัตต์ |
| กำลังขับต่อแชนแนล | 80W @ 2Ω / 4Ω / 8Ω |
| แรงดันเอาต์พุตสูงสุด (ไม่คลิป) | 142 Vpeak |
| กระแสเอาต์พุตสูงสุด | 15.6 Apeak |
| โครงสร้างแอมป์ | Class-D |
| ระบบจ่ายไฟ | Universal Switching Mode Power Supply (SMPS) พร้อมระบบ PFC |
| แรงดันไฟฟ้าที่รองรับ | 90–264 VAC |
| ระบบระบายความร้อน | Passive Convection (ไม่ใช้พัดลม) |
| ระบบประมวลผลสัญญาณ | DSP ในตัว (Integrated DSP) |
| ระบบเครือข่ายเสียง (Audio Networking) | Dante™ / AES67 |
| คุณสมบัติเด่น | Auto Setup, Power Sharing, Remote Monitoring |
