Powersoft Quattrocanali 1204 DSP+D เพาเวอร์แอมป์ 4 แชนแนล
ราคา : 133,600 บาท
Description

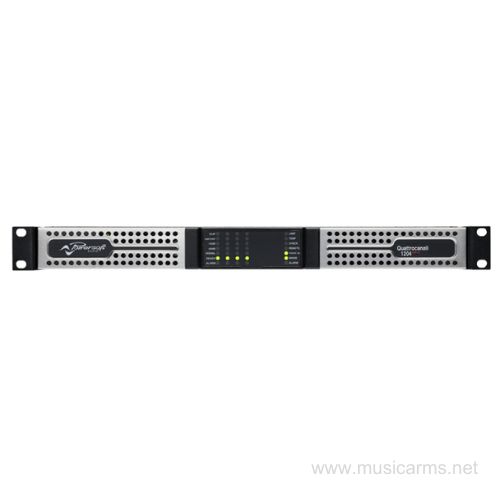

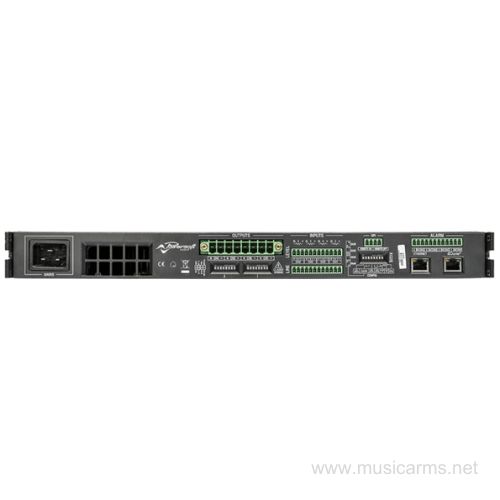

Powersoft Quattrocanali 1204 DSP+D: 4-Channel Power Amplifier with DSP and Dante
The Powersoft Quattrocanali 1204 DSP+D is a professional 4-channel amplifier designed for installed sound systems. Delivering a total of 1200W, it supports both low-impedance (Lo-Z) and 70V/100V distributed systems in a single unit. It is ideal for small to medium applications such as conference rooms, restaurants, hotels, and commercial buildings.
This model integrates both DSP and Dante networking, allowing full control, monitoring, and configuration via ArmoníaPlus and WebApp. It also features SRM (Smart Rail Management) technology to improve efficiency, reduce power consumption, and minimize heat, all within a compact 1RU design.
Key Features
- Total Output 1200W: Ideal for small to medium installations
- Lo-Z and 70V/100V Support: Flexible system compatibility
- Built-in DSP: Advanced audio processing
- Dante Networking: Seamless integration with network audio systems
- Software Control: Managed via ArmoníaPlus and WebApp
DSP Features
- Parametric EQ
- Delay (time alignment)
- Limiter
Power Specifications
- 400W @ 2Ω per channel
- 300W @ 4Ω / 8Ω per channel
- Bridge Mode: 800W @ 4Ω / 600W @ 8Ω
Protection Systems
- Clip protection
- Short circuit protection
- Thermal protection
Ideal Applications
- Conference rooms
- Restaurants and cafes
- Hotels and office buildings
- Networked audio systems (Dante)
Specifications Overview
- 4 Channels
- Total output: 1200W
- Supports 2Ω, 4Ω, 8Ω and 70V/100V
- Built-in DSP and Dante
- 1RU rack size
- Weight: approx. 7 kg
Conclusion
The Powersoft Quattrocanali 1204 DSP+D combines amplification, DSP, and Dante networking into one compact unit. It is an ideal solution for modern installations requiring flexibility, efficiency, and full network audio integration.
Specification
[Product Name] Details |
|
|---|---|
| Type | Power Amplifier |
| Number of Channels | 4 Channels |
| Output Power @ 2 Ohm | 400 W x 4 |
| Output Power @ 4 Ohm | 300 W x 4 |
| Output Power @ 8 Ohm | 300 W x 4 |
| Bridge Power @ 4 Ohm | 800 W |
| Bridge Power @ 8 Ohm | 600 W |
| Max Unclipped Output Voltage | 70 Vpeak |
| Max Output Current | 33 Apeak |
| Power Supply | Universal SMPS with PFC |
| Nominal Voltage | 100-240 V ±10% |
| Operating Voltage | 90 V – 264 V |
| Operating Temperature | 0° – 45°C |
ข้อมูลสินค้า
Powersoft Quattrocanali 1204 DSP+D: เพาเวอร์แอมป์ 4 แชนแนล พร้อม DSP และ Dante
Powersoft Quattrocanali 1204 DSP+D เป็นเพาเวอร์แอมป์ 4 แชนแนล สำหรับงานติดตั้งระบบเสียงระดับมืออาชีพ ให้กำลังขับรวม 1200 วัตต์ รองรับทั้งระบบ Low Impedance (Lo-Z) และระบบโวลต์ไลน์ 70V/100V ในเครื่องเดียว เหมาะสำหรับงานระบบเสียงขนาดเล็กถึงกลาง เช่น ห้องประชุม ร้านอาหาร โรงแรม และระบบเสียงภายในอาคาร
รุ่นนี้มาพร้อม DSP และ Dante ในตัว รองรับการควบคุม ปรับแต่ง และมอนิเตอร์ผ่าน ArmoníaPlus และ WebApp ได้แบบครบระบบ พร้อมเทคโนโลยี SRM (Smart Rail Management) ที่ช่วยเพิ่มประสิทธิภาพ ลดการใช้พลังงาน และลดความร้อน เหมาะสำหรับการติดตั้งใน Rack ขนาด 1RU
คุณสมบัติเด่น
- กำลังขับรวม 1200W: เหมาะสำหรับงานติดตั้งขนาดเล็กถึงกลาง
- รองรับ Lo-Z และ 70V/100V: ใช้งานได้หลากหลายในเครื่องเดียว
- DSP ในตัว: ปรับแต่งเสียงได้อย่างละเอียด
- Dante Networking: รองรับระบบเสียงผ่านเครือข่าย
- ควบคุมผ่าน Software: ใช้งานผ่าน ArmoníaPlus และ WebApp
ฟังก์ชัน DSP
- Parametric EQ
- Delay (Time Alignment)
- Limiter
สเปคกำลังขับ
- 400W @ 2Ω ต่อแชนแนล
- 300W @ 4Ω / 8Ω ต่อแชนแนล
- Bridge Mode: 800W @ 4Ω / 600W @ 8Ω
ระบบป้องกัน
- Clip Protection
- Short Circuit Protection
- Thermal Protection
เหมาะกับงานประเภท
- ห้องประชุม / Conference Room
- ร้านอาหาร / คาเฟ่
- โรงแรม / อาคารสำนักงาน
- ระบบเสียง Network Audio (Dante)
สเปคโดยสรุป
- 4 แชนแนล
- กำลังขับรวม 1200W
- รองรับ 2Ω, 4Ω, 8Ω และ 70V/100V
- มี DSP และ Dante ในตัว
- ขนาด 1RU
- น้ำหนักประมาณ 7 กก.
สรุป
Powersoft Quattrocanali 1204 DSP+D เป็นเพาเวอร์แอมป์ที่ผสานทั้ง DSP และ Dante ไว้ในเครื่องเดียว เหมาะสำหรับงานติดตั้งยุคใหม่ที่ต้องการระบบเสียงผ่านเครือข่าย พร้อมความเสถียร ประหยัดพลังงาน และการควบคุมที่ยืดหยุ่น
รายละเอียดคุณสมบัติ
[ชื่อสินค้า] รายละเอียด |
|
|---|---|
| ประเภท | เพาเวอร์แอมป์ |
| จำนวนแชนแนล | 4 แชนแนล |
| กำลังขับที่ 2 โอห์ม | 400 วัตต์ x 4 |
| กำลังขับที่ 4 โอห์ม | 300 วัตต์ x 4 |
| กำลังขับที่ 8 โอห์ม | 300 วัตต์ x 4 |
| กำลังขับแบบบริดจ์ 4 โอห์ม | 800 วัตต์ |
| กำลังขับแบบบริดจ์ 8 โอห์ม | 600 วัตต์ |
| แรงดันเอาต์พุตสูงสุด | 70 Vpeak |
| กระแสเอาต์พุตสูงสุด | 33 Apeak |
| ภาคจ่ายไฟ | Switch Mode Power Supply พร้อม PFC |
| แรงดันไฟฟ้า (Nominal) | 100-240V ±10% |
| ช่วงแรงดันใช้งาน | 90V – 264V |
| อุณหภูมิการทำงาน | 0° – 45°C |
