Powersoft Quattrocanali 2404 DSP+D เพาเวอร์แอมป์ 4 แชนแนล
ราคา : 164,000 บาท
Description

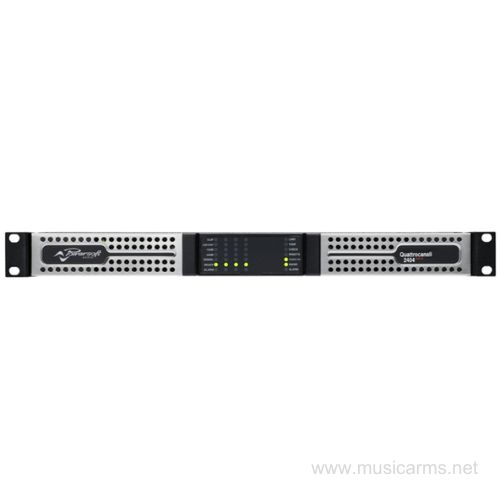

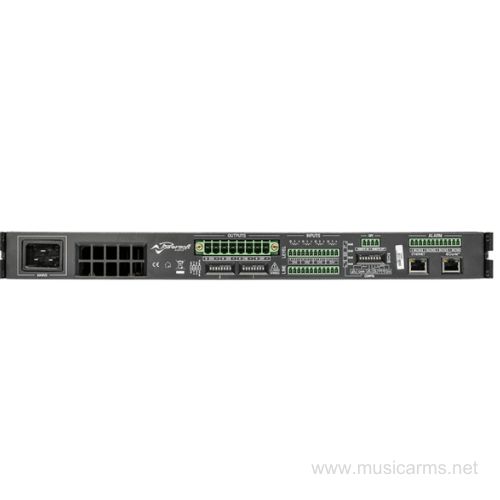

Powersoft Quattrocanali 2404 DSP+D: 4-Channel Power Amplifier with DSP, Dante, and AES67
The Powersoft Quattrocanali 2404 DSP+D is a professional 4-channel amplifier designed for installed sound systems. Delivering a total of 2400W, it supports both low-impedance (Lo-Z) and 70V/100V distributed systems in a single unit. It is ideal for small to medium installations such as conference rooms, restaurants, hotels, and commercial buildings.
This model integrates DSP and Dante networking, along with AES67 compatibility for standard network audio interoperability. It allows full control, monitoring, and configuration via ArmoníaPlus and WebApp. The built-in SRM (Smart Rail Management) technology enhances efficiency, reduces power consumption, and minimizes heat in a compact 1RU form factor.
Key Features
- Total Output 2400W: Ideal for small to medium installations
- Lo-Z and 70V/100V Support: Flexible system compatibility
- Built-in DSP: Advanced audio processing
- Dante + AES67: Professional network audio integration
- Software Control: Managed via ArmoníaPlus and WebApp
DSP Features
- Parametric EQ
- Delay (time alignment)
- Limiter
Power Specifications
- 800W @ 2Ω per channel
- 600W @ 4Ω / 8Ω per channel
- Bridge Mode: 1600W @ 4Ω
Protection Systems
- Clip protection
- Short circuit protection
- Thermal protection
Ideal Applications
- Conference rooms
- Restaurants and cafes
- Hotels and office buildings
- Networked audio systems (Dante / AES67)
Specifications Overview
- 4 Channels
- Total output: 2400W
- Supports 2Ω, 4Ω, 8Ω and 70V/100V
- Built-in DSP, Dante, and AES67
- 1RU rack size
- Weight: approx. 7 kg
Conclusion
The Powersoft Quattrocanali 2404 DSP+D combines powerful amplification with advanced DSP and network audio capabilities. With Dante and AES67 support, it is a flexible and future-ready solution for modern installed sound systems.
Specification
[Product Name] Details |
|
|---|---|
| Type | Power Amplifier |
| Number of Channels | 4 Channels |
| Output Power @ 2 Ohm | 800 W x 4 |
| Output Power @ 4 Ohm | 600 W x 4 |
| Output Power @ 8 Ohm | 600 W x 4 |
| Bridge Power @ 4 Ohm | 1600 W |
| Bridge Power @ 8 Ohm | 1200 W |
| Max Unclipped Output Voltage | 100 Vpeak |
| Max Output Current | 45 Apeak |
| Power Supply | Universal SMPS with PFC |
| Nominal Voltage | 100-240 V ±10% |
| Operating Voltage | 90 V – 264 V |
| Operating Temperature | 0° – 45°C |
ข้อมูลสินค้า
Powersoft Quattrocanali 2404 DSP+D: เพาเวอร์แอมป์ 4 แชนแนล พร้อม DSP และ Dante
Powersoft Quattrocanali 2404 DSP+D เป็นเพาเวอร์แอมป์ 4 แชนแนล สำหรับงานติดตั้งระบบเสียงระดับมืออาชีพ ให้กำลังขับรวม 2400 วัตต์ รองรับทั้งระบบ Low Impedance (Lo-Z) และระบบโวลต์ไลน์ 70V/100V ในเครื่องเดียว เหมาะสำหรับงานระบบเสียงขนาดเล็กถึงกลาง เช่น ห้องประชุม ร้านอาหาร โรงแรม และระบบเสียงภายในอาคาร
รุ่นนี้มาพร้อม DSP และ Dante ในตัว รองรับการควบคุม ปรับแต่ง และมอนิเตอร์ผ่าน ArmoníaPlus และ WebApp ได้แบบครบระบบ พร้อมรองรับ AES67 สำหรับการเชื่อมต่อ Network Audio แบบมาตรฐาน และมีเทคโนโลยี SRM (Smart Rail Management) ที่ช่วยเพิ่มประสิทธิภาพ ลดการใช้พลังงาน และลดความร้อน เหมาะสำหรับการติดตั้งใน Rack ขนาด 1RU
คุณสมบัติเด่น
- กำลังขับรวม 2400W: รองรับงานติดตั้งขนาดเล็กถึงกลาง
- รองรับ Lo-Z และ 70V/100V: ใช้งานได้หลากหลายในเครื่องเดียว
- DSP ในตัว: ปรับแต่งเสียงได้ละเอียด
- Dante + AES67: รองรับระบบเสียงผ่านเครือข่ายระดับมืออาชีพ
- ควบคุมผ่าน Software: ใช้งานผ่าน ArmoníaPlus และ WebApp
ฟังก์ชัน DSP
- Parametric EQ
- Delay (Time Alignment)
- Limiter
สเปคกำลังขับ
- 800W @ 2Ω ต่อแชนแนล
- 600W @ 4Ω / 8Ω ต่อแชนแนล
- Bridge Mode: 1600W @ 4Ω
ระบบป้องกัน
- Clip Protection
- Short Circuit Protection
- Thermal Protection
เหมาะกับงานประเภท
- ห้องประชุม / Conference Room
- ร้านอาหาร / คาเฟ่
- โรงแรม / อาคารสำนักงาน
- ระบบเสียง Network Audio (Dante / AES67)
สเปคโดยสรุป
- 4 แชนแนล
- กำลังขับรวม 2400W
- รองรับ 2Ω, 4Ω, 8Ω และ 70V/100V
- มี DSP และ Dante / AES67 ในตัว
- ขนาด 1RU
- น้ำหนักประมาณ 7 กก.
สรุป
Powersoft Quattrocanali 2404 DSP+D เป็นเพาเวอร์แอมป์ที่ผสานกำลังขับที่เพียงพอสำหรับงานติดตั้ง พร้อม DSP และระบบ Network Audio อย่าง Dante และ AES67 เหมาะสำหรับระบบเสียงยุคใหม่ที่ต้องการความยืดหยุ่น ประสิทธิภาพ และการควบคุมแบบรวมศูนย์
รายละเอียดคุณสมบัติ
[ชื่อสินค้า] รายละเอียด |
|
|---|---|
| ประเภท | เพาเวอร์แอมป์ |
| จำนวนแชนแนล | 4 แชนแนล |
| กำลังขับที่ 2 โอห์ม | 800 วัตต์ x 4 |
| กำลังขับที่ 4 โอห์ม | 600 วัตต์ x 4 |
| กำลังขับที่ 8 โอห์ม | 600 วัตต์ x 4 |
| กำลังขับแบบบริดจ์ 4 โอห์ม | 1600 วัตต์ |
| กำลังขับแบบบริดจ์ 8 โอห์ม | 1200 วัตต์ |
| แรงดันเอาต์พุตสูงสุด | 100 Vpeak |
| กระแสเอาต์พุตสูงสุด | 45 Apeak |
| ภาคจ่ายไฟ | Switch Mode Power Supply พร้อม PFC |
| แรงดันไฟฟ้า (Nominal) | 100-240V ±10% |
| ช่วงแรงดันใช้งาน | 90V – 264V |
| อุณหภูมิการทำงาน | 0° – 45°C |
