Powersoft Unica 4L 9K4 Amplifier
ราคา : 298,720 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description

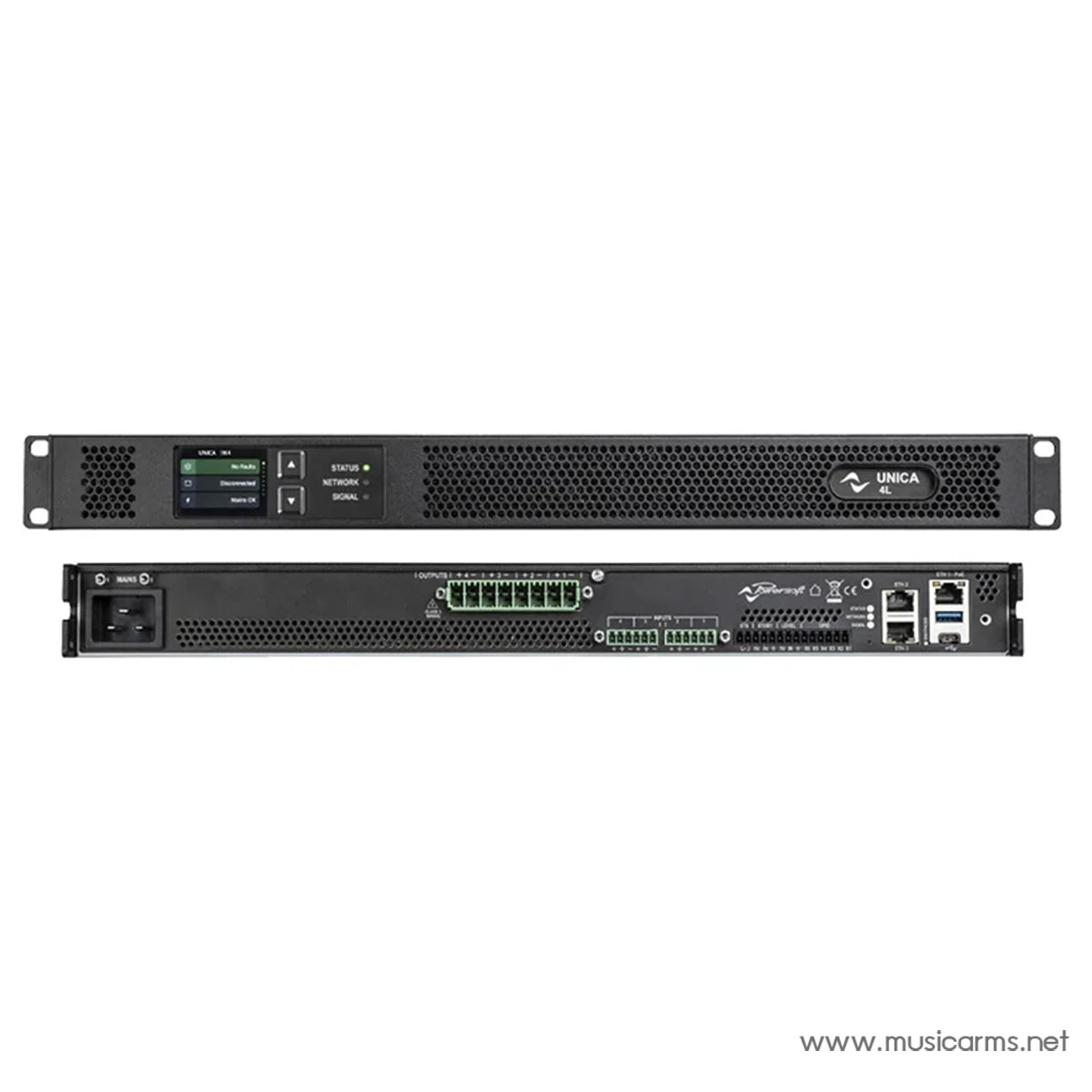

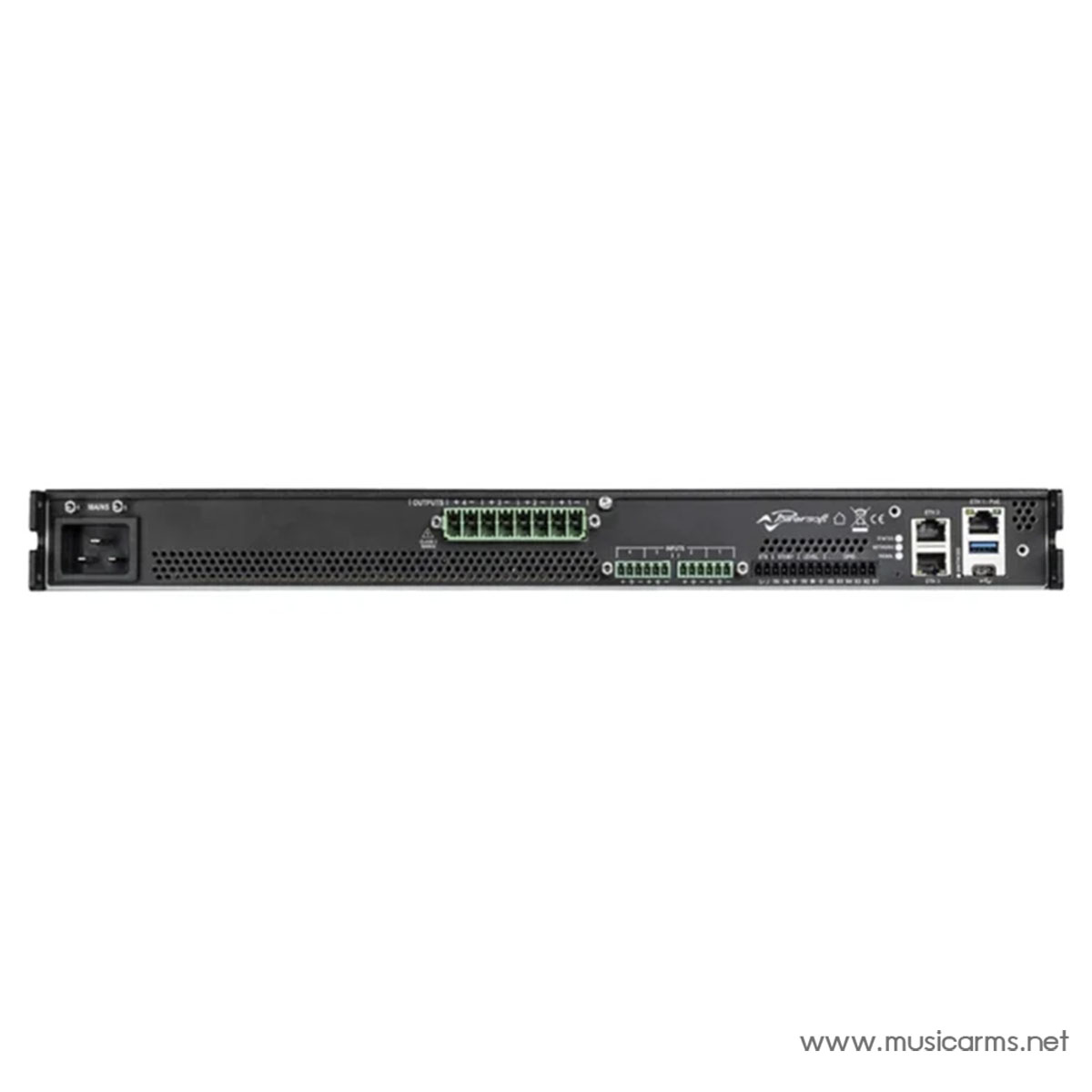

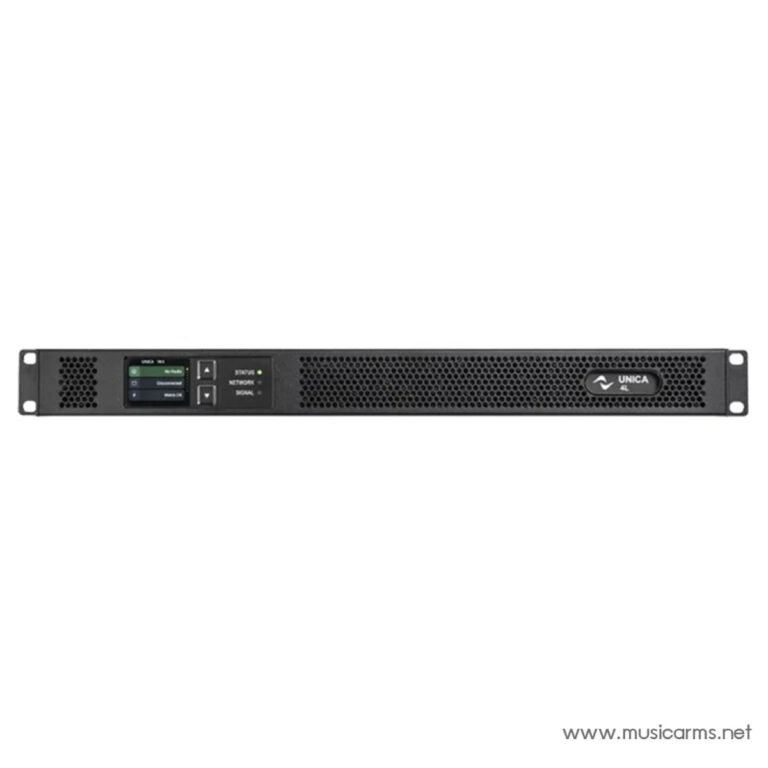

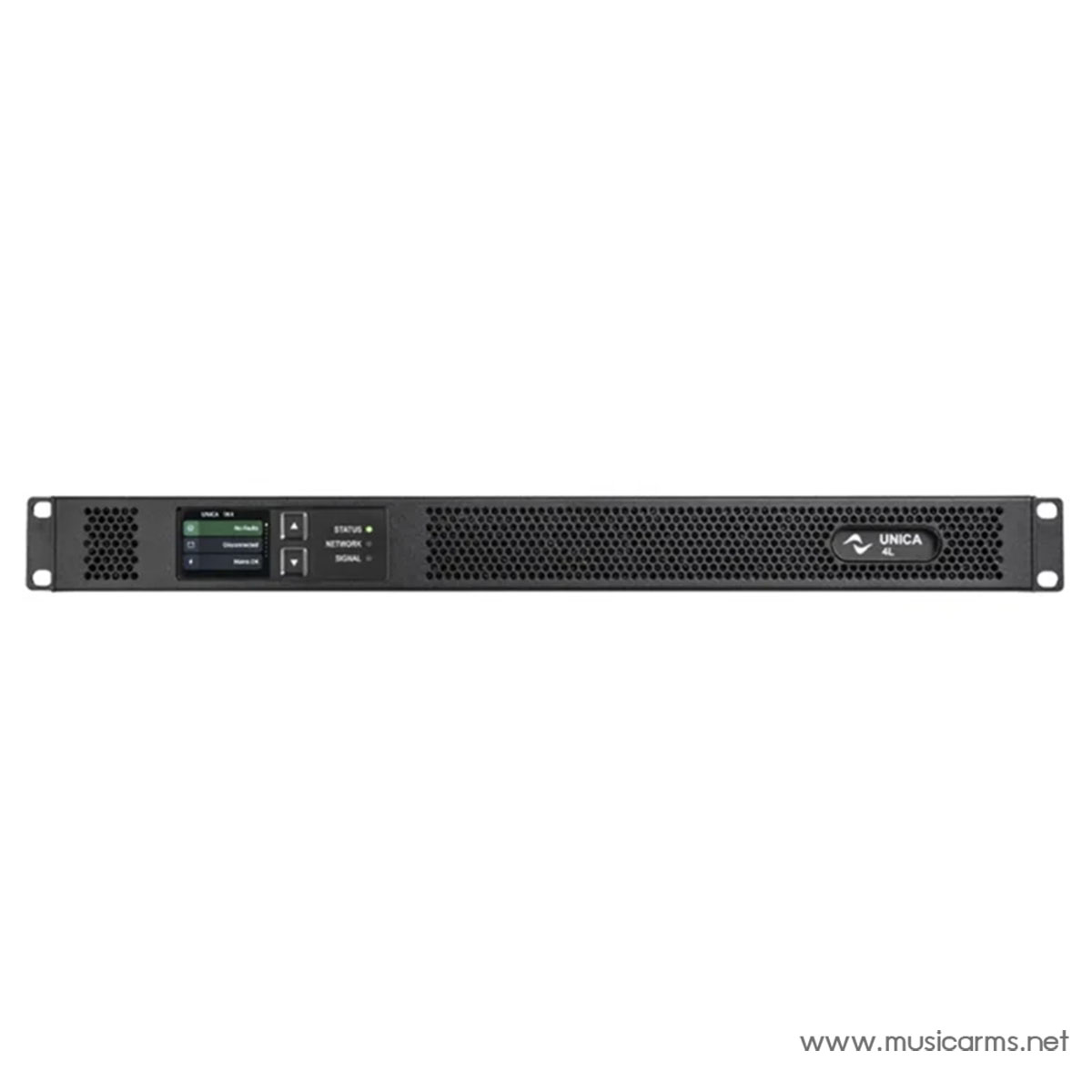

Powersoft Unica 4L|9K4: 4-Channel Amplifier with 3rd Generation Technology and Native Cloud Integration
The Powersoft Unica 4L|9K4 amplifier represents the pinnacle of 4-channel amplification innovation, designed to effortlessly manage complex audio systems. It features the advanced **Powersoft 3rd Generation amplification technology** coupled with a high-level processing and amplification architecture, delivering maximum sound quality along with absolute stability and flexibility in operation. The completely redesigned power supply boasts exceptionally high efficiency, significantly reducing heat dissipation and minimizing fan noise. This makes the Unica 4L a powerful, quiet, and energy-efficient solution for both permanent installations and live applications. Crucially, it provides high output power, up to 2250W @ 4 Ω per channel, and supports driving 70/100V lines or low impedance loads down to 2 Ohms without manual mode switching.
Key Features
- Dynamic Power Sharing and Versatility: The new Power Sharing system allows each channel to deliver up to double its maximum power under asymmetric loading. It seamlessly supports 70/100V speaker lines and 2 Ω low impedance loads without requiring a mode change.
- AoIP and Native Cloud Connectivity: Supports Audio over IP (AoIP) via **Dante and AES67**, featuring three 1Gb Ethernet ports to enable Dante redundancy while keeping Control and AoIP signals separate. It also includes native **Universo Cloud** integration for remote monitoring, data backup, and firmware updates.
- PoE+ Driven DSP and Control: The full DSP functionality remains accessible and operational even when powered solely by the **PoE+ input**. This allows convenient pre-configuration, system control, and loudspeaker monitoring even when the main utility power is unavailable.
The Intelligent Heart of Modern Audio Systems
The Powersoft Unica 4L is the perfect fusion of immense power, digital precision, and cutting-edge connectivity. With support for **ArmoníaPlus Software** for comprehensive control, the **Easy Swap** feature for quick system configuration recovery via USB, and native cloud integration, this amplifier is not just a power source, but the intelligent and flexible core of any modern audio installation demanding high performance and reliability.
Specification
Powersoft Unica 4L Specifications |
|
|---|---|
Output Power |
|
| Output power per Channel | 2000 W @ 2 Ω / 2250 W @ 4 Ω / 1600 W @ 8 Ω |
| Bridge mode Power | 4000 W @ 4 Ω / 4500 W @ 8 Ω |
| Max output voltage / current | Max unclipped voltage: 170 $V_{peak}$ / Current: 60 $A_{peak}$ |
AC Main Power |
|
| Power supply | Universal Switch-Mode with PFC |
| Nominal requirement | 100–240 V ±10%, 50–60 Hz |
| Operating voltage | 80–265 V |
| Power consumption Idle (115 V / 230 V) | 55 W – 0.65 A / 62 W – 0.52 A |
| Power consumption 1/8 Max Power @ 4 Ω (115 V / 230 V) | 1463 W – 13.1 A / 1450 W – 6.6 A |
Thermal |
|
| Operating temperature | 0° – 45°C (32° – 113°F) |
| Thermal dissipation Idle (115 V / 230 V) | 190 BTU/h / 211 BTU/h |
| Thermal dissipation 1/8 Max Power @ 4 Ω (115 V / 230 V) | 1147 BTU/h / 1108 BTU/h |
ข้อมูลสินค้า
Powersoft Unica 4L|9K4: เพาเวอร์แอมป์ 4 แชนเนล พร้อมเทคโนโลยีแอมพลิฟายเออร์เจเนอเรชันที่ 3 และการเชื่อมต่อคลาวด์แบบเนทีฟ
เพาเวอร์แอมป์ Powersoft Unica 4L|9K4 คือที่สุดแห่งนวัตกรรมแอมพลิฟายเออร์ 4 แชนเนลที่ออกแบบมาเพื่อรองรับงานระบบเสียงที่มีความซับซ้อนได้อย่างเหนือชั้น ด้วยการนำเสนอเทคโนโลยีแอมพลิฟายเออร์ **Powersoft 3rd Generation** พร้อมสถาปัตยกรรมการประมวลผลและการขยายเสียงระดับสูง ซึ่งให้คุณภาพเสียงสูงสุด ควบคู่ไปกับความเสถียรและความยืดหยุ่นในการทำงานอย่างแท้จริง ภาคจ่ายไฟถูกดีไซน์ใหม่ทั้งหมดเพื่อให้มีประสิทธิภาพสูง ลดความร้อนสูญเสียลงได้อย่างมาก และลดเสียงพัดลมที่รบกวนได้มากที่สุด ทำให้ Unica 4L เป็นโซลูชันที่ทรงพลัง เงียบ และประหยัดพลังงานสำหรับการติดตั้งระบบเสียงถาวรและงานแสดงสด โดยยังสามารถให้กำลังขับสูงถึง 2250W @ 4 Ω ต่อช่อง และรองรับการทำงานกับลำโพงความต้านทานต่ำได้ถึง 2 โอห์มโดยไม่ต้องสลับโหมดใด ๆ.
คุณสมบัติเด่น
- ระบบ Power Sharing ขั้นสูง: ระบบ Power Sharing แบบใหม่ช่วยให้แต่ละช่องสามารถจ่ายกำลังได้สูงสุดเป็นสองเท่าเมื่อโหลดแบบอสมมาตร (Asymmetric load) พร้อมรองรับลำโพง 70/100V และลำโพงความต้านทานต่ำได้ถึง 2 โอห์มโดยไม่ต้องสลับโหมด
- การเชื่อมต่อ AoIP และ Cloud แบบเนทีฟ: รองรับ Audio over IP (AoIP) ผ่าน **Dante และ AES67** โดยมี 3 พอร์ต Ethernet สำหรับรองรับ Dante redundancy และแยกสัญญาณ Control กับ AoIP ได้อย่างอิสระ รวมถึงการเชื่อมต่อคลาวด์ผ่าน **Universo Cloud** สำหรับการมอนิเตอร์และจัดการระบบจากระยะไกล
- การทำงานของ DSP แม้ใช้ไฟ PoE+: ฟังก์ชัน DSP สามารถทำงานได้แม้ใช้พลังงานจาก **PoE+ input** เพียงอย่างเดียว ซึ่งมีความสำคัญอย่างยิ่งในการตั้งค่าระบบล่วงหน้า (Pre-configuration), การควบคุม และการมอนิเตอร์ลำโพงได้อย่างสะดวก แม้ในขณะที่ไฟหลักบ้านดับ (Eco Mode จะช่วยประหยัดพลังงานเมื่อไม่มีสัญญาณ)
ขุมพลังที่ฉลาดที่สุดสำหรับระบบเสียงยุคใหม่
Powersoft Unica 4L คือการผสมผสานที่ลงตัวระหว่างขุมพลังมหาศาล ความแม่นยำทางดิจิทัล และความสามารถในการเชื่อมต่อที่ล้ำสมัย ด้วยการสนับสนุนซอฟต์แวร์ **ArmoníaPlus** สำหรับการควบคุมและตั้งค่าทั้งหมด ฟังก์ชัน **Easy Swap** สำหรับการกู้คืนการตั้งค่าระบบอย่างรวดเร็ว และการเชื่อมต่อคลาวด์ผ่าน Universo Cloud ทำให้แอมป์ตัวนี้ไม่เป็นเพียงแค่เครื่องขยายเสียง แต่เป็นหัวใจสำคัญที่ชาญฉลาดและยืดหยุ่นของระบบเสียงที่ทันสมัย.
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะทางเทคนิค Powersoft Unica 4L |
|
|---|---|
กำลังขับ (Output Power) |
|
| กำลังขับต่อช่อง (Output per Channel) | 2000 W @ 2 Ω / 2250 W @ 4 Ω / 1600 W @ 8 Ω |
| กำลังขับโหมด Bridge (Bridge mode) | 4000 W @ 4 Ω / 4500 W @ 8 Ω |
| แรงดัน/กระแสเอาต์พุตสูงสุด | แรงดันสูงสุด (Max unclipped voltage): 170 $V_{peak}$ / กระแสสูงสุด (Current): 60 $A_{peak}$ |
พลังงานไฟฟ้าหลัก (AC Main Power) |
|
| แหล่งจ่ายไฟ | Universal Switch-Mode with PFC |
| แรงดันไฟฟ้าใช้งานปกติ | 100–240 V ±10%, 50–60 Hz |
| ช่วงแรงดันไฟฟ้าที่รองรับ (Operating Voltage) | 80–265 V |
| การใช้พลังงานขณะ Idle (115 V / 230 V) | 55 W – 0.65 A / 62 W – 0.52 A |
| การใช้พลังงาน 1/8 Max Power @ 4 Ω (115 V / 230 V) | 1463 W – 13.1 A / 1450 W – 6.6 A |
ข้อมูลความร้อน (Thermal) |
|
| อุณหภูมิใช้งาน (Operating Temperature) | 0° – 45°C (32° – 113°F) |
| การระบายความร้อนขณะ Idle (115 V / 230 V) | 190 BTU/h / 211 BTU/h |
| การระบายความร้อน 1/8 Max Power @ 4 Ω (115 V / 230 V) | 1147 BTU/h / 1108 BTU/h |
