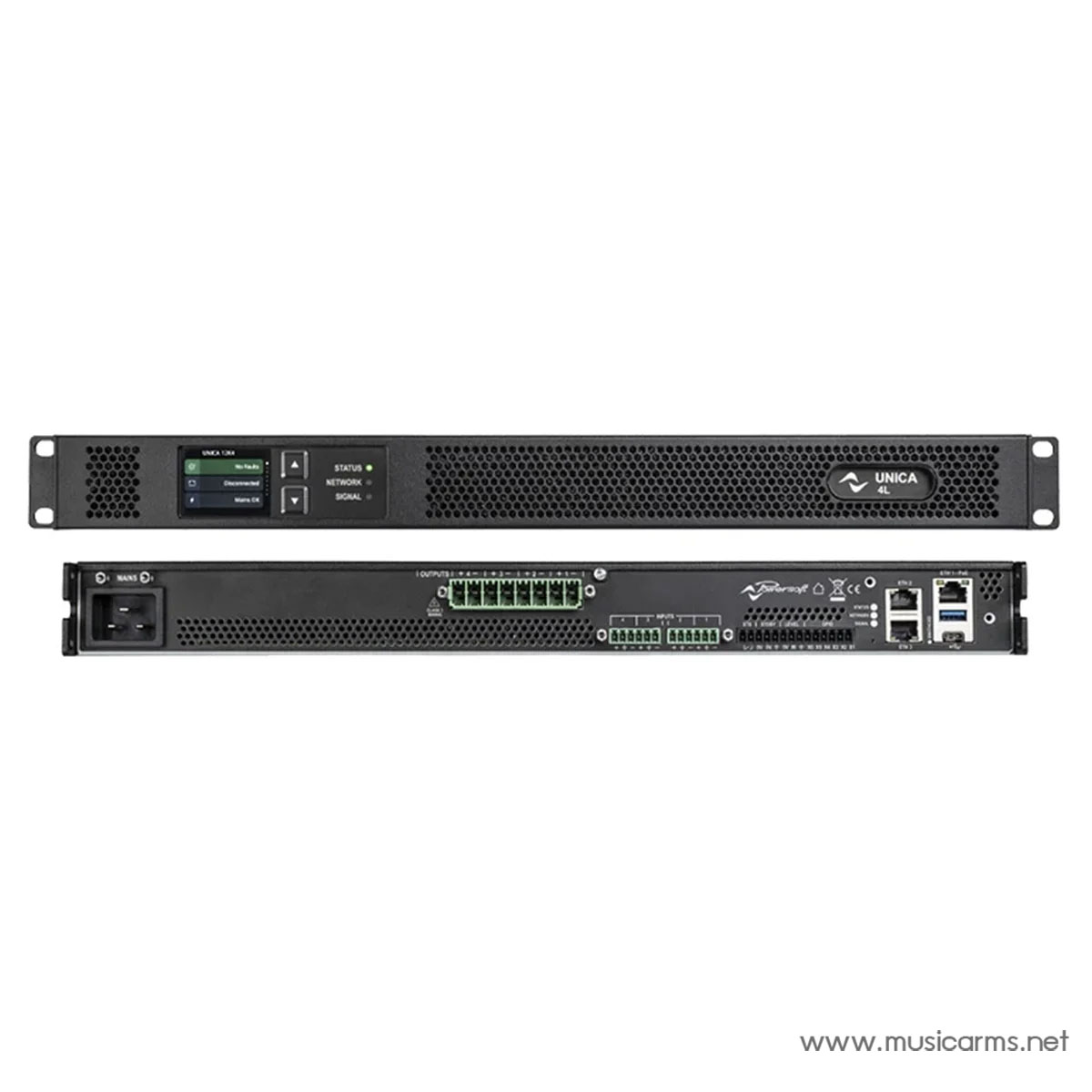

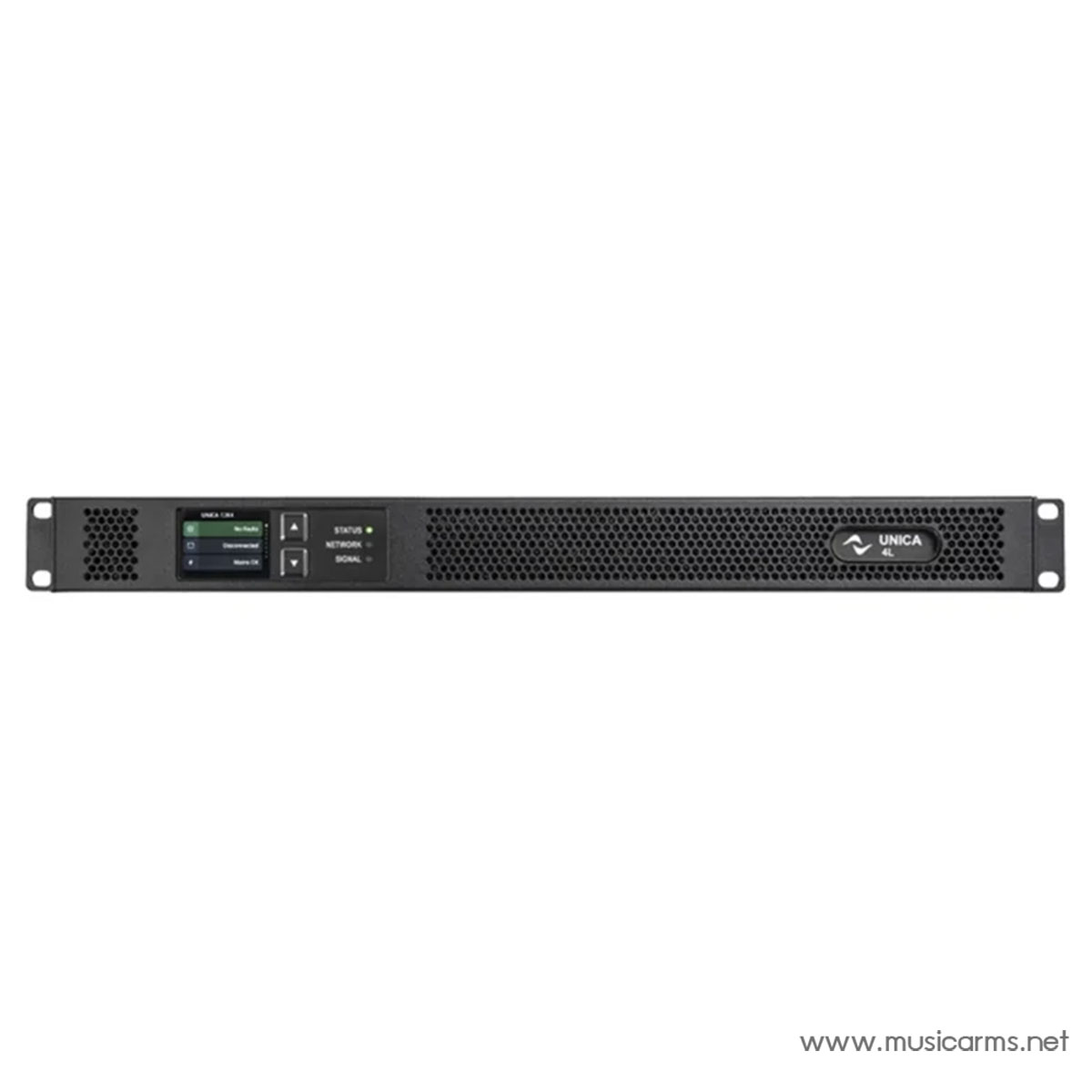

Powersoft Unica 4L 12K4 Amplifier
ราคา : 347,600 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Powersoft Unica 4L|12K4 Amplifier: The 4-Channel Powerhouse with 3rd Generation Technology and IoT Cloud Integration
The Powersoft Unica 4L|12K4 amplifier is the ultimate innovation in 4-channel amplifiers, featuring the cutting-edge **Powersoft 3rd Generation amplification technology**. This technology delivers maximum power output, superior signal processing efficiency, and exceptional stability for complex and highly demanding audio systems. With outstanding per-channel output power reaching **3000 W @ 2/4 Ω**, and a completely redesigned power supply that significantly boosts efficiency, reduces heat loss, and minimizes fan noise, the Unica 4L is a powerful, quiet, and reliable solution. This model marks a significant step for Powersoft into the IoT space, offering native cloud connectivity via **Universo Cloud** for remote monitoring and system management. Crucially, it supports Audio over IP (AoIP) through **Dante and AES67** with three Ethernet ports to enable Dante redundancy, establishing the Unica 4L as the intelligent and robust core for modern audio infrastructure that demands complete network manageability.
Key Features
- Advanced Power Sharing System: The Power Sharing system allows each channel to deliver up to double its maximum power under asymmetric load, supporting both 70/100V lines and low impedance loads down to 2 Ohms without requiring any mode switching. Bridge mode is also fully supported.
- PoE-Powered DSP Functionality: The full DSP section can operate and process signals solely on **PoE+ Input** power. This is critical for pre-installation system setup, control, and essential loudspeaker monitoring even in situations where main AC power is unavailable.
- Networking and Universo Cloud Integration: Features three 1Gb Ethernet ports supporting Dante-redundant and separate Control / Dante-AES67 traffic management. It connects natively to the **Universo Cloud** for remote status monitoring, data backup, and firmware updates from anywhere.
The New Standard for Power and Network Management in Professional Audio
The Powersoft Unica 4L|12K4 is an intelligent amplification system equipped with a comprehensive suite of management tools for large-scale audio setups. Combining immense power output with precise control via **ArmoníaPlus Software**, energy savings through **Eco Mode**, and easy maintenance with **Easy Swap** configuration recovery, the Unica 4L is a valuable investment for fixed installations that require maximum efficiency, performance, and long-term reliability.
Specification
Powersoft Unica 4L|12K4 Technical Specifications |
|
|---|---|
Output Power |
|
| Output power per Channel | 3000 W @ 2 Ω / 3000 W @ 4 Ω / 2000 W @ 8 Ω |
| Bridge mode Power | 6000 W @ 4 Ω / 6000 W @ 8 Ω |
| Max output voltage / current | Max unclipped voltage: 195 $V_{peak}$ / Current: 70 $A_{peak}$ |
AC Main Power |
|
| Power supply | Universal Switch Mode with PFC |
| Nominal requirement | 100–240 V ±10%, 50–60 Hz |
| Operating voltage | 80–265 V |
| Power consumption Idle (115 V / 230 V) | 55 W – 0.65 A / 62 W – 0.52 A |
| Power consumption 1/8 Max Power @ 4 Ω (115 V / 230 V) | 1951 W – 17.5 A / 1940 W – 8.8 A |
Thermal |
|
| Operating temperature | 0° – 45°C (32° – 113°F) |
| Thermal dissipation Idle (115 V / 230 V) | 190 BTU/h / 211 BTU/h |
| Thermal dissipation 1/8 Max Power @ 4 Ω (115 V / 230 V) | 1528 BTU/h / 1500 BTU/h |
ข้อมูลสินค้า
Powersoft Unica 4L|12K4 Amplifier: ขุมพลัง 4 แชนเนล พร้อมเทคโนโลยีแอมพลิฟายเออร์เจเนอเรชันที่ 3 และการเชื่อมต่อคลาวด์แบบ IoT
เพาเวอร์แอมป์ Powersoft Unica 4L|12K4 คือนวัตกรรมขั้นสูงสุดของแอมพลิฟายเออร์ 4 แชนเนลที่มาพร้อมกับเทคโนโลยี **Powersoft 3rd Generation amplification technology** ซึ่งมอบทั้งกำลังขับสูงสุด ประสิทธิภาพในการประมวลผลสัญญาณที่เหนือกว่า และความเสถียรไร้ที่ติสำหรับงานระบบเสียงที่ซับซ้อนและต้องการความยืดหยุ่นสูงเป็นพิเศษ ด้วยกำลังขับที่โดดเด่นถึง **3000 W @ 2/4 Ω** ต่อช่อง และภาคจ่ายไฟที่ได้รับการออกแบบใหม่ทั้งหมดเพื่อเพิ่มประสิทธิภาพ ลดการสูญเสียพลังงานเป็นความร้อน และลดเสียงรบกวนจากพัดลมได้อย่างมาก รุ่นนี้จึงเป็นก้าวสำคัญของ Powersoft ในด้าน IoT โดยรองรับการเชื่อมต่อคลาวด์แบบเนทีฟผ่าน **Universo Cloud** สำหรับการมอนิเตอร์และจัดการระบบจากระยะไกล อีกทั้งยังรองรับ Audio over IP (AoIP) ผ่าน **Dante และ AES67** โดยมีพอร์ต Ethernet ถึง 3 ช่อง เพื่อรองรับ Dante redundancy ทำให้ Unica 4L เป็นหัวใจที่ชาญฉลาดและทรงพลังสำหรับระบบเสียงยุคใหม่ที่ต้องการการจัดการผ่านเครือข่ายที่สมบูรณ์แบบ.
คุณสมบัติเด่น
- ระบบ Power Sharing ขั้นสูง: ระบบ Power Sharing ช่วยให้แต่ละช่องสามารถจ่ายกำลังได้สูงสุดถึงสองเท่าเมื่อเกิดโหลดอสมมาตร (Asymmetric Load) พร้อมรองรับทั้งลำโพง 70/100V และลำโพงความต้านทานต่ำถึง 2 โอห์มโดยไม่จำเป็นต้องสลับโหมดใด ๆ
- PoE Input และ DSP อัจฉริยะ: ส่วน DSP สามารถทำงานและประมวลผลได้แม้ใช้พลังงานจาก **PoE+ Input** เพียงอย่างเดียว ซึ่งช่วยในการตั้งค่าระบบล่วงหน้า การควบคุม และการมอนิเตอร์ลำโพงได้ แม้ในสถานการณ์ที่ไฟหลักดับ
- Networking และ Universo Cloud: มีพอร์ต 1Gb จำนวน 3 พอร์ต รองรับ Dante-redundant และสามารถแยกสัญญาณ Control / Dante-AES67 เพื่อบริหารทราฟฟิกเครือข่ายอย่างมีประสิทธิภาพ พร้อมเชื่อมต่อ **Universo Cloud** สำหรับการมอนิเตอร์และจัดการสถานะแอมป์จากที่ใดก็ได้
มาตรฐานใหม่ของการจัดการพลังงานและเครือข่ายในระบบเสียงระดับมืออาชีพ
Powersoft Unica 4L|12K4 คือระบบขยายเสียงอัจฉริยะที่มาพร้อมเครื่องมือครบครันสำหรับการจัดการระบบเสียงขนาดใหญ่ ด้วยความสามารถในการให้กำลังขับมหาศาล ควบคู่ไปกับการควบคุมที่ละเอียดผ่าน **ArmoníaPlus Software** ฟังก์ชัน **Eco Mode** เพื่อการประหยัดพลังงาน และ **Easy Swap** เพื่อความสะดวกในการบำรุงรักษา ทำให้ Unica 4L เป็นการลงทุนที่คุ้มค่าสำหรับระบบเสียงติดตั้งถาวรที่ต้องการทั้งประสิทธิภาพสูงสุดและความน่าเชื่อถือในระยะยาว.
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะทางเทคนิค Powersoft Unica 4L|12K4 |
|
|---|---|
กำลังขับ (Output Power) |
|
| กำลังขับต่อช่อง (Output per Channel) | 3000 W @ 2 Ω / 3000 W @ 4 Ω / 2000 W @ 8 Ω |
| กำลังขับโหมด Bridge (Bridge mode) | 6000 W @ 4 Ω / 6000 W @ 8 Ω |
| แรงดัน/กระแสเอาต์พุตสูงสุด | แรงดันสูงสุด (Max unclipped voltage): 195 $V_{peak}$ / กระแสสูงสุด (Current): 70 $A_{peak}$ |
พลังงานไฟฟ้าหลัก (AC Main Power) |
|
| แหล่งจ่ายไฟ | Universal Switch Mode with PFC |
| แรงดันไฟฟ้าใช้งานปกติ | 100–240 V ±10%, 50–60 Hz |
| ช่วงแรงดันไฟฟ้าที่รองรับ (Operating Voltage) | 80–265 V |
| การใช้พลังงานขณะ Idle (115 V / 230 V) | 55 W – 0.65 A / 62 W – 0.52 A |
| การใช้พลังงาน 1/8 Max Power @ 4 Ω (115 V / 230 V) | 1951 W – 17.5 A / 1940 W – 8.8 A |
ข้อมูลความร้อน (Thermal) |
|
| อุณหภูมิใช้งาน (Operating Temperature) | 0° – 45°C (32° – 113°F) |
| การระบายความร้อนขณะ Idle (115 V / 230 V) | 190 BTU/h / 211 BTU/h |
| การระบายความร้อน 1/8 Max Power @ 4 Ω (115 V / 230 V) | 1528 BTU/h / 1500 BTU/h |
