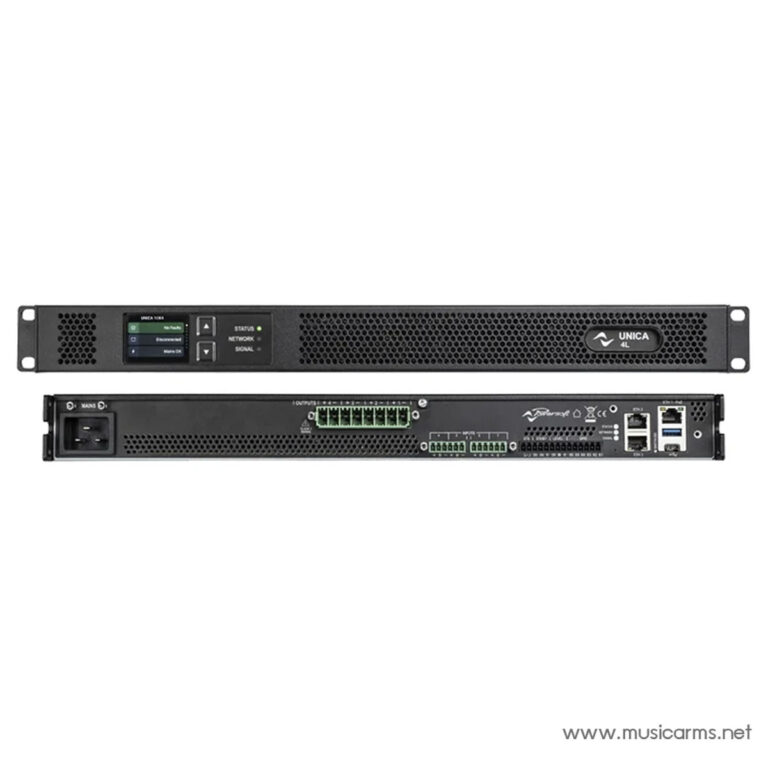

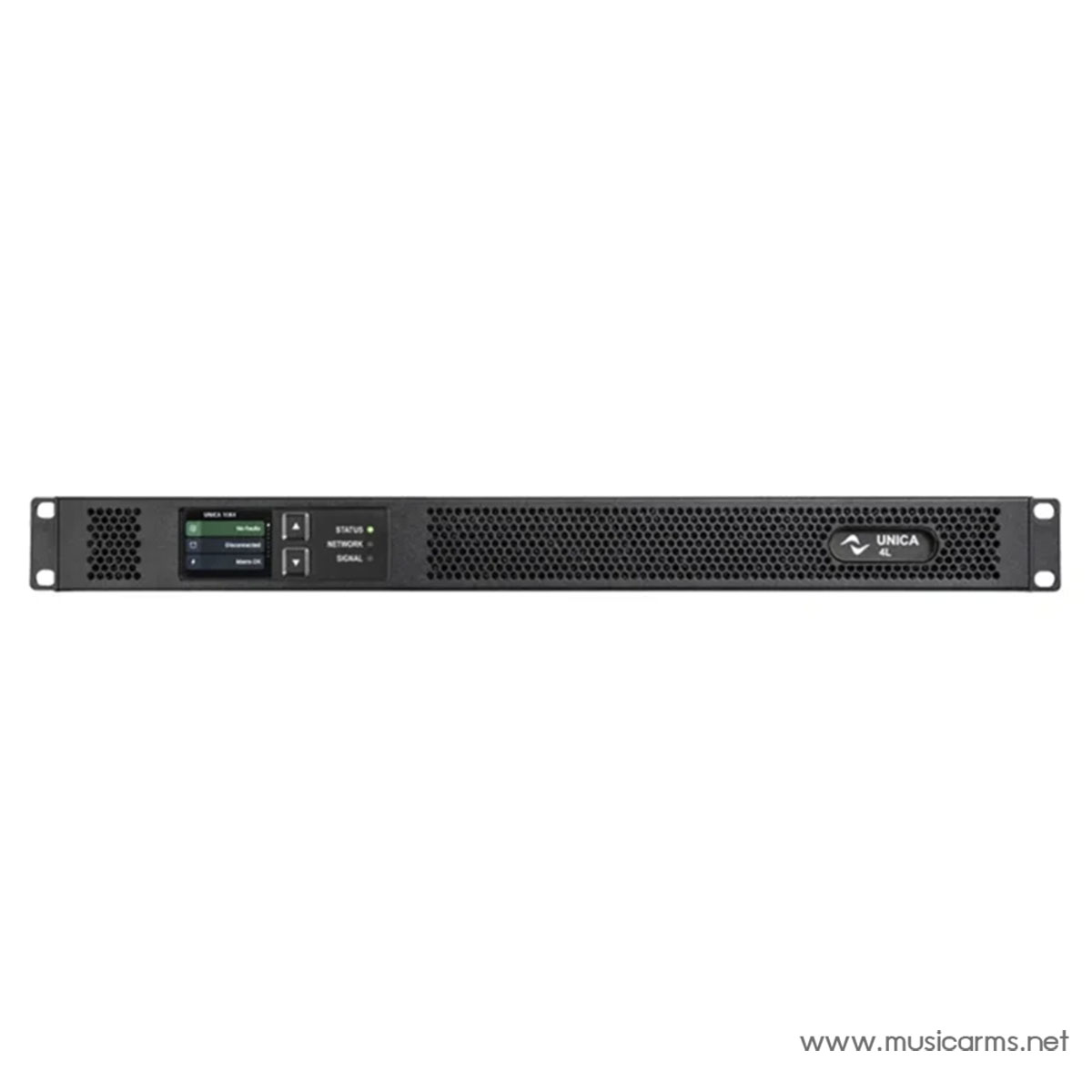

Powersoft Unica 4L 16K4 Amplifier
ราคา : 484,380 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Powersoft Unica 4L 16K4 Amplifier: 4-Channel Powerhouse with 3rd Generation Amplification Technology
The Powersoft Unica 4L 16K4 is a state-of-the-art 4-channel amplifier that seamlessly blends immense power with next-generation digital technology. Built upon the revolutionary Powersoft 3rd Generation amplification architecture, the Unica delivers maximum audio performance, superior stability, and dramatically reduced thermal energy loss. This amplifier is the complete solution for complex professional audio systems, featuring Audio over IP (AoIP) via Dante and AES67, and marking a major step forward in Powersoft’s IoT strategy with native support for Universo Cloud for real-time monitoring and management.
| Powersoft Unica 4L 16K4 Key Specifications | |
|---|---|
| Channels | 4 Channels |
| Power Output per Channel (2 Ω) | 4000 W |
| Power Output per Channel (4 Ω) | 4000 W |
| Power Output per Channel (8 Ω) | 2500 W |
Key Features
- Powersoft 3rd Generation Amplification: High-end processing and amplification architecture ensuring maximum sonic performance, stability, and a new power supply design that significantly reduces wasted thermal energy.
- Advanced Power Sharing: Each output can deliver up to double the nominal power when loads are imbalanced, offering unparalleled flexibility and maximizing the amplifier’s energy potential.
- Dante/AES67 & Redundant Networking: Features 3 x 1Gb Ethernet ports supporting Dante redundancy, separate Control/AoIP networks, Switched and Split-Redundant modes, and a network-security webpage for advanced settings.
- PoE Input and DSP Functionality: PoE input maintains control systems and network ports when the main power is lost. The DSP section remains operational even with PoE+ only, simplifying setup and pre-configuration.
- Universo Cloud Management: Supports cloud connectivity for real-time monitoring of amplifier status from anywhere, enabling online project storage/sharing, firmware updates, and connection to third-party systems via API.
- ArmoníaPlus Software: Easy-to-use software for full control, tuning, speaker preset loading, and system setup, complemented by Easy Swap functionality for rapid unit replacement using USB backup.
The Future of High-Performance, Networked Audio
The Powersoft Unica 4L 16K4 is more than just a high-power amplifier—it is the intelligent core of a modern, networked audio system. By integrating the latest amplification technology, PoE-powered DSP, AoIP connectivity, and cloud monitoring capabilities, the Unica offers unmatched stability, flexibility, and control. It streamlines the design, installation, and management of large-scale sound systems, ensuring superior performance and maximum operational efficiency.
Specification
Powersoft Unica 4L 16K4 Specifications |
|
|---|---|
Output Power |
|
| Output Power per Channel (4 Channels) | 4000 W @ 2 Ω 4000 W @ 4 Ω 2500 W @ 8 Ω |
| Bridge Mode | 8000 W @ 4 Ω 8000 W @ 8 Ω |
| Max Output Voltage / Current | Max unclipped voltage: 220 Vpeak Current: 80 Apeak |
AC Main Power |
|
| Power Supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| Nominal Power Requirement | 100–240 V ±10%, 50–60 Hz |
| Operating Voltage | 80–265 V |
| Power Consumption / Current Draw | Idle: 115 V: 55 W – 0.65 A 230 V: 62 W – 0.52 A 1/8 of Max Output Power @ 4 Ω: 115 V: 2600 W – 23.2 A 230 V: 2550 W – 11.6 A |
Thermal |
|
| Operating Temperature Range | 0°–45° C / 32°–113° F |
| Thermal Dissipation | Idle: 115 V: 190 BTU/h 230 V: 211 BTU/h 1/8 of Max Output Power @ 4 Ω: 115 V: 2046 BTU/h 230 V: 1875 BTU/h |
ข้อมูลสินค้า
Powersoft Unica 4L 16K4 Amplifier: เพาเวอร์แอมป์ 4 ชาแนล เทคโนโลยีแอมพลิฟายเออร์เจเนอเรชันที่ 3
Powersoft Unica 4L 16K4 คือสุดยอดเพาเวอร์แอมป์ 4 แชนเนลที่ผสานกำลังขับอันทรงพลังเข้ากับเทคโนโลยีดิจิทัลแห่งอนาคต ด้วยสถาปัตยกรรมการขยายสัญญาณ Powersoft 3rd Generation ที่ได้รับการออกแบบใหม่ ทำให้แอมป์รุ่นนี้มอบประสิทธิภาพเสียงสูงสุด ความเสถียรที่เหนือกว่า และการลดพลังงานสูญเสียจากความร้อนอย่างเห็นได้ชัด Unica นำเสนอโซลูชันที่สมบูรณ์แบบสำหรับระบบเสียงระดับมืออาชีพที่ซับซ้อน รองรับการเชื่อมต่อ AoIP ผ่าน Dante/AES67 และเป็นก้าวสำคัญในเทคโนโลยี IoT ของ Powersoft ด้วยการรองรับ Universo Cloud สำหรับการมอนิเตอร์และจัดการแบบเรียลไทม์
| ข้อมูลจำเพาะหลัก Powersoft Unica 4L 16K4 | |
|---|---|
| จำนวนแชนเนล | 4 แชนเนล |
| กำลังขับต่อแชนเนล (2 Ω) | 4000 W |
| กำลังขับต่อแชนเนล (4 Ω) | 4000 W |
| กำลังขับต่อแชนเนล (8 Ω) | 2500 W |
| การเชื่อมต่อ AoIP | Dante และ AES67 |
คุณสมบัติเด่น
- Powersoft 3rd Generation Amplification Technology: สถาปัตยกรรมการประมวลผลและขยายสัญญาณระดับไฮเอนด์เพื่อประสิทธิภาพเสียงสูงสุด พร้อมภาคจ่ายไฟดีไซน์ใหม่ที่ให้ประสิทธิภาพสูงและลดความร้อนสะสม
- ระบบ Power Sharing ขั้นสูง: แต่ละเอาต์พุตสามารถจ่ายกำลังเพิ่มขึ้นได้สูงสุดถึงสองเท่าเมื่อโหลดไม่สมดุลกัน ทำให้ใช้พลังงานจากแอมป์ได้อย่างยืดหยุ่นและเต็มประสิทธิภาพสูงสุด
- Dante/AES67 & Redundant Networking: มีพอร์ต Ethernet 3 ช่อง 1Gb รองรับ Dante redundancy, การแยกเครือข่าย Control/AoIP, โหมด Switched/Split-Redundant และหน้าเว็บตั้งค่าความปลอดภัยขั้นสูง
- รองรับ PoE Input และ DSP: สามารถจ่ายไฟให้กับระบบควบคุมและพอร์ตเน็ตเวิร์กเมื่อไฟหลักดับ และส่วนของ DSP ยังคงใช้งานได้แม้ใช้เพียงไฟ PoE+ ทำให้ง่ายต่อการติดตั้งและตั้งค่าล่วงหน้า
- การจัดการผ่านคลาวด์ Universo Cloud: รองรับการเชื่อมต่อคลาวด์และการมอนิเตอร์สถานะแบบเรียลไทม์จากที่ใดก็ได้ ช่วยให้จัดเก็บ/แชร์โปรเจกต์ อัปเดตเฟิร์มแวร์ และเชื่อมต่อกับระบบ third-party ผ่าน API
- ArmoníaPlus Software: ควบคุม ปรับแต่ง โหลดพรีเซ็ตลำโพง และตั้งค่าระบบทั้งหมดได้อย่างง่ายดาย รวมถึงฟังก์ชัน Easy Swap ที่ช่วยให้เปลี่ยนเครื่องได้อย่างรวดเร็วด้วย USB Backup
ที่สุดแห่งพลังและความชาญฉลาดสำหรับระบบเสียงยุคใหม่
Powersoft Unica 4L 16K4 ไม่ได้เป็นเพียงเพาเวอร์แอมป์กำลังสูงเท่านั้น แต่ยังเป็นหัวใจสำคัญของระบบเสียงอัจฉริยะในยุค IoT ด้วยการรวมเอาเทคโนโลยีแอมพลิฟายเออร์ล่าสุด, DSP ที่ทำงานผ่าน PoE+, การเชื่อมต่อ AoIP และความสามารถในการมอนิเตอร์ผ่านคลาวด์ Unica นำเสนอความเสถียร ความยืดหยุ่น และการควบคุมที่ไม่เคยมีมาก่อน ทำให้การออกแบบ การติดตั้ง และการจัดการระบบเสียงขนาดใหญ่เป็นเรื่องง่ายและมีประสิทธิภาพสูงสุด
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะ Powersoft Unica 4L 16K4 |
|
|---|---|
กำลังขับ (Output Power) |
|
| กำลังขับต่อแชนเนล (4 แชนเนล) | 4000 W @ 2 Ω 4000 W @ 4 Ω 2500 W @ 8 Ω |
| โหมดบริดจ์ (Bridge Mode) | 8000 W @ 4 Ω 8000 W @ 8 Ω |
| แรงดัน/กระแสเอาต์พุตสูงสุด | แรงดันสูงสุดที่ไม่มีการคลิป (Max unclipped voltage): 220 Vpeak กระแส (Current): 80 Apeak |
ไฟหลัก AC (AC Main Power) |
|
| แหล่งจ่ายไฟ | สวิตช์โหมด (Switch mode) แบบปรับได้ (regulated) พร้อม PFC (Power Factor Correction) สากล (Universal) |
| ข้อกำหนดด้านพลังงานที่ระบุ (Nominal) | 100–240 V ±10%, 50–60 Hz |
| แรงดันไฟฟ้าในการทำงาน | 80–265 V |
| การใช้พลังงาน / กระแสไฟฟ้า (Consumption / Current Draw) | ขณะไม่มีโหลด (Idle): 115 V: 55 W – 0.65 A 230 V: 62 W – 0.52 A ที่ 1/8 ของกำลังขับสูงสุด @ 4 Ω: 115 V: 2600 W – 23.2 A 230 V: 2550 W – 11.6 A |
ความร้อน (Thermal) |
|
| ช่วงอุณหภูมิในการทำงาน | 0°–45° C / 32°–113° F |
| การระบายความร้อน (Thermal Dissipation) | ขณะไม่มีโหลด (Idle): 115 V: 190 BTU/h 230 V: 211 BTU/h ที่ 1/8 ของกำลังขับสูงสุด @ 4 Ω: 115 V: 2046 BTU/h 230 V: 1875 BTU/h |
