Powersoft Unica 8K8 เพาเวอร์แอมป์ระดับมืออาชีพ 8000 วัตต์ สำหรับงานติดตั้ง

Powersoft Unica 8K8: 8-Channel 8000W Network Power Amplifier with Integrated DSP

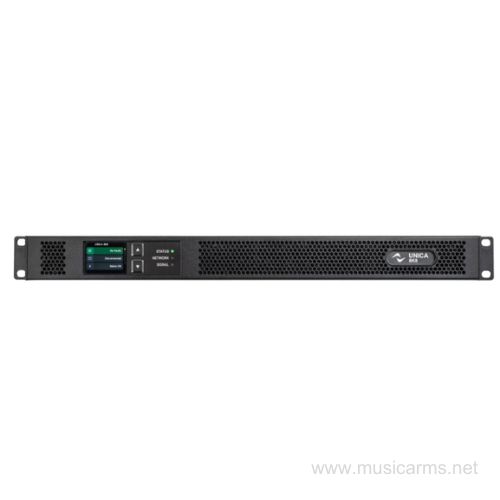

The Powersoft Unica 8K8 is a professional installation power amplifier delivering a total output power of up to 8000 watts within a compact 1U rack unit. Featuring 8 output channels, it supports both Lo-Z and 70/100V line systems seamlessly in a single device, making it ideal for installed sound systems in theatres, conference centers, commercial buildings, and large venues.

The amplifier includes an integrated DSP engine and full control through ArmoníaPlus software, allowing users to configure EQ, delay, matrix routing, speaker presets, and real-time monitoring. Remote system management and firmware updates can also be performed via the MyUniverso cloud platform.

Equipped with Power Sharing technology and Smart Rails Management (SRM), the Unica 8K8 dynamically allocates power between channels for maximum efficiency. It also features an Eco Mode to reduce energy consumption when the amplifier is idle.

Key Features

• 8-Channel Power Amplifier with 8000W Total Output: High power density in a compact 1U chassis for medium to large installation systems.
• Supports Lo-Z and 70/100V Line Systems: Both impedance types can operate on the same output channel without manual switching.
• Integrated DSP with ArmoníaPlus Control: Enables EQ, delay, matrix routing, and loudspeaker preset management.
• Power Sharing Technology: Output channels can borrow power from others when operating under asymmetric load conditions.
• Smart Rails Management (SRM): Automatically adjusts internal voltage rails to reduce energy loss and increase efficiency.

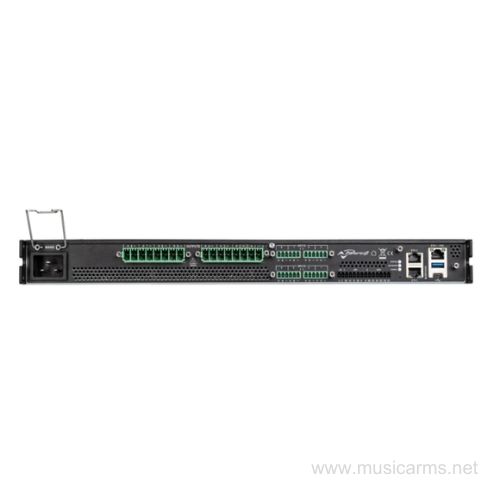

• Advanced Network Connectivity: Three RJ45 ports supporting Dante and AES67 audio networking, including redundant Dante and daisy-chain topologies.
• PoE / PoE++ Support: Allows amplifier control logic to remain operational even if the main AC power is temporarily lost.
• Easy Swap Configuration Backup: Configuration can be stored on a USB drive and quickly restored when replacing hardware.
• Dolby Atmos Connect & Dynamic Music Distribution Support: Ready for modern immersive audio systems and advanced audio distribution networks.

Who is the Powersoft Unica 8K8 For?

• Installed Sound Systems: Ideal for hotels, shopping malls, corporate buildings, and public facilities.
• Theatres and Conference Centers: Suitable for venues requiring high output power and advanced DSP processing.
• Public Address and Background Music Systems: Perfect for distributed audio and building-wide BGM systems.
• System Integrators and Audio Engineers: Designed for professionals who require flexible power distribution and network-based control.

Conclusion

The Powersoft Unica 8K8 combines high power density, integrated DSP processing, and advanced network audio capabilities in a compact 1U amplifier. With intelligent power management, remote cloud monitoring, and flexible system integration, it is a powerful and efficient solution for modern installed sound applications.
