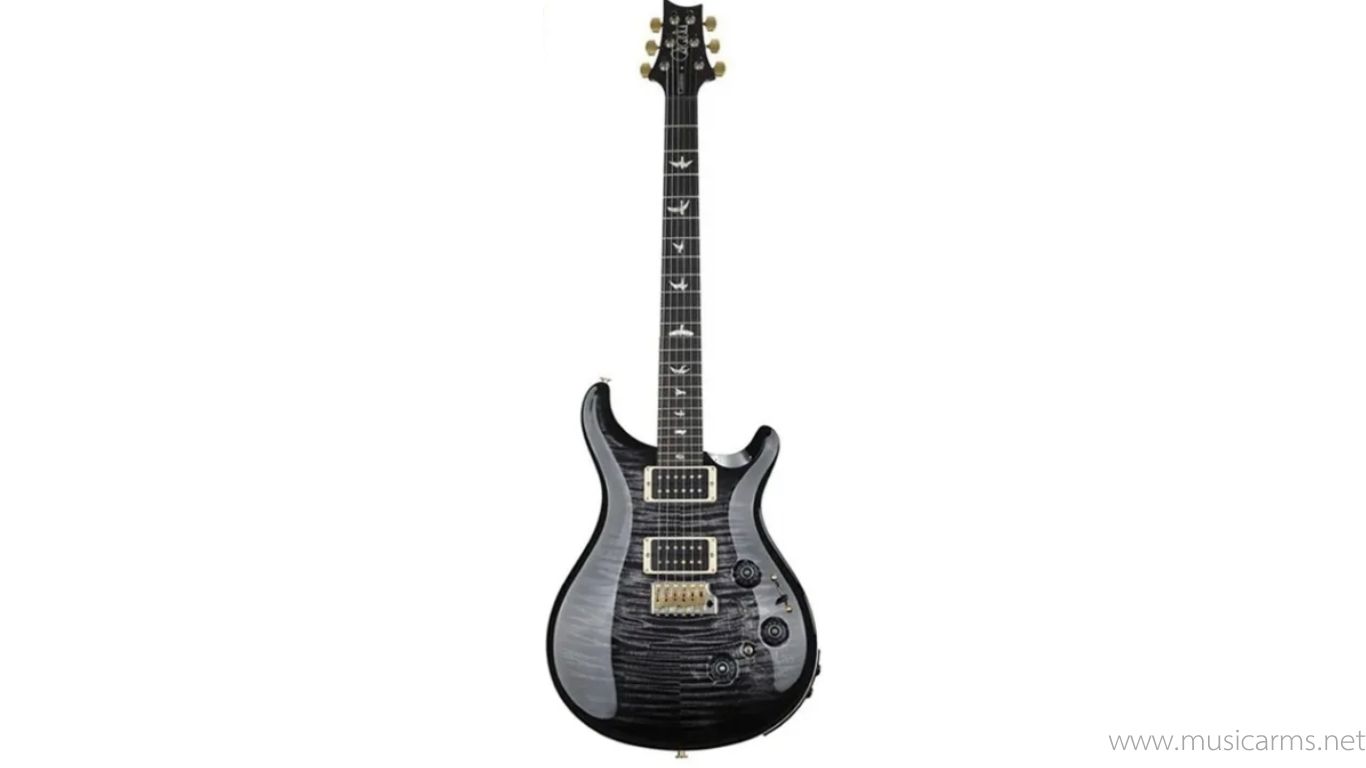

PRS CUSTOM 24 PIEZO CHARCOAL

History of the PRS Custom 24 Piezo
Origins of the Custom 24

The PRS Custom 24 was the very first production model introduced by Paul Reed Smith in 1985. It featured a solid body design with a carved maple top, mahogany back and neck, a rosewood fingerboard with the iconic bird inlays, a 25” scale length, PRS tremolo, and a switching system that allowed various humbucker tonal options.

Development into Piezo

The Custom 24 Piezo was first introduced in 2014 and continues to be produced today. It is essentially the same as the Custom 24 but enhanced with a Piezo system (such as the LR Baggs Piezo), allowing players to achieve both electric and acoustic-style tones in one instrument.

Distinctive Features of the Piezo

This model comes with dual output jacks, enabling players to route magnetic humbuckers and Piezo signals separately to different amps or DIs, or blend them together via the onboard controls.

It also offers independent tone shaping—Master Volume for magnetic pickups and Piezo controls—so players can freely mix electric and acoustic voices.

Variants and Materials

The SE Custom 24 Semi-Hollow Piezo was later introduced, featuring a semi-hollow body that adds resonance and acoustic character to the electric tones.

The Core Custom 24 Piezo (USA-made) typically features 85/15 or DMO humbuckers along with high-end specifications such as premium finishes and dual-output functionality.

Body

Back Wood: Mahogany

Top Wood: Carved Maple Top (Flame/Quilt depending on the batch)

Finish: Charcoal (dark gray, emphasizing the wood grain)

Neck

Wood: Mahogany

Fingerboard: Rosewood

Inlays: PRS Birds

Neck Profile: Pattern Regular or Pattern Thin (depending on production year)

Scale Length: 25”

Hardware

Bridge: PRS Gen III Tremolo + LR Baggs Piezo System

Tuners: PRS Phase III Locking Tuners

Controls: Master Volume, Master Tone (Push/Pull Coil Split), 5-Way Blade Switch, Piezo Blend/Output

Pickups

85/15 Humbuckers (Neck/Bridge)

Piezo System (LR Baggs) for acoustic-style tones

Piezo System

Can split into 2 separate outputs (Piezo / Magnetic) or be blended together

Provides versatile tonal options for both electric and acoustic-like sounds

บอดี้ (Body)

ไม้หลัง: Mahogany

ไม้หน้า: Carved Maple Top (Flame/Quilt แล้วแต่ล็อต)

ฟินิช: Charcoal (ดำเทาเข้ม เน้นลายไม้)

คอ (Neck)

ไม้: Mahogany

ฟิงเกอร์บอร์ด: Rosewood

อินเลย์: PRS Birds

โปรไฟล์คอ: Pattern Regular หรือ Pattern Thin (แล้วแต่สเปกปีที่ผลิต)

Scale Length: 25”

ฮาร์ดแวร์ (Hardware)

สะพานสาย: PRS Gen III Tremolo + LR Baggs Piezo System

ลูกบิด: PRS Phase III Locking Tuners

คอนโทรล: Master Volume, Master Tone (Push/Pull Coil Split), Blade Switch 5 ทาง, Piezo Blend/Output

ปิ๊กอัพ (Pickups)

85/15 Humbuckers (Neck/Bridge)

Piezo System (LR Baggs) ให้เสียงอะคูสติกจำลอง

ระบบ Piezo

สามารถแยกสัญญาณออกไป 2 ช่อง (Piezo / Magnetic) หรือผสมกันได้

ให้ความหลากหลายของโทนเสียง เล่นได้ทั้งไฟฟ้าและอะคูสติก
