Radial CabLink เอฟเฟคกีตาร์

ราคา : 5,200 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
วีดีโอ
Description

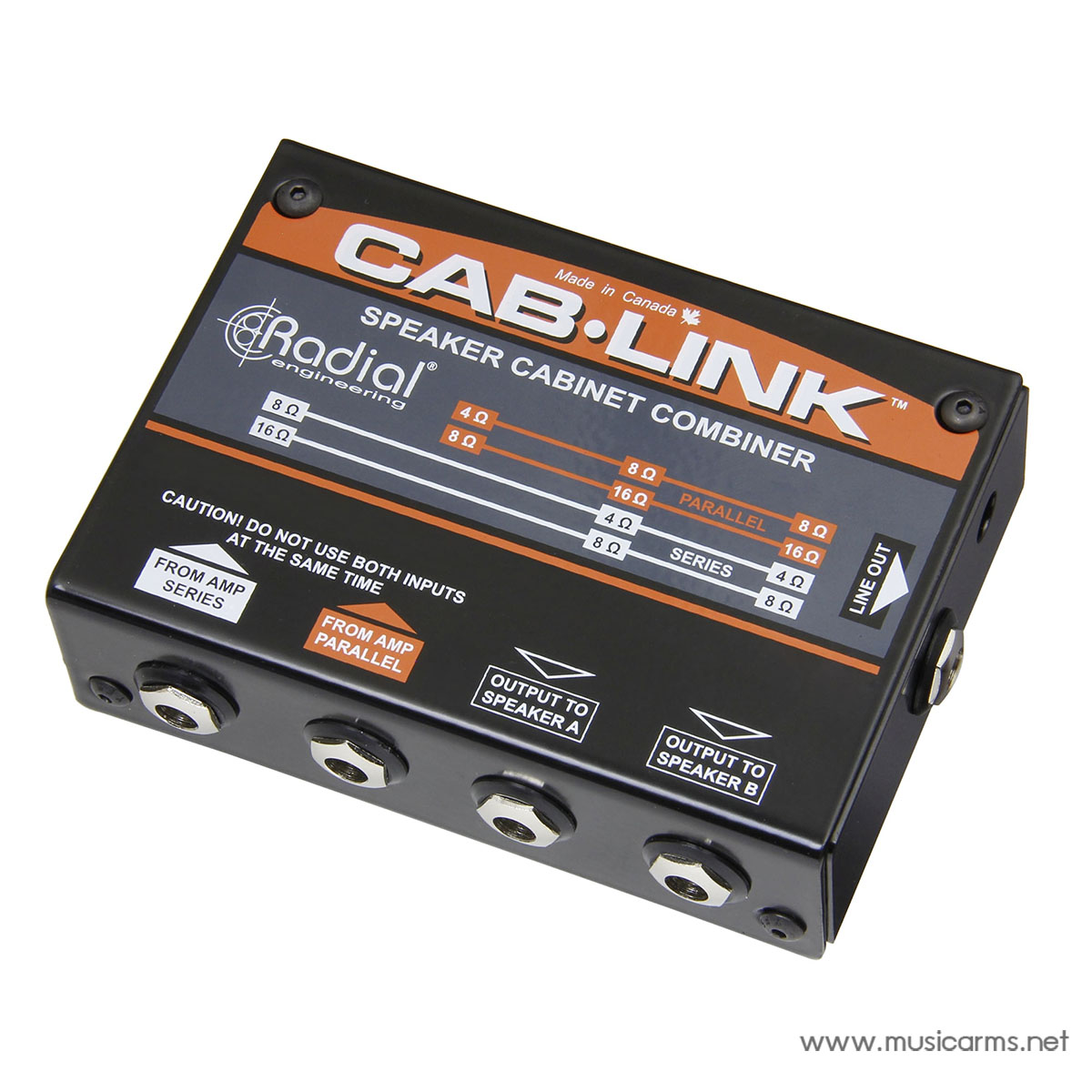

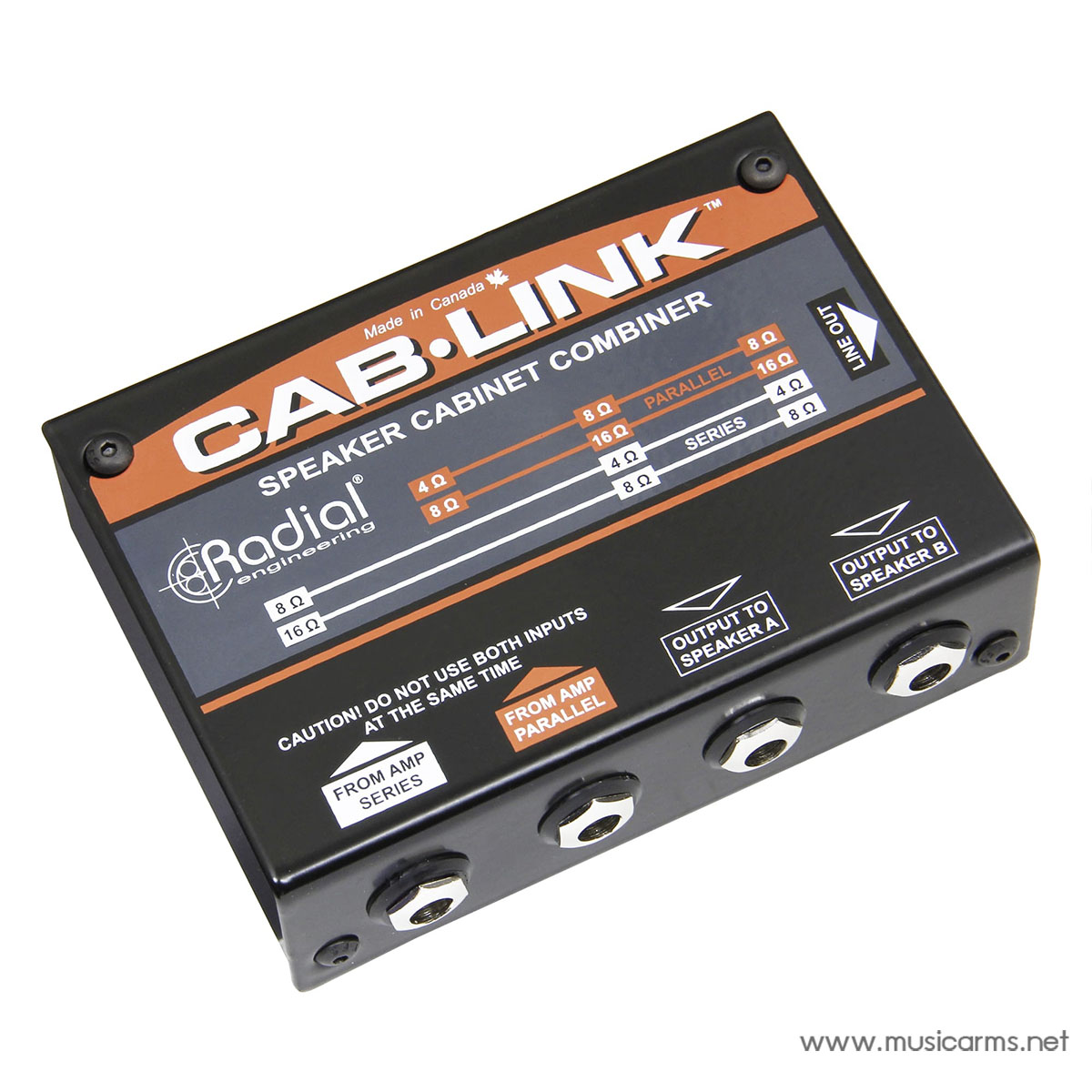

Radial Cab-Link: Passive Speaker Cabinet Merger

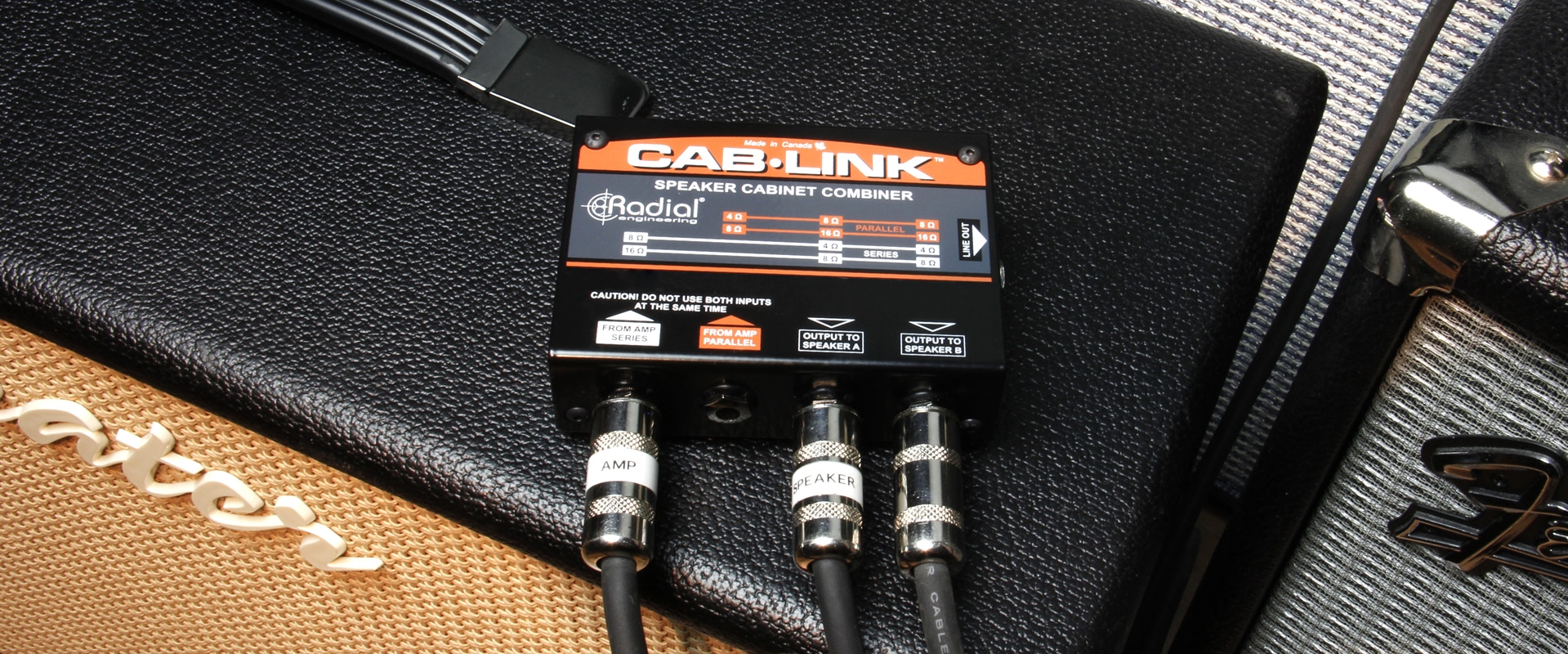

The Cab-Link provides a simple and compact solution for players who have a single speaker output on their amplifier but want to connect to two cabinets simultaneously.

Key Features
- Connect One Amp Output to Two Cabinets: The Cab-Link makes it easy to connect two speaker cabinets to a single amp output, supporting both series and parallel configurations.

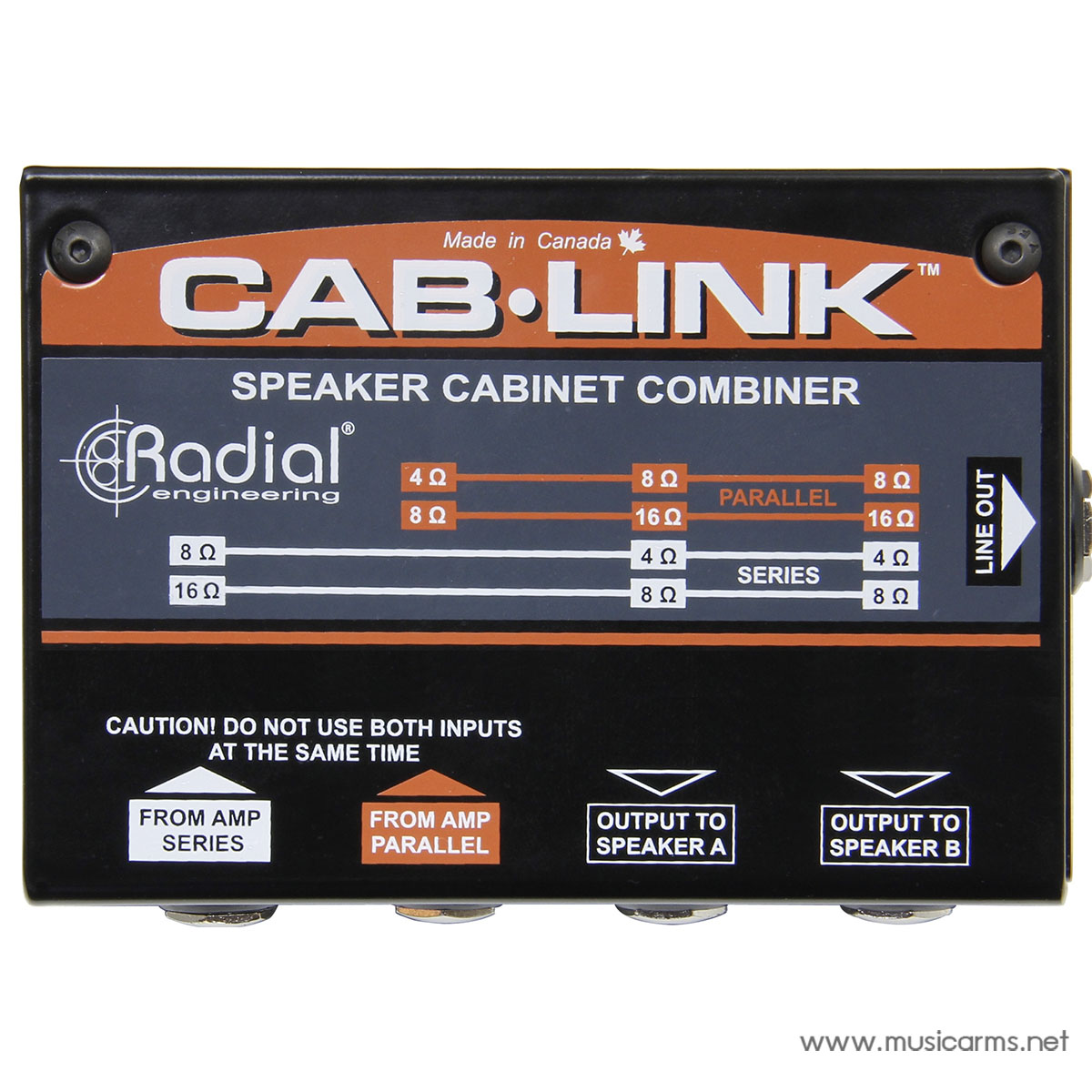

- Simple, Passive & Compact: The unit automatically reconfigures based on the input used, and a handy guide on top helps you match the impedance between your amp and cabinets. As a completely passive device, it requires no power.

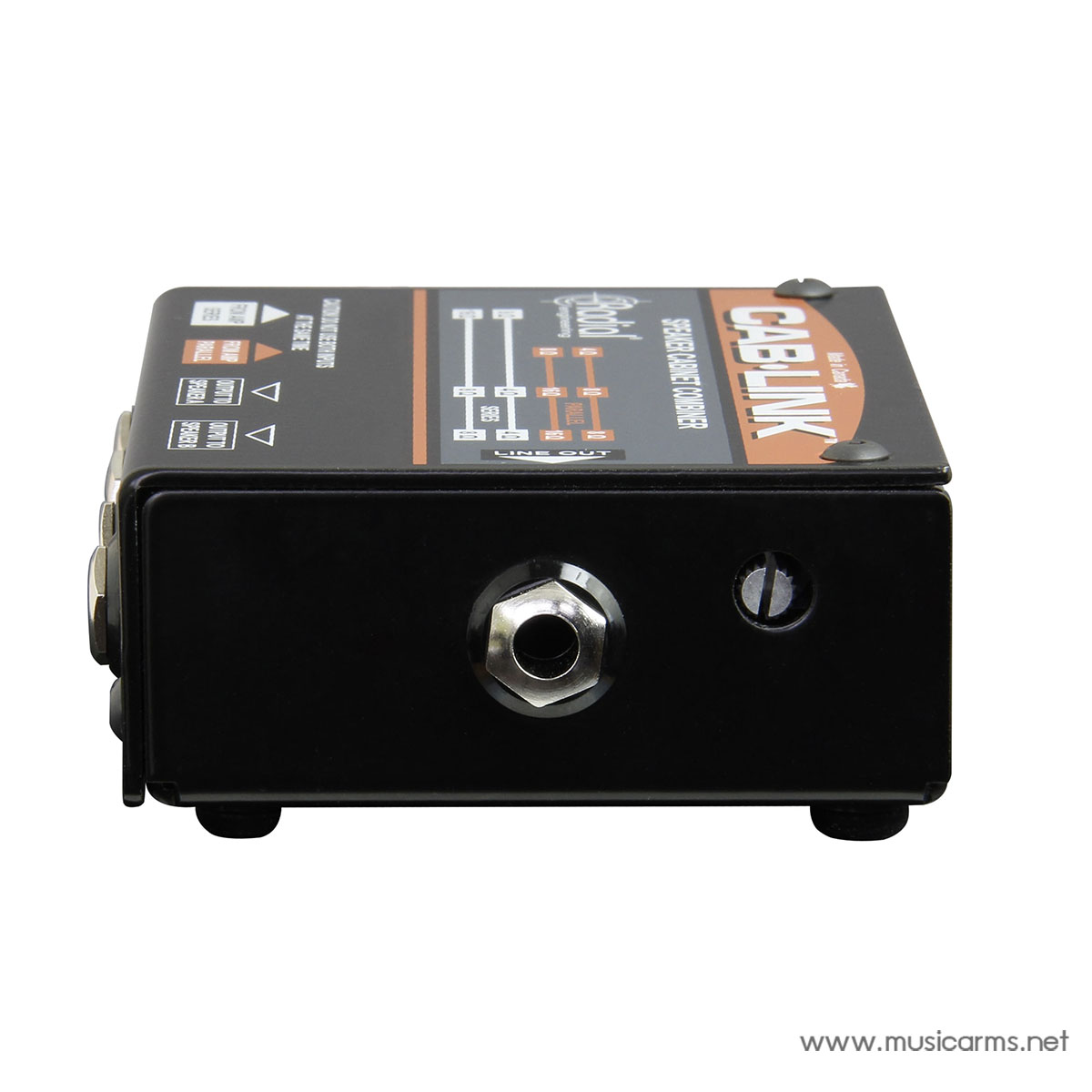

- Additional Line Output with Level Control: An additional line output with a level control provides extra functionality, allowing you to feed the input of another amplifier or an effects unit.
Cab-Link Applications
Combine cabinets in series configuration: Connect two 8 Ohm speaker cabinets in series to use with a 16 Ohm amplifier output.
Use the line out to feed another amplifier: Run a second amplifier from the line out for a wet/dry setup. Fine-tune the output with the level control.
Combine cabinets in parallel configuration: Connect two 8 Ohm speaker cabinets in parallel and run both from a single 4 Ohm output on your amplifier.
Specification
Radial Cab-Link Specifications |
|
|---|---|
| Audio Circuit Type | 100% passive |
| Maximum Power Rating | 400W |
| Features | Level Control |
| Input Connectors | 1/4″ Series or Parallel |
| Output Connectors | 1/4″ Speaker A, Speaker B, Line Out |
| Extras | Trim Control for Line Out |
| Construction | 14-gauge steel chassis & outer shell |
| Size (L x W x D) | 4.63″ x 3.25″ x 1.38″ (11.8cm x 8.3cm x 3.5cm) |
| Weight | 1.16lb (0.52kg) |
| Shipping Size (L x W x D) | 6.25″ x 4.25″ x 3″ (15.9cm x 10.8cm x 7.6cm) |
| Shipping Weight | 1.46lb (0.7kg) |
| Power | Passive, no power required |
| Conditions | For use in dry locations only between 5°C and 40°C |
| Warranty | Radial 3-year, transferable |
ข้อมูลสินค้า
Radial Cab-Link: Passive Speaker Cabinet Merger
Cab-Link เป็นโซลูชั่นที่เรียบง่ายและกะทัดรัดสำหรับนักดนตรีที่มีเอาต์พุตลำโพงเพียงช่องเดียวบนแอมพลิฟายเออร์ แต่ต้องการเชื่อมต่อกับตู้ลำโพงสองตู้พร้อมกัน

คุณสมบัติเด่น
- เชื่อมต่อเอาต์พุตแอมป์หนึ่งช่องเข้ากับตู้ลำโพงสองตู้: Cab-Link ทำให้การเชื่อมต่อตู้ลำโพงสองตู้เข้ากับเอาต์พุตเดี่ยวของแอมป์เป็นเรื่องง่าย โดยสามารถใช้งานได้ทั้งการต่อแบบอนุกรม (Series) หรือแบบขนาน (Parallel)
- การกำหนดค่าที่ง่ายดายและพาสซีฟ: Cab-Link จะปรับการตั้งค่าโดยอัตโนมัติขึ้นอยู่กับอินพุตที่ใช้งาน และยังมีคำแนะนำที่ชัดเจนอยู่บนตัวเครื่องเพื่อช่วยให้คุณจับคู่อิมพีแดนซ์ระหว่างแอมป์และตู้ลำโพงได้อย่างถูกต้อง นอกจากนี้ยังเป็นอุปกรณ์แบบพาสซีฟ จึงไม่ต้องใช้แหล่งจ่ายไฟ
- เอาต์พุต Line เพิ่มเติมพร้อมปุ่มควบคุมระดับเสียง: มีเอาต์พุต Line เพิ่มเติมพร้อมปุ่มควบคุมระดับเสียง ซึ่งสามารถใช้เพื่อส่งสัญญาณไปยังแอมพลิฟายเออร์ตัวอื่นหรือไปยังยูนิตเอฟเฟกต์ได้
ตัวอย่างการใช้งาน Cab-Link
การต่อตู้ลำโพงแบบอนุกรม: เชื่อมต่อตู้ลำโพง 8 โอห์มสองตู้แบบอนุกรมเพื่อใช้กับเอาต์พุตแอมป์ 16 โอห์ม
การใช้ Line Out เพื่อขับแอมป์ตัวที่สอง: ใช้เอาต์พุต Line เพื่อส่งสัญญาณไปยังแอมป์ตัวที่สองสำหรับเซ็ตอัปแบบ Wet/Dry โดยสามารถปรับระดับเอาต์พุตได้อย่างละเอียดด้วยปุ่มควบคุมระดับเสียง
การต่อตู้ลำโพงแบบขนาน: เชื่อมต่อตู้ลำโพง 8 โอห์มสองตู้แบบขนานและขับเคลื่อนทั้งสองตู้จากเอาต์พุตแอมป์ 4 โอห์มเพียงช่องเดียว
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะ Radial Cab-Link |
|
|---|---|
| ประเภทวงจรเสียง | พาสซีฟ 100% |
| พิกัดกำลังสูงสุด | 400W |
| คุณสมบัติ | ปุ่มควบคุมระดับเสียง (Level Control) |
| คอนเนกเตอร์ขาเข้า | 1/4″ อนุกรม (Series) หรือ ขนาน (Parallel) |
| คอนเนกเตอร์ขาออก | 1/4″ Speaker A, Speaker B, Line Out |
| คุณสมบัติเพิ่มเติม | ปุ่มควบคุม Trim สำหรับ Line Out |
| โครงสร้าง | ตัวถังและโครงสร้างภายนอกทำจากเหล็ก 14-gauge |
| ขนาด (ย x ก x ส) | 4.63″ x 3.25″ x 1.38″ (11.8ซม. x 8.3ซม. x 3.5ซม.) |
| น้ำหนัก | 1.16 ปอนด์ (0.52 กก.) |
| ขนาดบรรจุภัณฑ์ (ย x ก x ส) | 6.25″ x 4.25″ x 3″ (15.9ซม. x 10.8ซม. x 7.6ซม.) |
| น้ำหนักรวมบรรจุภัณฑ์ | 1.46 ปอนด์ (0.7 กก.) |
| แหล่งจ่ายไฟ | พาสซีฟ, ไม่ต้องใช้พลังงาน |
| เงื่อนไขการใช้งาน | สำหรับใช้ในสถานที่แห้งเท่านั้น ที่อุณหภูมิระหว่าง 5°C ถึง 40°C |
| การรับประกัน | รับประกัน 3 ปีโดย Radial, สามารถโอนสิทธิ์ได้ |
