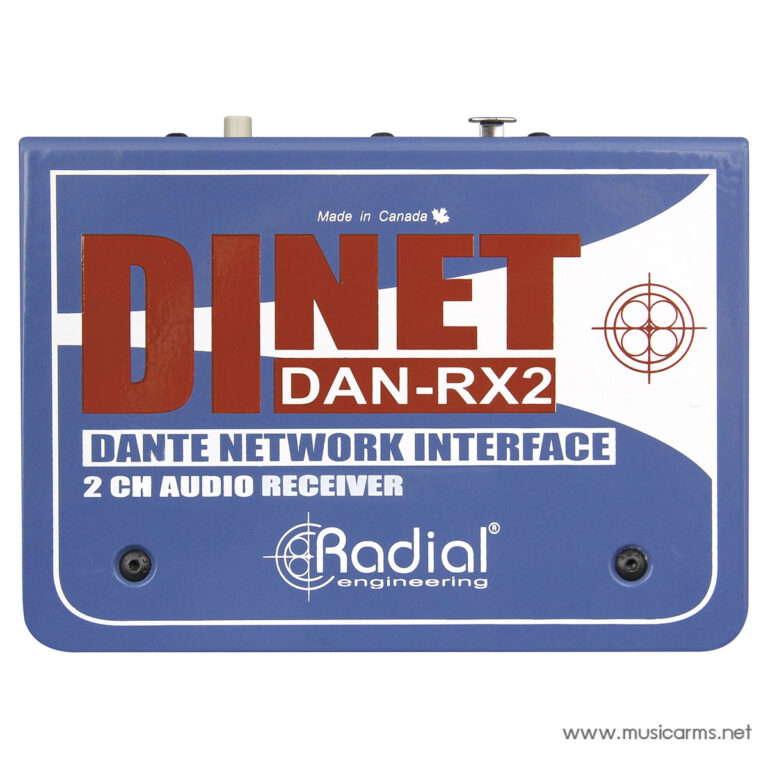

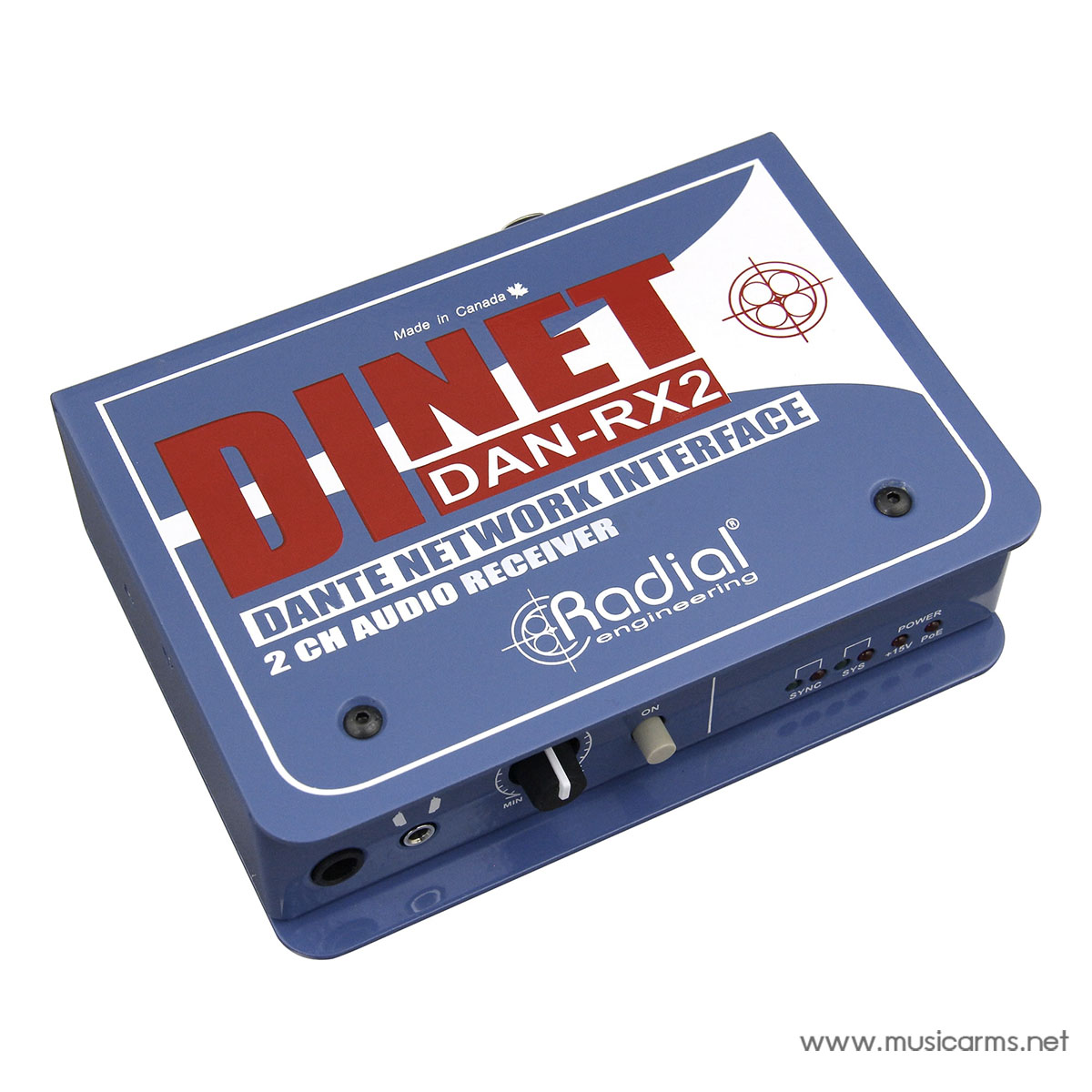

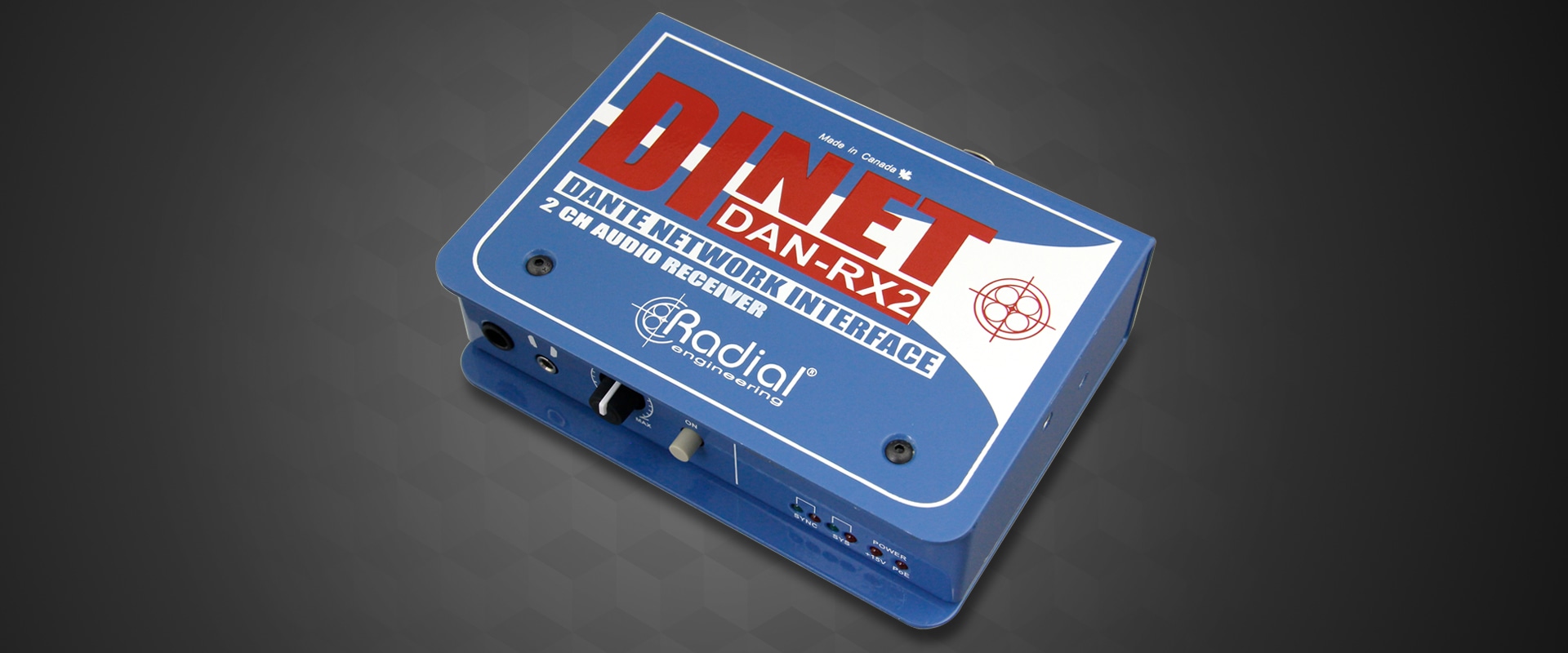

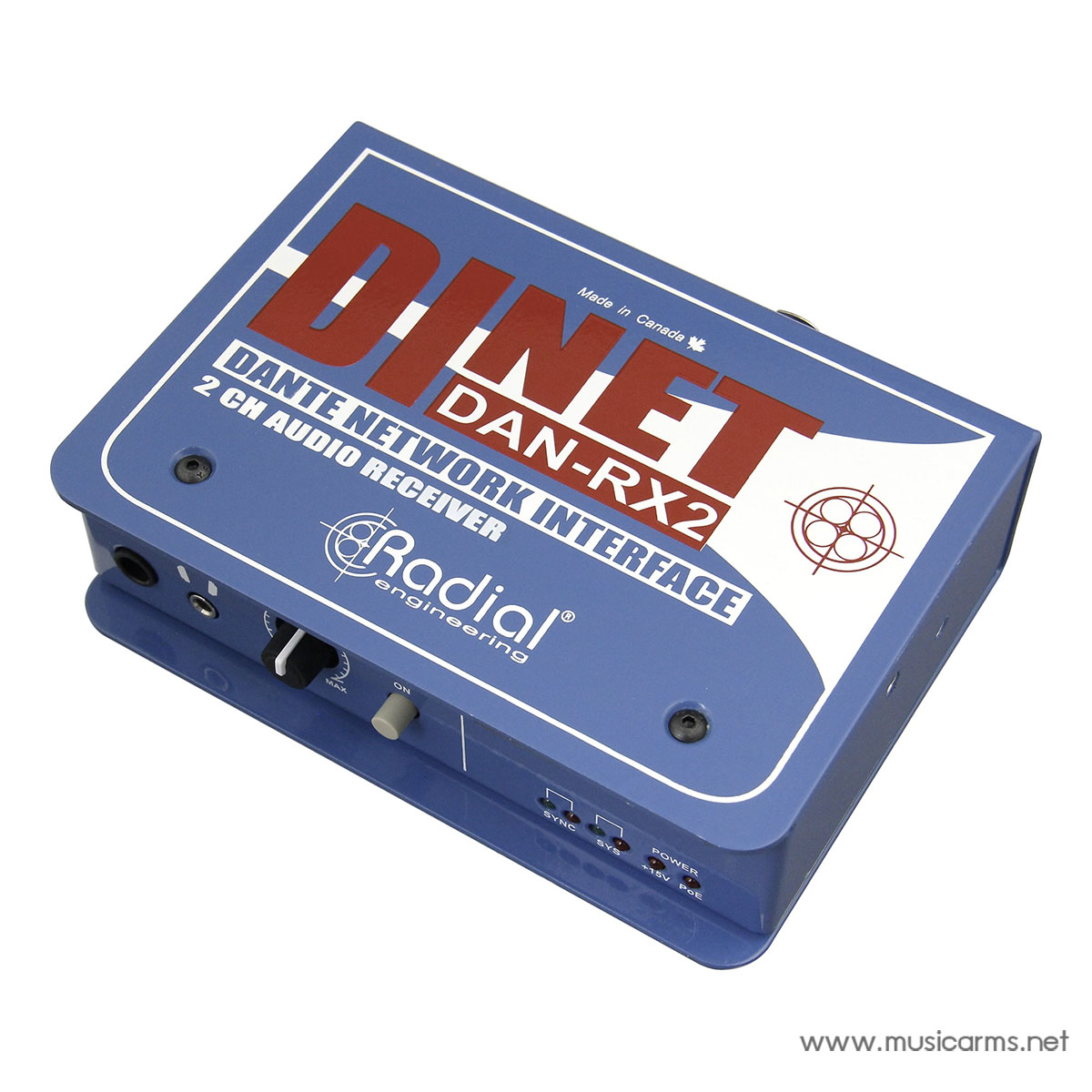

Radial DiNet DAN-RX2 2-Channel Dante Network Receiver

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Radial

ราคา : 20,000 บาท

รุ่น :  Radial DiNet DAN-RX2 D.I Box ไดเร็กบ็อกซ์
🚚 การจัดส่ง

ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ

🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

💳 ช่องทางการชำระเงิน
จ่ายหน้าร้าน 13 สาขา โอนเงิน เก็บปลายทาง บัตรเครดิต ผ่อน 0% (บางรายการ) Shopee Lazada

🏢
ลูกค้าองค์กร / ขอใบเสนอราคา
สั่งซื้อ Radial DiNet DAN-RX2 2-Channel Dante Network Receiverผ่านline สั่งซื้อ Radial DiNet DAN-RX2 2-Channel Dante Network Receiverผ่าน messenger

วีดีโอ


Description

Radial DiNet DAN-RX2: The Ultimate Dual Output Dante Receiver

The DAN-RX2 is a 2-channel 24bit/96kHz digital to analog endpoint that allows you to output audio from a Dante or AES67-compliant network for connection to professional audio systems. It is engineered for robust digital audio distribution in any professional application.

Key Features

  • Robust Digital Audio Distribution: The DAN-RX2 is a road-worthy digital receiver capable of delivering two channels of analog audio to any location on a Dante or AES67 network, complete with balanced XLR outputs and a ground lift.

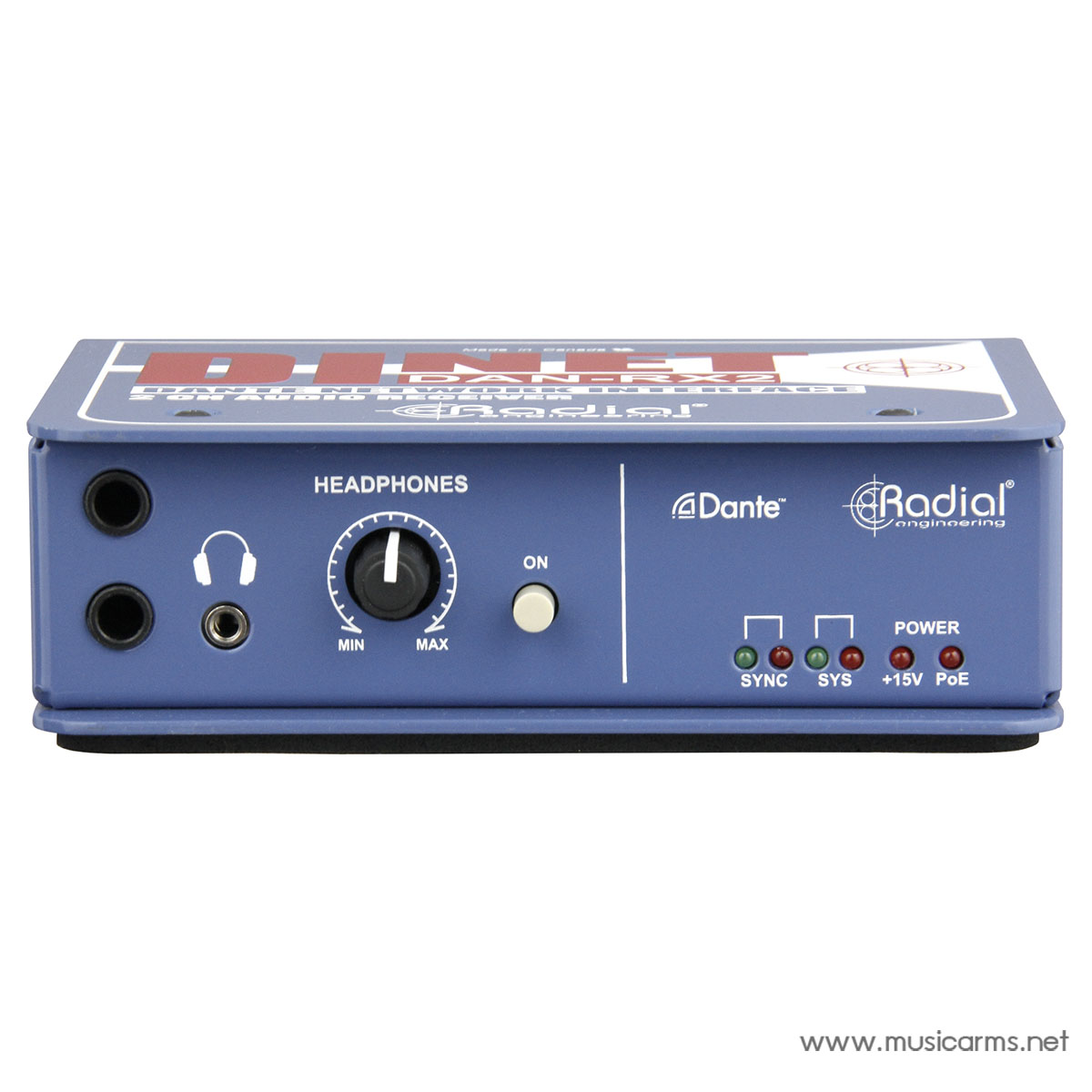

  • Redundant Power and Monitoring: For mission-critical applications, the DAN-RX2 offers redundant powering via both an external power supply and Power over Ethernet (PoE). A separate headphone amp is also included for local testing or personal monitoring.
  • Versatile Applications: From quickly routing a stereo feed to small PA systems in overflow rooms, to providing audio for press recorders, or serving as a personal monitoring system for event staff, the DAN-RX2 is a highly flexible tool.

Summary

With its rock-solid reliability and exceptional audio quality, the Radial DiNet DAN-RX2 is an essential piece of equipment for any professional audio setup. It simplifies the process of converting networked digital audio back to analog, providing flawless performance in a variety of challenging environments.

Specification

Radial DiNet DAN-RX2 Specifications

Audio Specifications

Audio Circuit Type High current balanced active output device
Number of Channels 2
Frequency Response 20Hz-20kHz
Dynamic Range >100dB
Maximum Gain +18dBu max @ 0dBFS
Total Harmonic Distortion (THD) 0.007% @ -6dBFS
Output Impedance 150Ω
Sample Rate 44.1kHz, 48kHz, 88.2kHz, and 96kHz

Connectors & Features

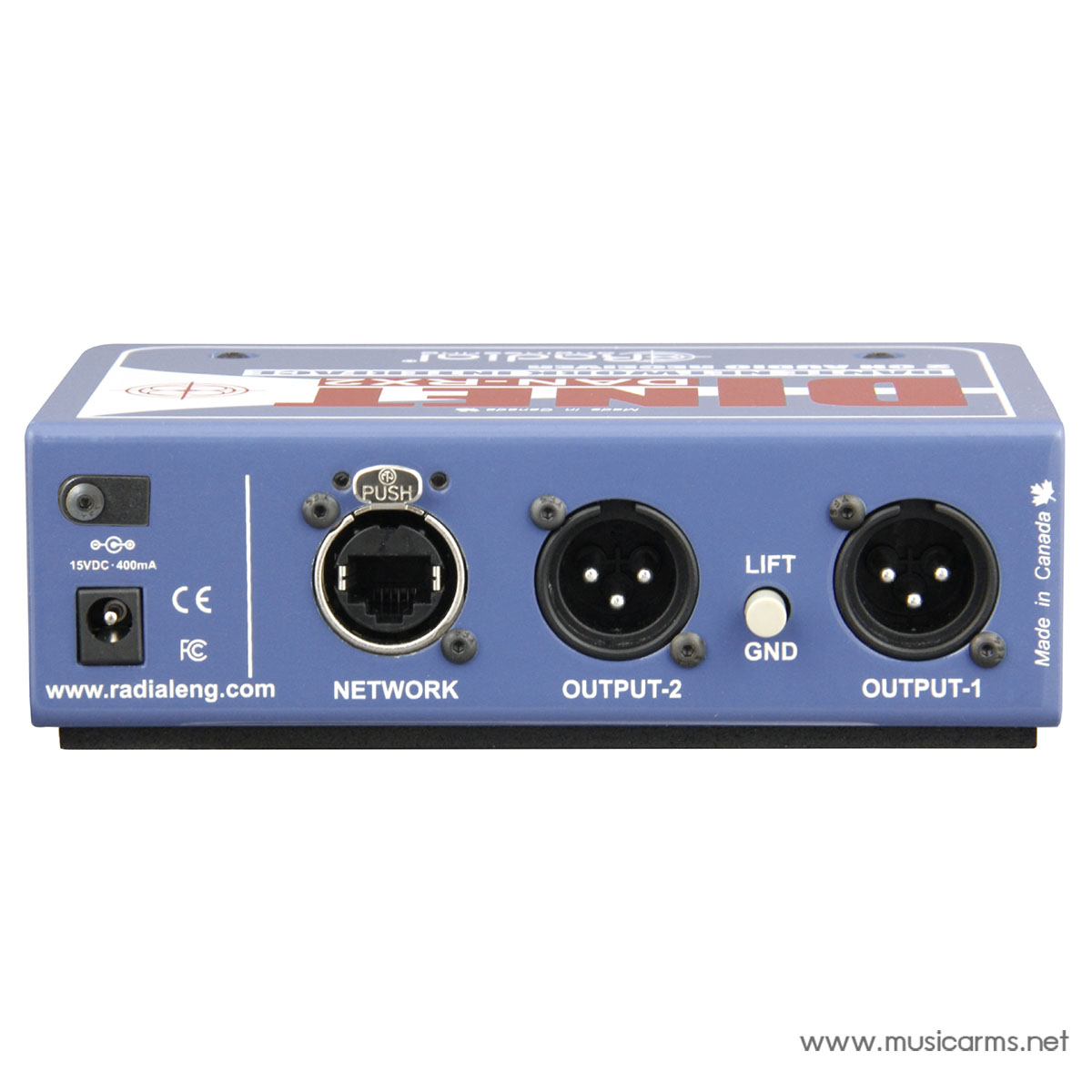

Output Connectors 2x XLR male, 1x 3.5mm & 2x 1/4” headphone out
Bit Depth 24 bit
Idle Channel Noise -108dB
Channel Separation >75dB

General

Construction 14-gauge steel with durable powder coat finish
Size (L x W x D) 4.5” x 2” x 6” (121 x 6 x 147mm)
Power 15VDC 400mA (included) or PoE Class 1
Conditions For use in dry locations only between 5°C and 40°C
Warranty Radial 3-year, transferable

ข้อมูลสินค้า

Radial DiNet DAN-RX2: Network Receiver สำหรับระบบเสียง Dante และ AES67

DAN-RX2 คืออุปกรณ์ปลายทางแบบ 2 ช่องสัญญาณ ที่ทำหน้าที่แปลงสัญญาณดิจิทัล 24 บิต/96 กิโลเฮิรตซ์ จากเครือข่าย Dante หรือ AES67 ให้เป็นสัญญาณอนาล็อกสำหรับเชื่อมต่อกับระบบเสียงระดับมืออาชีพได้อย่างสมบูรณ์แบบ

คุณสมบัติเด่น

  • การส่งสัญญาณดิจิทัลที่ทนทาน: ออกแบบมาให้ใช้งานบนถนนได้อย่างสมบุกสมบัน สามารถส่งสัญญาณเสียงอนาล็อก 2 ช่องสัญญาณจากเครือข่าย Dante ไปยังจุดใดก็ได้ พร้อมช่อง XLR แบบบาลานซ์ที่มาพร้อม Ground Lift
  • ระบบจ่ายไฟสำรอง: รองรับการจ่ายไฟแบบ redundant โดยใช้แหล่งจ่ายไฟภายนอกร่วมกับ Power over Ethernet (PoE) ได้พร้อมกัน ทำให้มั่นใจได้ว่าจะไม่มีการขัดข้องในการใช้งานที่สำคัญ
  • การใช้งานที่หลากหลาย: เหมาะสำหรับการใช้งานที่แตกต่างกัน ไม่ว่าจะเป็นการเชื่อมต่อกับระบบ PA ขนาดเล็กในห้อง overflow, การส่งสัญญาณเสียงให้กับนักข่าวในพื้นที่ห่างไกล หรือใช้เป็นระบบ Personal Monitoring ด้วยช่องหูฟังเฉพาะที่มีปุ่มปรับระดับเสียงในตัว

สรุป

ด้วยความสามารถในการส่งสัญญาณเสียงดิจิทัลที่เชื่อถือได้และคุณภาพเสียงที่ยอดเยี่ยม Radial DiNet DAN-RX2 จึงเป็นเครื่องมือที่ขาดไม่ได้สำหรับวิศวกรเสียงและนักจัดงานอีเวนต์ที่ต้องการความยืดหยุ่นและประสิทธิภาพสูงสุดในการจัดการระบบเสียงเครือข่าย

รายละเอียดคุณสมบัติ

ข้อมูลจำเพาะ Radial DiNet DAN-RX2

ข้อมูลเสียง (Audio Specifications)

ประเภทวงจรเสียง High current balanced active output device
จำนวนช่องสัญญาณ 2
การตอบสนองความถี่ 20Hz-20kHz
ช่วงไดนามิก >100dB
อัตราขยายสูงสุด +18dBu max @ 0dBFS
ความเพี้ยนรวม (THD) 0.007% @ -6dBFS
ความต้านทานเอาต์พุต 150Ω
Sample Rate 44.1kHz, 48kHz, 88.2kHz, และ 96kHz

การเชื่อมต่อและคุณสมบัติ (Connectors & Features)

ช่องต่อเอาต์พุต 2x XLR male, 1x 3.5mm และ 2x 1/4” headphone out
Bit Depth 24 bit
การแยกช่องสัญญาณ >75dB

ข้อมูลทั่วไป (General)

โครงสร้าง เหล็กหนา 14 gauge พร้อมเคลือบสีฝุ่น
ขนาด (ย x ก x ส) 4.5” x 2” x 6” (121 x 6 x 147mm)
กำลังไฟ 15VDC 400mA (มีอะแดปเตอร์มาให้) หรือ PoE Class 1
เงื่อนไขการใช้งาน ใช้ในที่แห้ง อุณหภูมิ 5°C ถึง 40°C
การรับประกัน 3 ปี (จาก Radial, โอนสิทธิ์ได้)
