Radial J48 Stereo D.I Box

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Radial

ราคา : 13,600 บาท

รุ่น :  Radial J48 Stereo D.I Box ไดเร็กบ็อกซ์
🚚 การจัดส่ง

ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ

🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

💳 ช่องทางการชำระเงิน
จ่ายหน้าร้าน 13 สาขา โอนเงิน เก็บปลายทาง บัตรเครดิต ผ่อน 0% (บางรายการ) Shopee Lazada

🏢
ลูกค้าองค์กร / ขอใบเสนอราคา
สั่งซื้อ Radial J48 Stereo D.I Boxผ่านline สั่งซื้อ Radial J48 Stereo D.I Boxผ่าน messenger

วีดีโอ


YouTube video

Description

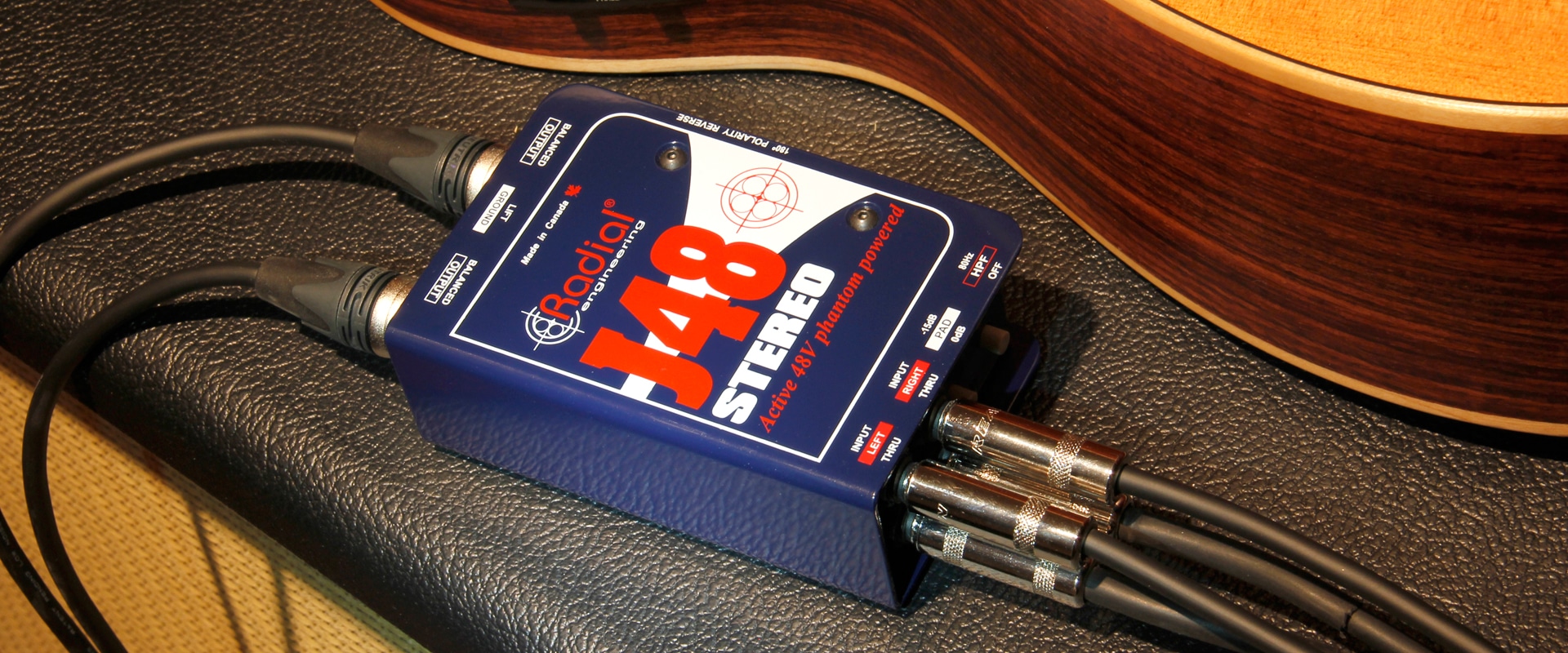

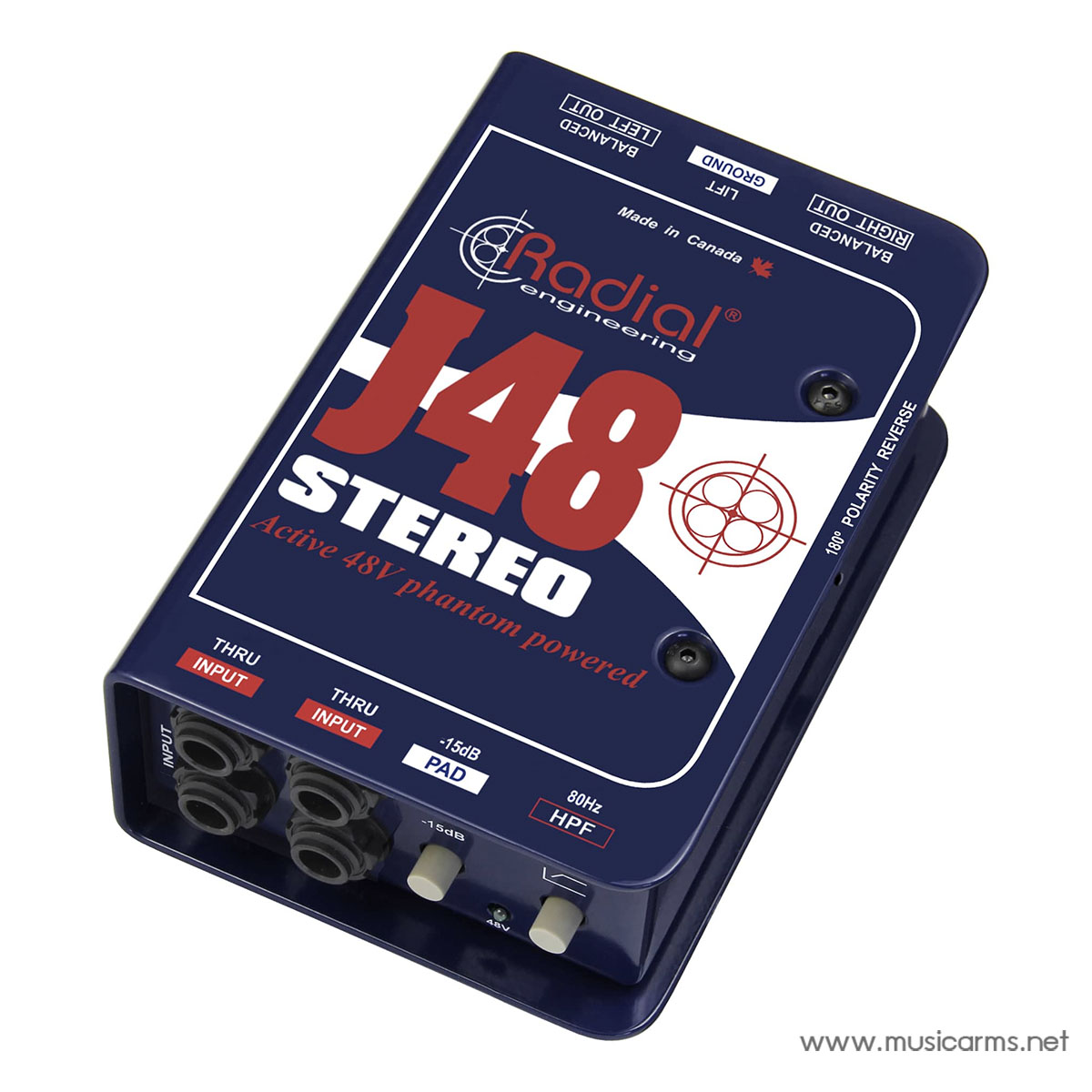

Radial J48 Stereo: Premium Stereo Active DI

The J48 Stereo is a high-performance 2-channel active direct box designed for live concert touring and professional recording studio applications. It boasts the ability to handle extreme transients without distortion, all while delivering the natural and unaltered sound of your instrument.

Key Features

  • Exceptional Headroom & Dynamic Range: The J48 Stereo uses a unique switching power supply that raises the internal rail voltage to handle up to an incredible 9 Volts, preventing distortion from high-output instruments like active basses and keyboards.
  • Phantom-Powered Convenience: The unit is powered exclusively by 48V phantom power, which means you never have to worry about batteries and can rely on consistent, dependable performance every time you use it.
  • Versatile Two-Channel Design: Perfect for stereo sources such as keyboards, or for running two separate instruments at once. The low crosstalk ensures a clean signal when doubling between instruments like a bass and an acoustic guitar.

Summary

The Radial J48 Stereo is the perfect solution for musicians and audio engineers who need a high-quality, two-channel DI that delivers unparalleled signal handling and sonic clarity. It is a reliable and essential tool for a wide range of live and studio applications.

Specification

Radial J48 Stereo Specifications

Audio Specifications

Audio Circuit Type Proprietary analog circuit with low-noise op-amp
Number of Channels 2
Frequency Response 20Hz ~ 20kHz
Dynamic Range 109dB
Total Harmonic Distortion (THD) 0.002% @ -5dBu
Intermodulation Distortion (IMD) 0.003% @ -3dBu
Phase Deviation +10º at 20Hz
0º at 1kHz
-1º at 20kHz
Input Impedance 220kΩ – ¼” input
Output Impedance 600Ω – XLR output
Equivalent Input Noise -103dBu
Noise Floor -99dB below 0dBu
Maximum Input +10dBu

Connectors & Features

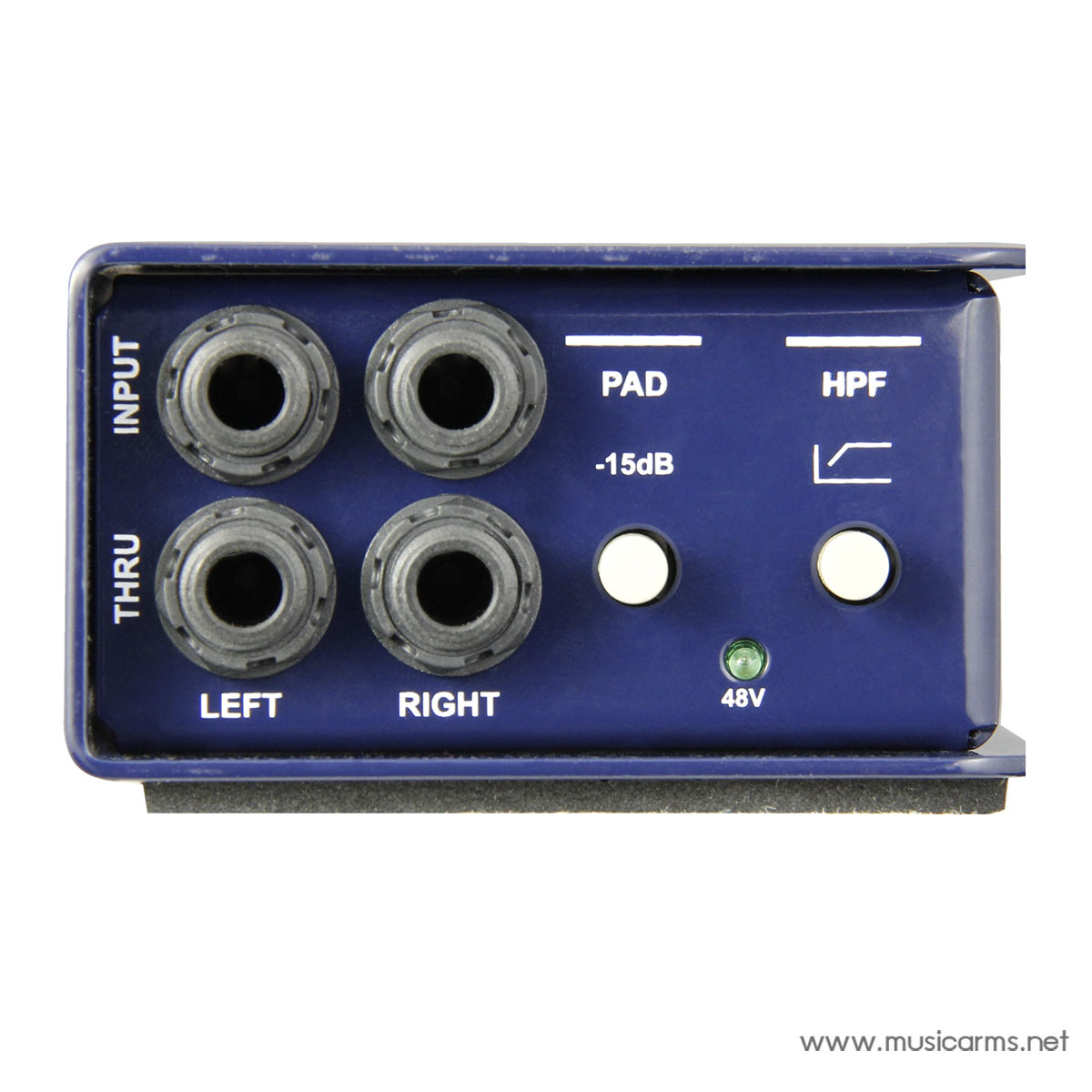

Features Input pad, 180° polarity reverse, Ground lift, HPF
Input Connectors 2x 1/4″ in and thru

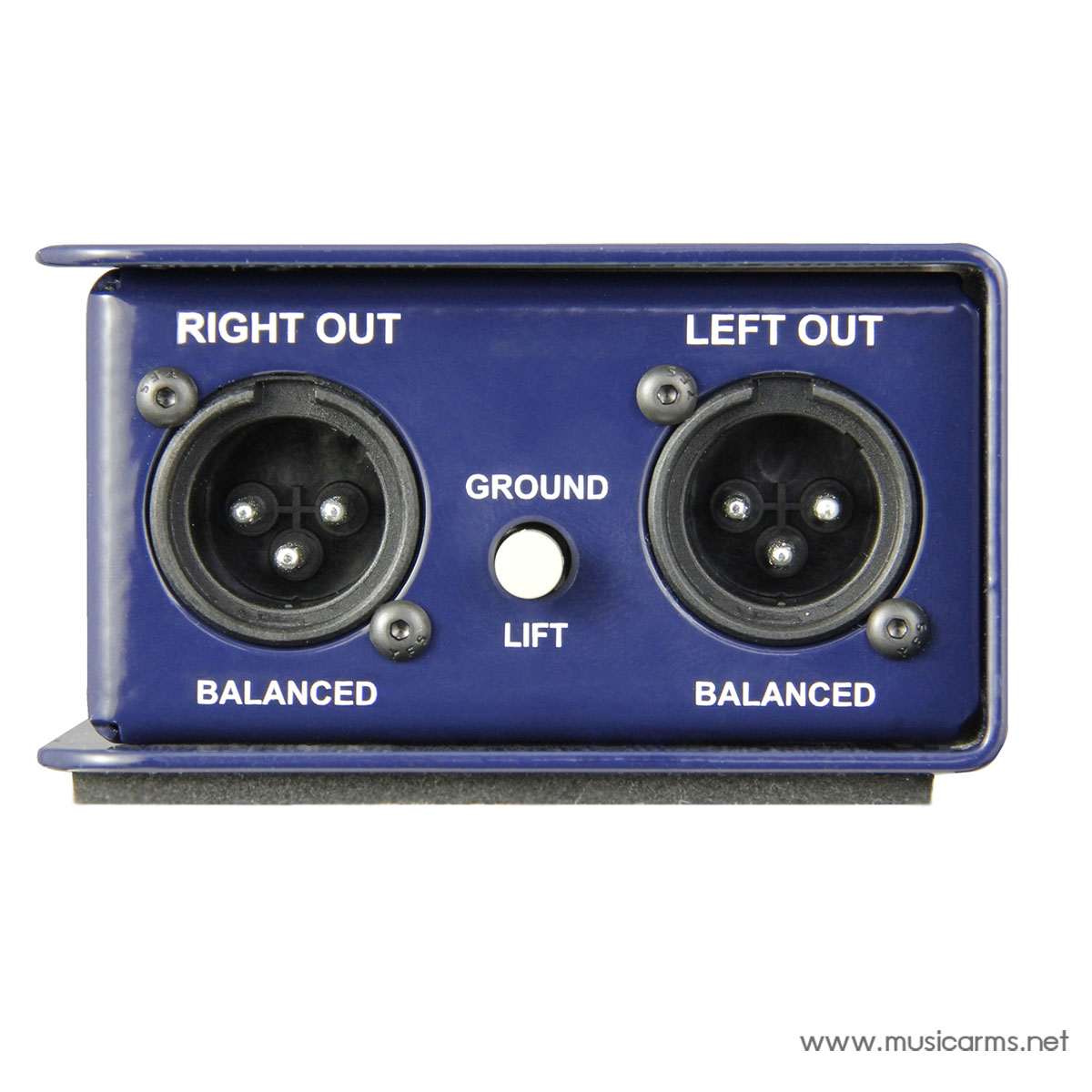

Output Connectors 2x XLR

General

Construction 14 gauge steel chassis and outer shell
Size (L x W x D) 3.3″ x 5.0″ x 2″ (84 x 127 x 48mm)
Weight 1.55 lb (720 g)
Power 48V phantom – proprietary digital switching
Conditions For use in dry locations only between 5°C and 40°C
Warranty Radial 3-year, transferable

ข้อมูลสินค้า

Radial J48 Stereo: Active DI ระดับพรีเมียมแบบสเตอริโอ

J48 Stereo คือกล่อง Direct Box แบบ Active 2 ช่องสัญญาณประสิทธิภาพสูง สำหรับการใช้งานทัวร์คอนเสิร์ตและสตูดิโอบันทึกเสียงระดับมืออาชีพ ด้วยความสามารถในการรองรับสัญญาณเสียงที่มีความดังสูงได้อย่างยอดเยี่ยมโดยไม่มีความเพี้ยน ในขณะที่ยังคงรักษาสัญญาณต้นฉบับของเครื่องดนตรีไว้ได้อย่างครบถ้วน

คุณสมบัติเด่น

  • Headroom และ Dynamic Range ที่โดดเด่น: J48 Stereo ใช้ระบบจ่ายไฟแบบสวิตชิ่งที่เพิ่มแรงดันไฟภายในให้สูงถึง 9 โวลต์ ทำให้สามารถรับสัญญาณจากเครื่องดนตรีที่มีเอาต์พุตสูงได้โดยไม่เกิดความเพี้ยน
  • พลังงานจาก Phantom Power: ไม่จำเป็นต้องใช้แบตเตอรี่ เพราะ J48 Stereo สามารถทำงานได้ด้วยไฟ Phantom 48V จากคอนโซลผสมเสียงหรืออินเทอร์เฟซเสียงของคุณได้อย่างเต็มประสิทธิภาพ
  • ความยืดหยุ่นในการใช้งานแบบ 2 ช่องสัญญาณ: เหมาะสำหรับแหล่งกำเนิดเสียงสเตอริโออย่างคีย์บอร์ด หรือใช้กับเครื่องดนตรีสองชิ้นพร้อมกัน เช่น เบส 2 ตัว หรือเบสคู่กับกีตาร์โปร่ง โดยมีสัญญาณรบกวนระหว่างช่องสัญญาณต่ำ

สรุป

Radial J48 Stereo คือโซลูชันที่สมบูรณ์แบบสำหรับนักดนตรีและวิศวกรเสียงที่ต้องการกล่อง DI แบบ 2 ช่องสัญญาณที่ให้คุณภาพเสียงที่โปร่งใสและเป็นธรรมชาติ พร้อมความสามารถในการรองรับสัญญาณที่เหนือกว่า ทำให้มั่นใจได้ว่าเสียงของคุณจะถูกส่งต่อไปยังระบบเสียงได้อย่างสมบูรณ์แบบ

รายละเอียดคุณสมบัติ

ข้อมูลจำเพาะ Radial J48 Stereo

ข้อมูลเสียง (Audio Specifications)

ประเภทวงจรเสียง วงจรอนาล็อกพิเศษพร้อม op-amp เสียงรบกวนต่ำ
จำนวนช่องสัญญาณ 2
การตอบสนองความถี่ 20Hz ~ 20kHz
ช่วงไดนามิก 109dB
ความเพี้ยนรวม (THD) 0.002% @ -5dBu
ความเพี้ยนระหว่างความถี่ (IMD) 0.003% @ -3dBu
การเบี่ยงเบนเฟส +10º ที่ 20Hz
0º ที่ 1kHz
-1º ที่ 20kHz
ความต้านทานอินพุต 220kΩ – ¼” input
ความต้านทานเอาต์พุต 600Ω – XLR output
Equivalent Input Noise -103dBu
Noise Floor -99dB ต่ำกว่า 0dBu
อินพุตสูงสุด +10dBu

การเชื่อมต่อและคุณสมบัติ (Connectors & Features)

คุณสมบัติ Input pad, 180° polarity reverse, Ground lift, HPF
ช่องต่ออินพุต 2x ¼” in and thru
ช่องต่อเอาต์พุต 2x XLR

ข้อมูลทั่วไป (General)

โครงสร้าง ตัวเครื่องและโครงสร้างทำจากเหล็กหนา 14 gauge
ขนาด (ย x ก x ส) 84 x 127 x 48 มม.
น้ำหนัก 720 กรัม
กำลังไฟ 48V phantom – proprietary digital switching
เงื่อนไขการใช้งาน ใช้ในที่แห้ง อุณหภูมิ 5°C ถึง 40°C
การรับประกัน 3 ปี (จาก Radial, โอนสิทธิ์ได้)
