Radial OX8-j Jensen-equipped 8-channel Microphone Splitter ตัวแยกไมค์โครโฟน

The Radial OX8 is a professional 8-channel passive microphone splitter. It’s designed to take a single microphone source and split it into three separate outputs simultaneously, making it ideal for live sound, recording, and broadcast applications where pristine audio quality and noise elimination are critical.

The three main outputs for each channel are:

• Direct Out: A straight-through connection that also passes +48V phantom power back to condenser microphones.
• Thru-put (Auxiliary Out): A direct feed equipped with a ground lift switch to help eliminate hum and buzz caused by ground loops.
• Isolated Out: A fully transformer-isolated output. This provides complete electrical isolation between audio systems, which is the most effective way to prevent ground loop noise, perfect for feeding a recording console or a broadcast truck.

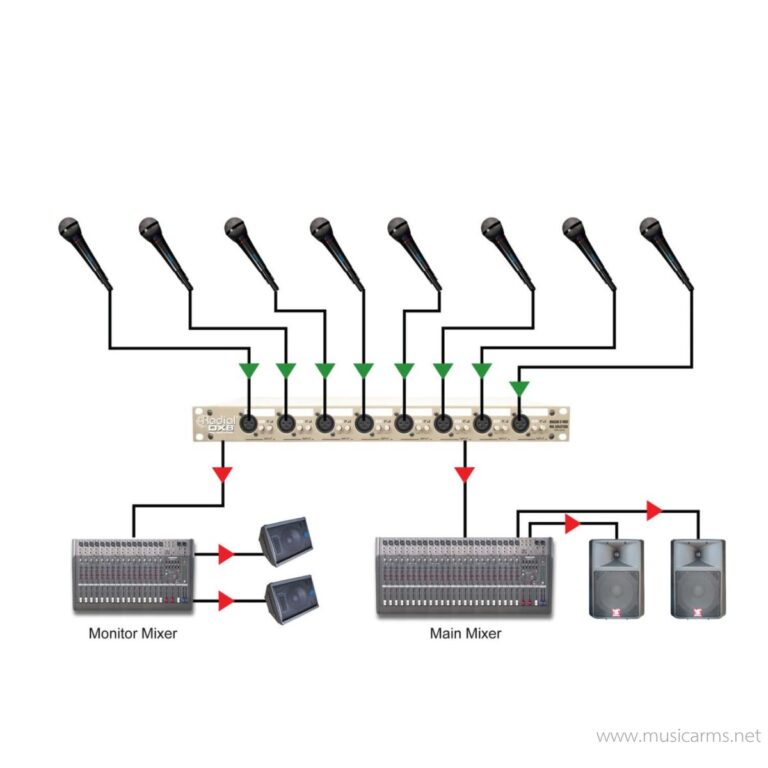

This functionality allows you to cleanly send a microphone signal to a Front of House (FOH) console, a monitor console, and a recording system without any of the systems interfering with one another.

Key Features

• Passive Design: The OX8 requires no power to operate, ensuring reliability and simplicity in any setup.
• Transformer Isolation: It is available with a choice of premium Jensen transformers or standard Radial Eclipse transformers, both of which provide superior noise rejection and signal integrity.
• Ground Lift Switch: Each auxiliary output features a ground lift switch for quick troubleshooting and elimination of ground-related noise.
• -36dB Pad: An input pad allows the OX8 to handle line-level sources in addition to standard microphone signals, increasing its versatility.
• Flexible Connectivity: The unit offers front-panel XLR inputs for easy access, as well as rear-panel DB-25 and Euroblock connectors for streamlined integration into complex setups.
• Rugged Construction: Built with 14-gauge steel in a 1U rack-mountable chassis, the OX8 is designed to withstand the rigors of professional touring.

Audio Circuit Type                           Passive transformer-based mic level splitter

Number of Channels                       8 channels (1-in / 3-out per channel)

Frequency Response                      20Hz – 20KHz (with Jensen transformer)

Dynamic Range 140dB

Total Harmonic Distortion            0.003% @ 1kHz (with Jensen transformer)

Connectors                                         Input: XLR, DB-25, Euroblock

Output: DB-25, Euroblock

Size                                                        19″ x 6″ x 1.75″ (48.25cm x 15.25cm x 4.45cm)

Weight                                                 7.5 lb (3.4 kg)

คุณสมบัติ               รายละเอียด

ประเภทวงจร                               Passive transformer-based mic level splitter

จำนวนช่อง                                  8 ช่อง (1 อินพุต / 3 เอาต์พุตต่อช่อง)

การตอบสนองความถี่                  20Hz – 20KHz (สำหรับ Jensen transformer)

Dynamic Range 140dB

Total Harmonic Distortion     0.003% @ 1kHz (สำหรับ Jensen transformer)

การเชื่อมต่อ                                 Input: XLR, DB-25, Euroblock

Output:                                       DB-25, Euroblock

ขนาด                                            19″ x 6″ x 1.75″ (48.25 x 15.25 x 4.45 ซม.)

น้ำหนัก                                         7.5 ปอนด์ (3.4 กก.)
