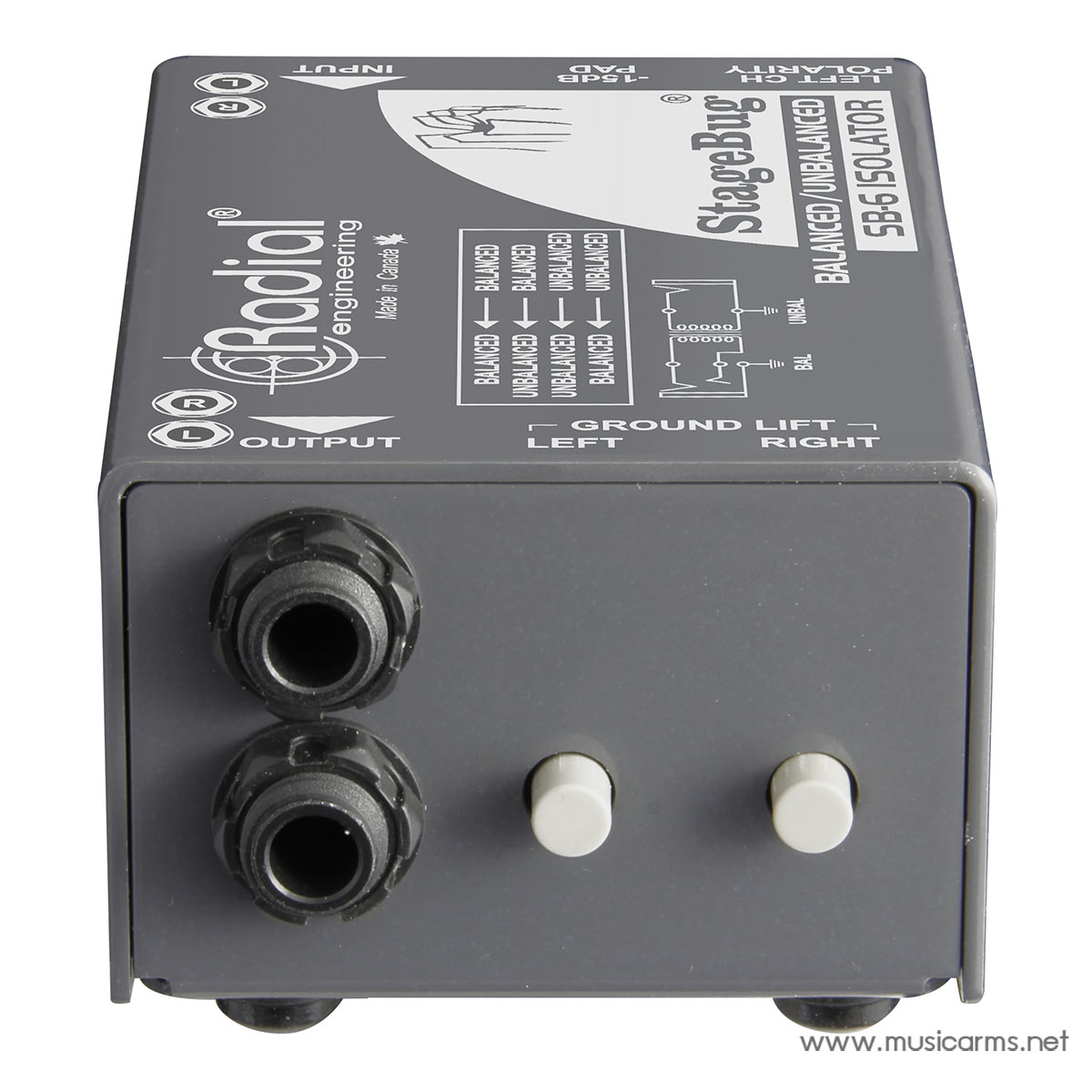

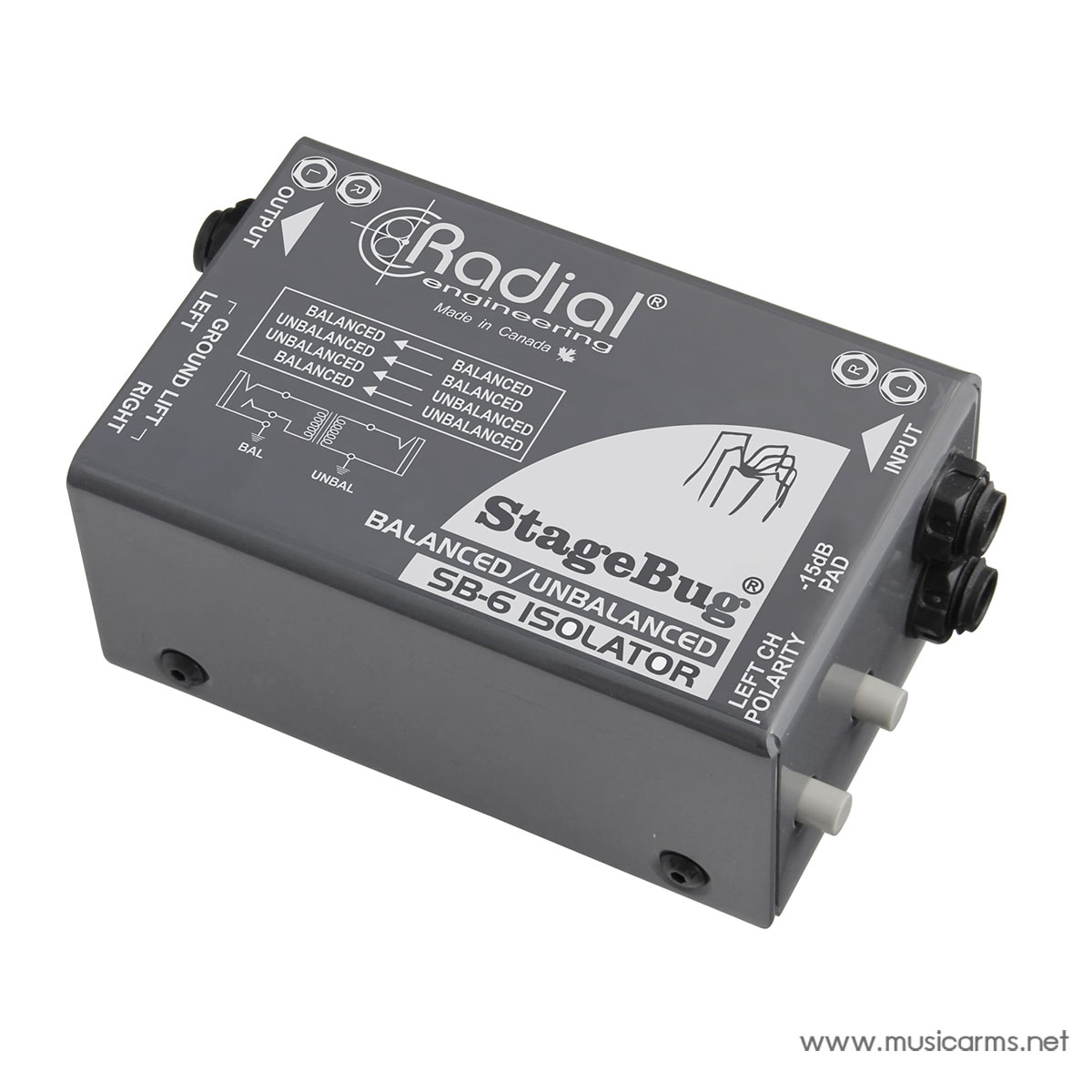

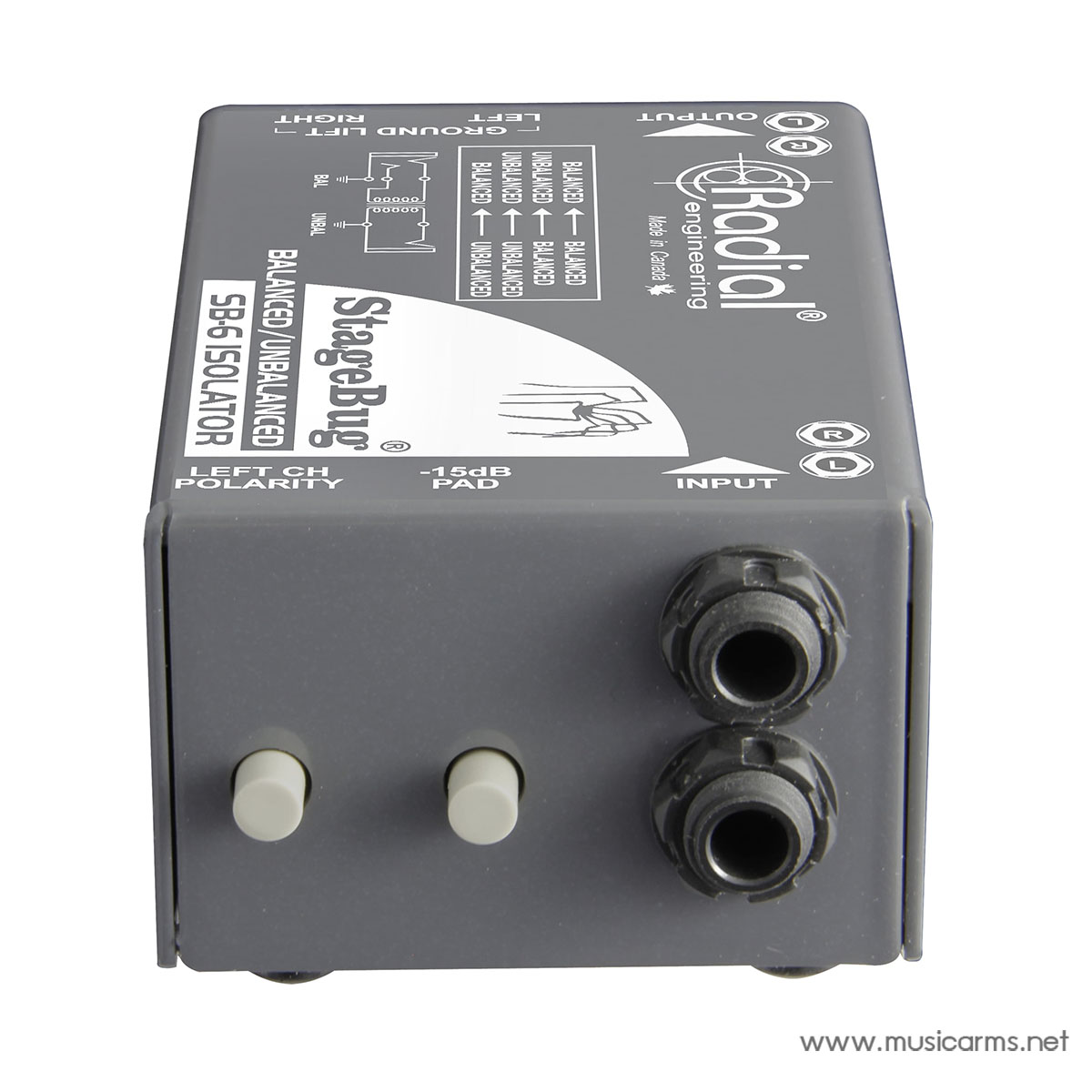

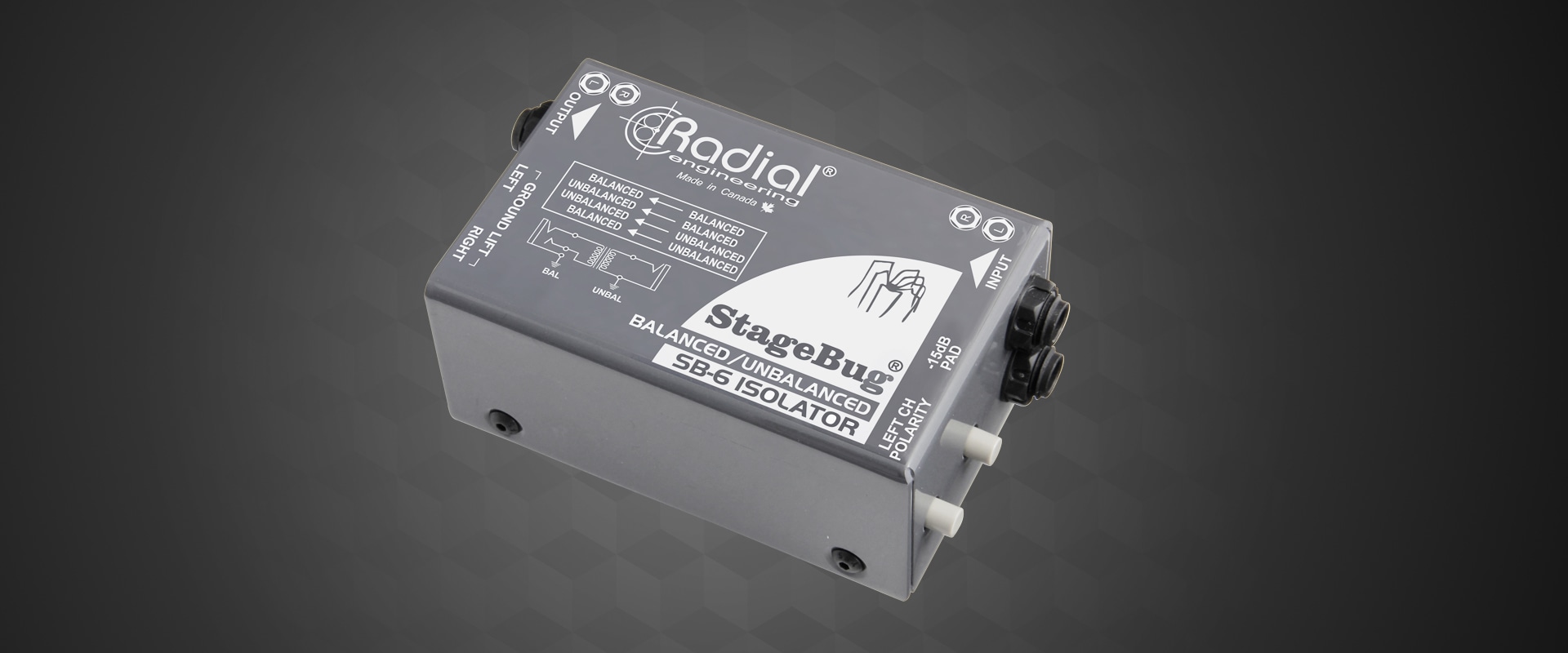

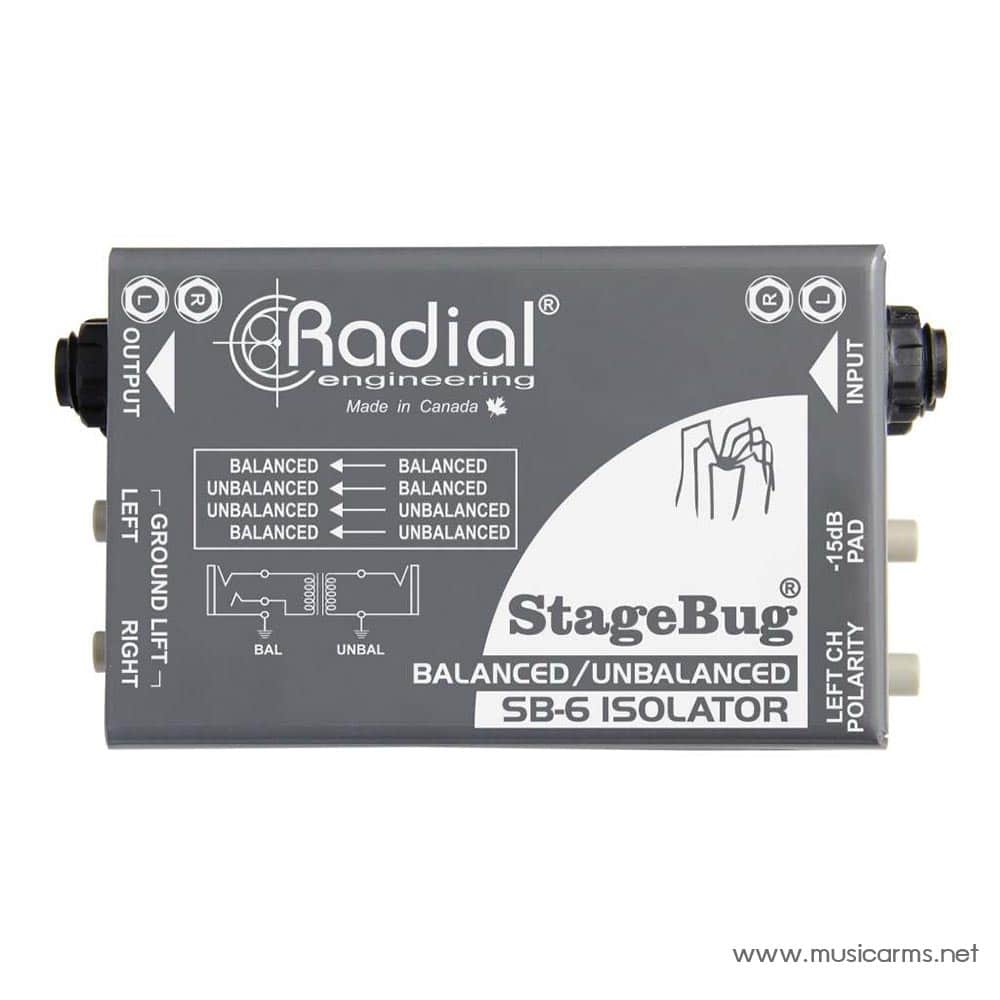

Radial StageBug SB-6 Isolator ไดเร็คบ๊อกซ์

The Radial StageBug® SB-6 is a high performance 2-channel passive audio isolator designed to accommodate both balanced and unbalanced signals and work effectively at eliminating noise when used with instruments, consumer electronics as well as professional line-level devices.

he design begins with ¼” TRS inputs and outputs to accommodate both TRS and mono type connectors. The unique circuit retains the balanced signals or automatically converts them from hi-Z to lo-Z (¼” mono to TRS) or lo-Z to hi-Z (1/4″TRS to mono) depending on the connector in use. You simply connect and the SB-6 does the work for you! Inside are two ultra-linear Eclipse transformers that sound great as they deliver ruler flat performance from 20Hz to 20kHz.

This is augmented with a -10dB input pad to handle extra loud source devices and a polarity reverse on output B for phase aligning stereo signals. As the circuit is passive, no power is required – simply plug in and play. As with all Radial products, the SB-6 is made in Canada and features 16 gauge steel construction for use on the road and finished in a durable powder coat finish.

• Isolator for balanced and unbalanced signals
• Eliminates hum and buzz caused by ground loops
• Exceptionally linear from 20Hz to 20kHz
• Automatically configures for hi-Z or lo-Z signal chains
