Radial Tonebone Bigshot ABY เอฟเฟคกีตาร์

Radial BigShot ABY: Effective control for your two-amp setup

The Radial BigShot ABY is a straightforward solution for musicians who want to run a two-amp setup without introducing unwanted noise or affecting their tone. This compact pedal gives you the flexibility to switch between two amplifiers or use both at the same time, all with a simple footswitch. Its smart design ensures your sound stays pure, and it includes features to eliminate common stage issues like hum and phase cancellation.

Key Features

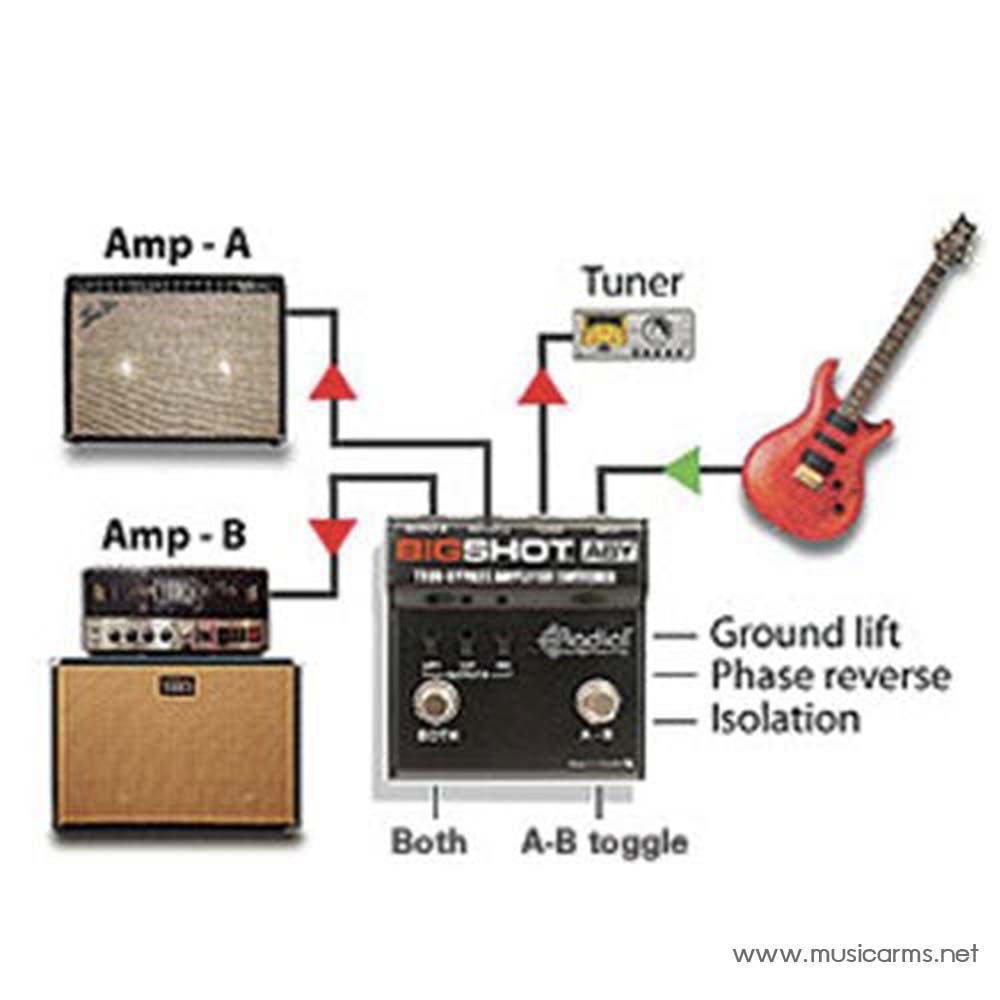

• Ground Loop Elimination: The second amp output features an isolation transformer and a ground lift, which can be engaged to get rid of buzz and hum caused by ground loops.
• Phase Correction: A 180° polarity reverse switch ensures your amps are always in phase, preventing frequency cancellation that can weaken your sound.
• True-Bypass Circuit: The BigShot ABY is a true-bypass device, meaning there are no buffers between your guitar and amplifier, preserving your original tone.

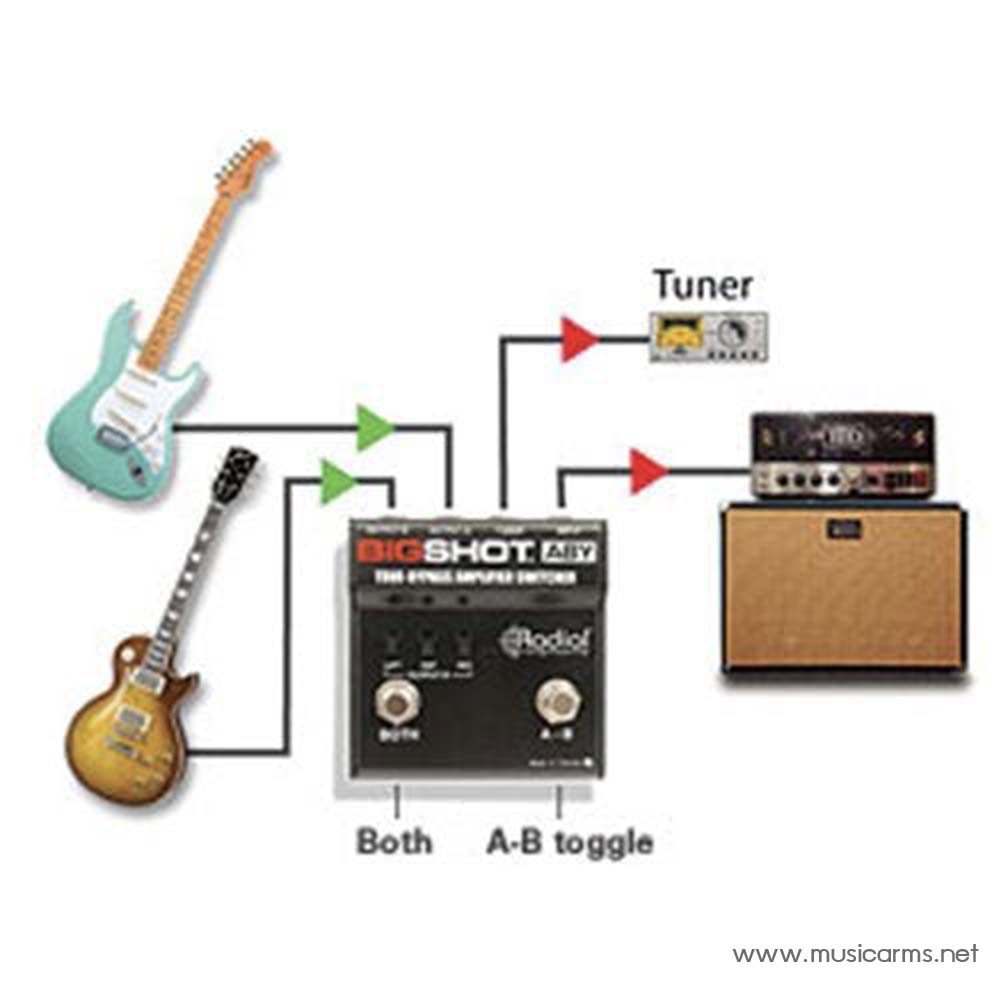

• Flexible Footswitches: Two latching footswitches allow you to easily select either amp, or combine both for a fuller sound.
• Passive Audio Circuit: The audio circuit still works perfectly even without a power supply. A 9V external power supply or pedalboard power brick is only needed to light up the LED indicators.

Versatile Applications

The BigShot ABY is not just for switching between two amps. It can also be used as a convenient mute footswitch for silent on-stage tuning, with a dedicated tuner output that stays active even when the amp signal is off. Additionally, it can be used to switch between channels on vintage amplifiers that lack remote switching capabilities. Its robust design and simple operation make it an essential tool for any guitarist running multiple amps.
