Radial Tonebone BigShot I/O เอฟเฟคกีตาร์

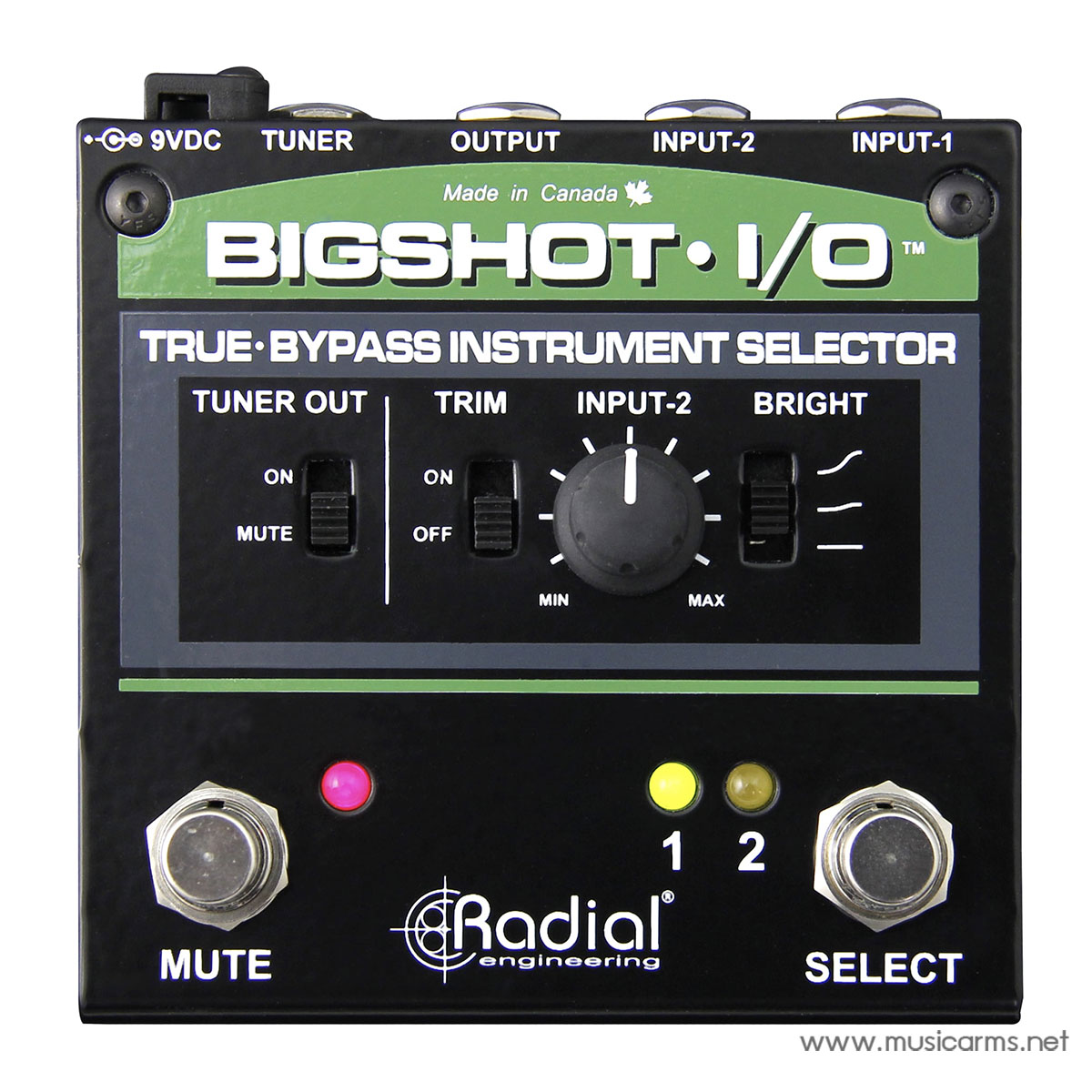

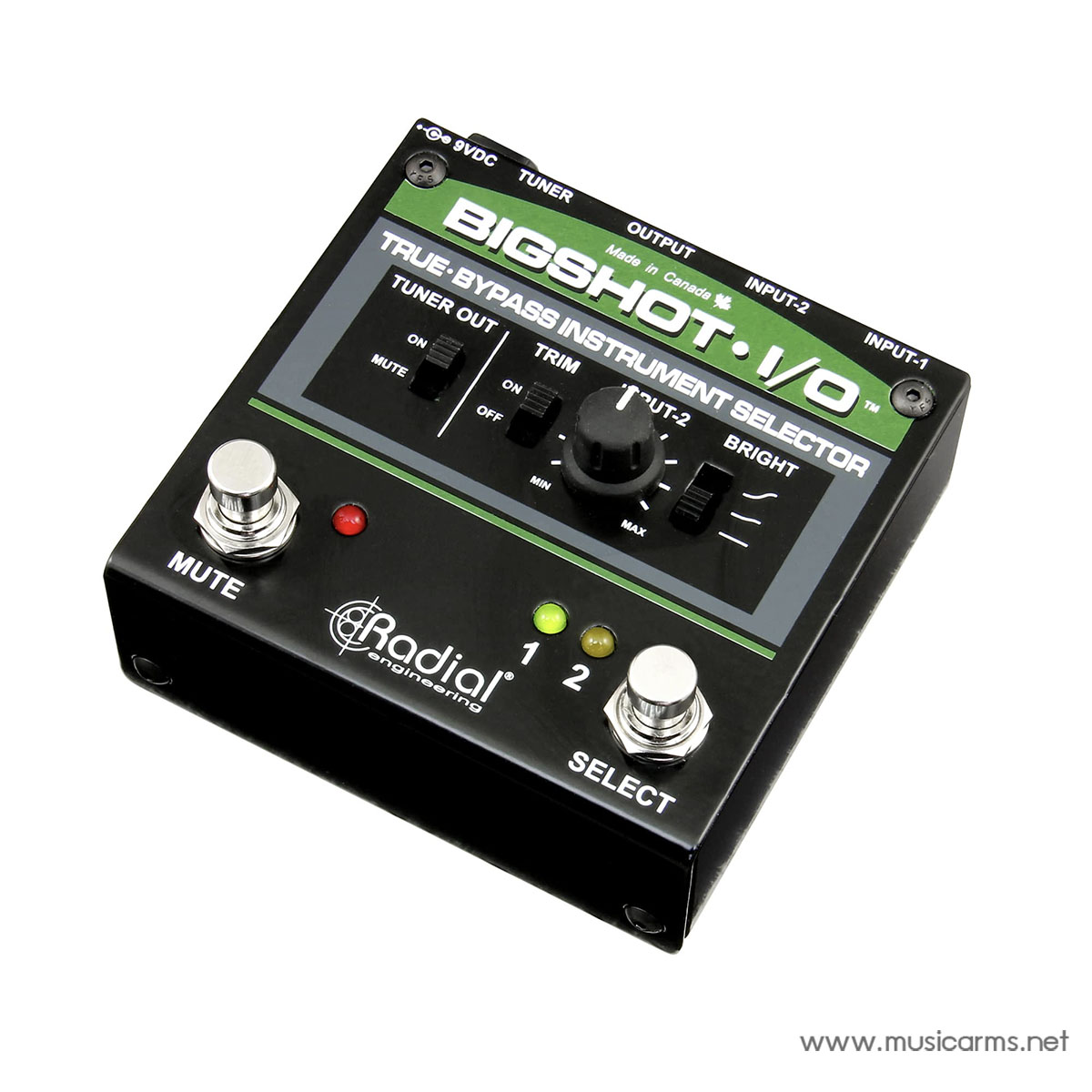

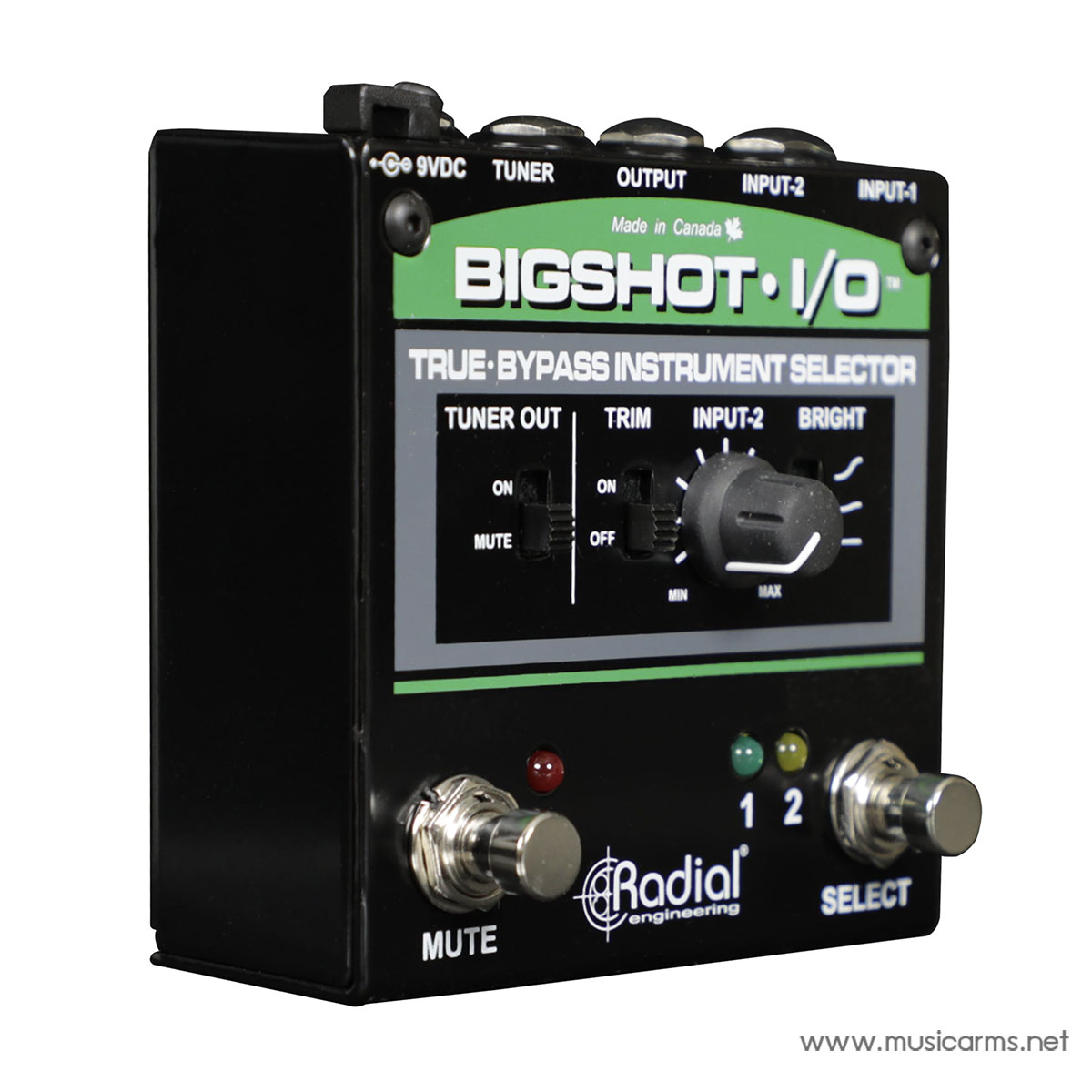

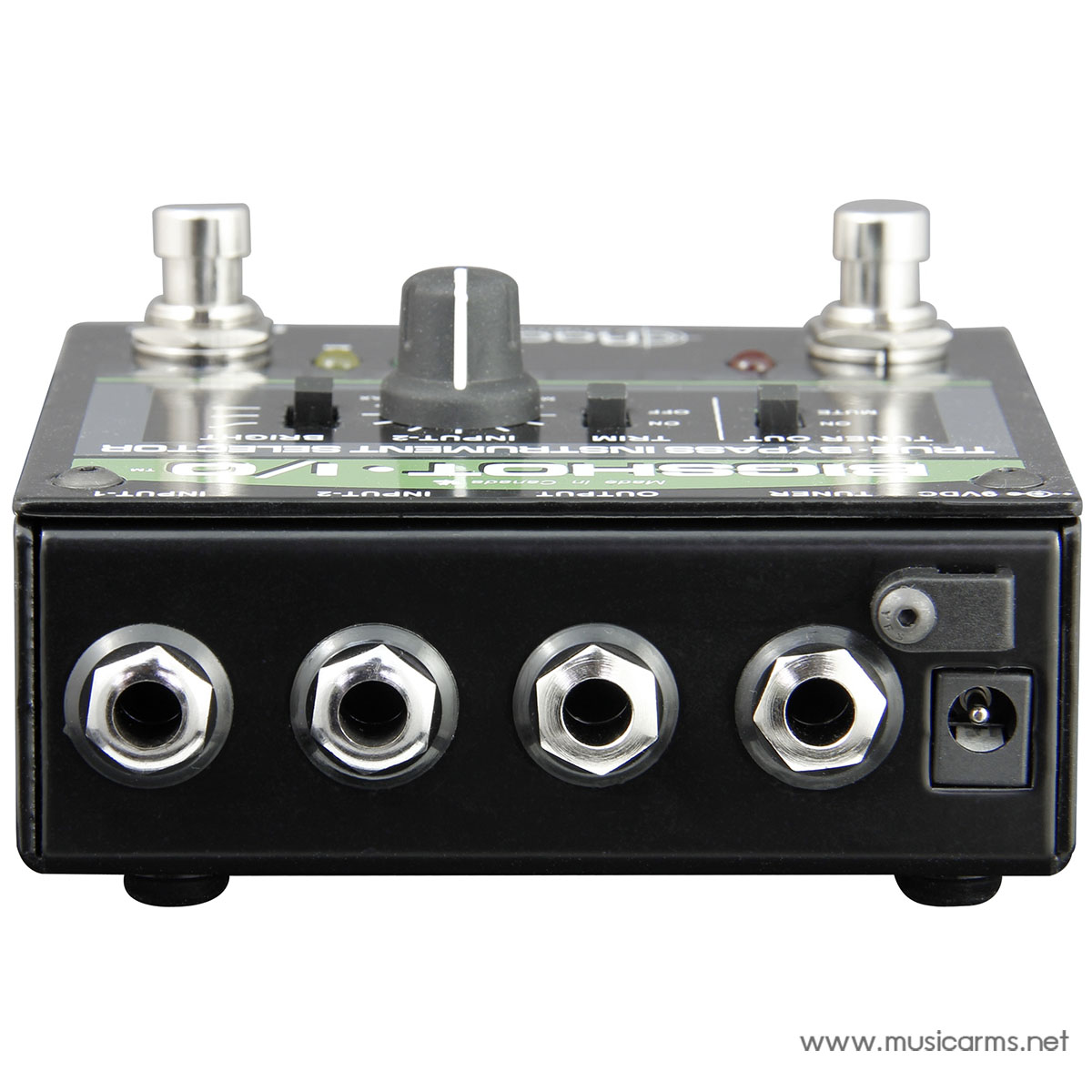

Radial Tonebone BigShot I/O: True-bypass Instrument Selector

The BigShot i/o is an easy-to-use instrument selector that lets you quickly transition between any two instruments, while balancing the levels between them and feeding the output to your amplifier.

Key Features

• One-Stomp Instrument Toggle: Switch between two instruments on stage without pops through your amp or the need to adjust levels, while featuring 100% true-bypass for the most demanding purist.
• Adjustable Volume Control: Input-2 is equipped with a volume control that lets you reduce the input sensitivity of the louder instrument so that the levels are matched when played through your amplifier.
• Bright Control: When passive instruments are used, a unique three-position Bright switch lets you compensate for instruments that lack shine in the high frequencies.
• Separate Tuner Output: The BigShot i/o is equipped with a separate tuner output and a mute footswitch, which mutes the sound going to the amp and diverts it to the tuner for quiet on-stage adjustments.

BigShot i/o Applications

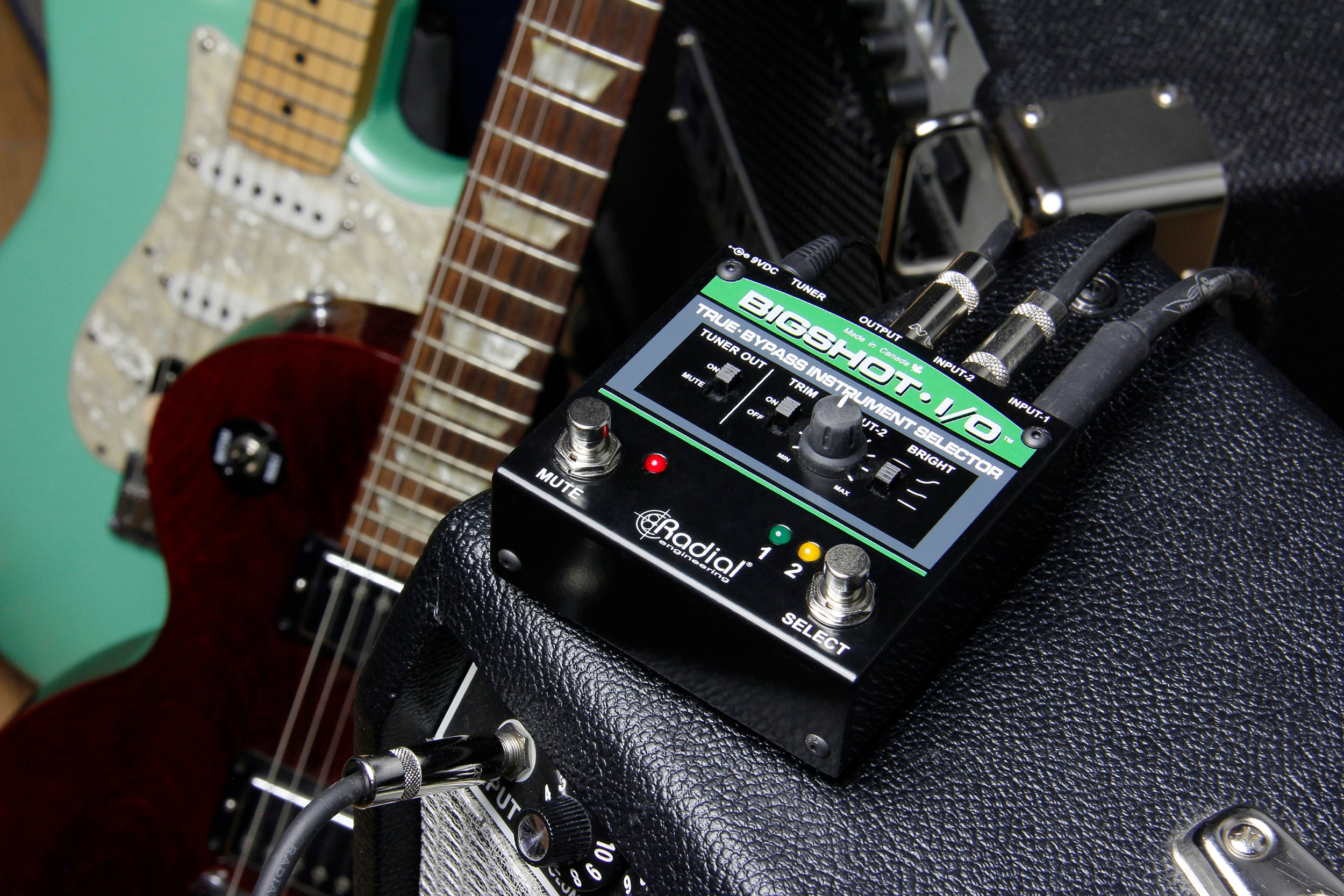

Using the i/o with two electric guitars: Switching between a Strat® and a Les Paul® is easy! Plug the two guitars into the i/o and hit the toggle switch to select. Tame down the Les Paul using the input-B level control. Connect your tuner for quiet onstage tuning using the mute footswitch.

Using the i/o with passive and active bass: Output levels vary dramatically between an active bass and a passive one, making it difficult to switch without adjusting the amp level. Solve the problem by connecting your passive bass to input-1 and your high-output active bass to input-2. Use the level control to match.

Switching between acoustic and electric guitars: Multi-instrumentalists are often forced to switch between electric and acoustic guitars or between other instruments. The BigShot i/o makes it easy! Use input-1 for the electric and lower the sensitivity on input-2 for your acoustic to balance the signals.
