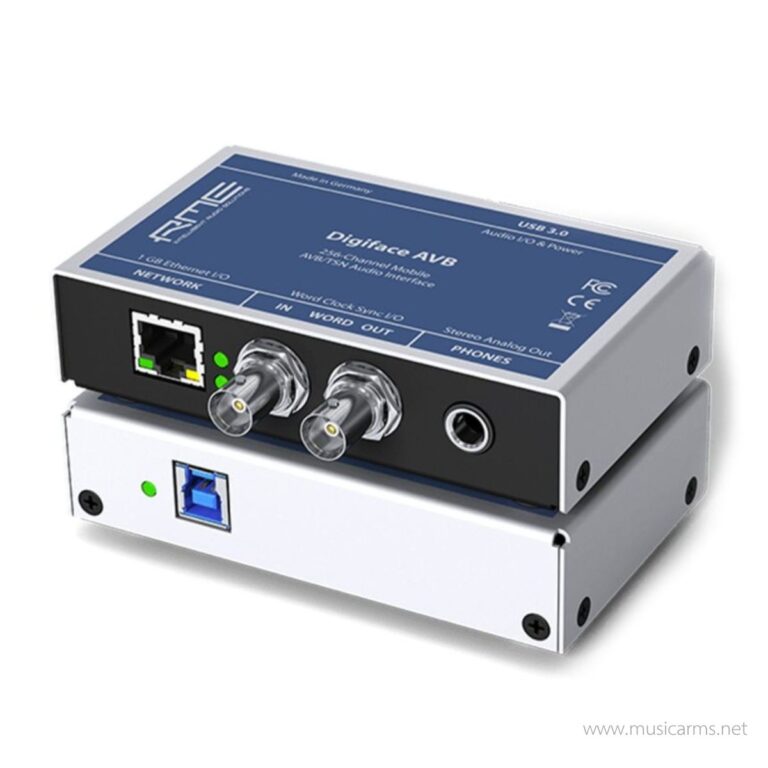

RME Digiface USB Digital Audio Interface

🎧 Digiface AVB

256-Channel 192 kHz USB Audio Interface

🔍 Overview

Digiface AVB, developed by RME, represents the future of audio network technology. It utilizes the open AVB (Audio Video Bridging) protocol developed by IEEE to transmit up to 256 channels of audio between your computer and audio network. A high-quality headphone output allows for precise monitoring.

🔗 Exploring New Ways to Transport Audio

RME Digiface AVB demonstrates how audio can be transferred from a Mac or PC using the AVB protocol stack:

• 🎚️ 128 channels for recording and playback at 48 kHz / 24-bit
• 🎚️ 64 channels at 96 kHz
• 🎚️ 32 channels at 192 kHz (Quad Speed)

Audio is organized in configurable streams of 2 to 32 channels, enabling compatibility with nearly all AVB audio devices on the market.
The included AVDECC Controller software manages AVB device discovery and stream connections, while TotalMix FX provides comprehensive routing and monitoring options.

🎛️ TotalMix FX and TotalMix Remote

The Digiface Series includes RME’s advanced real-time digital mixer TotalMix FX, which enables flexible mixing and routing of all input and playback channels simultaneously to any hardware output.

• 🎙️ Talkback – For communication between control rooms
• 🎚️ Main / Phones – Independent volume control
• 🧩 Fader & Mute Groups – Group control for easier workflow
• 🕹️ Remote Control – Supports Mackie and OSC protocols

*Note: This model does not support DSP-based effects such as EQ or reverb.

📱 Remote Control with TotalMix Remote

With TotalMix Remote, users can easily control the interface from iOS, PC, or Mac.
Simply enter the IP address of the host computer you want to control, and adjust all TotalMix FX settings instantly — whether you’re walking around the studio or working from a remote control room.
