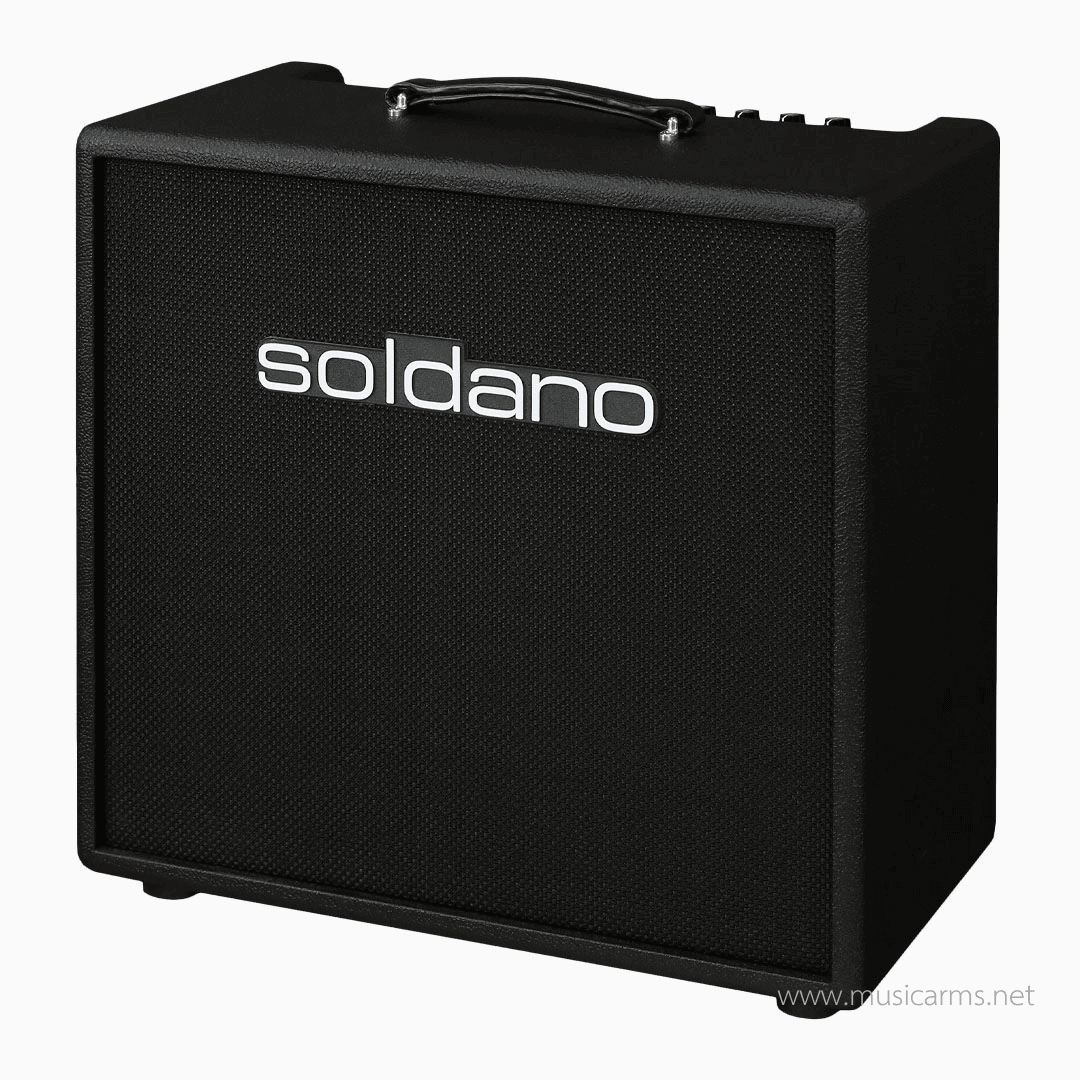

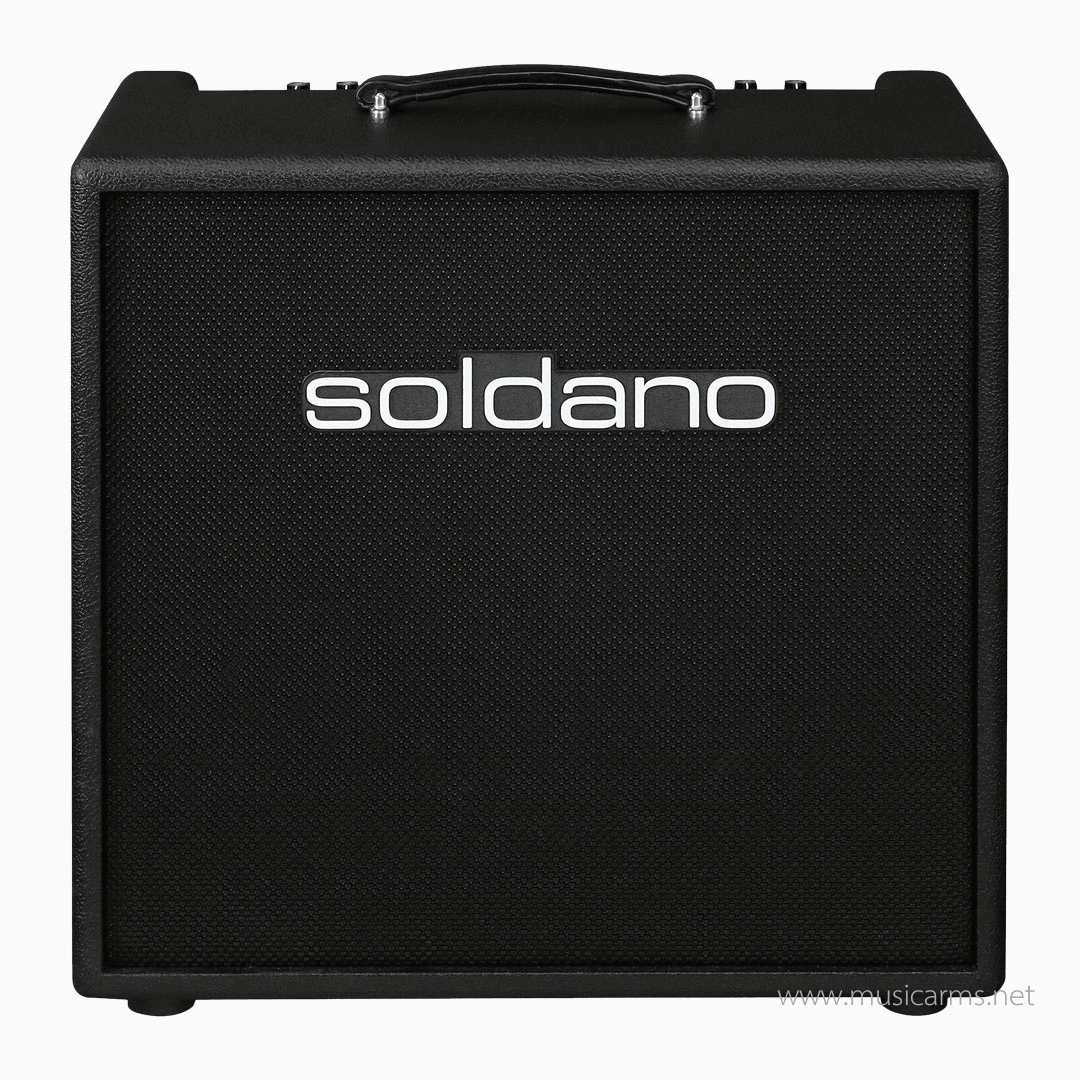

Soldano ASTRO 20 Watt All Tube 1×12 Combo ตู้คาบิเนต

ASTRO-20 Combo

The ASTRO-20 is a 3-channel, 4-Galaxy, assembled-in-USA 1×12” combo that combines authentic all-tube tone with features ideal for today’s modern guitarist. Mike Soldano designed this sonic powerhouse to be a fully featured versatile 20w guitar amplifier. The ASTRO-20 can also be used as a stand-alone cab-less amplifier ideal for live sound, rehearsal and studio recording sessions, thanks to the DSP powered IR cabinet simulation. The simple front panel design of the ASTRO-20 lets you save any combination of the channels, Galaxies, and IRs and quickly recall them with the included 4-button MIDI footswitch. The free downloadable Soldano Editor Software makes organizing presets and integrating your own IRs fast and easy. POWER 20W lightweight all-tube guitar amplifier

Specifications

POWER
20W lightweight all-tube guitar amplifier

DESCRIPTION
Cascading-gain preamp design
3 Independent Channels

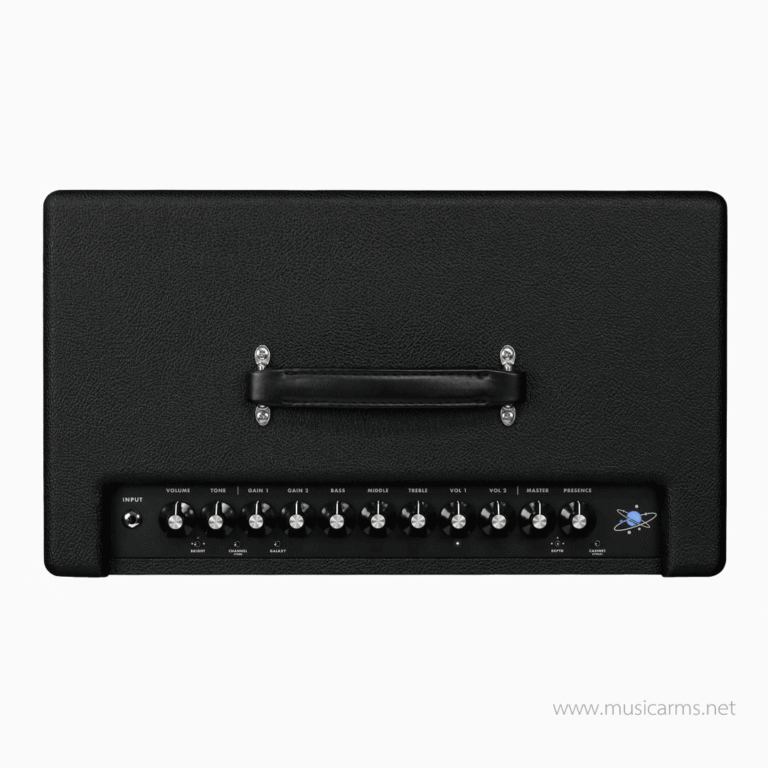

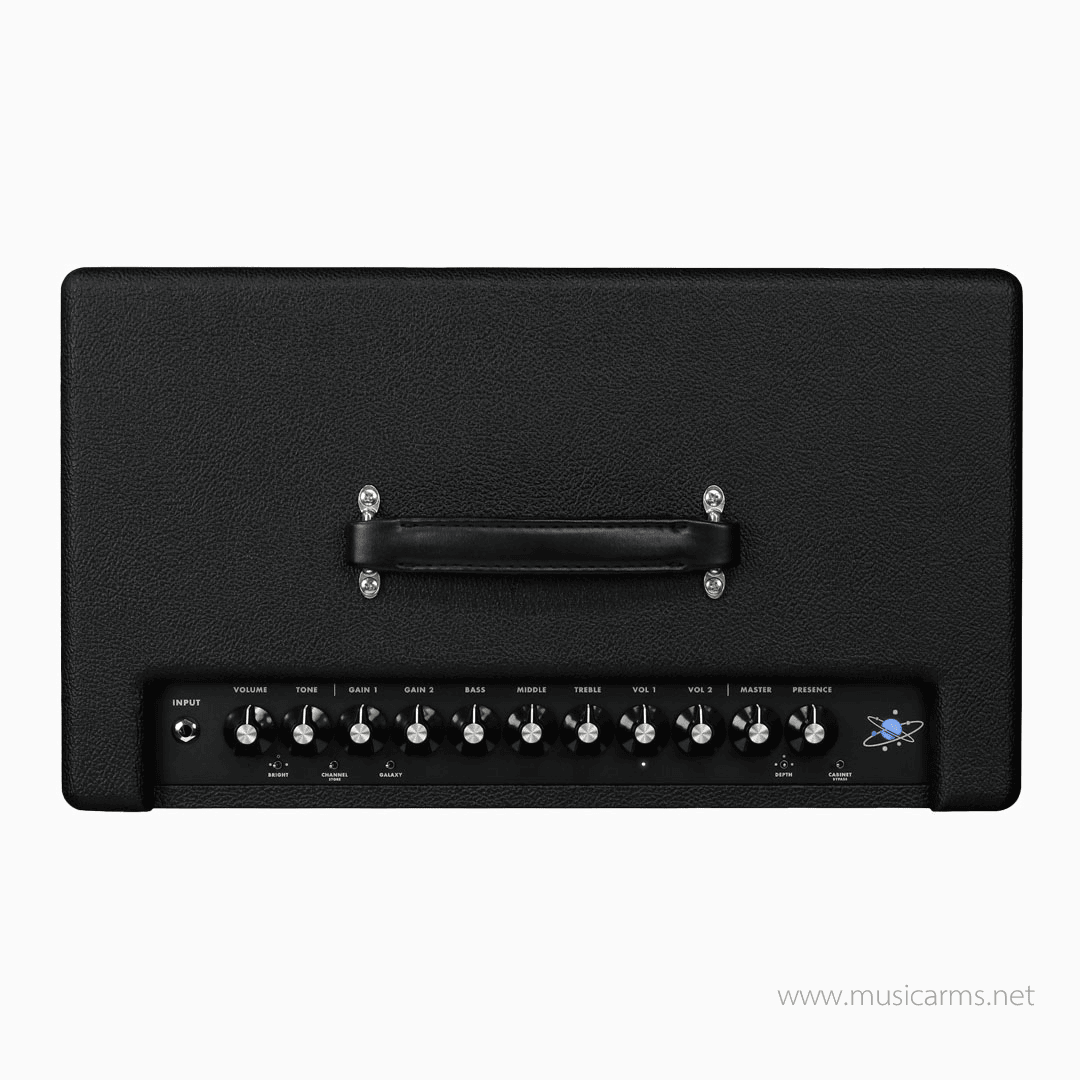

• Master: Volume, Presence and 3 position Depth switch
• Clean channel (Green galaxy) – Volume, Tone, and 3-way Bright Switch, ranges crystal clean to pushed crunchy tones
• Overdrive channels – Independent Gain and Volume per channel, Shared Bass, Middle, and Treble controls, Overdrive 1 and
• Overdrive 2 can be independently programmed to Blue, Purple, or Red galaxies.
• Overdrive GalaxiesBlue Galaxy ranges from bluesy cleans to fat and sparkly hard rock tones
• Purple Galaxy ranges from hard rock to punchy high gain drive with a tighter response
• Red Galaxy with the famous sought after Soldano lead overdrive tone

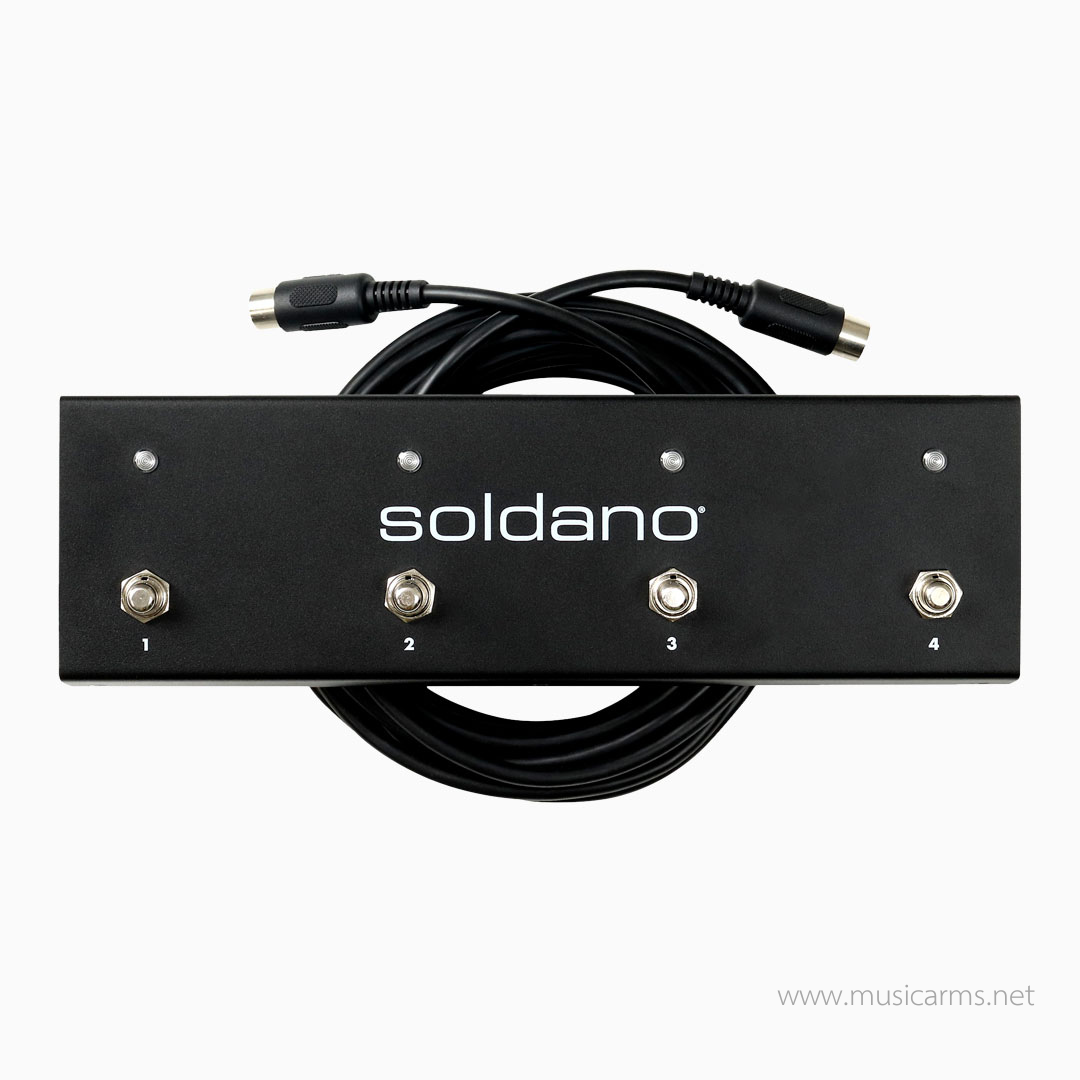

• Included 4 button programmable MIDI foot switch pedal7-Pin MIDI Cable Included
• Ultra-transparent series FX loop
• XLR Balanced Output with Ground Lift

IMPULSE RESPONSES AND MIDI
Low Latency IR Cabinet simulation (bypassable)
6 IR presets, individually programmable per channel – these are the planets around the star.

• Load your own IRs via the Software Editor

MIDI programmable (up to 128 presets)
MIDI/Footswitch Input

• Included 4 button programmable MIDI foot switch pedal7-Pin MIDI Cable Included

• USB Software EditorIncludes a 6’ USB Cable

Cab-less operation
Headphone Output with dedicated Volume control

WEIGHT
48 lbs.

SIZE
20.75″ (W) x 11.75” (D) x 20” (H)

PREAMP TUBES
4 x 12AX7

POWER TUBES
2 x 6V6

สเปก (Specifications)

• หลอดปรีแอมป์: 4 × 12AX7

• หลอดเพาเวอร์: 2 × 6V6

• น้ำหนัก: 48 ปอนด์ (ประมาณ 21.7 กก.)

• ขนาด: กว้าง 20.75″ × ลึก 11.75″ × สูง 20″

• อุปกรณ์ในกล่อง: MIDI Footswitch 4 ปุ่ม, สาย MIDI 7-Pin, สาย USB 6 ฟุต
