Takstar EBS-1C (2022 Edition) Digital Central Controller

ราคา : (กรุณาสอบถาม)
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Takstar EBS-1C (2022 Edition) Digital Central Controller
The Takstar EBS-1C (2022 Edition) is a significantly upgraded digital central controller (DC) from its predecessor, focusing on precise timing and user-friendly touch control. It is ideal for public address systems in schools, factories, and office buildings.
Key Features
-

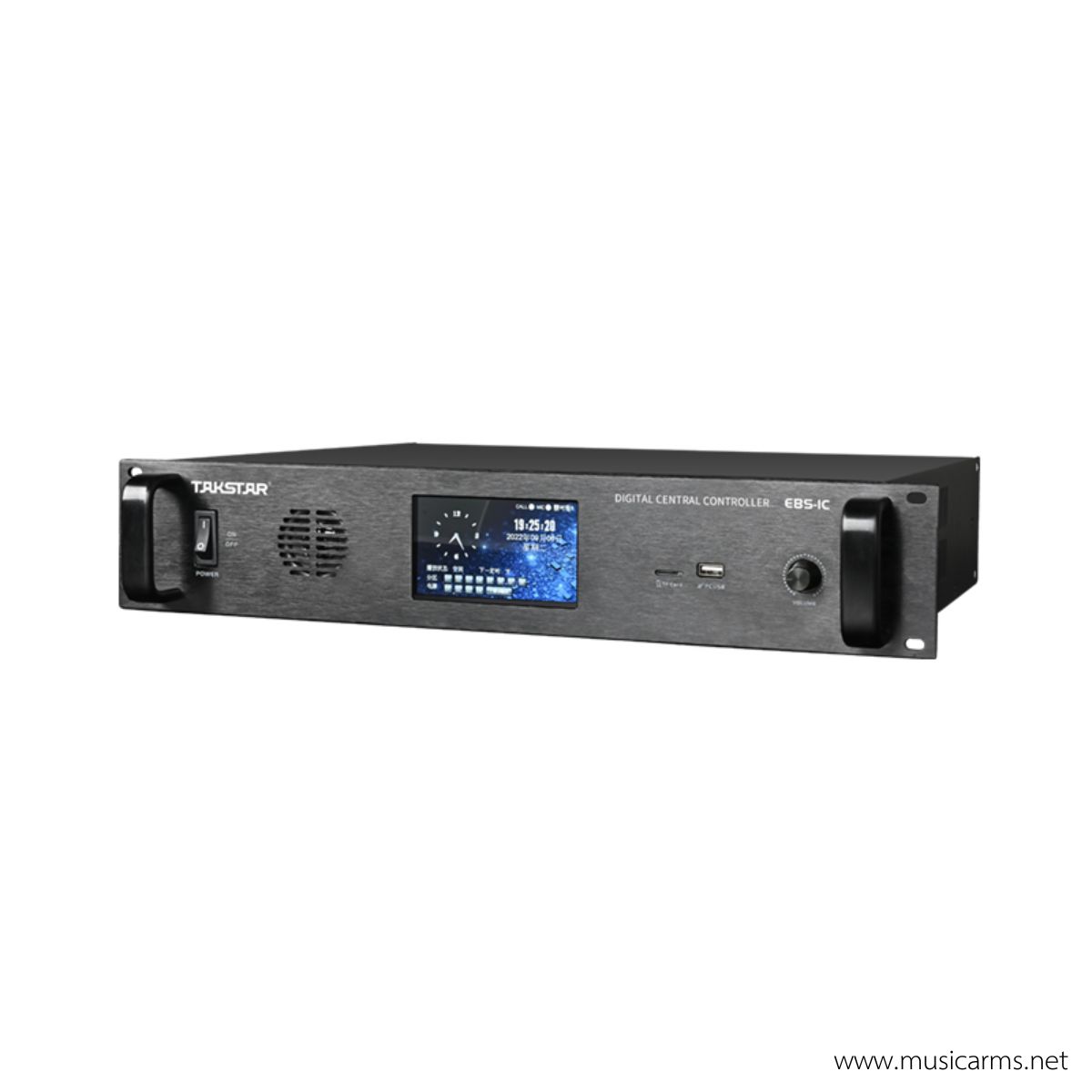

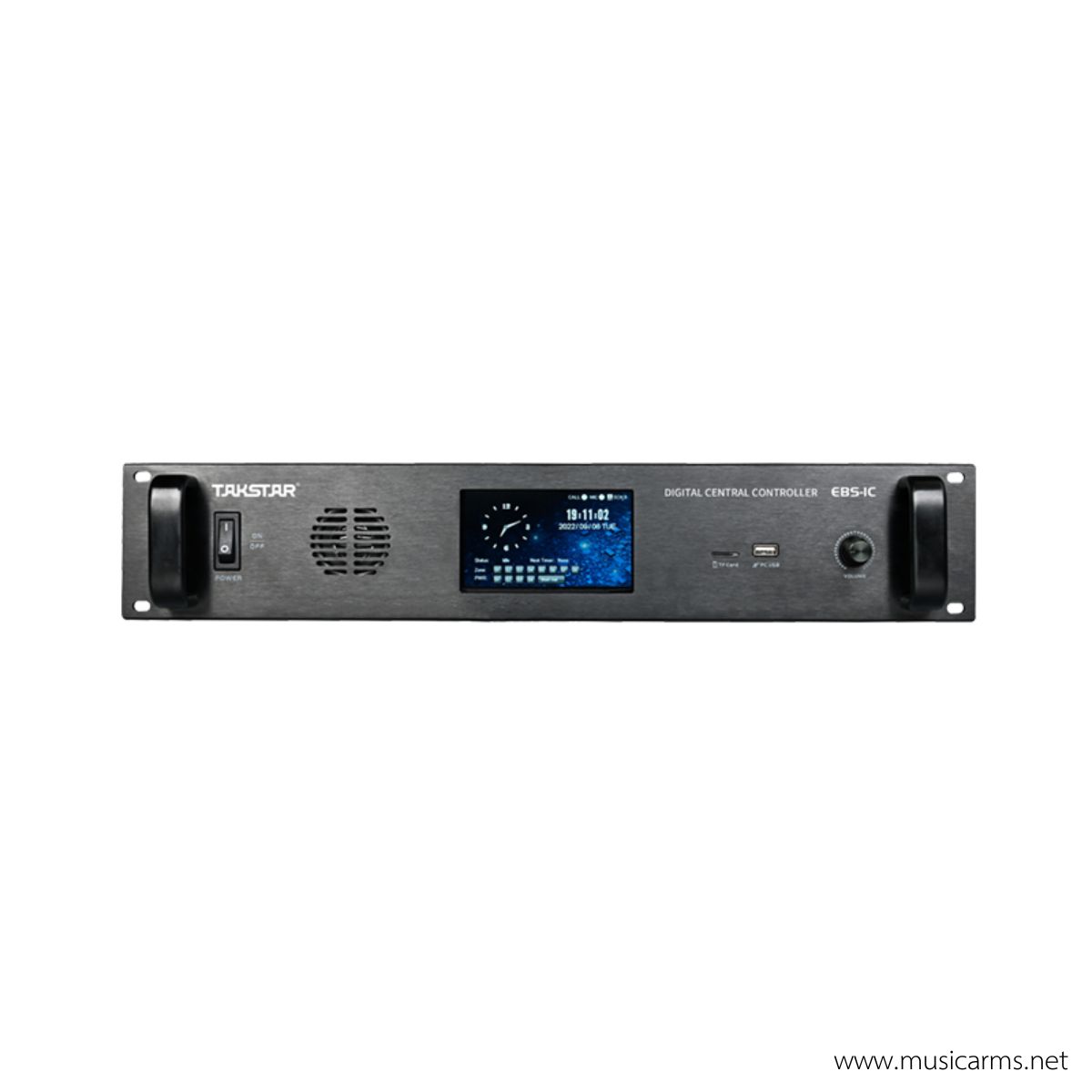

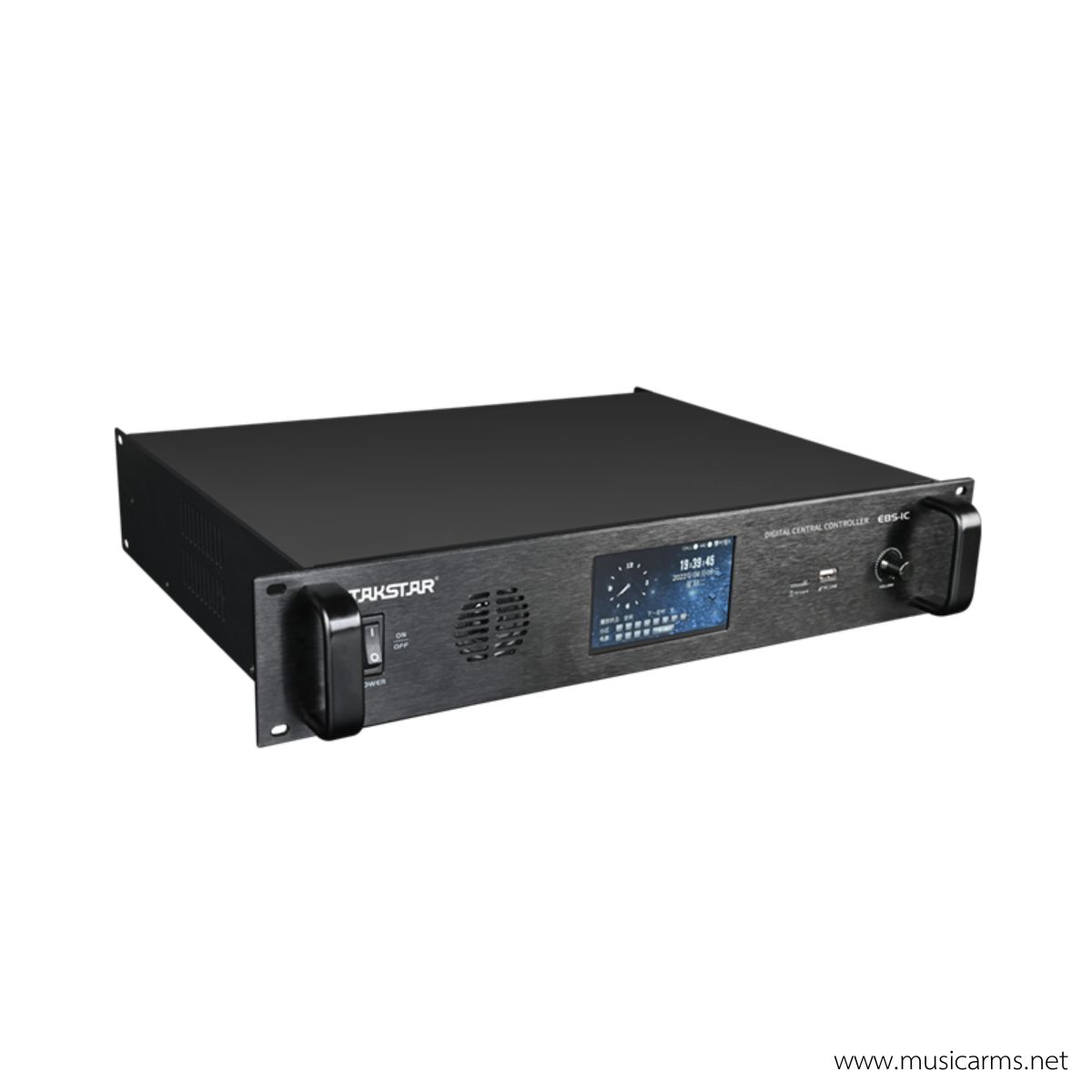

Touchscreen: Upgraded to a 4.3-inch color capacitive touchscreen with Thai/English/Chinese menus, easy to use like a smartphone.
-
Processing system: Uses ARM+DSP architecture with RTOS (Real-time Operating System), resulting in fast and stable processing.
-
Precise time setting: Features a built-in RTC (Real-time Clock) chip, ensuring accurate time setting for turning music or the doorbell on and off, down to the second.
-
Memory: Comes with 4GB of built-in Flash memory (soldered to the board for durability) and supports additional TF cards up to 32GB.
-
Zone and Control: Supports up to 8 speaker zones and has 4 controllable power output channels for automatic on/off switching of connected devices.
-
Emergency function: Supports fire alarm interface, allowing configuration to automatically activate an audible announcement when an alarm is triggered.
Specification
Technical Specifications
| section | details |
| Frequency response | 20Hz – 20KHz (±3dB) |
| Signal-to-noise ratio (S/N Ratio) | ≥ 85dB |
| Total Harmonic Distortion (THD) | < 0.1% at 1KHz |
| Inputs | 1x Local Mic, 2x AUX |
| Outputs | 4x Audio Out (Line 500mV Unbalanced) |
| Radio | FM 87.0 – 108.0MHz |
| Connection port | USB 2.0 (for transferring music from a computer), RS485 |
| Dimensions | 485 x 350 x 90 mm (rack mountable) |
| weight | Approximately 5.1 kg. |
ข้อมูลสินค้า
Takstar EBS-1C (2022 Edition) Digital Central Controller
akstar EBS-1C (2022 Edition) เป็นเครื่องควบคุมสัญญาณเสียงดิจิตอลส่วนกลาง (Digital Central Controller) ที่ได้รับการอัปเกรดขึ้นจากรุ่นเดิมอย่างมาก โดยเน้นความแม่นยำในการตั้งเวลา (Timing System) และความสะดวกในการควบคุมผ่านระบบสัมผัส เหมาะสำหรับระบบประกาศในโรงเรียน, โรงงาน, หรืออาคารสำนักงาน
คุณสมบัติที่โดดเด่น (Key Features)
-
หน้าจอสัมผัส (Touchscreen): อัปเกรดเป็นหน้าจอสีแบบ Capacitive Touch Screen ขนาด 4.3 นิ้ว พร้อมเมนูภาษาไทย/อังกฤษ/จีน ใช้งานง่ายเหมือนสมาร์ทโฟน
-
ระบบประมวลผล: ใช้สถาปัตยกรรม ARM+DSP พร้อมระบบปฏิบัติการ RTOS (Real-time Operating System) ทำให้การประมวลผลรวดเร็วและเสถียร
-
การตั้งเวลาที่แม่นยำ: มีชิป RTC (Real-time Clock) ในตัว ช่วยให้การตั้งเวลาเปิด-ปิดเพลงหรือเสียงออดแม่นยำระดับวินาที
-
หน่วยความจำ: มาพร้อมหน่วยความจำ Flash ในตัว 4GB (บัดกรีติดบอร์ดเพื่อความทนทาน) และรองรับ TF Card เพิ่มเติมได้สูงสุด 32GB
-
โซนและการควบคุม: รองรับการแบ่งโซนลำโพงได้ 8 โซน และมีช่องจ่ายไฟ (Power Output) ที่ควบคุมได้ 4 ช่อง สำหรับเปิด-ปิดอุปกรณ์ต่อพ่วงอัตโนมัติ
-
ฟังก์ชันฉุกเฉิน: รองรับระบบประกาศแจ้งเหตุเพลิงไหม้ (Fire Alarm Interface) โดยสามารถตั้งค่าให้เปิดเสียงประกาศอัตโนมัติเมื่อมีสัญญาณเตือนภัย
รายละเอียดคุณสมบัติ
ข้อมูลทางเทคนิค (Technical Specifications)
| หัวข้อ | รายละเอียด |
| การตอบสนองความถี่ | 20Hz – 20KHz (±3dB) |
| อัตราส่วนสัญญาณต่อสัญญาณรบกวน (S/N Ratio) | ≥ 85dB |
| ความเพี้ยน (THD) | < 0.1% ที่ 1KHz |
| อินพุต (Inputs) | 1x Local Mic, 2x AUX |
| เอาต์พุต (Outputs) | 4x Audio Out (Line 500mV Unbalanced) |
| วิทยุ (Radio) | FM 87.0 – 108.0MHz |
| พอร์ตเชื่อมต่อ | USB 2.0 (สำหรับลงเพลงจากคอมพิวเตอร์), RS485 |
| ขนาด (Dimensions) | 485 x 350 x 90 มม. (รองรับการติดตั้งในตู้ Rack) |
| น้ำหนัก | ประมาณ 5.1 กก. |
