Takstar EBS-50M Power Amplifier

ราคา : (กรุณาสอบถาม)
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Takstar EBS-50M Power Amplifier
The Takstar EBS-50M is an integrated broadcast amplifier designed for public address systems in various locations such as restaurants, cafes, or conference rooms. It features high power output and versatile zone management.
Key Features (Main Features)
-
6-Zone Output: Supports speaker zone division up to 6 zones, with independent volume control buttons for each zone (Output 100V).
-
Media Player: Features a built-in Bluetooth module and MP3 player, supporting music playback via USB flash drive and SD card.
-
Priority System: Mic 1 and EMC (Emergency) channels have a highest priority system, automatically muting audio from other channels when there is an announcement or emergency signal.
-
Protection System: It has a comprehensive protection system against short circuits, overheating, and over/undervoltage.

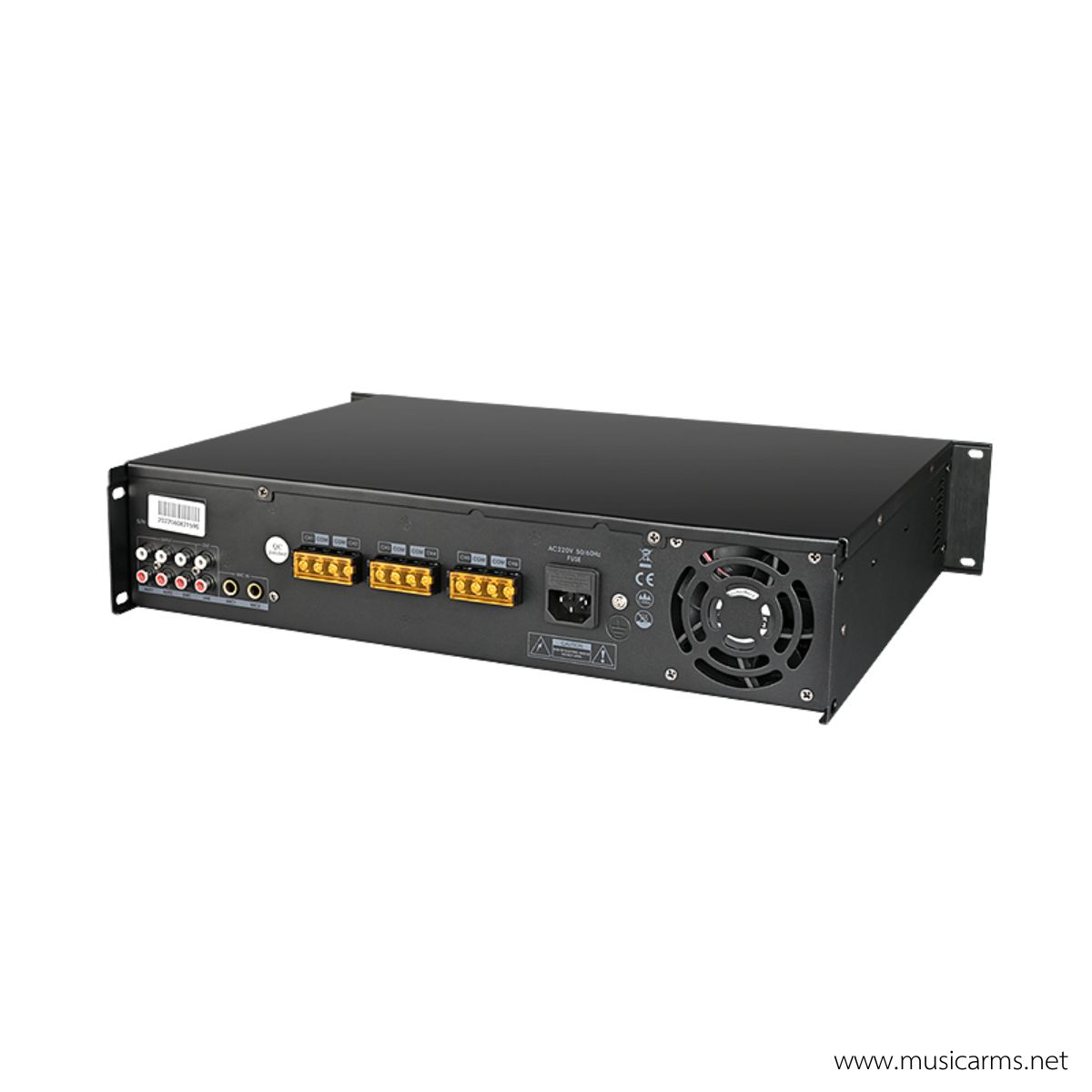

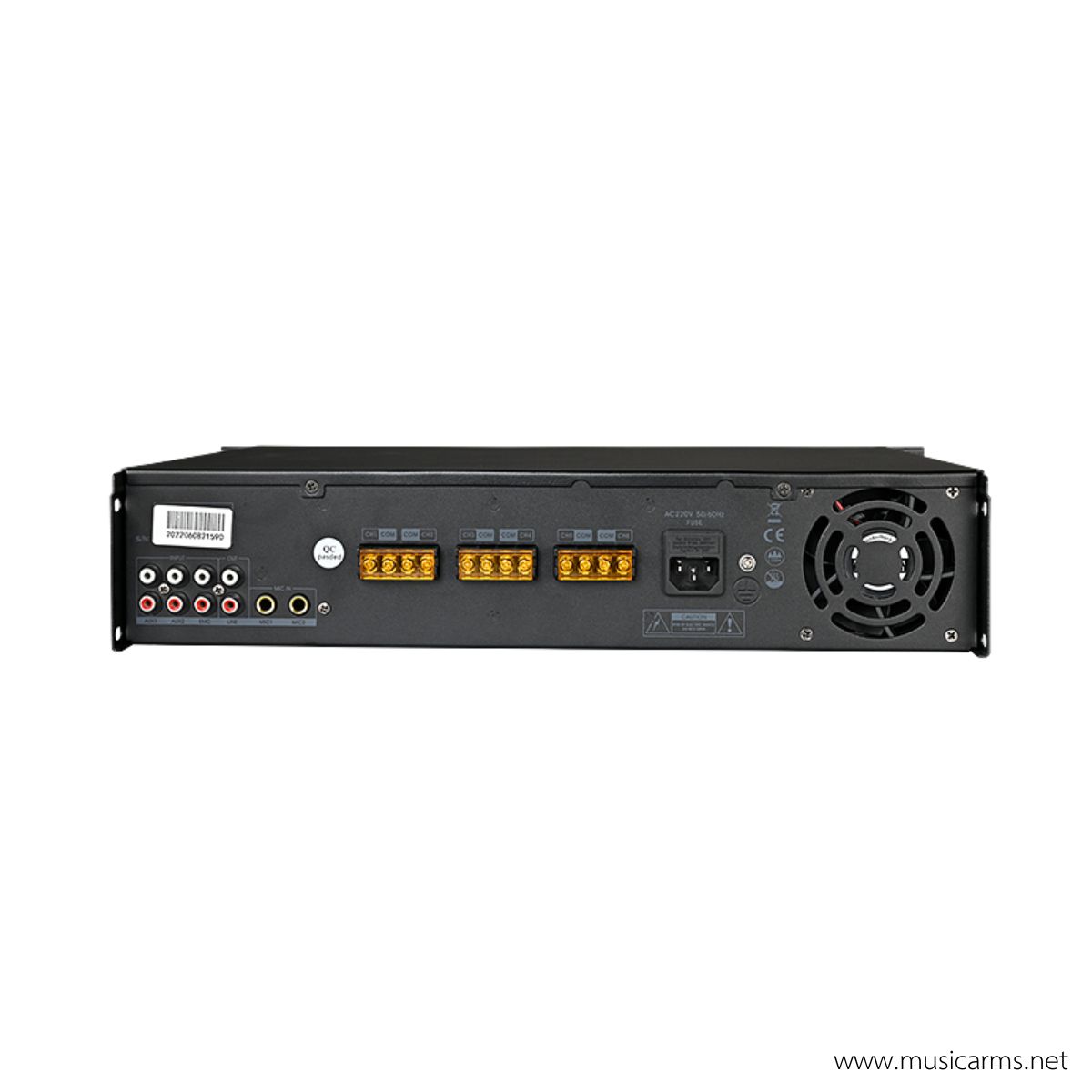

Rear Panel Connections
-
AUX Input: 2 channels (R/L)
-
Mic Input: 2 channels (with Mic 1 usually on the front or a separate channel with priority)
-
EMC Input: For connecting emergency alarm signals.
-
Speaker Outputs: Speaker connectors divided by zones 1-6 and COM/100V connectors.
Specification
Technical Specifications
| section | details |
| Rated Power | 500W |
| Output voltage | Constant Voltage 100V |
| Frequency response | 80Hz – 16kHz (±2dB) |
| Input signal channel | Microphone x 2, AUX x 2, EMC x 1 |
| Output channel | AUX Out x 1 (for connecting to another amplifier) |
| Sound tuning | There are independent bass and treble controls. |
| Signal-to-noise ratio (S/N Ratio) | > 75dB |
| Cooling system | Active Cooling Fan |
ข้อมูลสินค้า
Takstar EBS-50M Power Amplifier
Takstar EBS-50M เป็นเครื่องขยายเสียงรวม (Integrated Broadcast Amplifier) ที่ออกแบบมาสำหรับระบบประกาศ (Public Address System) ในสถานที่ต่างๆ เช่น ร้านอาหาร, คาเฟ่, หรือห้องประชุม โดยมีจุดเด่นที่กำลังขับสูงและการจัดการโซนเสียงที่หลากหลาย
คุณสมบัติเด่น (Main Features)
-
6-Zone Output: รองรับการแบ่งโซนลำโพงได้ถึง 6 โซน โดยมีปุ่มปรับระดับเสียงแยกอิสระในแต่ละโซน (Output 100V)
-
Media Player: มีโมดูล Bluetooth และเครื่องเล่น MP3 ในตัว รองรับการเล่นเพลงผ่าน USB Flash Drive และ SD Card
-
Priority System: ช่อง Mic 1 และช่อง EMC (Emergency) มีระบบจัดลำดับความสำคัญสูงสุด โดยจะตัดเสียงจากช่องทางอื่นอัตโนมัติเมื่อมีการประกาศหรือมีสัญญาณฉุกเฉิน
-
Protection System: มีระบบป้องกันครบวงจร ทั้งการลัดวงจร (Short circuit), ความร้อนเกิน (Overheat), และแรงดันไฟเกิน/ตก
การเชื่อมต่อด้านหลังเครื่อง (Rear Panel)
-
AUX Input: 2 ช่อง (R/L)
-
Mic Input: 2 ช่อง (โดย Mic 1 มักจะอยู่ด้านหน้าหรือมีช่องแยกที่มี Priority)
-
EMC Input: สำหรับต่อสัญญาณแจ้งเหตุฉุกเฉิน
-
Speaker Outputs: ขั้วต่อสำหรับลำโพงแบ่งตามโซน 1-6 และขั้วต่อแบบ COM/100V
รายละเอียดคุณสมบัติ
ข้อมูลทางเทคนิค (Technical Specifications)
| หัวข้อ | รายละเอียด |
| กำลังขับ (Rated Power) | 500W |
| แรงดันเอาต์พุต (Output) | Constant Voltage 100V |
| การตอบสนองความถี่ | 80Hz – 16kHz (±2dB) |
| ช่องสัญญาณอินพุต | Mic x 2, AUX x 2, EMC x 1 |
| ช่องสัญญาณเอาต์พุต | AUX Out x 1 (สำหรับต่อพ่วงไปแอมป์เครื่องอื่น) |
| การปรับจูนเสียง | มีปุ่มปรับ Bass / Treble แยกอิสระ |
| ค่าอัตราสัญญาณต่อสัญญาณรบกวน (S/N Ratio) | > 75dB |
| ระบบระบายความร้อน | พัดลมระบายความร้อนแบบ Active Cooling |
