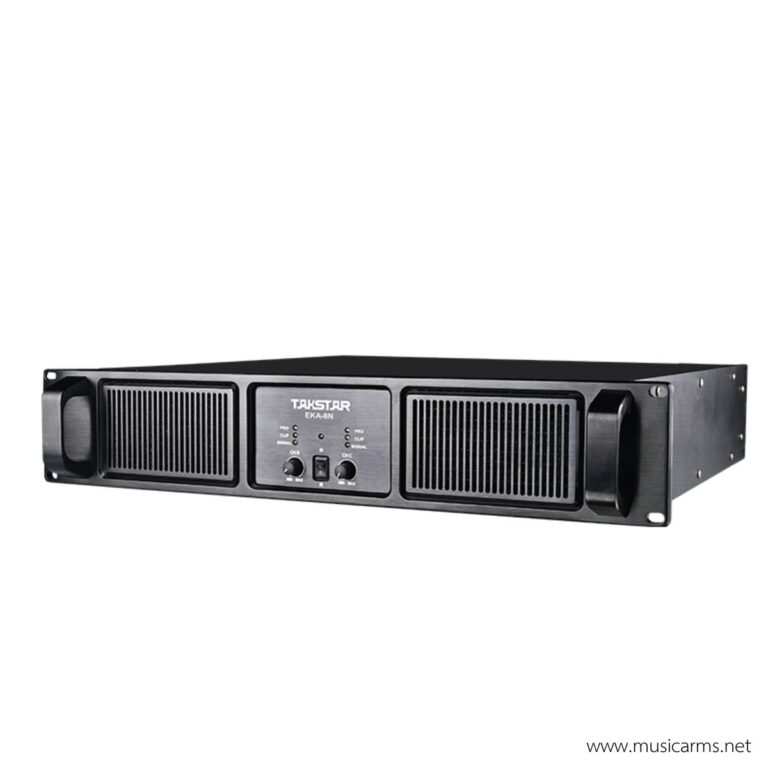

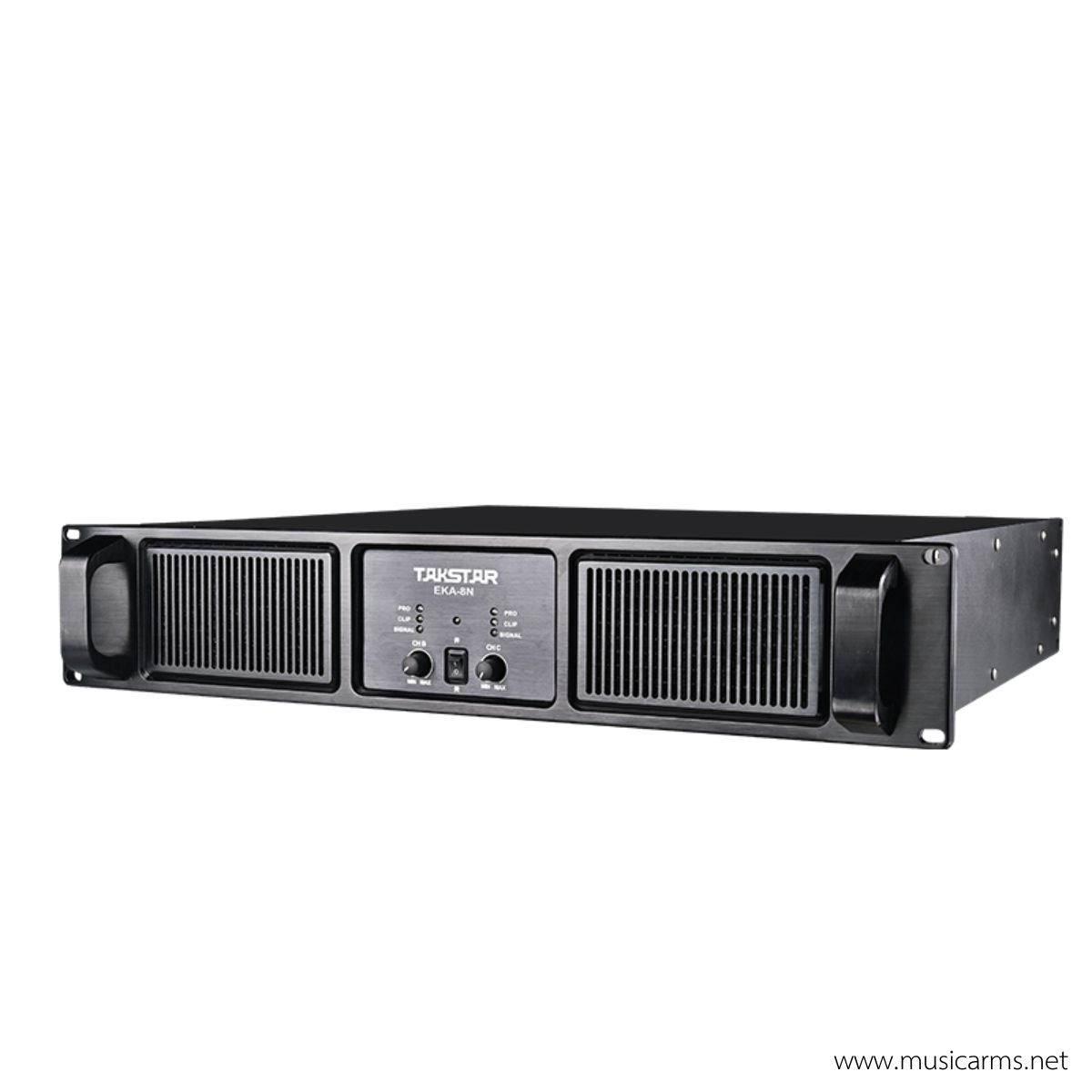

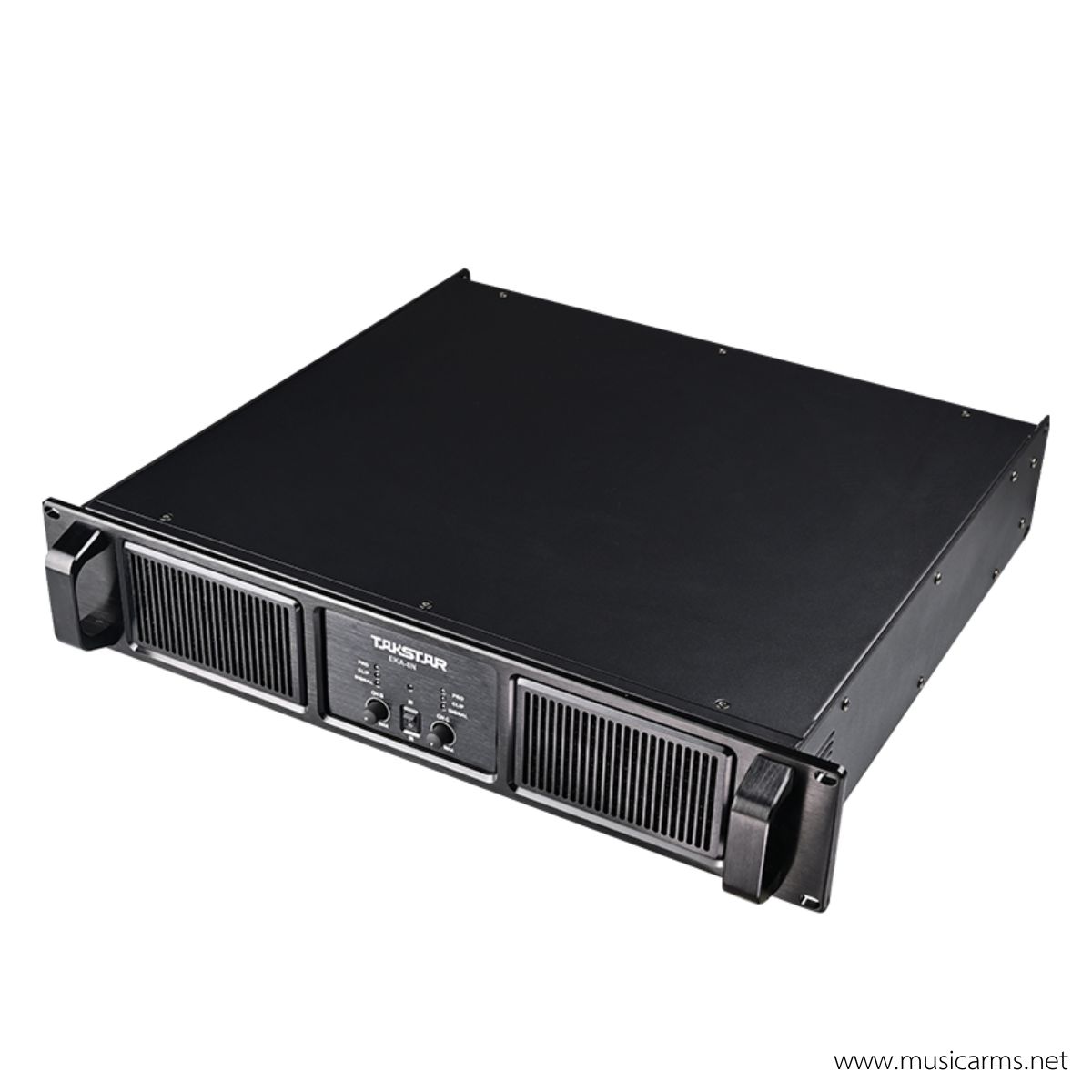

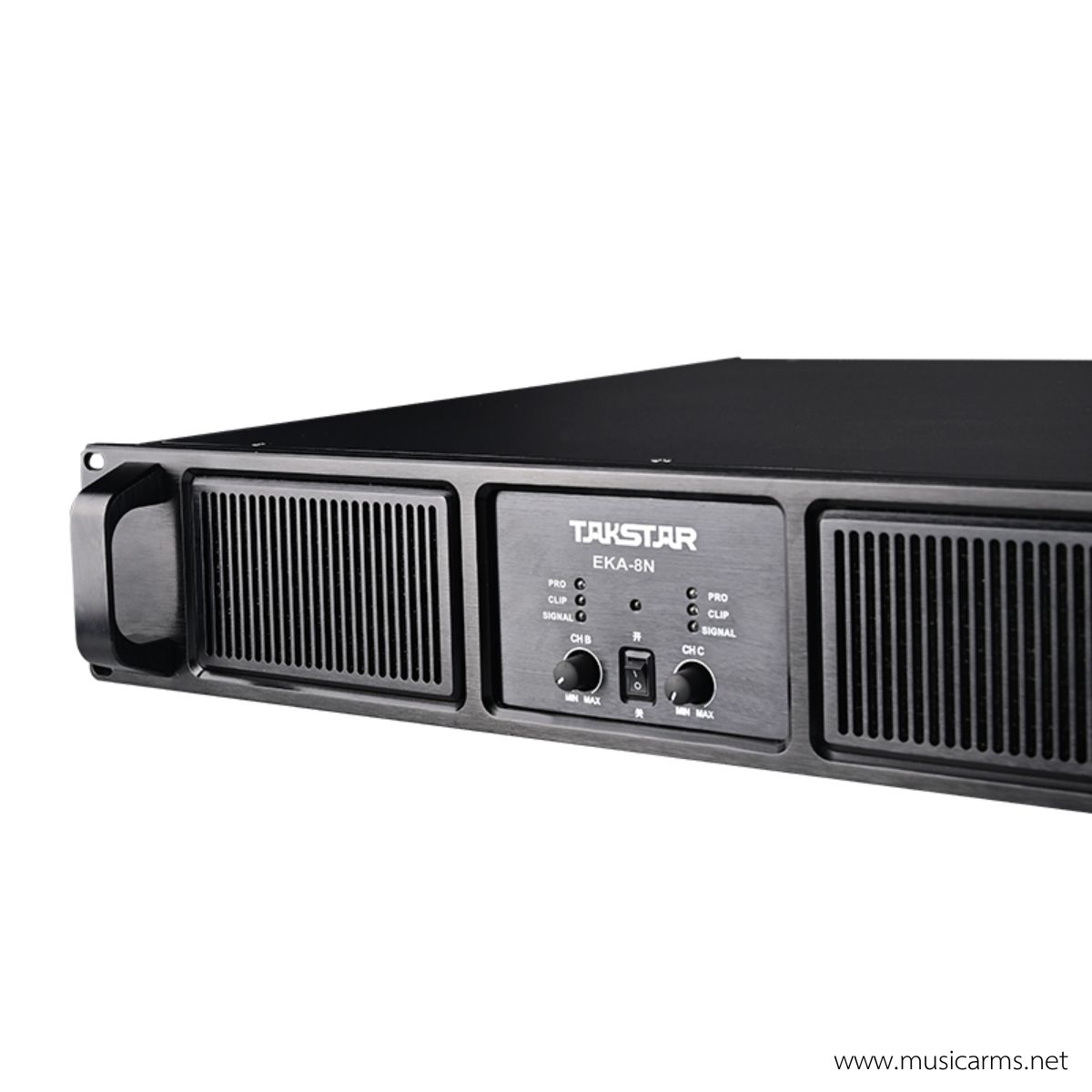

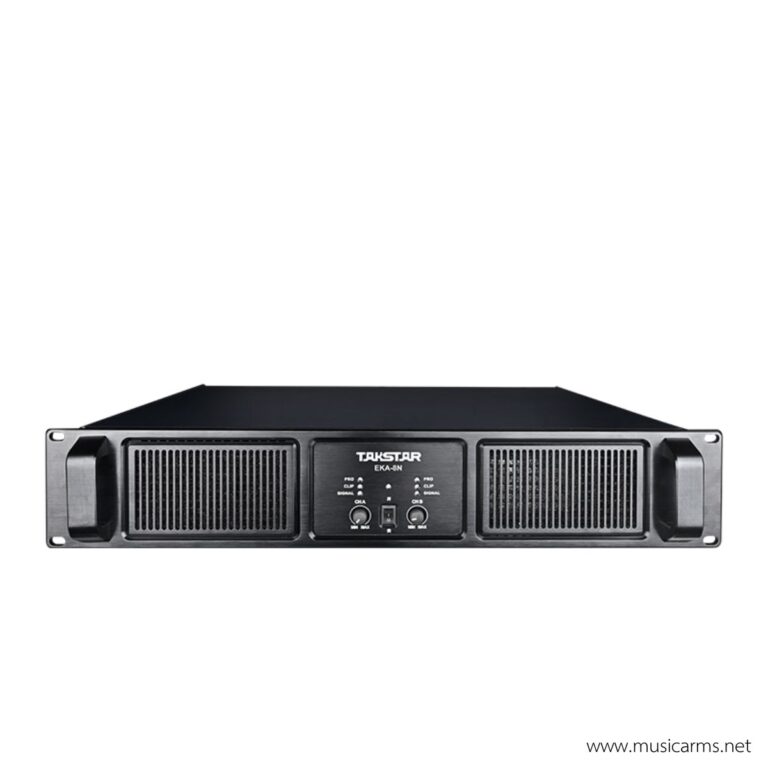

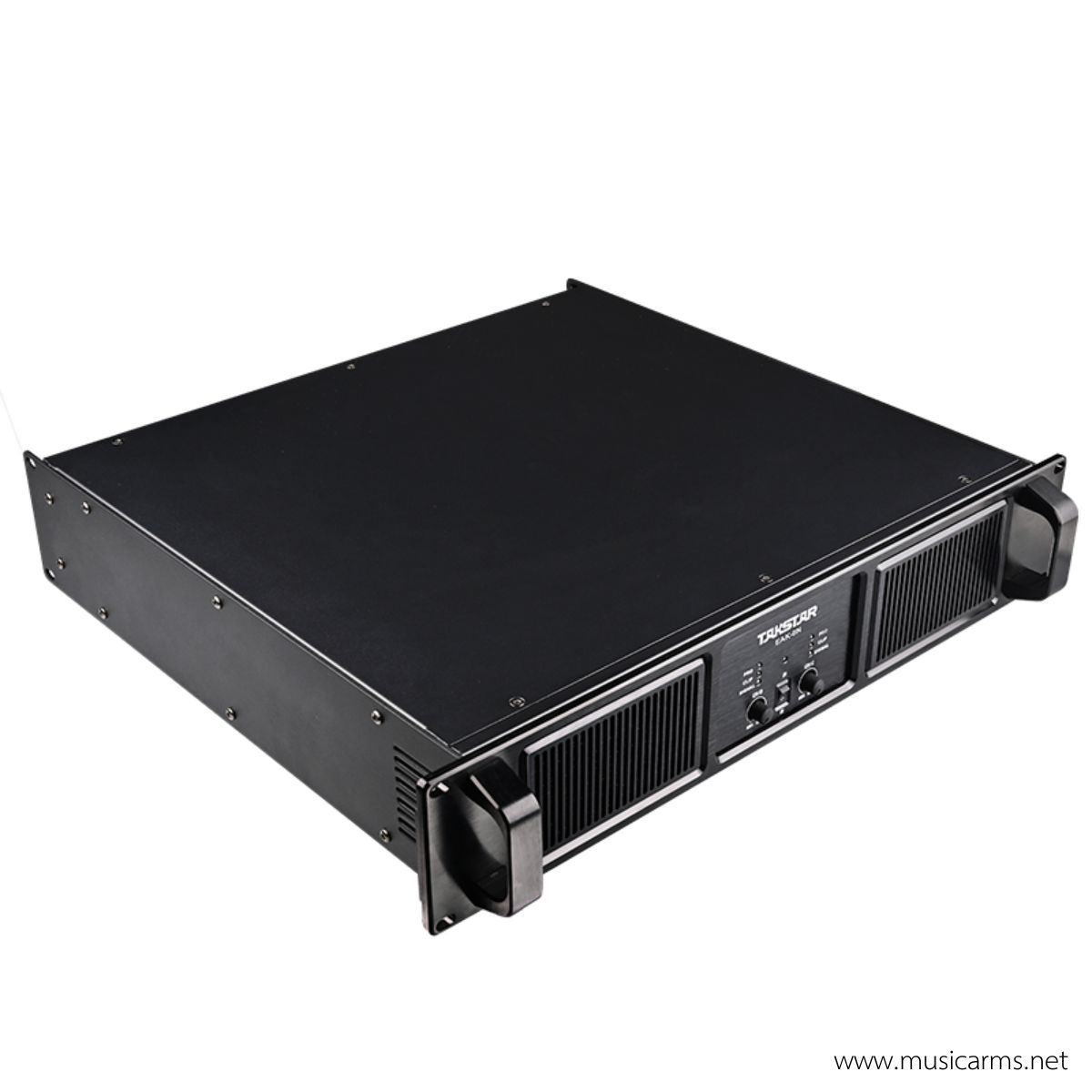

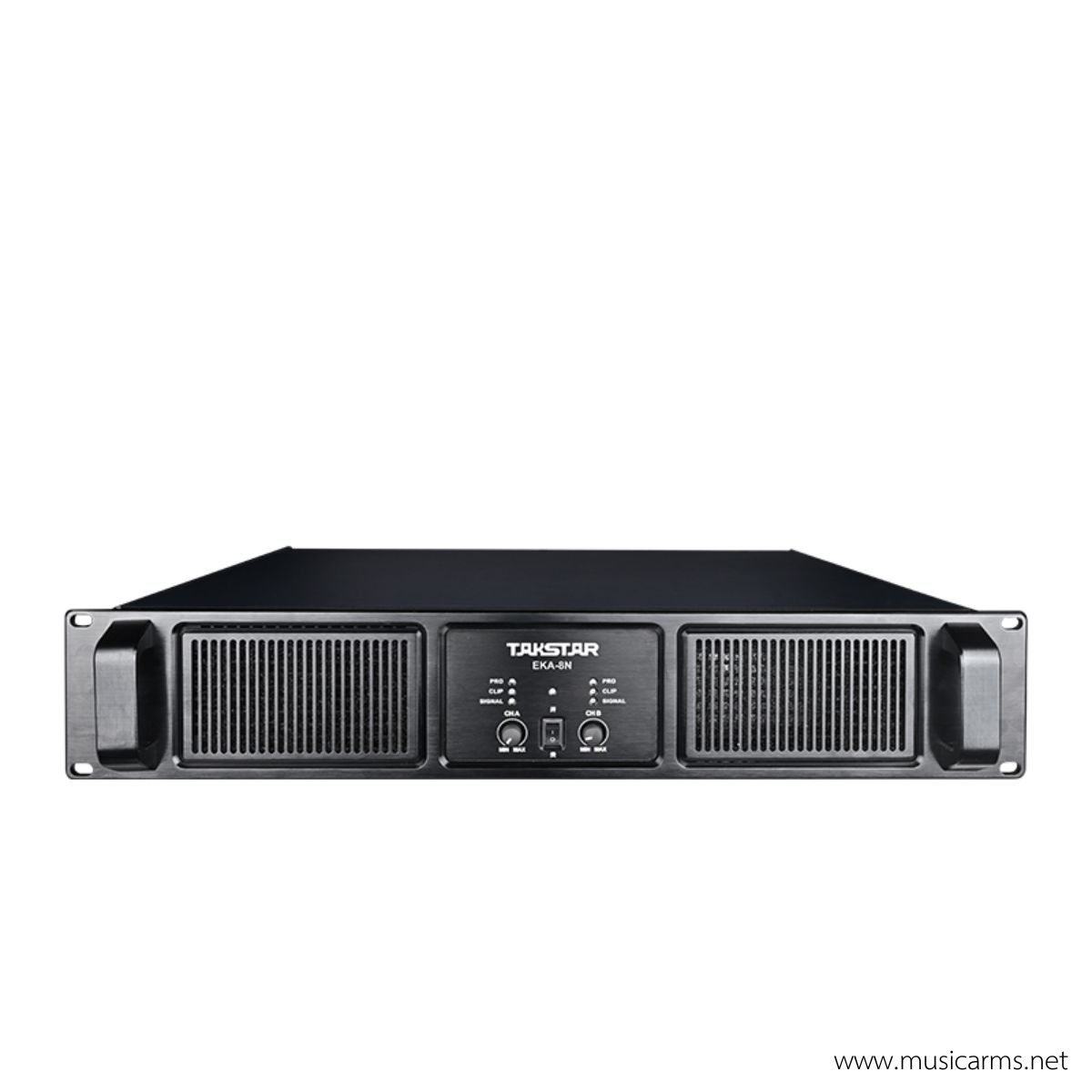

Takstar EKA-8N Power Amplifier

The Takstar EKA-8N is a professional power amplifier in the EKA-N Series, designed for medium to large-scale sound systems such as outdoor concerts, conference rooms, or entertainment venues.

Key Features

• Comprehensive Protection System (Multi-Protection): Features comprehensive damage protection including Soft Start protection (reduces surge current during power-on), speaker delay protection, overheat protection up to 90°C, short circuit protection, and signal limiting to prevent speaker damage.

• Cooling: Utilizes an internal cooling fan with automatic speed adjustment based on temperature and power output, ensuring stable operation over extended periods.

• Sound quality: Emphasis is placed on wide frequency response and low total harmonic distortion (THD), providing a balanced sound across low, mid, and high frequencies.

Technical Specifications

• Output Power:

  • 8Ω Stereo: 800W x 2

  • 4Ω Stereo: 1200W x 2

  • 8Ω Bridge: 2400W

• Frequency Response: 20Hz – 20kHz (±1dB)

• Total Harmonic Distortion (THD+N): < 0.5%

• Signal-to-noise ratio (S/N Ratio): > 95dB

• Damping Factor: > 300

• Input Sensitivity: 0.775V / 1.0V / 1.4V

• Input Impedance: 20kΩ (Balanced) / 10kΩ (Unbalanced)

สเปคทางเทคนิค (Technical Specifications)

• กำลังขับ (Output Power):

  • 8Ω Stereo: 800W x 2

  • 4Ω Stereo: 1200W x 2

  • 8Ω Bridge: 2400W

• การตอบสนองความถี่ (Frequency Response): 20Hz – 20kHz (±1dB)

• ค่าความเพี้ยนรวม (THD+N): < 0.5%

• อัตราส่วนสัญญาณต่อสัญญาณรบกวน (S/N Ratio): > 95dB

• Damping Factor: > 300

• ความไวขาเข้า (Input Sensitivity): 0.775V / 1.0V / 1.4V

• ความต้านทานขาเข้า (Input Impedance): 20kΩ (Balanced) / 10kΩ (Unbalanced)
