Description
Takstar EKS-121 Full Range

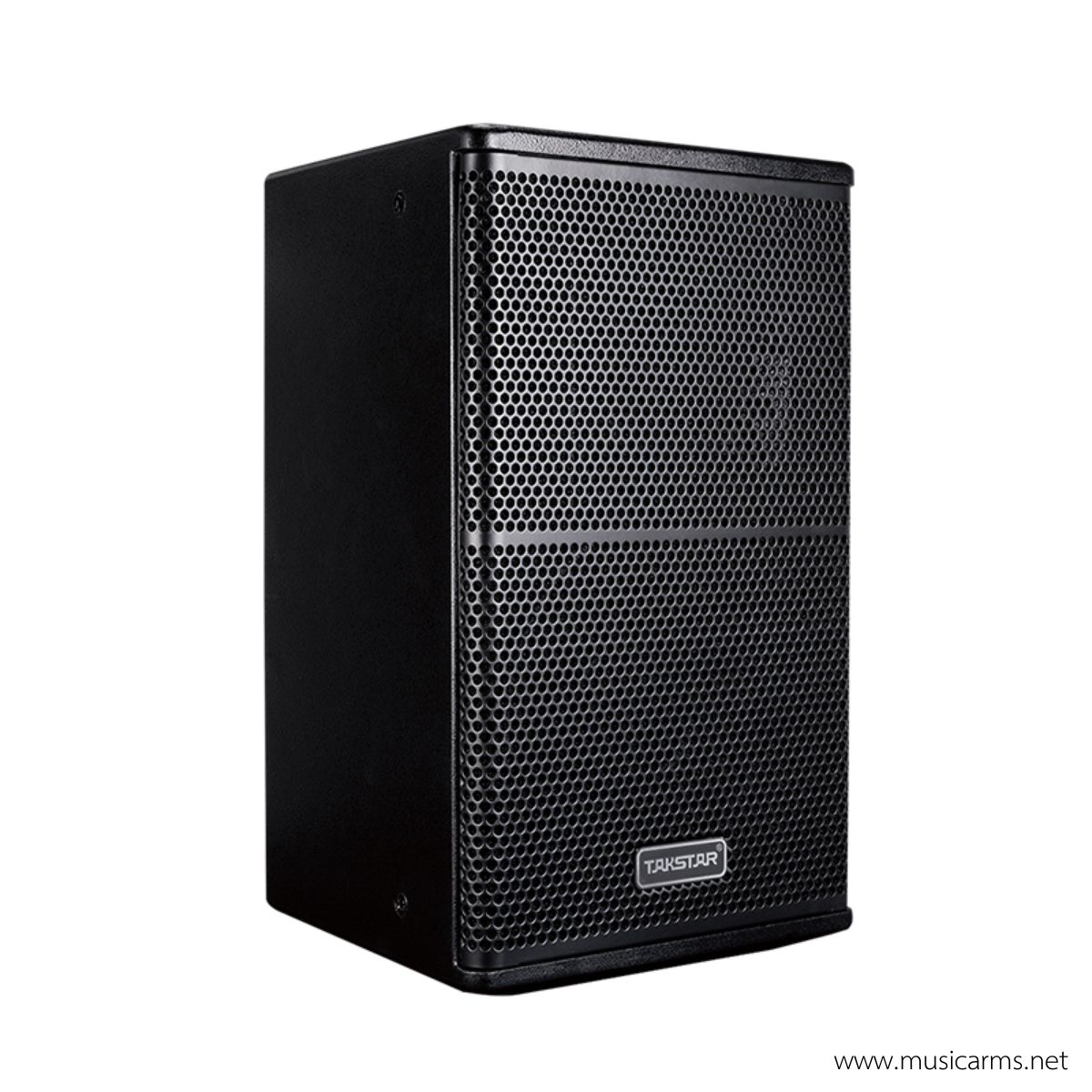

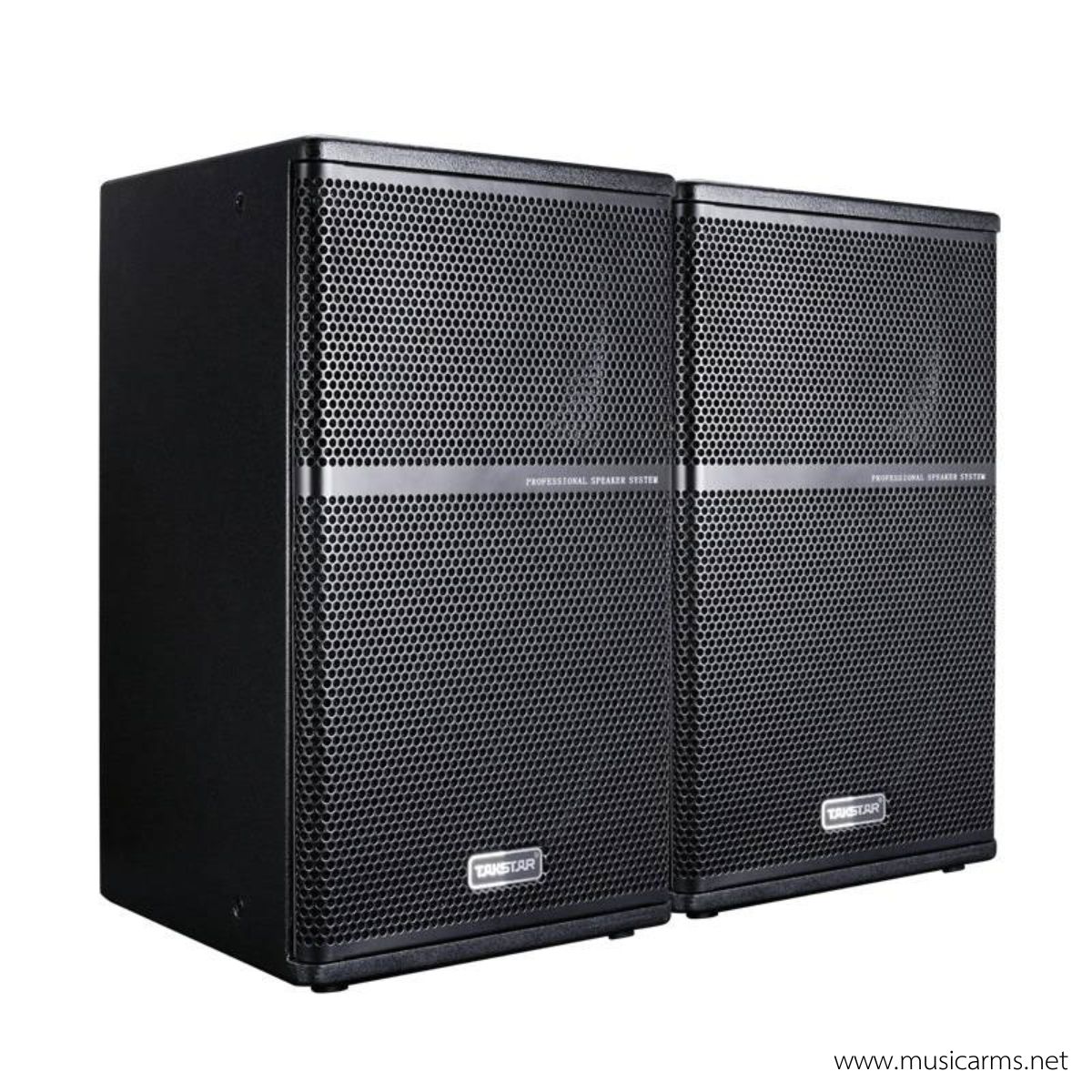

The Takstar EKS-121 is a 12-inch passive full-range speaker designed for professional sound systems, especially for karaoke (KTV), banquet halls, or medium-sized auditoriums where clear vocals and powerful sound coverage are required.
Key Features
-
Balanced sound: Designed for perfect separation of treble and mid-low frequencies, delivering complete and natural sound detail.
-
Durable construction: The cabinet is typically made of high-quality plywood with a steel grille to protect the speaker drivers, making it strong and durable for heavy-duty use.
-
Installation flexibility: Comes with rigging points for hanging or can be placed on a standard speaker stand.
-
Crossover Technology: Utilizes high-grade components in the audio frequency division circuit to minimize signal loss and maintain sound stability even at high volume levels.
Applications
-
Karaoke & Club: Ideal for karaoke rooms that require a clear and powerful vocal sound.
-
Live Performance: Used as a front-of-home (FOH) speaker for live music performances indoors.
-
Installation: Install in a meeting room, church, or school auditorium.
Specification
Approximate technical specifications
| section | details |
| type | 2-Way Full Range (Passive) |
| Woofer speaker size | 12 inches (Voice coil approximately 65-75mm) |
| Tweeter speaker size | 1.75 inch (Compression Driver) |
| Rated Power | 300W – 400W (RMS) |
| Peak Power | Approximately 800W – 1200W |
| Resistance (Impedance) | 8 Ohms |
| Frequency response | Approximately 50Hz – 20kHz |
| Sensitivity | ~96dB – 98dB (1W/1m) |
| Directivity | 90° x 60° or 90° x 90° (depending on the horn model) |
ข้อมูลสินค้า
Takstar EKS-121 Full Range
Takstar EKS-121 เป็นตู้ลำโพง Full Range แบบ Passive ขนาด 12 นิ้ว ที่ออกแบบมาเพื่อการใช้งานในระบบเสียงระดับมืออาชีพ โดยเฉพาะในงานคาราโอเกะ (KTV), ห้องจัดเลี้ยง หรือหอประชุมขนาดกลาง ที่ต้องการความชัดเจนของเสียงร้องและพลังเสียงที่ครอบคลุมพื้นที่
คุณสมบัติเด่น (Key Features)
-
เสียงที่สมดุล: ออกแบบมาให้การแยกเสียงแหลมและเสียงกลางต่ำทำได้อย่างลงตัว ให้รายละเอียดเสียงครบถ้วนและเป็นธรรมชาติ
-
โครงสร้างทนทาน: ตัวตู้มักทำจากไม้คุณภาพสูง (Plywood) พร้อมตะแกรงเหล็กป้องกันดอกลำโพง แข็งแรงทนทานต่อการใช้งานหนัก
-
ความยืดหยุ่นในการติดตั้ง: มาพร้อมจุดยึดสำหรับการแขวน (Rigging points) หรือสามารถวางบนขาตั้งลำโพงมาตรฐานได้
-
เทคโนโลยี Crossover: ใช้อุปกรณ์เกรดสูงในวงจรตัดแบ่งความถี่เสียง เพื่อลดการสูญเสียสัญญาณและคงความเสถียรของเสียงแม้ในระดับความดังสูง
การประยุกต์ใช้งาน
-
Karaoke & Club: เหมาะอย่างยิ่งสำหรับห้องคาราโอเกะที่ต้องการเสียงร้องที่พุ่งและชัดเจน
-
Live Performance: ใช้เป็นลำโพงหลัก (FOH) สำหรับงานดนตรีสดในอาคาร
-
Installation: ติดตั้งในห้องประชุม, โบสถ์ หรือหอประชุมโรงเรียน
รายละเอียดคุณสมบัติ
ข้อมูลทางเทคนิคโดยประมาณ (Technical Specifications)
| หัวข้อ | รายละเอียด |
| ประเภท | 2-Way Full Range (Passive) |
| ขนาดดอกลำโพง Woofer | 12 นิ้ว (Voice Coil ประมาณ 65-75mm) |
| ขนาดดอกลำโพง Tweeter | 1.75 นิ้ว (Compression Driver) |
| การทนกำลังขับ (Rated Power) | 300W – 400W (RMS) |
| กำลังขับสูงสุด (Peak Power) | ประมาณ 800W – 1200W |
| ความต้านทาน (Impedance) | 8 Ohms |
| การตอบสนองความถี่ | ประมาณ 50Hz – 20kHz |
| ความไว (Sensitivity) | ~96dB – 98dB (1W/1m) |
| มุมกระจายเสียง (Directivity) | 90° x 60° หรือ 90° x 90° (ขึ้นอยู่กับรุ่น Horn) |
