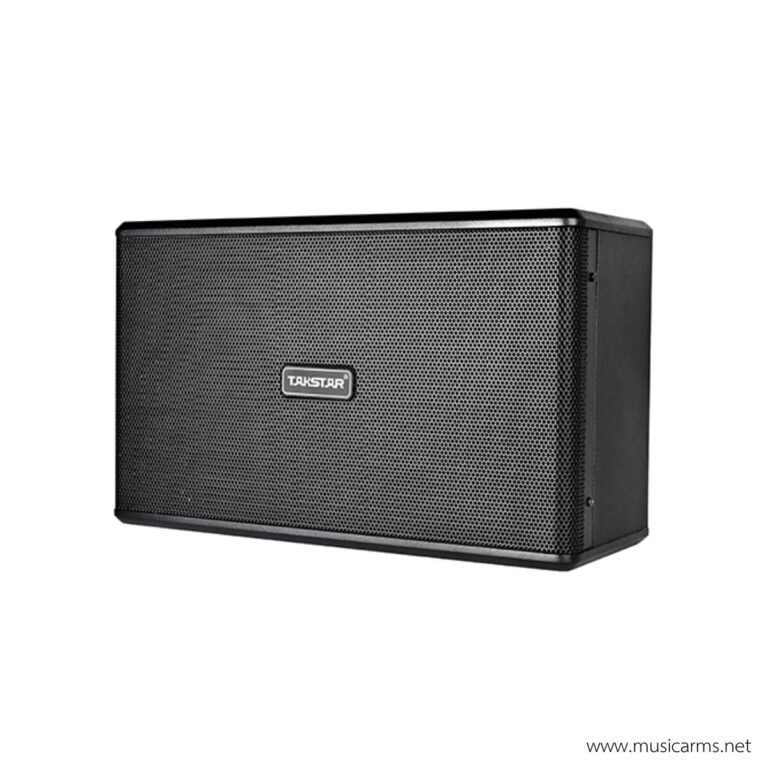

Takstar EKT-101 (2021 Version) speaker cabinet

ราคา : (กรุณาสอบถาม)
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Takstar EKT-101 (2021 Version) speaker cabinet
The Takstar EKT-101 (2021 Version) is a 10-inch (2-way) full-range speaker designed specifically for entertainment applications such as karaoke rooms (KTVs), small banquet halls, or home music listening. It features improved performance compared to the previous version, resulting in clearer vocals.
Highlights of the 2021 model year.
-
Vocal Clarity: Designed to emphasize the mid-range frequencies, resulting in smooth and clear vocals that aren’t drowned out by the music. Ideal for karaoke.
-
Durable Build: The cabinet is made of high-density wood (MDF) with a sturdy steel grille, reducing internal resonance and resulting in tight bass.
-
Dual Tweeters: The use of two paper cone tweeters helps to prevent harsh treble and provides wider sound dispersion throughout the room.
-
Protective Circuit: The tweeter is equipped with a protective circuit to prevent damage from continuous use at high volume levels.
Applications
-
Karaoke Rooms: These are the core of the sound system in the singing room.
-
Home Entertainment: Used for watching movies or listening to music at home when you want a rich and full sound.
-
Small Events: Meetings or seminars in rooms no larger than 30-50 square meters.
Specification
Technical specifications
| section | details |
| Speaker types | Two-way, Full-range Speaker |
| Woofer size (LF) | 10 inch (High-power Woofer) |
| Tweeter size (HF) | 3 inch x 2 (Paper Cone Tweeter) |
| Frequency response | 50Hz – 18kHz |
| Rated Power | 150W (RMS) |
| Peak Power | 300W |
| Resistance (Impedance) | 8Ω |
| Sensitivity | 92dB (1W/1m) |
| Sound dispersion angle | 100° (horizontal) x 80° (vertical) |
ข้อมูลสินค้า
Takstar EKT-101 (2021 Version) speaker cabinet
Takstar EKT-101 (2021 Version) เป็นตู้ลำโพงแบบ Full-range ขนาด 10 นิ้ว (2 ทาง) ที่ออกแบบมาเพื่อรองรับการใช้งานด้านความบันเทิงโดยเฉพาะ เช่น ห้องคาราโอเกะ (KTV), ห้องจัดเลี้ยงขนาดเล็ก หรือการฟังเพลงในที่พักอาศัย โดยมีการปรับปรุงประสิทธิภาพจากเวอร์ชันก่อนหน้าให้มีความชัดเจนของเสียงร้องมากขึ้น
จุดเด่นของรุ่นปี 2021
-
Vocal Clarity: ออกแบบมาเพื่อเน้นย่านเสียงกลาง (Mid-range) ทำให้เสียงร้องมีความนุ่มนวลและพุ่งชัด ไม่โดนเสียงดนตรีกลบ เหมาะมากสำหรับการร้องคาราโอเกะ
-
Durable Build: ตัวตู้ทำจากไม้ความหนาแน่นสูง (MDF) พร้อมหน้ากากเหล็กที่แข็งแรง ช่วยลดการสั่นค้างภายในตู้ (Resonance) ทำให้เสียงเบสกระชับ
-
Dual Tweeters: การใช้ทวีตเตอร์แบบกระดาษ (Paper Cone) สองตัว ช่วยให้เสียงแหลมไม่จิกหูและกระจายเสียงได้กว้างครอบคลุมพื้นที่ห้อง
-
Protective Circuit: มีระบบวงจรป้องกันทวีตเตอร์เพื่อป้องกันความเสียหายเมื่อมีการใช้งานในระดับความดังสูงต่อเนื่อง
การนำไปใช้งาน
-
Karaoke Rooms: เป็นหัวใจหลักของระบบเสียงในห้องร้องเพลง
-
Home Entertainment: ใช้ดูหนังหรือฟังเพลงในบ้านที่ต้องการมวลเสียงที่อิ่มหนา
-
Small Events: งานประชุมหรือสัมมนาในห้องขนาดไม่เกิน 30-50 ตร.ม.
รายละเอียดคุณสมบัติ
คุณสมบัติทางเทคนิค (Specifications)
| หัวข้อ | รายละเอียด |
| ประเภทลำโพง | Two-way, Full-range Speaker |
| ขนาดวูฟเฟอร์ (LF) | 10 นิ้ว (High-power Woofer) |
| ขนาดทวีตเตอร์ (HF) | 3 นิ้ว x 2 (Paper Cone Tweeter) |
| การตอบสนองความถี่ | 50Hz – 18kHz |
| กำลังขับ (Rated Power) | 150W (RMS) |
| กำลังขับสูงสุด (Peak Power) | 300W |
| ความต้านทาน (Impedance) | 8Ω |
| ความไว (Sensitivity) | 92dB (1W/1m) |
| มุมกระจายเสียง | 100° (แนวนอน) x 80° (แนวตั้ง) |
