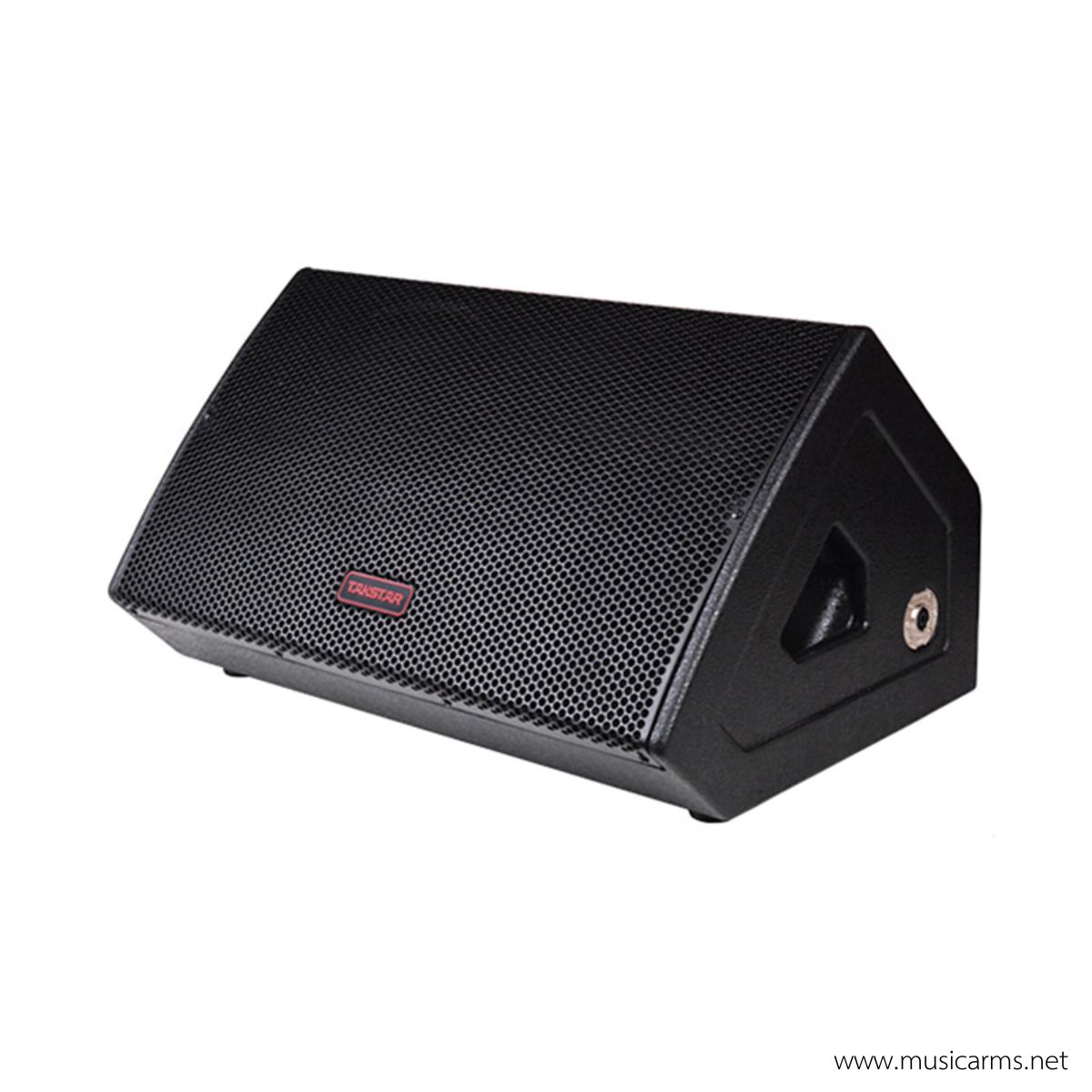

Takstar ELV-121M Full Range Speaker

The Takstar ELV-121M is a professional-grade active 2-way full-range monitor speaker designed for a wide range of applications, from stage monitoring to PA systems for small to medium-sized events.

Key features and technical specifications

• Audio System: This is a two-way speaker system consisting of a 12-inch woofer for low frequencies and a 1.75-inch tweeter driver.

• Power Output: The peak power output is approximately 1200W (600W RMS), which is sufficient for generating loudness in open areas or auditoriums.

• Frequency response: Covering 50Hz – 20kHz, it delivers a full sound with tight bass and crisp treble.

• Built-in amplifier: Uses Class D amplifier for the woofer and Class AB amplifier for the tweeter for optimal loudness and heat dissipation.

• Maximum sound pressure level (Max SPL): Approximately 129dB

• Sound dispersion angle: 90° x 60°, allowing the speaker placement to cover a wide listening area.

Key features that are interesting

1. High-quality wooden cabinet: The cabinet is made of plywood with a scratch-resistant finish, providing a tighter, more resonant sound than typical plastic cabinets.

2. Multifunctional design: The cabinet shape is designed so that it can be tilted to be used as a stage monitor speaker, or mounted on a stand to be used as a main PA speaker.

3. Durability: Features internal protections such as over-temperature and short-circuit protection, making it suitable for continuous heavy-duty use.

Who is it suitable for?

• Bands that require high-quality monitor speakers.

• Installation work in conference rooms, auditoriums, or entertainment venues.

• A sound system rental shop that needs portable speakers that deliver powerful sound.
