Telefunken TF17 ไมโครโฟนคอนเดนเซอร์

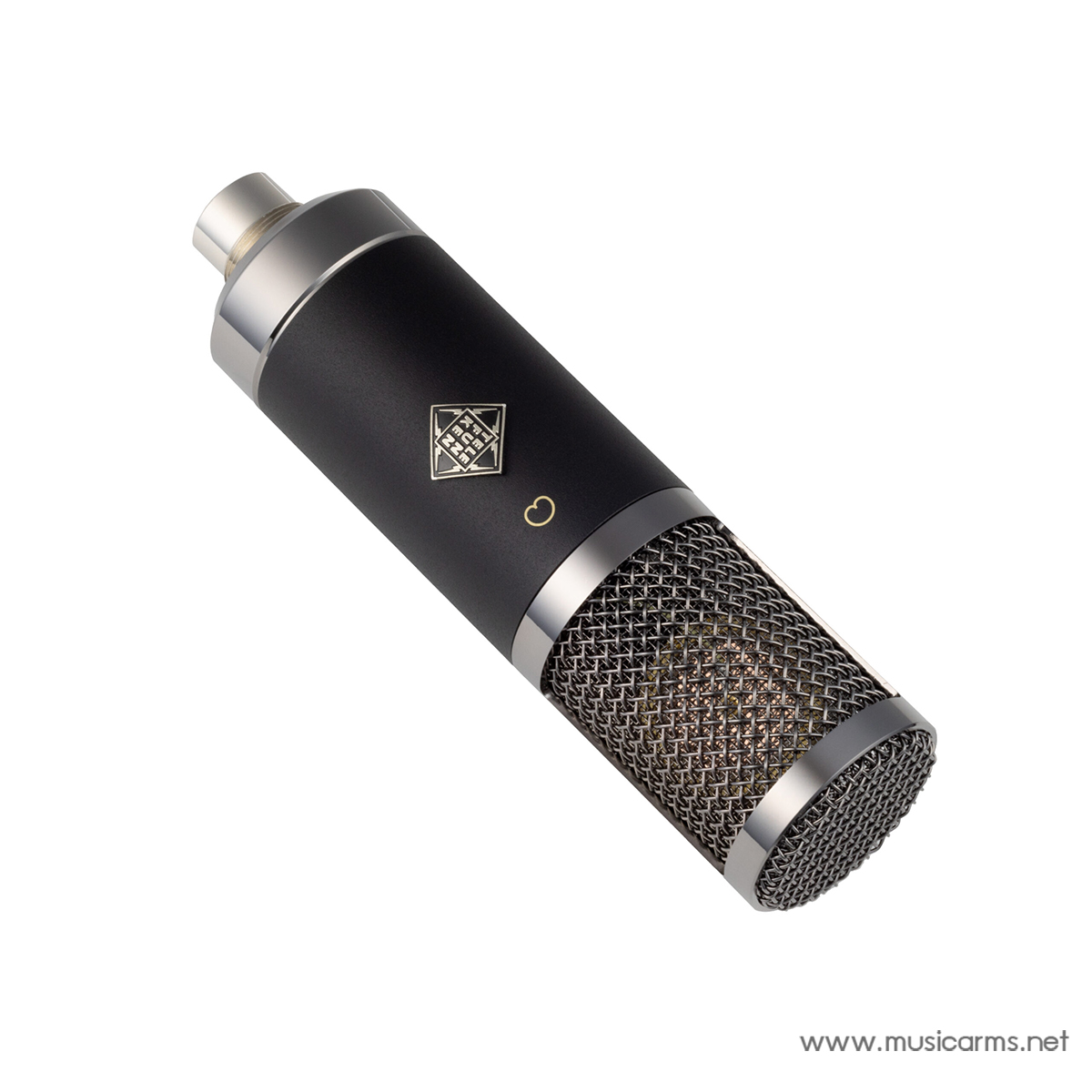

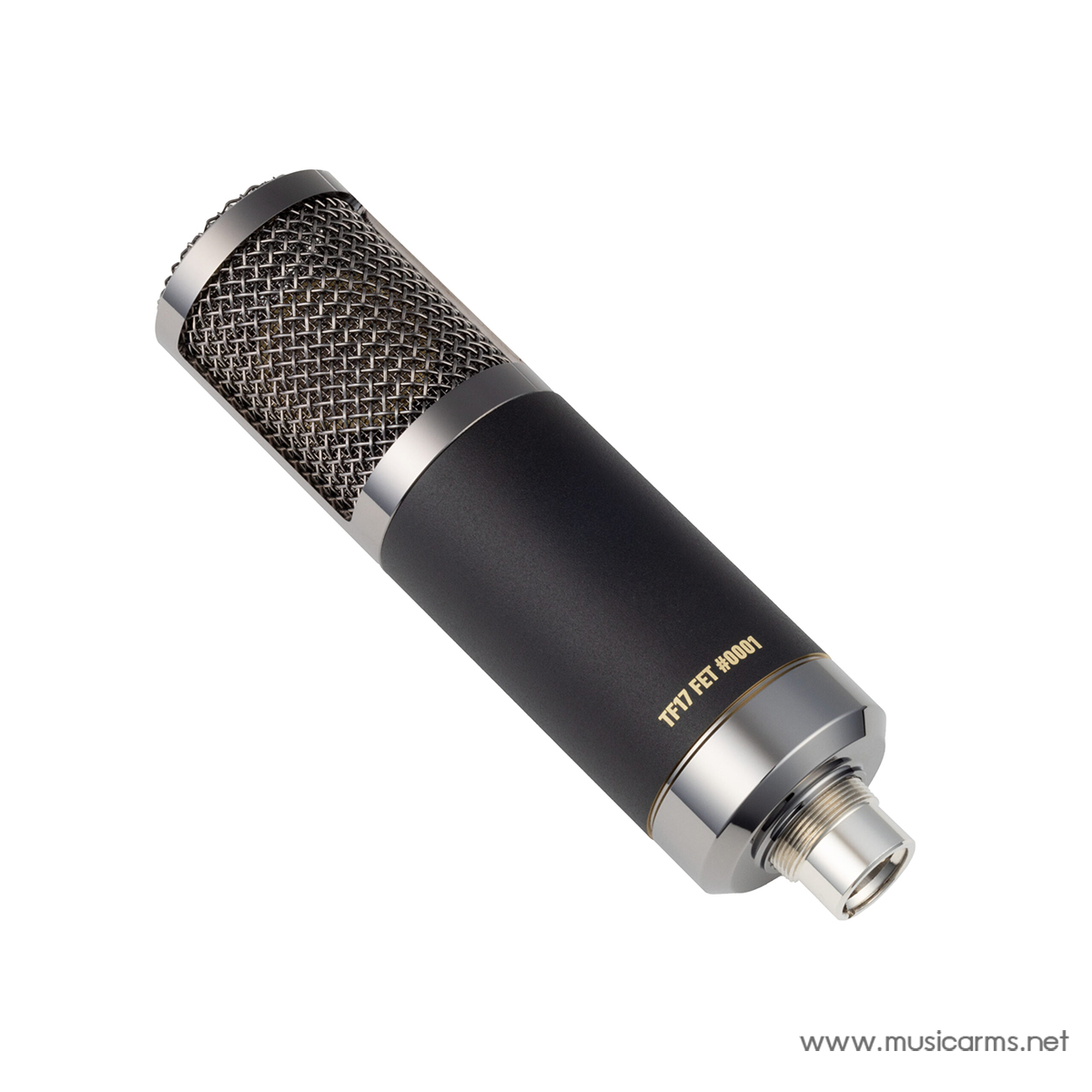

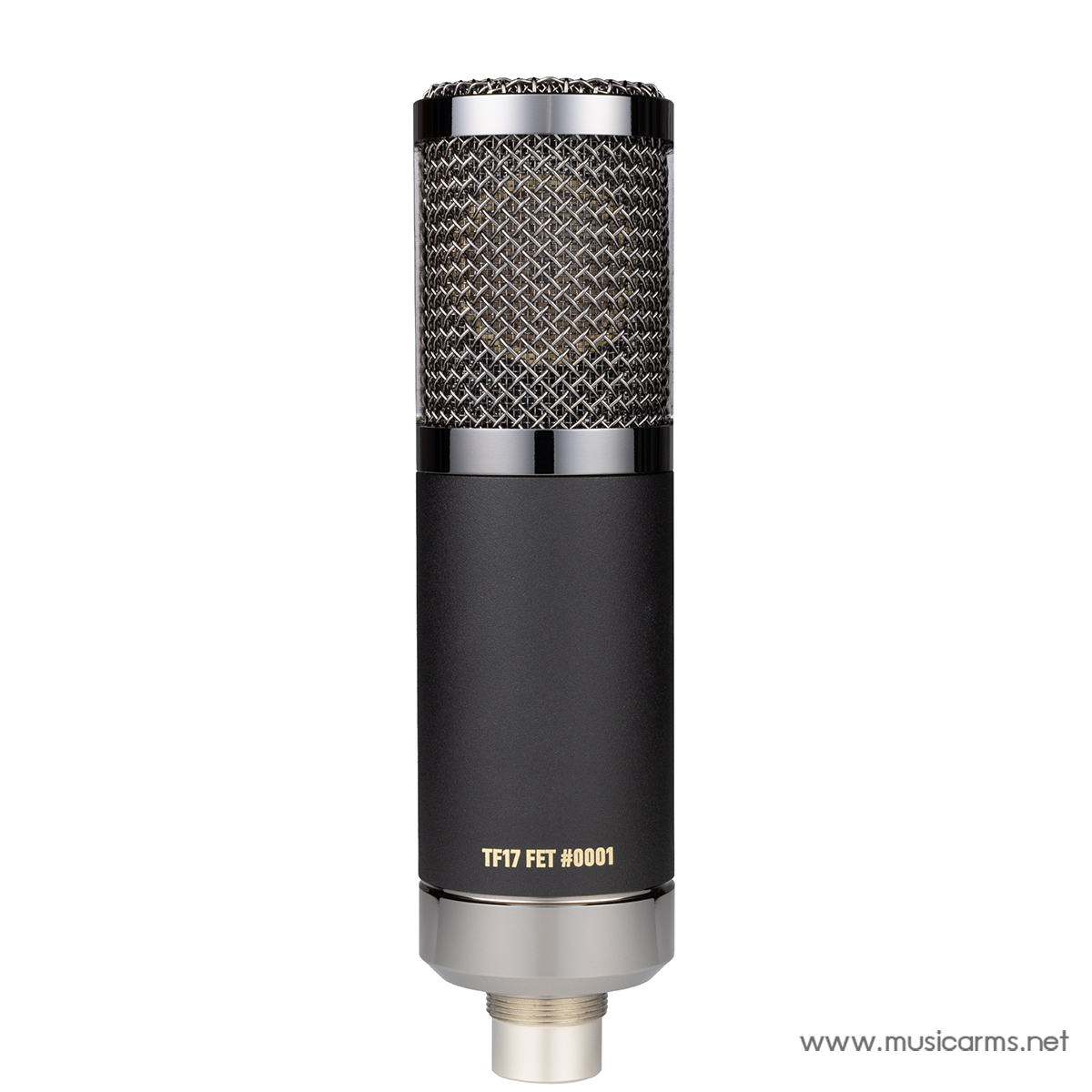

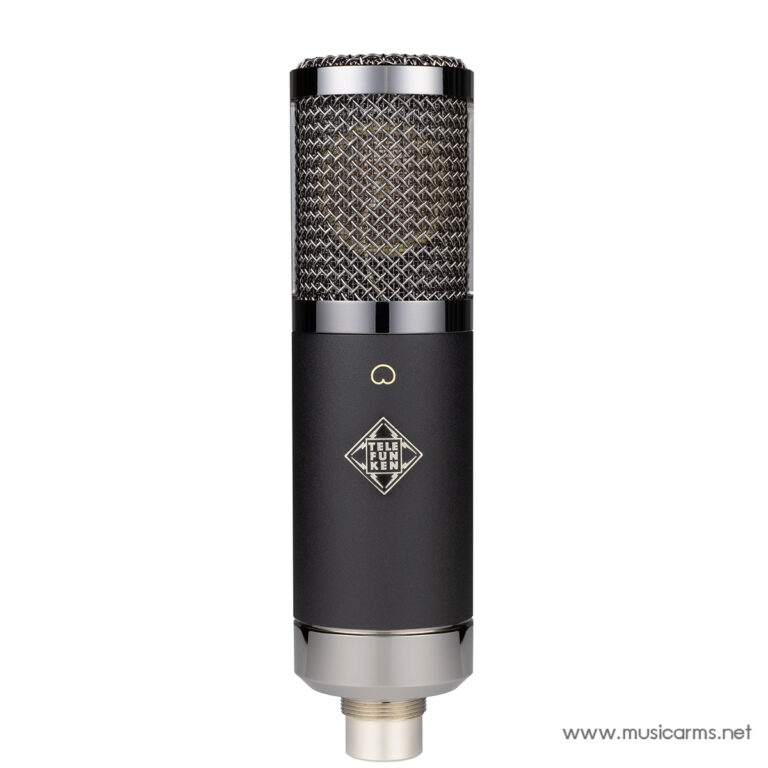

Telefunken TF17 Condenser Microphone

A Modern Classic from Telefunken

The Telefunken TF17 introduces a fully modern design, carefully engineered from the ground up to deliver a unique sonic profile.
This large-diaphragm FET condenser microphone is praised for its detailed and prominent midrange — a tone engineers, producers, and artists have relied on for over half a century.
With its cardioid polar pattern, the TF17 is perfect for around 90% of studio and live applications.
If you’re looking for a high-performance large-diaphragm FET condenser at an affordable price for vocals or instruments, the TF17 is an essential addition to your mic locker.

🎙️ Cuts Through the Mix

The TF17 combines modern FET technology with a cardioid polar pattern and strong midrange presence, making it an excellent studio tool for vocals and instruments.
Its clear, bright character ensures recordings sit well in a mix with minimal effort, helping you achieve professional results quickly.

🎶 Classic Midrange Character

With extended low-frequency response, bold mids, and natural highs, the TF17 delivers a timeless tonal balance.
Its fast transient response, high SPL handling, and low noise floor make it ideal for capturing vocals, pianos, drums, bass, acoustic and electric guitars, brass, strings, and woodwinds.
Its rugged build also makes it a reliable choice for stage use.

⚡ Unique Circuit Design with Premium Components

Hand-built and meticulously tested at Telefunken’s Connecticut facility, the TF17 features a custom circuit design with premium-grade components.
It uses the center-terminated K47S capsule — a single-membrane version of the TF47’s capsule — paired with an ultra-low-noise JFET amplifier, OEP/Carnhill nickel-iron transformer, and premium Nichicon Fine Gold capacitors.

🎯 Versatile Cardioid Polar Pattern

If you could only choose one polar pattern for your studio, cardioid would be the top choice.
While omni, figure-8, and hypercardioid mics have their place, a great-sounding cardioid condenser like the Telefunken TF17 will be your workhorse.
Considering its budget-friendly price, owning a pair of TF17s for stereo recording setups is a smart investment.

🔧 Key Features – Telefunken TF17 Large-Diaphragm FET Condenser Microphone:

• 🎵 Prominent midrange with fast transient response
• 🔊 High SPL handling with low-noise FET amplifier (requires +48V phantom power)
• 📏 Compact design, suitable for any recording environment
• 🏗️ Rugged build, ideal for studio and stage use
• 🎯 Polar Pattern: Cardioid
• 📡 Frequency Response: 20Hz–20kHz (±3dB)
• 🎙️ Capsule: Large-diaphragm K47S, center-terminated
• ⚡ Amplifier Type: Transistor (Phantom Power +48V)
• 🔩 Transformer: OEP/Carnhill T217
• 🎚️ Sensitivity: 12mV/Pa (±1dB)
• 📈 THD at 1kHz: 0.01%
• 🔌 Output Impedance: <200 Ω
• 💥 Max SPL (1% THD): >135dB
• 🔇 Signal-to-Noise Ratio: 91dBA

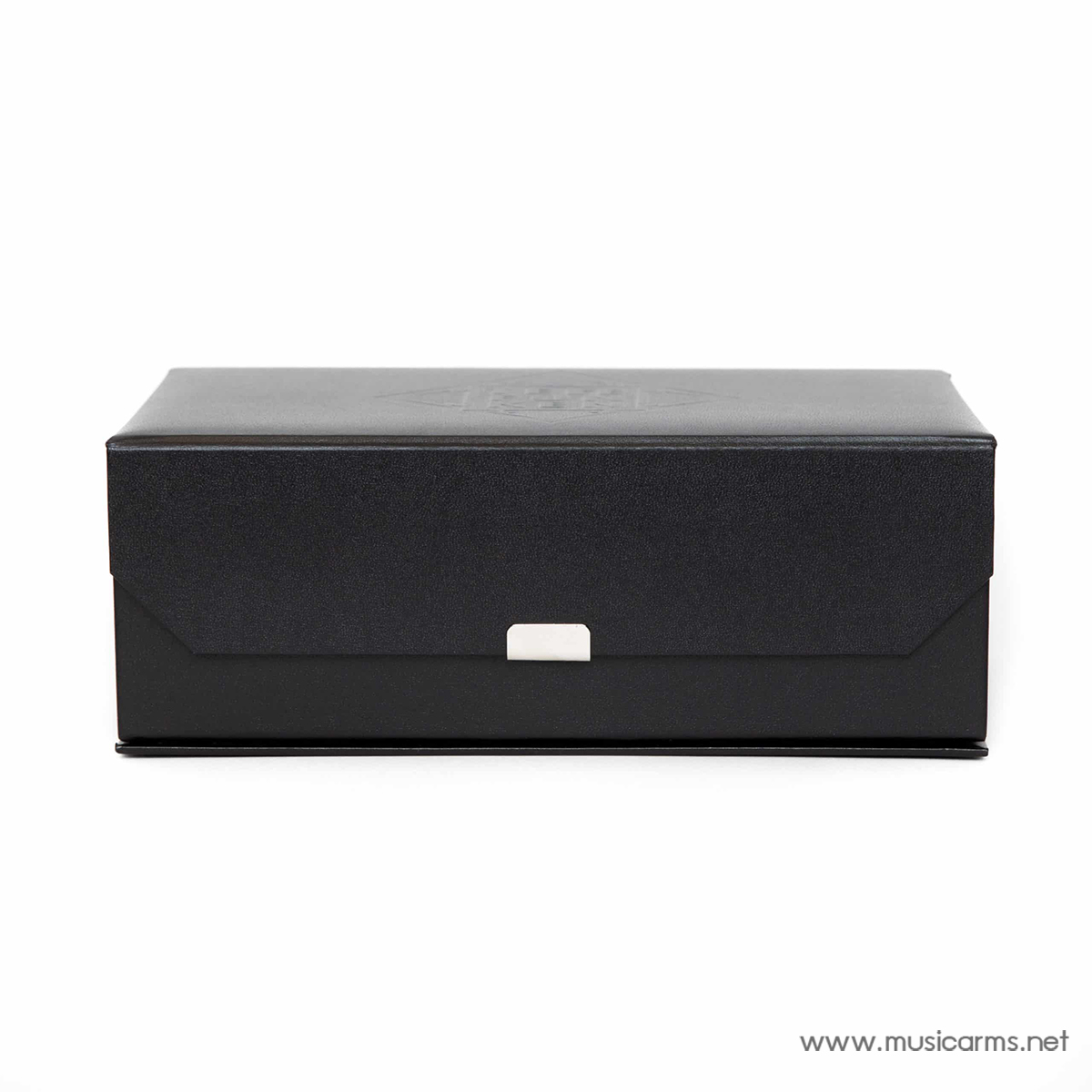

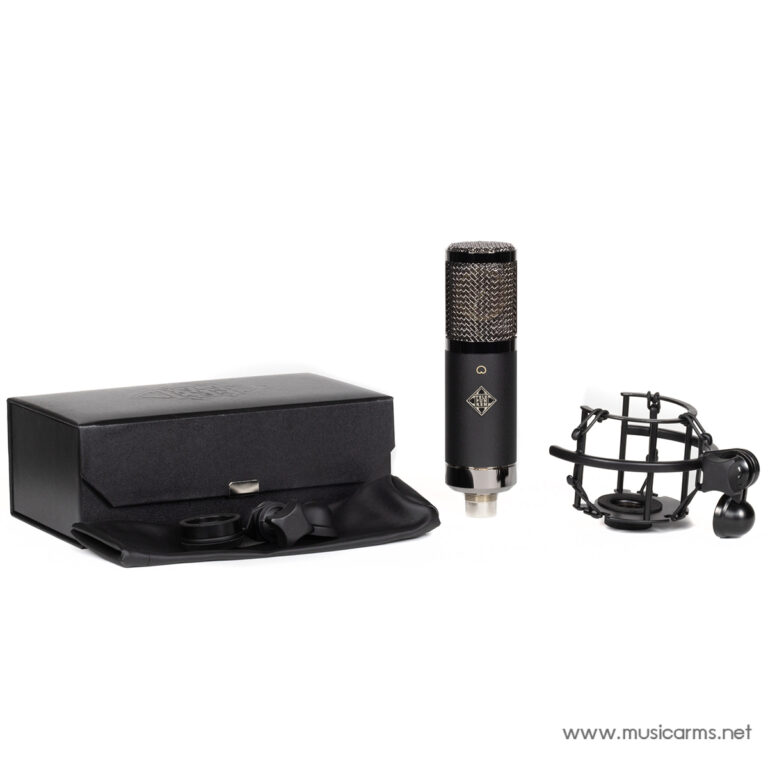

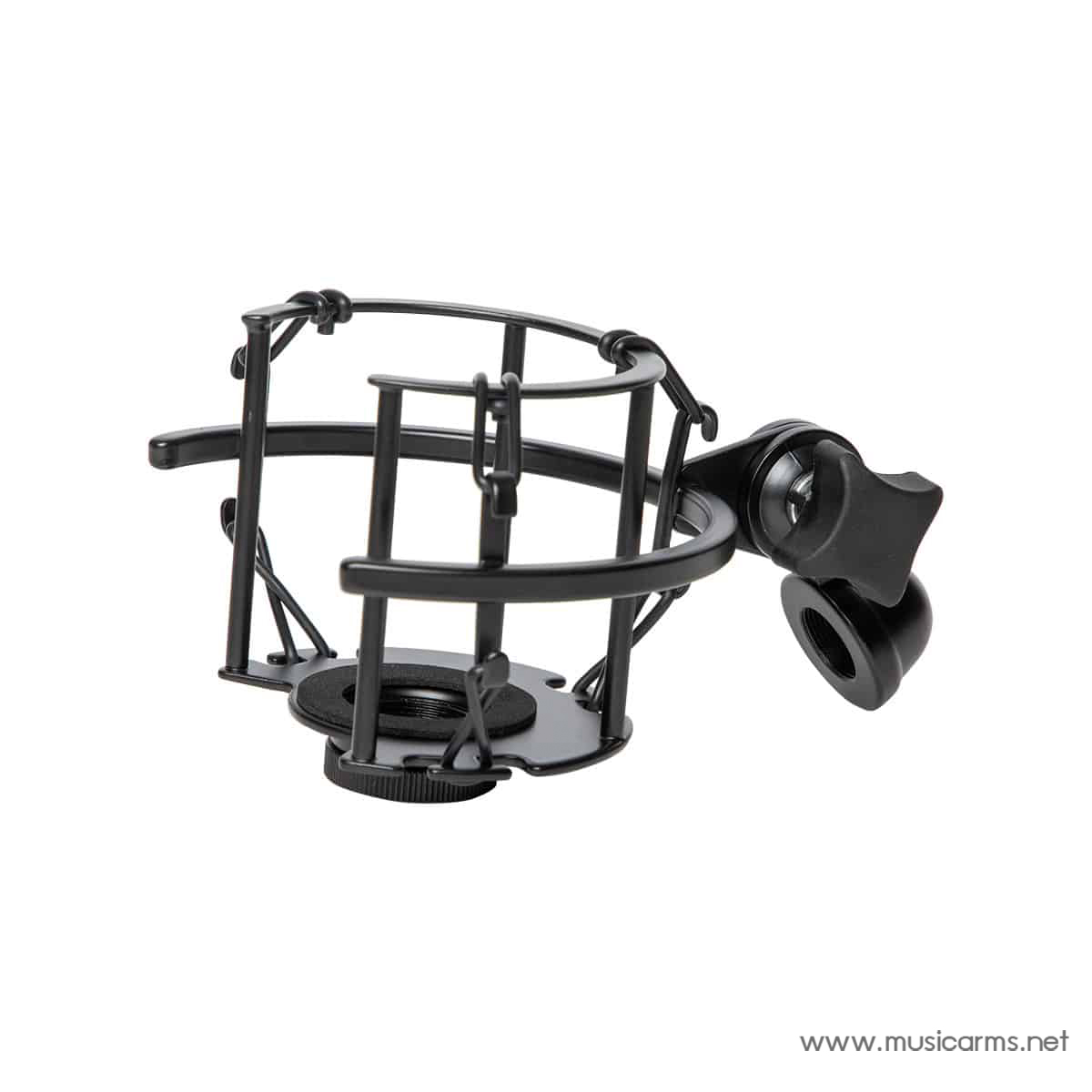

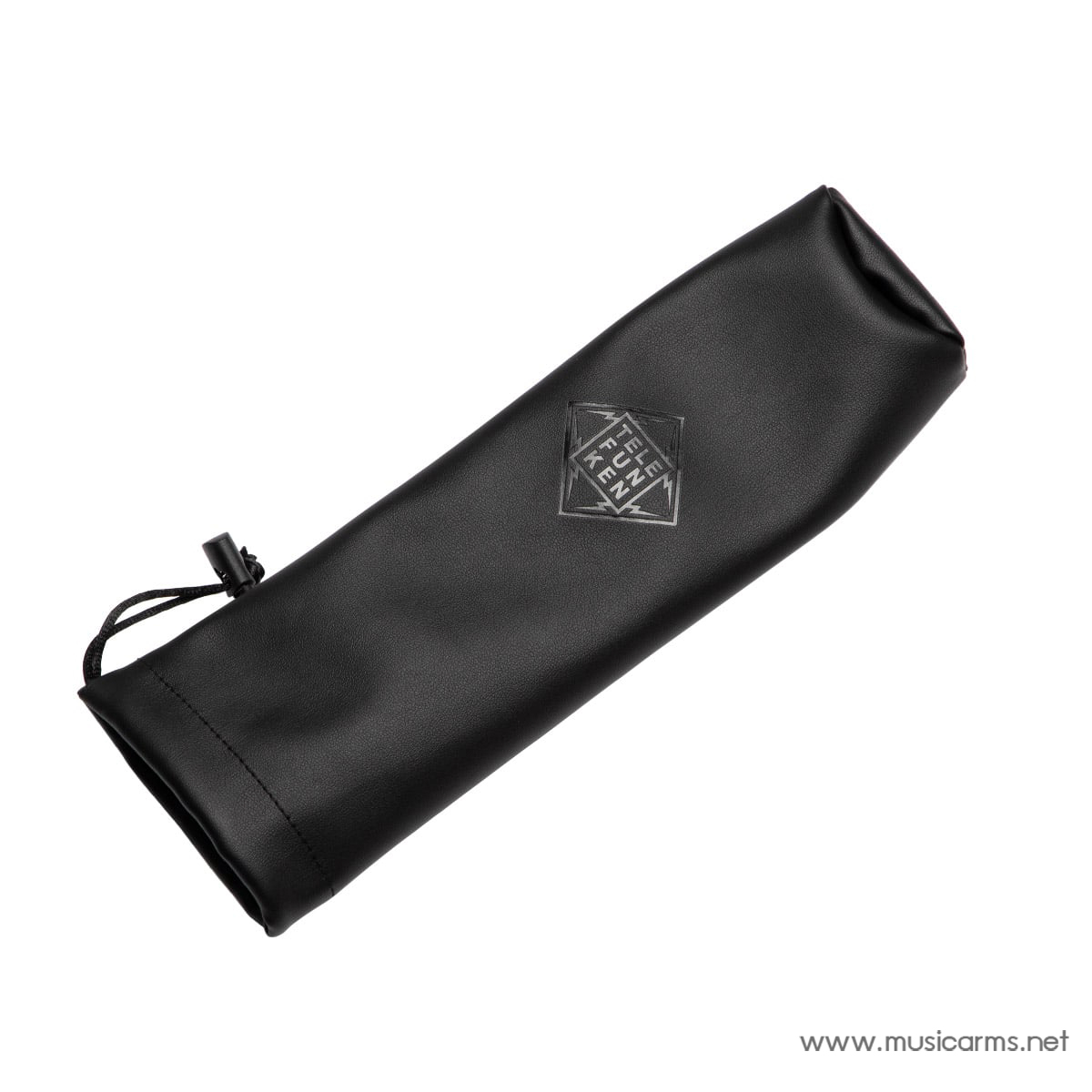

• 🎁 Included: Protective case, dust cover, swivel mount, shockmount
• 🇺🇸 Designed, hand-built, and tested in the USA
