Truetone 1 SPOT Pro CS6 แหล่งจ่ายไฟเอฟเฟกต์ทรงแบน
ราคา : (กรุณาสอบถาม)
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description

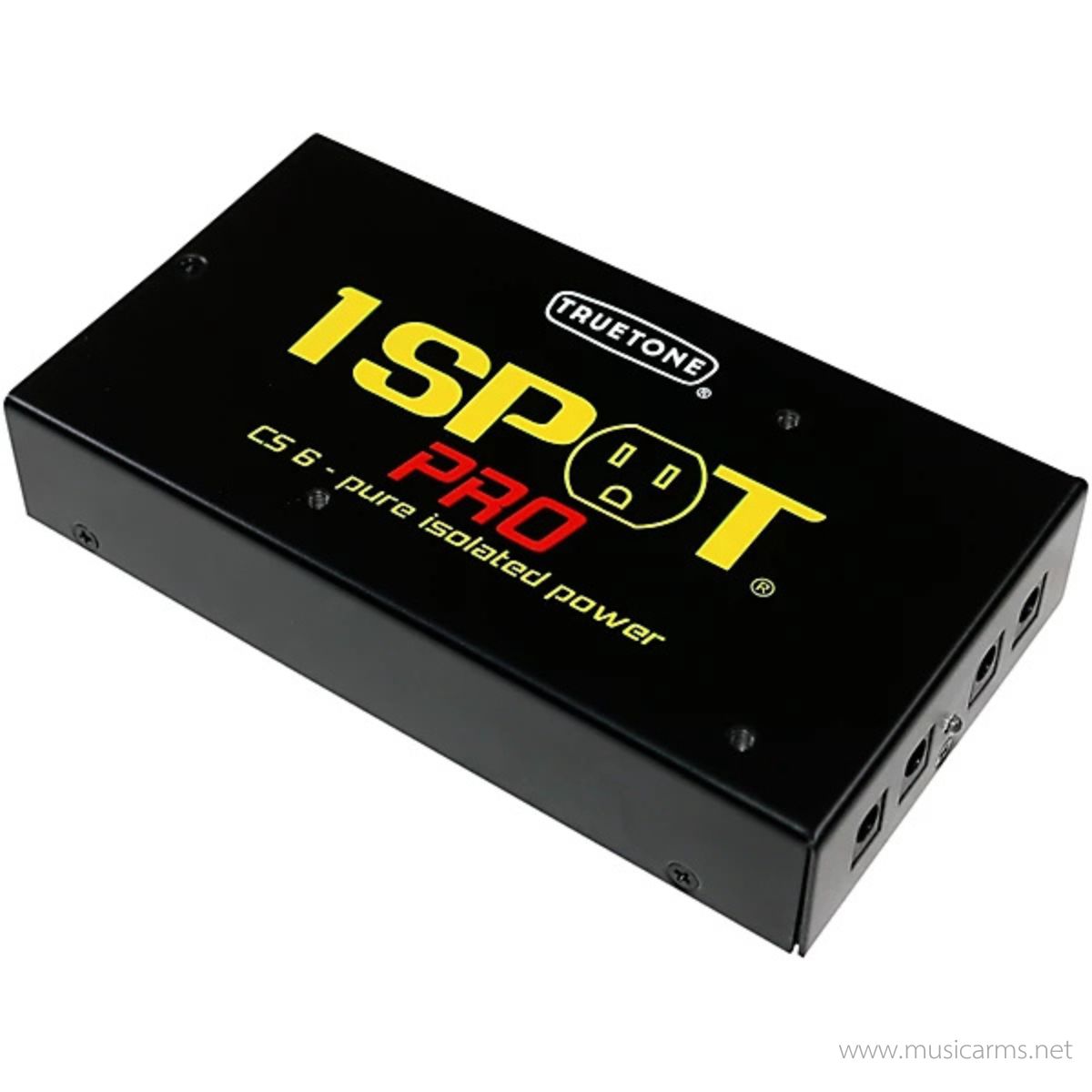

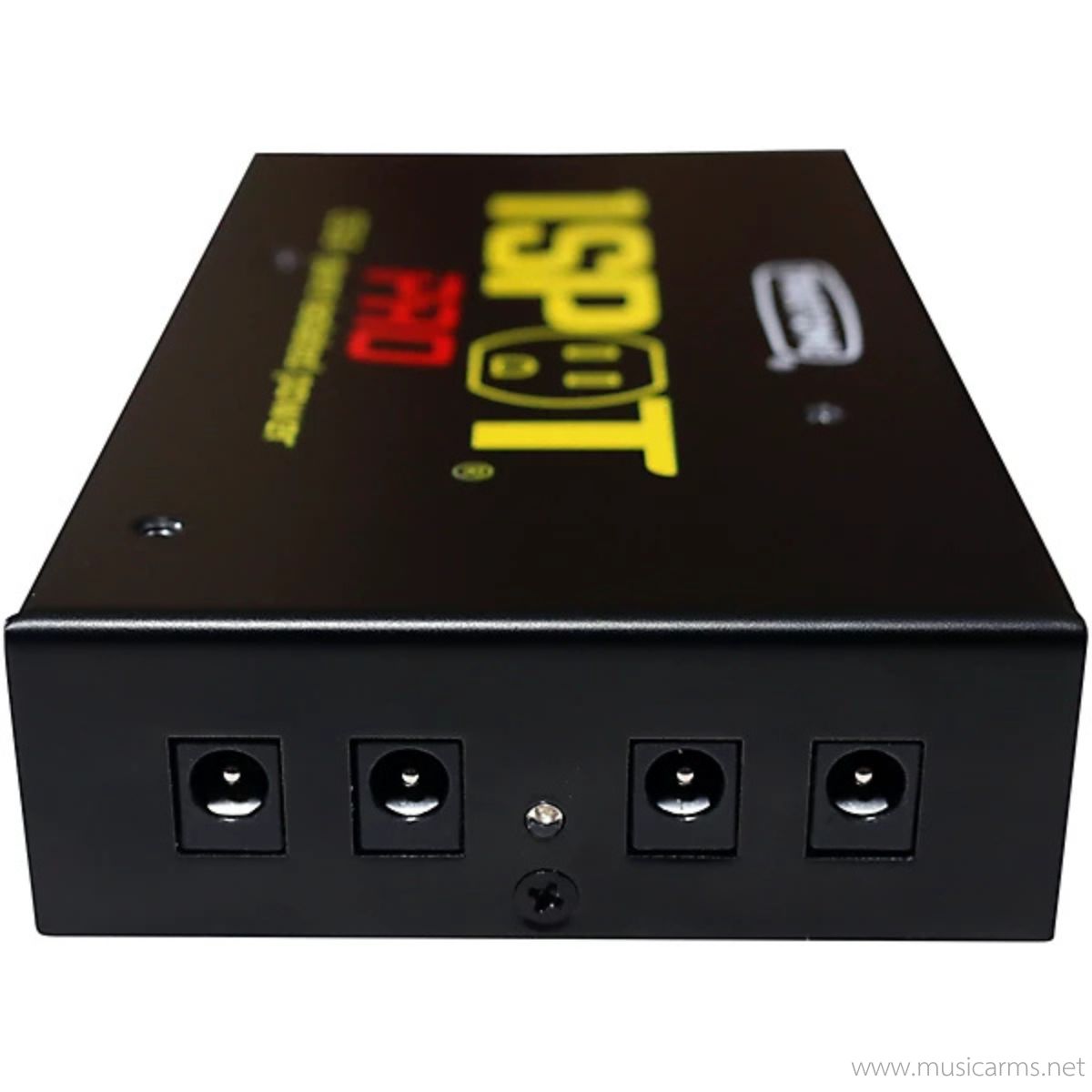

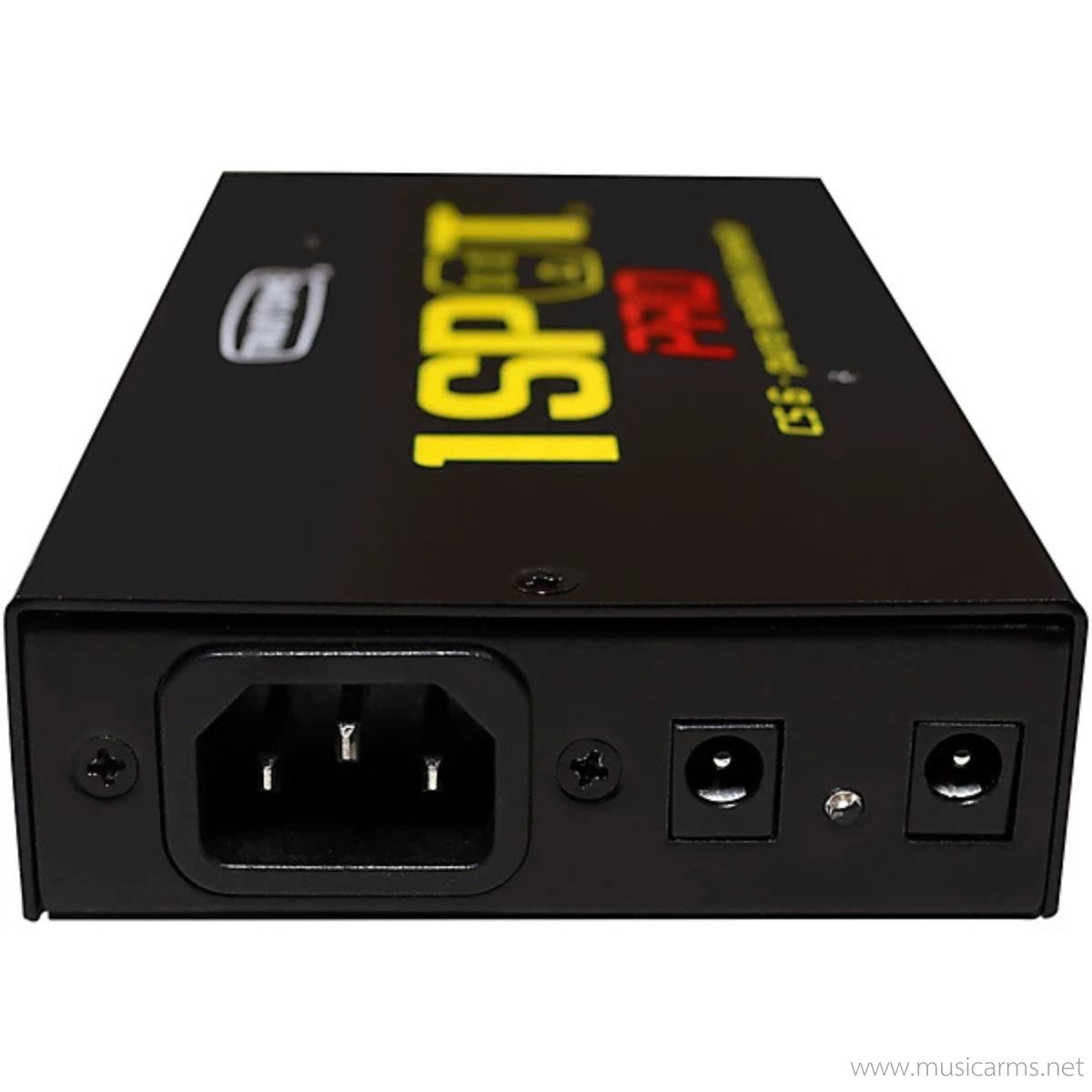

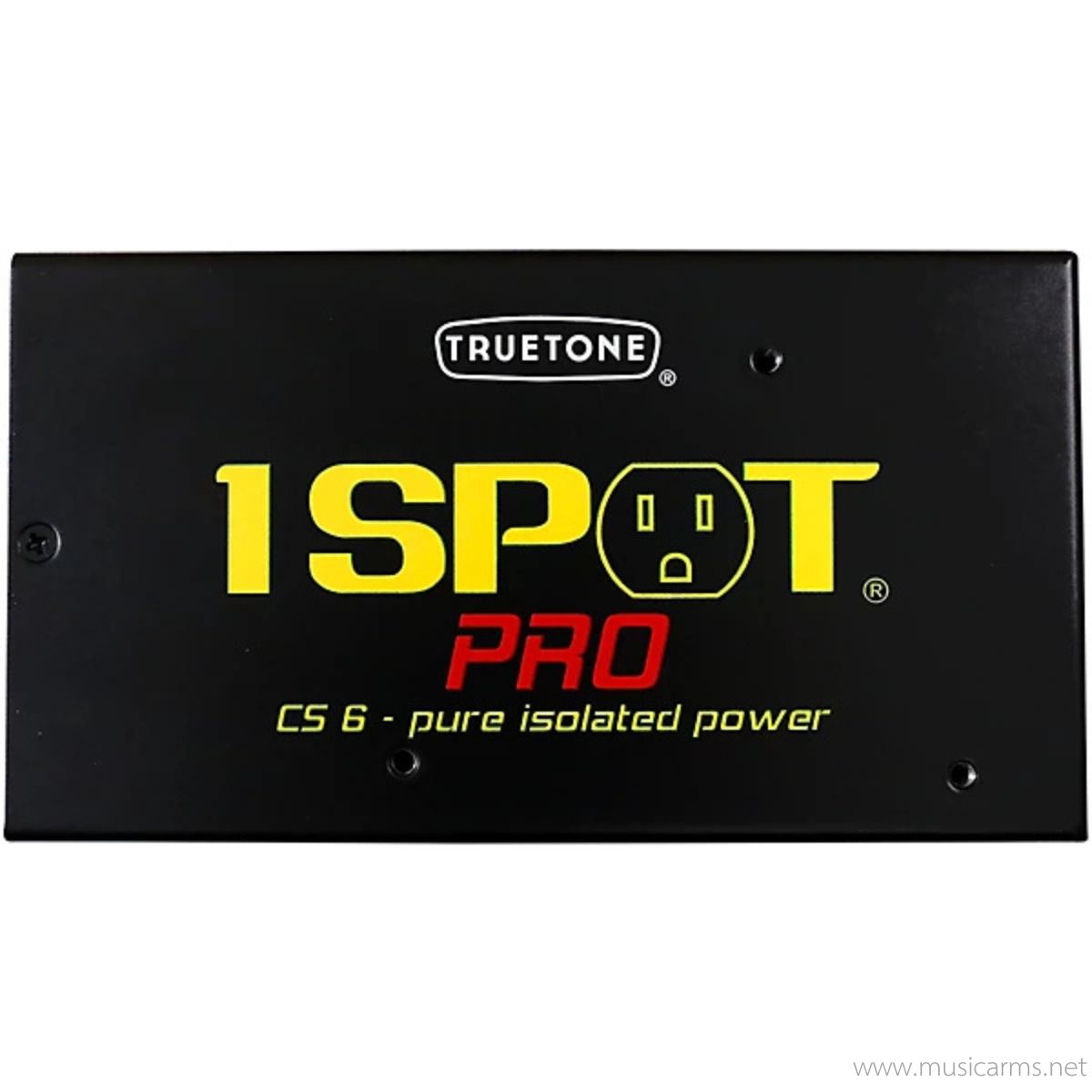

Truetone 1 SPOT Pro CS6: Power Anywhere, Any Size
The CS6 is a breakthrough in isolated power design, offering a uniquely low-profile form factor. It is specifically engineered for guitarists using small or flat pedalboards (like the Pedaltrain Nano or Metro series) where standard power supplies simply won’t fit. Despite its slim profile, the CS6 provides 6 fully isolated outputs with enough current to drive multiple high-draw digital pedals effortlessly.
Key Features
- Low-Profile Design: Ultra-slim chassis allows for mounting under almost any small pedalboard without modification.
- 6 Isolated Outputs: Guarantees silent, noise-free operation with total electrical isolation.
- High Current Sharing: Intelligently handles high-current pedals across its versatile outputs.
- Universal Voltage: Works around the globe automatically—no voltage selector switch needed.
Conclusion
The CS6 is the absolute best solution for players needing professional isolated power in the most space-efficient package available.
Specification

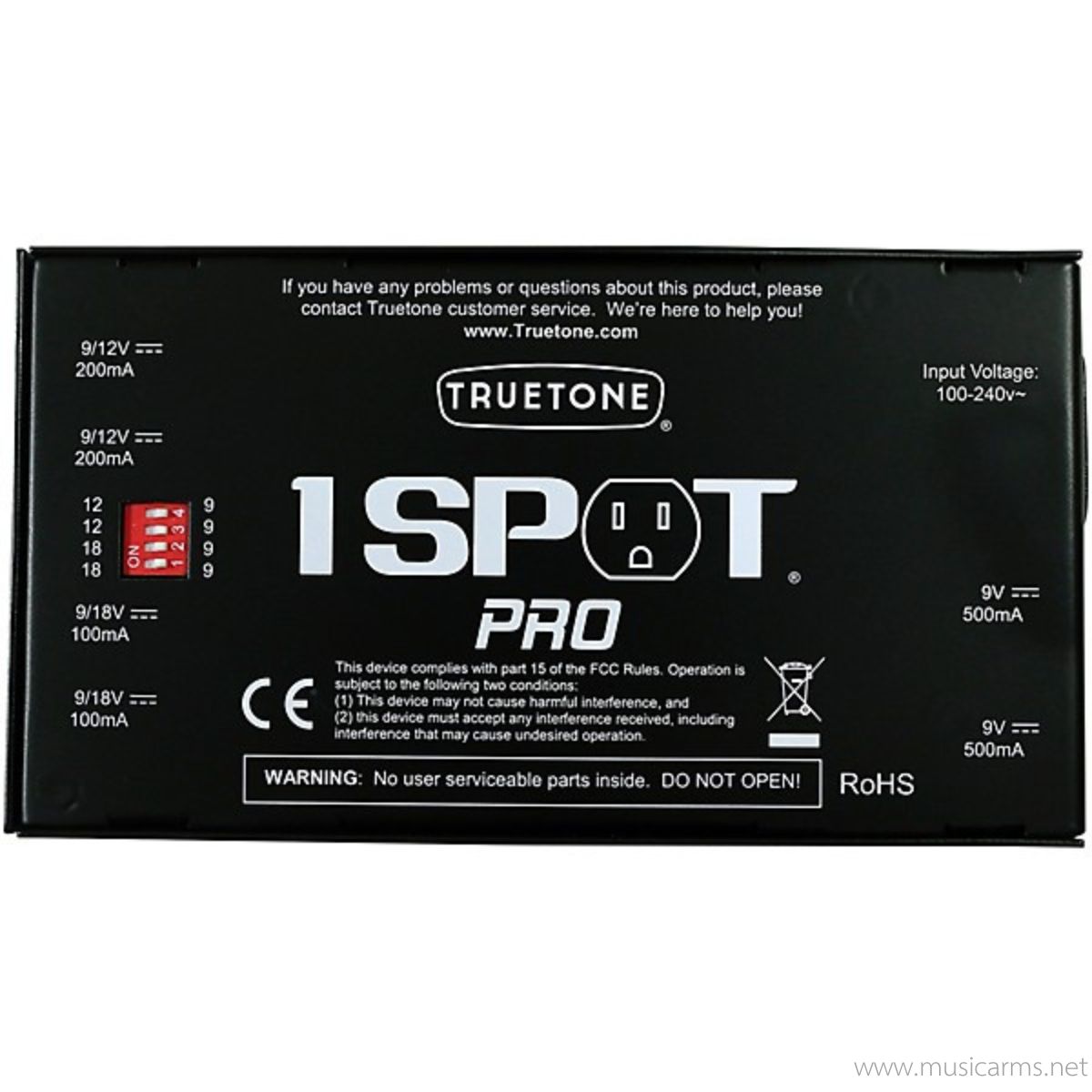

OUTPUT CHANNELS |
|
|---|---|
| Total Outputs | 6 Isolated Outputs |
| 9V DC (500mA) | 2 Channels |
| 9V/12V DC (200mA) | 2 Channels |
| 9V/18V DC (100mA) | 2 Channels |
PHYSICAL |
|
| Thickness | Only 1.22 inches (31 mm) |
| Weight | 1.3 lbs (0.59 kg) |
ข้อมูลสินค้า
Truetone 1 SPOT Pro CS6: จิ๋วแต่แจ๋ว ออกแบบมาเพื่อพื้นที่จำกัด
CS6 คือนวัตกรรมของแหล่งจ่ายไฟระบบ Isolated ที่มีความบางเป็นพิเศษ (Low-profile) มันถูกออกแบบมาเพื่อมือกีตาร์ที่ใช้บอร์ดขนาดเล็กหรือบอร์ดทรงแบน (เช่น Pedaltrain Nano หรือ Metro) ที่พาวเวอร์ซัพพลายรุ่นปกติใส่ไม่ได้ แม้จะมีรูปทรงกะทัดรัดแต่ CS6 ยังคงให้ 6 ช่องจ่ายไฟแบบ Isolated พร้อมพลังงานที่แรงพอจะขับเอฟเฟกต์ดิจิทัลขนาดใหญ่ได้อย่างสบาย
คุณสมบัติเด่น
- Low-Profile Design: ตัวเครื่องบางมาก สามารถติดตั้งใต้บอร์ดขนาดเล็กได้โดยไม่ต้องเจาะหรือยืดขาบอร์ด
- 6 Isolated Outputs: แยกอิสระจากกัน 100% ไร้เสียงรบกวน
- High Current Capabilities: แต่ละช่องสามารถจ่ายกระแสไฟได้สูงตามความต้องการของเอฟเฟกต์ (Shared current technology)
- Universal Input: รองรับระบบไฟทั่วโลกโดยไม่ต้องเปลี่ยนสวิตช์
สรุป
CS6 คือคำตอบที่ดีที่สุดสำหรับผู้ที่ต้องการพาวเวอร์ซัพพลาย Isolated คุณภาพสูงสุดในรูปทรงที่ประหยัดพื้นที่มากที่สุด
รายละเอียดคุณสมบัติ
OUTPUT CHANNELS |
|
|---|---|
| รวมทั้งหมด | 6 Isolated Outputs |
| 9V DC (500mA) | 2 ช่อง |
| 9V/12V DC (200mA) | 2 ช่อง |
| 9V/18V DC (100mA) | 2 ช่อง |
PHYSICAL |
|
| ความหนา | เพียง 1.22 นิ้ว (31 มม.) |
| น้ำหนัก | 0.59 กก. |
