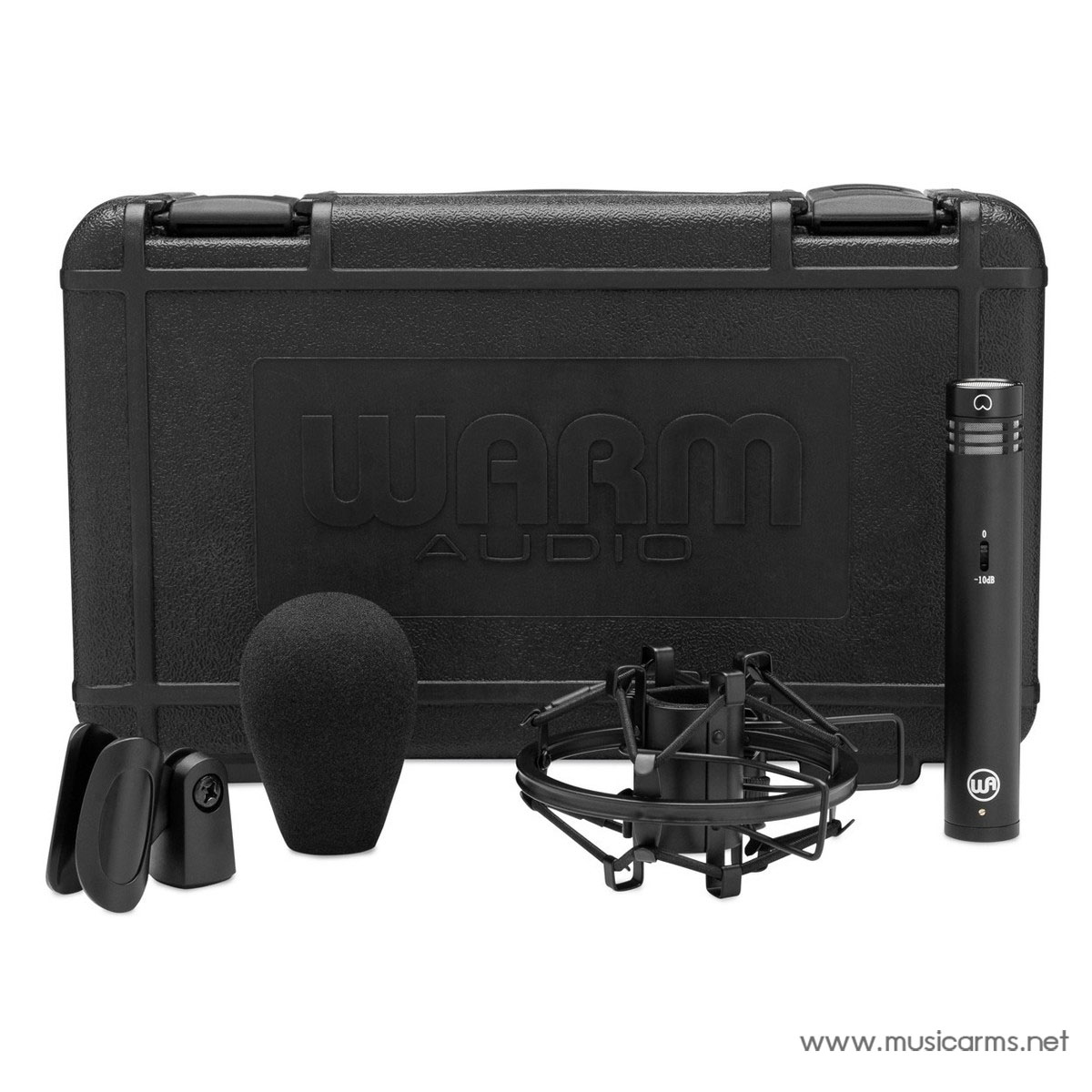

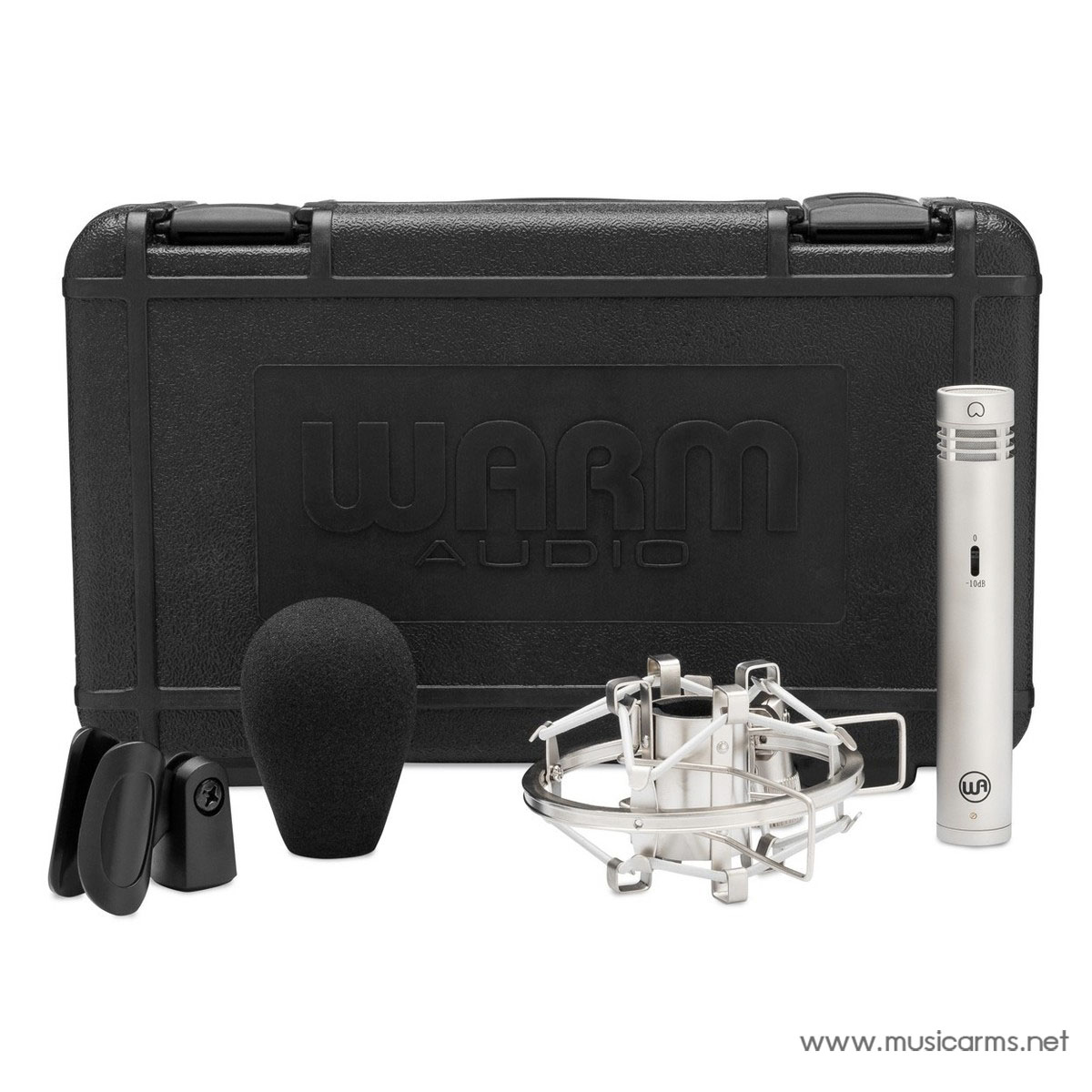

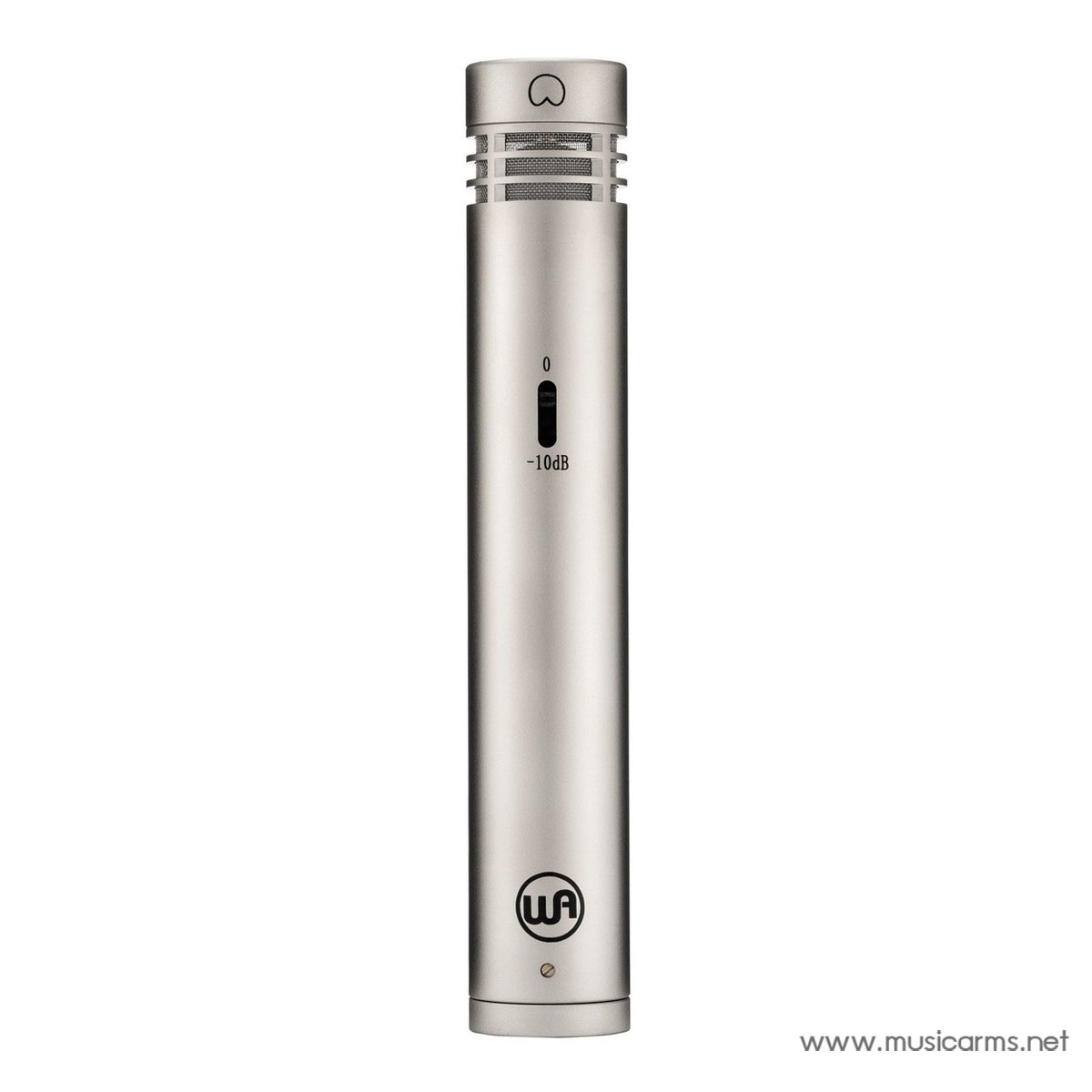

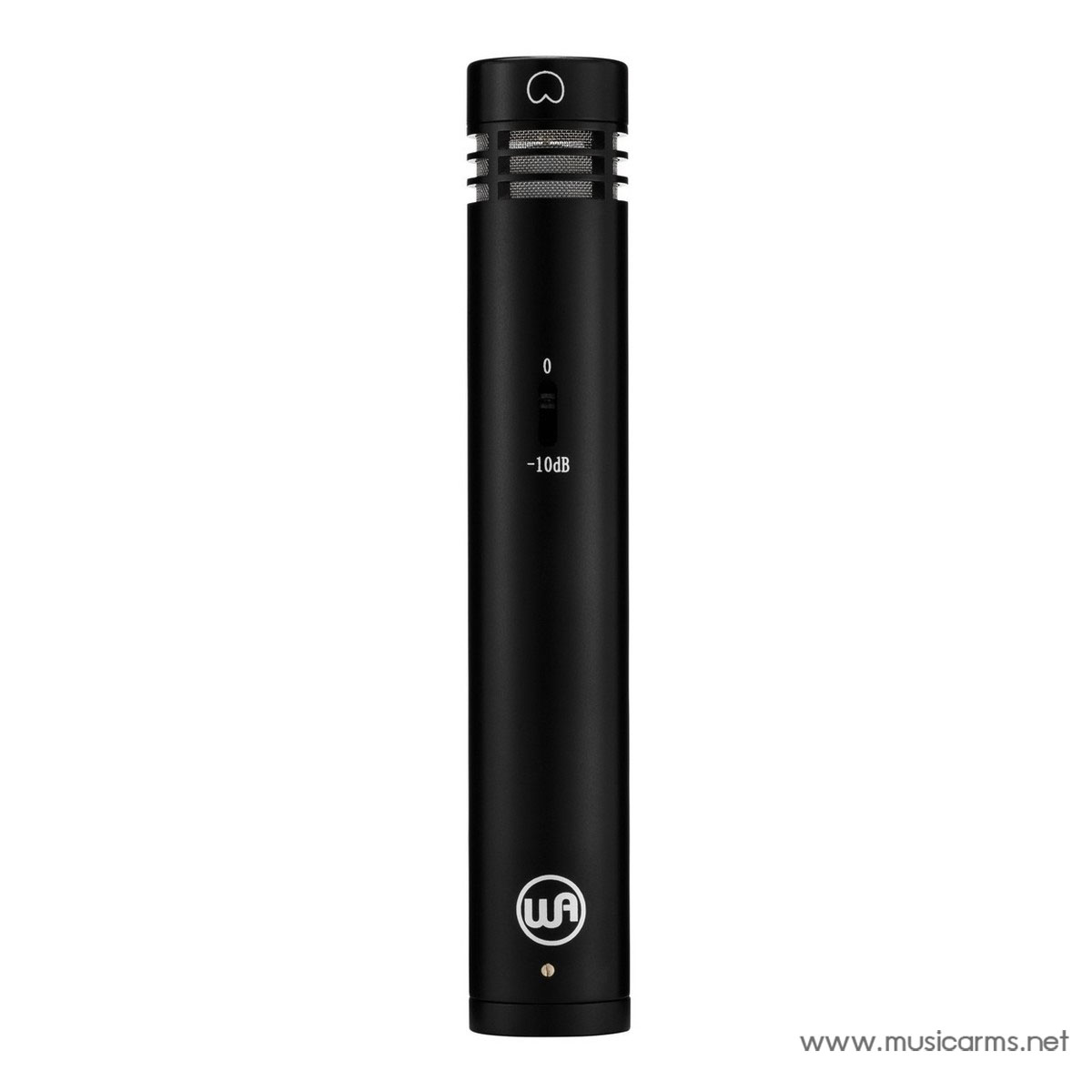

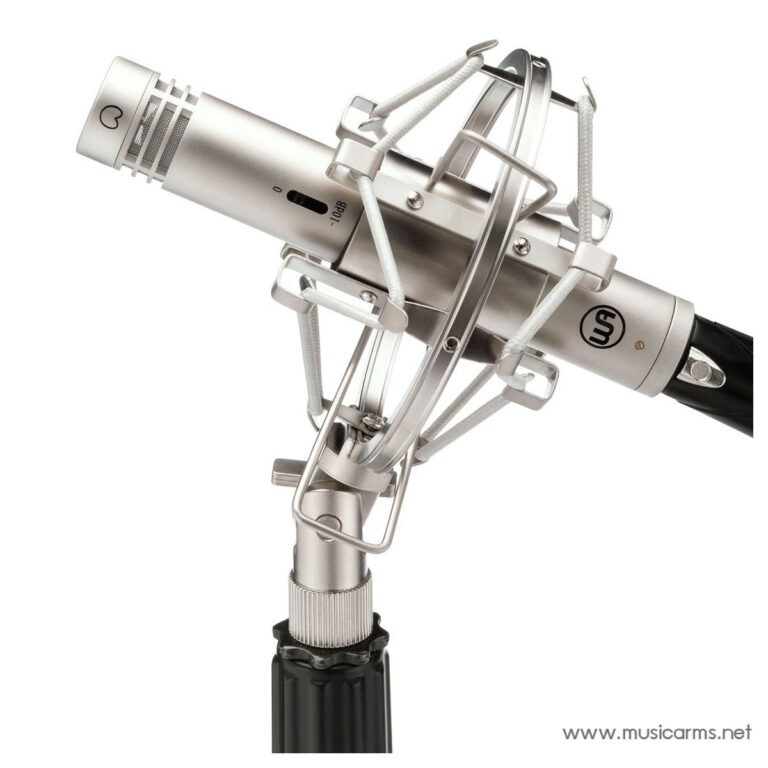

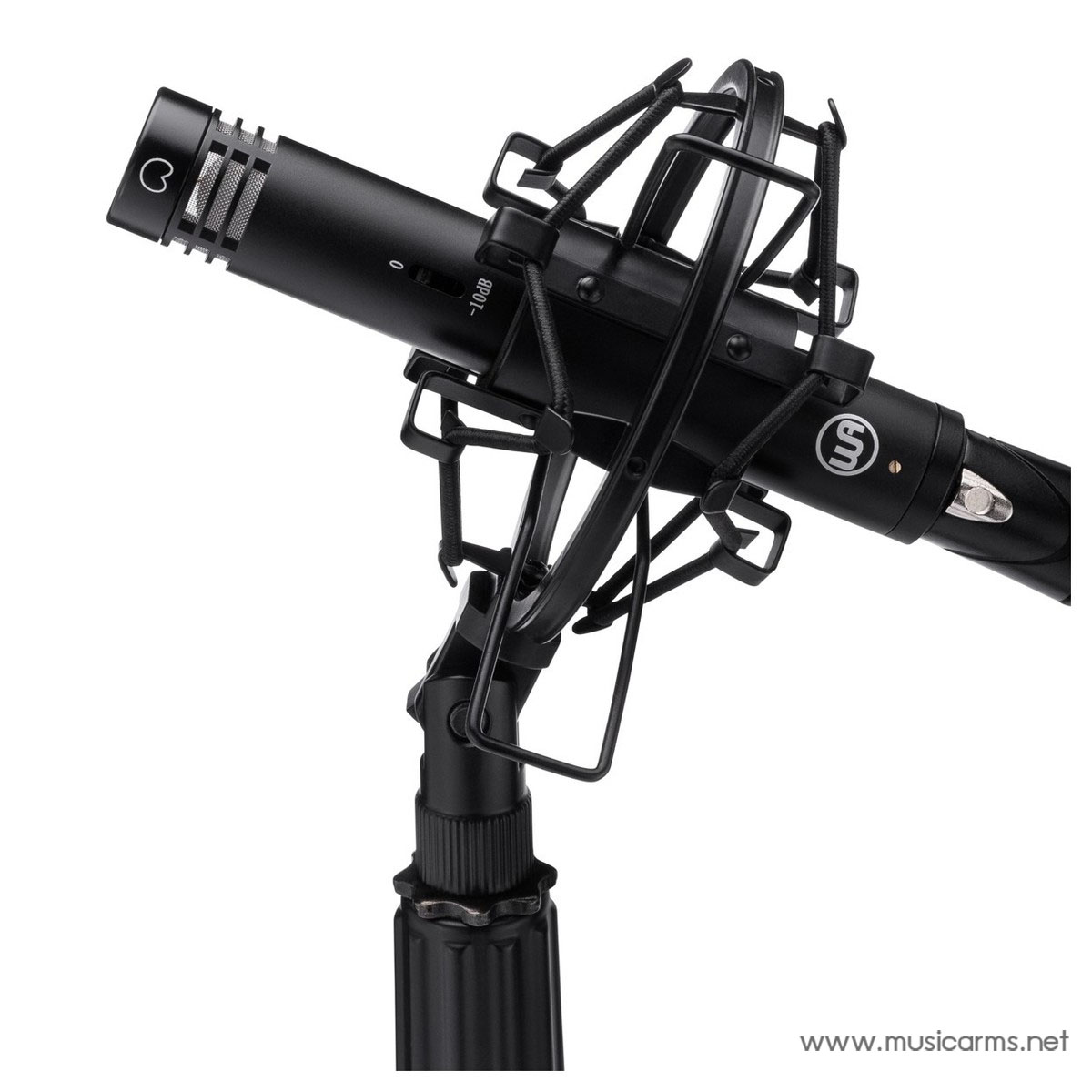

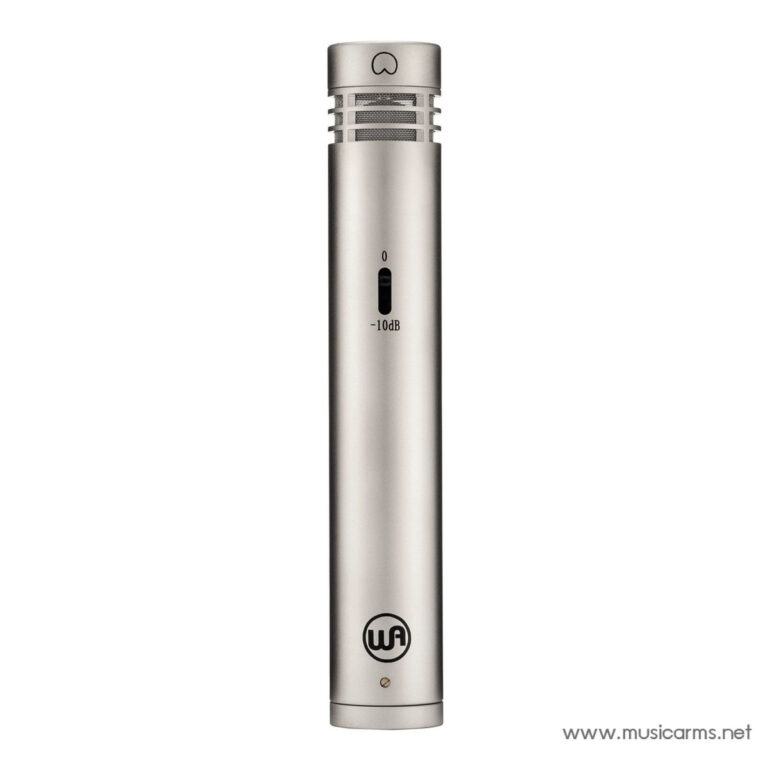

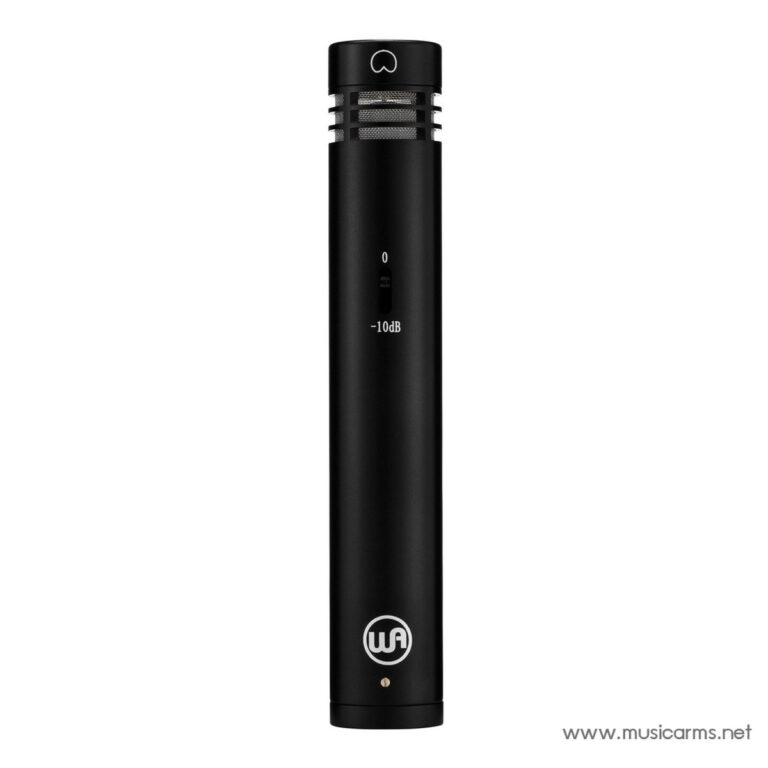

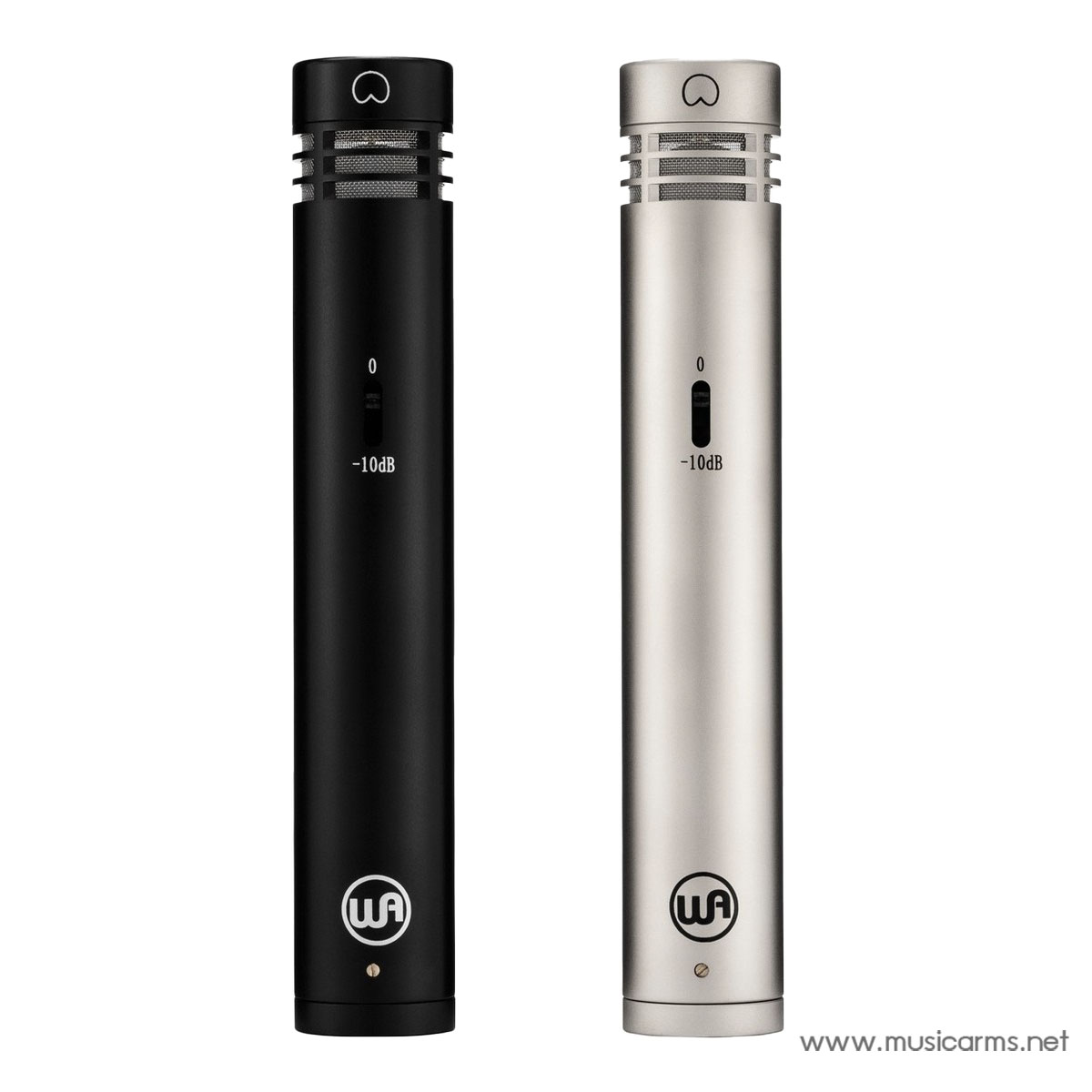

Warm Audio WA-84C Condenser Microphone
ราคา : 18,900 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Warm Audio WA-84C: Small Diaphragm Condenser Microphone with Timeless Vintage Clarity
Vintage never sounded so good, and the Warm Audio WA-84C Small Diaphragm Condenser Microphone embodies this principle with its high-performance boutique design. This microphone goes the extra mile in recreating the classic sonic characteristics of revered vintage circuitry, utilizing premium components rarely seen in modern microphone design. At its core, the WA-84 features a high-quality Nickel CineMag USA output transformer, high-grade polystyrene and Wima capacitors, and a Fairchild FET. This unique combination results in a huge, rich sound signature, delivering a creamy, smooth top-end, crystal clear mids, and a beefy, authoritative low-end. The WA-84 is a powerful and versatile addition perfect for a vast range of instruments and sound sources, whether you are working in a professional studio, a home setup, on stage, or in a broadcast environment.
Key Features
- Boutique Vintage Circuitry and Components: The classic circuit design is faithfully executed using premium components including a Nickel CineMag USA transformer, polystyrene and Wima capacitors, and a Fairchild FET, providing the authentic analog warmth and unique character that distinguishes classic microphones.
- Custom Vintage-Spec Capsule: The WA-84 features a carefully-manufactured custom capsule, precisely-reproduced to match the specifications of the original vintage model, ensuring the microphone captures sound with the exact sonic signature required for truly classic recordings.
- Ideal Full-Range Tonal Response: Delivers a creamy, smooth top-end, crystal clear mid-range presence, and a full, beefy low-end, making the microphone excellent for capturing the natural detail of acoustic instruments like drums (as overheads), acoustic guitars, pianos, and strings.
WA-84C: The Power of Classic Sound in a Versatile Package
The Warm Audio WA-84C is not just a small diaphragm condenser microphone; it’s a dedicated tool for infusing your recordings with the rich sonic heritage of the past. Its boutique construction and top-tier component selection provide exceptional recording capabilities and versatility in any setting. If you seek crystal clarity, analog warmth, and the authentic character of a vintage design, the WA-84C is a worthwhile investment to elevate your sonic productions.
Specification
Warm Audio WA-84C Technical Specifications |
|
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 20Hz – 20kHz |
| Sensitivity | -39dB or 11mV/Pa at 1kHz |
| Output Impedance | 200 Ohms |
| Rated Load Impedance | ≥1K Ohm |
| Pad | 0dB or -10dB |
| Maximum SPL | 123dB/133dB at 1kHz, 0.5% THD, 0/-10dB |
| S/N Ratio | 78dB(A) (IEC651) |
| Equivalent Noise (Self-noise) | 16dB(A) (IEC651) |
| Dynamic Range | 107dB(A) (IEC651) |
| Transformer | CineMag USA |
| Capacitors | Polystyrene and Wima |
| FET | Fairchild |
| Power | +48V Phantom Power |
| Connector | 3-pin gold-plated XLR |
| Finish | Nickel |
| Diameter | 22mm |
| Length | 132mm |
| Weight | 122g |
ข้อมูลสินค้า
Warm Audio WA-84C: ไมโครโฟนคอนเดนเซอร์ไดอะแฟรมเล็กสไตล์วินเทจ เสียงคลาสสิกเหนือกาลเวลา
Warm Audio WA-84C คือบทพิสูจน์ว่า ‘ความวินเทจไม่เคยตกยุค’ ด้วยการออกแบบระดับบูติคประสิทธิภาพสูง ไมโครโฟน WA-84 ได้ก้าวไปอีกขั้นในการจำลองวงจรคลาสสิกของไมโครโฟนที่เป็นที่เคารพนับถือในอดีต ส่วนประกอบสำคัญประกอบด้วย หม้อแปลงเอาท์พุต Nickel CineMag USA คุณภาพสูง, คาปาซิเตอร์แบบ Polystyrene และ Wima, และทรานซิสเตอร์ Fairchild FET ซึ่งรวมกันเป็นแนวคิดที่ไม่ธรรมดาและหาได้ยากในการออกแบบไมโครโฟนสมัยใหม่ การผสมผสานของส่วนประกอบระดับพรีเมียมเหล่านี้ทำให้ WA-84 สามารถมอบเสียงสูงที่นุ่มนวลและ ‘ครีมมี่’ (creamy), เสียงกลางที่ใส crystal clear, และเสียงต่ำที่หนักแน่น (beefy low-end) ส่งผลให้ได้เสียงที่มีขนาดใหญ่และสมบูรณ์แบบสำหรับเครื่องดนตรีและแหล่งกำเนิดเสียงที่หลากหลาย ไม่ว่าคุณจะใช้งานในสตูดิโอระดับโปร, โฮมสตูดิโอ, บนเวที, หรือในสภาพแวดล้อมการแพร่ภาพ, WA-84 คือเครื่องมืออันทรงพลังที่พร้อมเสริมคลังอุปกรณ์บันทึกเสียงของคุณ
คุณสมบัติเด่น
- วงจรและส่วนประกอบบูติคสไตล์วินเทจ: ใช้วงจรคลาสสิกที่ผ่านการพิสูจน์แล้ว ประกอบด้วยหม้อแปลงเอาท์พุต Nickel CineMag USA, คาปาซิเตอร์ Polystyrene และ Wima, และ Fairchild FETs เพื่อให้ได้โทนเสียงที่มีลักษณะเฉพาะและมีความอุ่นแบบอนาล็อกที่ไมโครโฟนรุ่นใหม่หาได้ยาก
- แคปซูลสั่งทำพิเศษที่จำลองตามสเปควินเทจ: WA-84 มีแคปซูลที่ผลิตขึ้นอย่างพิถีพิถันและจำลองตามข้อกำหนดของไมโครโฟนวินเทจดั้งเดิมอย่างแม่นยำ ทำให้มั่นใจได้ว่าเสียงที่ได้จะมีเอกลักษณ์และคาแรคเตอร์ที่โดดเด่นของโมเดลคลาสสิก
- การตอบสนองความถี่ที่สมบูรณ์แบบ: มอบเสียงสูงที่นุ่มนวล (creamy top-end), เสียงกลางที่ชัดเจน, และเสียงต่ำที่หนักแน่น (beefy low-end) ทำให้ไมโครโฟนนี้เหมาะสำหรับการบันทึกเครื่องดนตรีหลากหลายชนิด เช่น กลอง (Overheads), กีตาร์โปร่ง, เปียโน, และเครื่องสาย
WA-84C: เพิ่มสัมผัสแห่งความคลาสสิกให้กับทุกการบันทึกเสียง
Warm Audio WA-84C ไม่ได้เป็นเพียงไมโครโฟนคอนเดนเซอร์ไดอะแฟรมขนาดเล็กทั่วไป แต่เป็นสะพานเชื่อมสู่ยุคทองแห่งการบันทึกเสียง ด้วยการออกแบบที่เน้นคุณภาพระดับบูติคและส่วนประกอบระดับพรีเมียม ไมโครโฟนนี้มอบความสามารถในการบันทึกที่ยอดเยี่ยมและความอเนกประสงค์ในทุกสภาพแวดล้อม หากคุณกำลังมองหาไมโครโฟนที่ให้ความใส ความอุ่น และตัวละครที่แท้จริงของวินเทจ WA-84C คือการลงทุนที่คุ้มค่าเพื่อยกระดับงานสร้างสรรค์ทางเสียงของคุณ
รายละเอียดคุณสมบัติ
Warm Audio WA-84C ข้อมูลจำเพาะทางเทคนิค |
|
|---|---|
| รูปแบบการรับเสียง (Polar Pattern) | คาร์ดิออยด์ (Cardioid) |
| การตอบสนองความถี่ | 20Hz – 20kHz |
| ความไว (Sensitivity) | -39dB หรือ 11mV/Pa ที่ 1kHz |
| ความต้านทานเอาท์พุต (Output Impedance) | 200 โอห์ม |
| ความต้านทานโหลดที่กำหนด (Rated Load Impedance) | ≥1K โอห์ม |
| แผ่นลดสัญญาณ (Pad) | 0dB หรือ -10dB |
| ระดับความดังสูงสุด (Maximum SPL) | 123dB/133dB ที่ 1kHz, 0.5% THD, 0/-10dB |
| อัตราส่วนสัญญาณต่อเสียงรบกวน (S/N Ratio) | 78dB(A) (IEC651) |
| เสียงรบกวนเทียบเท่า (Equivalent Noise) | 16dB(A) (IEC651) |
| ช่วงไดนามิก (Dynamic Range) | 107dB(A) (IEC651) |
| หม้อแปลง (Transformer) | CineMag USA |
| คาปาซิเตอร์ (Capacitors) | Polystyrene และ Wima |
| ทรานซิสเตอร์ (FET) | Fairchild |
| พลังงาน | +48V Phantom Power |
| ตัวเชื่อมต่อ | 3-pin XLR ชุบทอง |
| สีผิวเคลือบ (Finish) | นิกเกิล (Nickel) |
| เส้นผ่านศูนย์กลาง (Diameter) | 22 มม. |
| ความยาว (Length) | 132 มม. |
| น้ำหนัก (Weight) | 122 กรัม |
