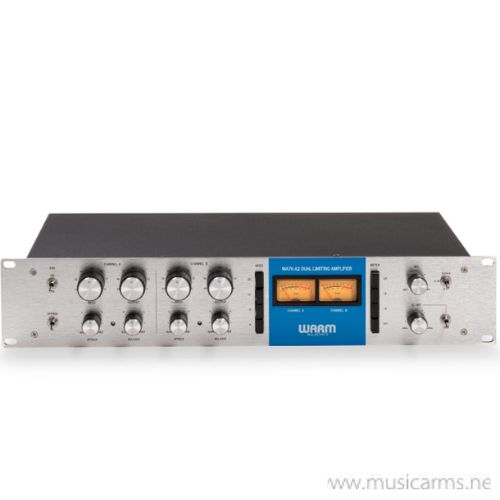

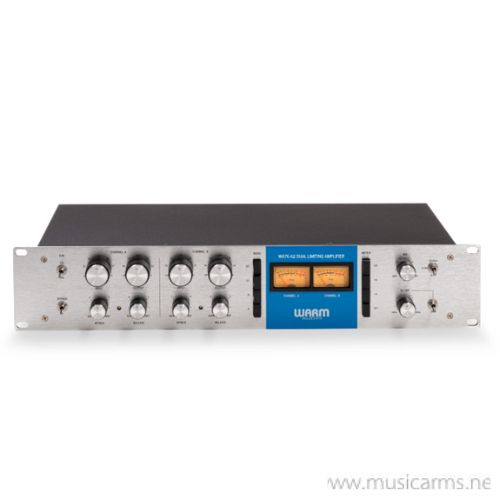

Warm Audio WA76-A2 Dual-Channel FET Compressor
ราคา : 51,900 บาท
Description
WA76-A2: 2-Channel FET Compressor with Legendary Vintage Tone
The WA76-A2 is a 2-channel FET (Field Effect Transistor) compressor
designed to emulate the iconic “Blue Stripe 76” while adding modern functionality
for the digital era. It delivers classic analog warmth with improved flexibility
and ease of use.
Timeless Vintage Sound
- Fast response for precise dynamic control
- Rich analog warmth that enhances tonal character
- Highly versatile on vocals, drums, guitar, bass, and even mix bus
The WA76-A2 provides depth, detail, and clarity that elevate your recordings
to a professional level.
Modern Features for Today’s Workflow
Dry/Wet Mix Control
Allows easy Parallel Compression by blending original and compressed signals.
Sidechain High-Pass Filter
Adjustable from 30Hz to 300Hz to reduce excessive low-frequency triggering.
Three 2-Channel Operating Modes
- Stereo Linked: Operates as a balanced stereo compressor
- Primary:Secondary (A>AB): Channel A controls Channel B
- Dual-Mono (A|B): Functions as two independent compressors
All-Buttons-In Mode
A famous mode that creates dense and unique compression effects.
Premium Components for Superior Sound
- Equipped with high-quality CineMag Transformers
- 100% analog circuitry for accurate and authentic tone
- Premium capacitors and resistors for enhanced sonic detail
- Manufactured and tested in Austin, TX by expert technicians
Specification
WA76-A2 Product Details
| Type | 2-channel FET Compressor |
|---|---|
| Attack Range | 20 µS – 800 µS |
| Release Range | 50 mS – 1.1 seconds |
| Frequency Response | 20Hz – 20kHz (±1 dB) |
| Sidechain HPF | 30 – 300Hz (12dB/Octave) |
| SNR | 86 dB (A-weighted) |
| Inputs/Outputs | Balanced XLR and TRS |
| Size | 2U Rackmount (19 inches) |
ข้อมูลสินค้า
WA76-A2: คอมเพรสเซอร์ FET แบบ 2 แชนแนล โทนวินเทจระดับตำนาน
WA76-A2 คือคอมเพรสเซอร์แบบ FET (Field Effect Transistor) จำนวน 2 แชนแนล
ที่จำลองเสียงและลักษณะการทำงานจากคอมเพรสเซอร์ระดับตำนาน “Blue Stripe 76”
พร้อมอัปเกรดฟีเจอร์ใหม่ให้เหมาะกับงานในยุคดิจิทัล ใช้งานง่าย ยืดหยุ่น และได้โทนเสียงวินเทจที่แม่นยำ
โทนวินเทจเหนือกาลเวลา
- การตอบสนองที่รวดเร็ว ควบคุมไดนามิกได้แม่นยำ
- ให้โทนเสียงอบอุ่นแบบแอนะล็อก
- ใช้งานได้อเนกประสงค์ ทั้งเสียงร้อง กลอง กีต้าร์ เบส และงานมาสเตอร์
WA76-A2 ให้มิติ ความลึก และรายละเอียดที่ช่วยให้ผลงานบันทึกเสียงโดดเด่นและเป็นมืออาชีพมากขึ้น
ฟีเจอร์ใหม่สำหรับงานยุคดิจิทัล
Dry/Wet Mix Control
ปรับสัดส่วนเสียงตรงและเสียงคอมเพรส เพื่อทำ Parallel Compression ได้ง่ายขึ้น
Sidechain High-Pass Filter
ปรับได้ตั้งแต่ 30Hz – 300Hz เพื่อลดผลกระทบของเสียงทุ้มที่มากเกินไป
3 โหมดการทำงานแบบ 2 แชนแนล
- Stereo Linked: ทำงานเป็นคอมเพรสเซอร์สเตอริโอที่บาลานซ์กัน
- Primary:Secondary (A>AB): ใช้ช่อง A ควบคุมช่อง B
- Dual-Mono (A|B): ทำงานเป็น 2 คอมเพรสเซอร์อิสระ
รายละเอียดคุณสมบัติ
WA76-A2 รายละเอียดสินค้า
| ประเภท (Type) | คอมเพรสเซอร์ FET แบบ 2 แชนแนล |
|---|---|
| ช่วง Attack | 20 µS – 800 µS |
| ช่วง Release | 50 mS – 1.1 วินาที |
| การตอบสนองความถี่ | 20Hz – 20kHz (±1 dB) |
| Sidechain HPF | 30 – 300Hz (12dB/Oct) |
| SNR | 86 dB (A-weighted) |
| อินพุต/เอาต์พุต | Balanced XLR และ TRS |
| ขนาด | 2U Rackmount (19″) |
