Xotic AC Booster เอฟเฟคก้อน

Xotic AC Booster: The Natural, Amp-Like Overdrive & Booster

The Xotic AC Booster is a highly acclaimed overdrive and booster pedal, celebrated by guitarists worldwide for its ability to deliver a transparent yet character-rich tone. It’s renowned for emulating the smooth, natural breakup of a classic British-style tube amplifier being pushed to its sweet spot.

At its core, the AC Booster is a “booster with gain,” making it incredibly versatile and compatible with virtually any setup.

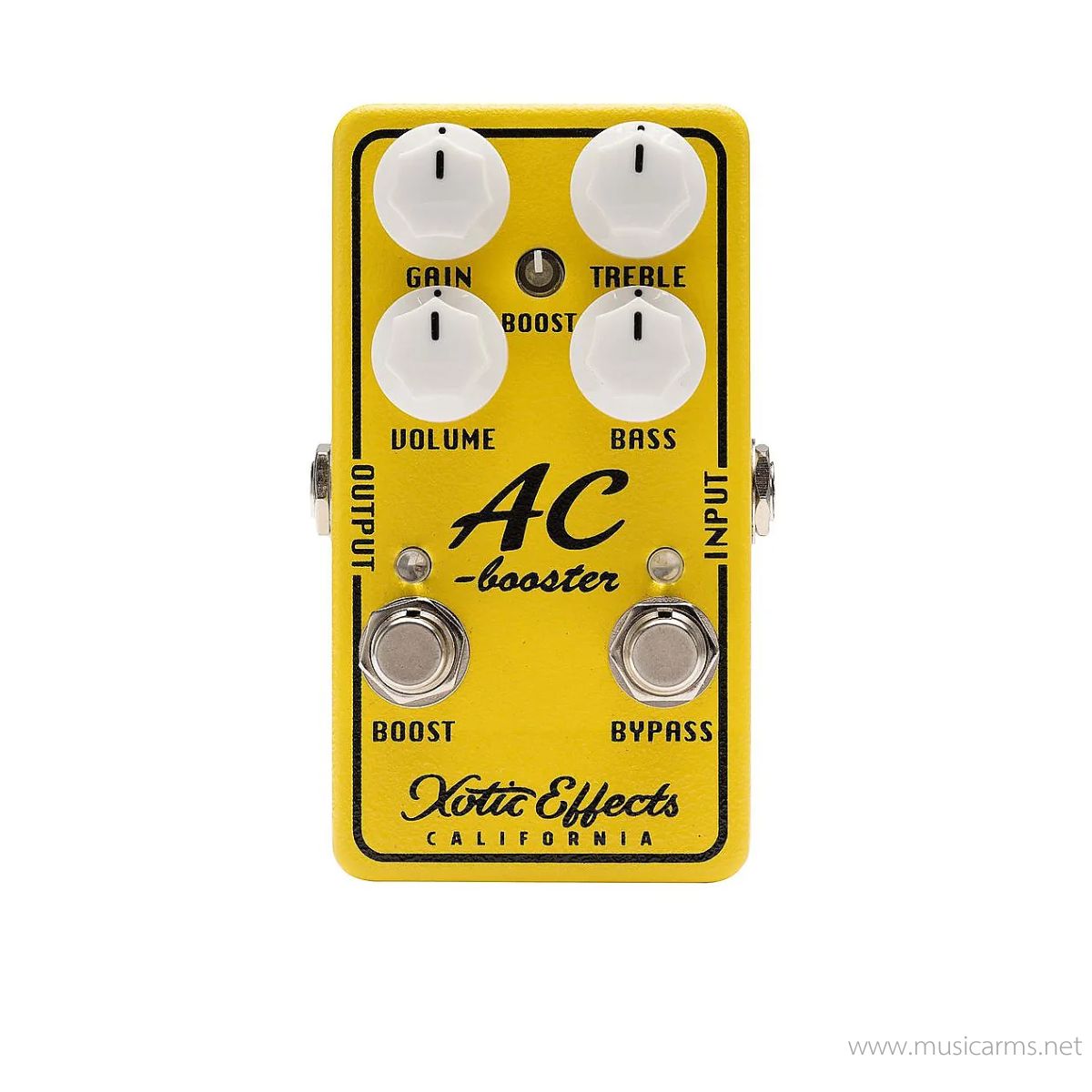

Functions / Controls

The AC Booster features four intuitive yet powerful controls:

1. Gain: This knob controls the amount of overdrive.
   • At lower settings (counter-clockwise): It acts as a clean boost, adding volume and presence without much dirt.
   • As you turn it up (clockwise): It introduces a smooth, musical grit and saturation. The overdrive remains dynamic and articulate even at higher gain settings, avoiding a compressed or “fizzy” sound.
2. Volume: This controls the overall output level of the pedal. It can be used to significantly boost your signal for solos or set to “unity gain” to match the volume of your clean tone.
3. Treble: This is an active EQ control for the high frequencies. Being “active” means it can both boost or cut treble, offering a much wider range of tonal shaping than a standard passive tone knob.
   • The 12 o’clock position is flat.
4. Bass: Like the Treble control, this is an active EQ for the low frequencies. It allows you to boost or cut the bass, giving you precise control over the thickness and body of your guitar tone.
   • The 12 o’clock position is flat.

Key Features

• Tube-like Overdrive: Delivers a warm, rich overdrive that is exceptionally touch-sensitive. It cleans up nicely when you play softly and growls naturally when you dig in.
• True Bypass Switching: Ensures your original guitar signal remains completely unaltered when the pedal is disengaged.
• Active 2-Band EQ: A powerful tone-shaping tool that makes it easy to dial in the perfect sound for any guitar, amp, or musical situation.
• Compact Footprint: Designed to be pedalboard-friendly, saving valuable space.

Usage / Applications

1. As a “Colored” Clean Boost: With the Gain set low, use the Volume knob to push your amp for solos. It adds a touch of warmth and harmonic richness, making your tone feel bigger and more alive.
2. As a Standalone Low-Gain Overdrive: It’s a perfect “always-on” or primary drive sound for genres like blues, pop, and classic rock, providing a beautifully textured rhythm and lead tone.
3. For Stacking: Place the AC Booster before or after another drive pedal. Use it to push another pedal into higher gain, or to shape the EQ and add saturation to an existing drive sound, creating a thicker, more complex tone.
4. As a Tone-Shaping Preamp: Thanks to its powerful active EQ, the pedal can function as an effective preamp to sculpt your core tone before it even hits your amplifier.

• Input Impedance: 1M ohm
• Output Impedance: 1k ohm
• Power: 9VDC, Center Negative (standard Boss-style adapter)
• Current Consumption: 6mA
• Dimensions (W/D/H): 4.39″ x 2.38″ x 1.98″ (112mm x 60mm x 50mm)
• Weight: 0.6 lbs (280g)

• Input Impedance: 1M ohm
• Output Impedance: 1k ohm
• Power: 9VDC, Center Negative (ใช้ไฟเหมือนเอฟเฟค Boss ทั่วไป)
• Current Consumption: 6mA
• Dimensions (W/D/H): 4.39″ x 2.38″ x 1.98″ (112mm x 60mm x 50mm)
• Weight: 0.6 lbs (280g)
