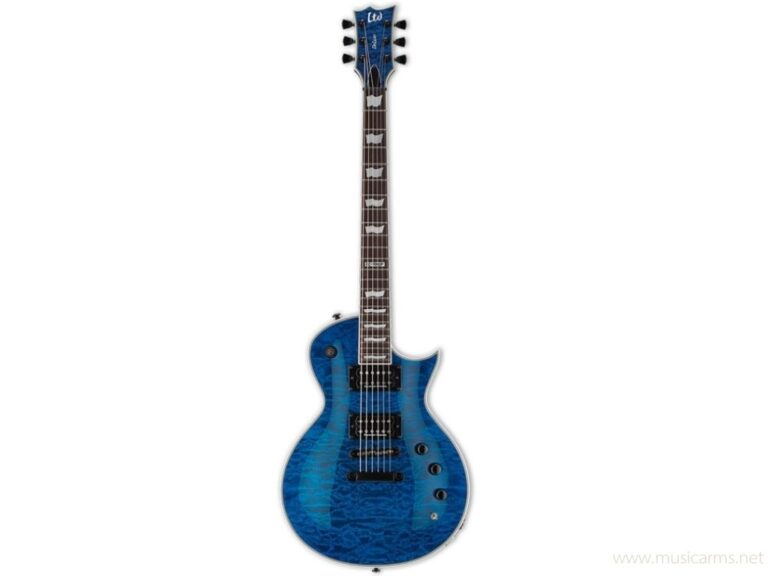

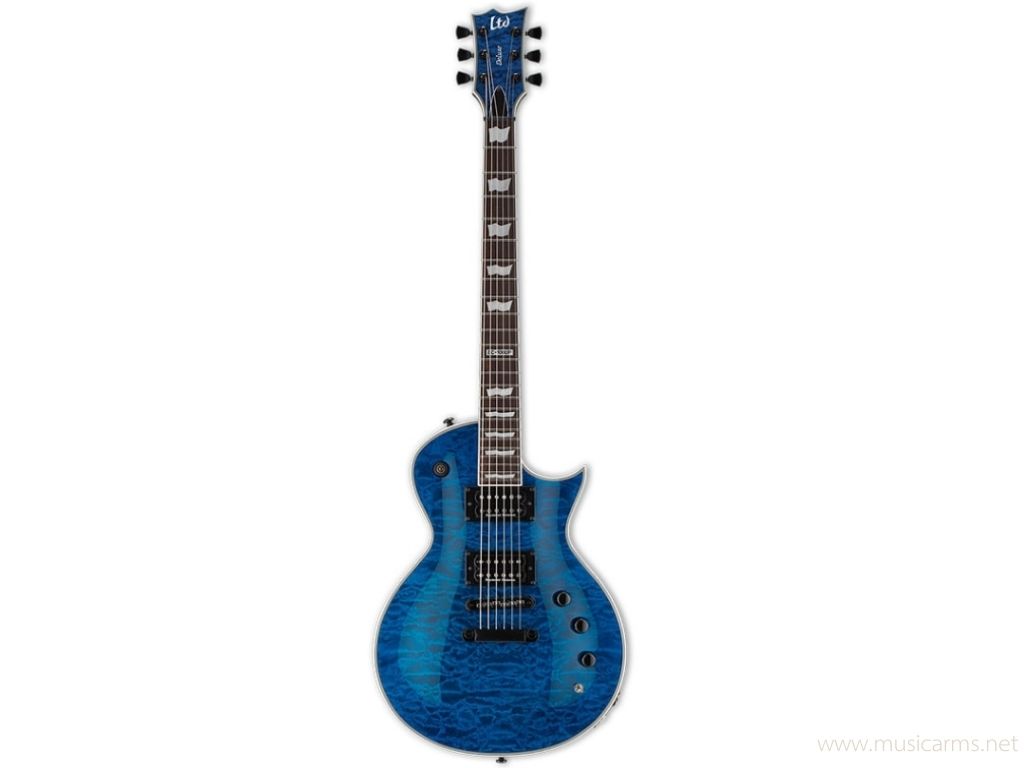

กีตาร์ไฟฟ้า LTD EC-1000 Piezo

Highlights

It is the first model in the EC series to feature a Piezo system with Fishman Powerbridge, allowing players to select or blend electric and acoustic tones freely.

It has received the Editors’ Pick award from Guitar Player Magazine for its design, practical usability, detailed functionality, and smooth, trouble-free playability.

Production & History

LTD is a subsidiary brand of ESP, established in 1996 to produce high-quality guitars at more affordable prices. The 1000 Series, including this model, is manufactured in South Korea.

The EC-1000 Piezo was first introduced around 2017 and is the first EC series guitar to combine magnetic pickups and a Piezo pickup system in a single instrument.

Specifications
Item Details
Production Korean production line (LTD 1000 Series)
Body Construction Set-Thru (neck-through-body)
Scale Length 24.75″ (~629 mm)
Body Material Body: Mahogany, Top: Quilted Maple
Neck 3-piece Mahogany, Thin U profile
Fingerboard Macassar Ebony (or Pau Ferro on some models) – 350 mm radius, 24 XL stainless frets
Pickups Neck: Seymour Duncan ’59, Bridge: Seymour Duncan JB; Piezo System: Fishman Powerbridge & tailpiece
Electronics Active; Volume (magnetic), Tone (push/pull coil split), Piezo Volume, mini-toggle (source select), additional toggle switch, dual outputs
Bridge Fishman Powerbridge TOM & Tailpiece
Tuners LTD Locking Tuners
Strings D’Addario XL110 (.010–.046)

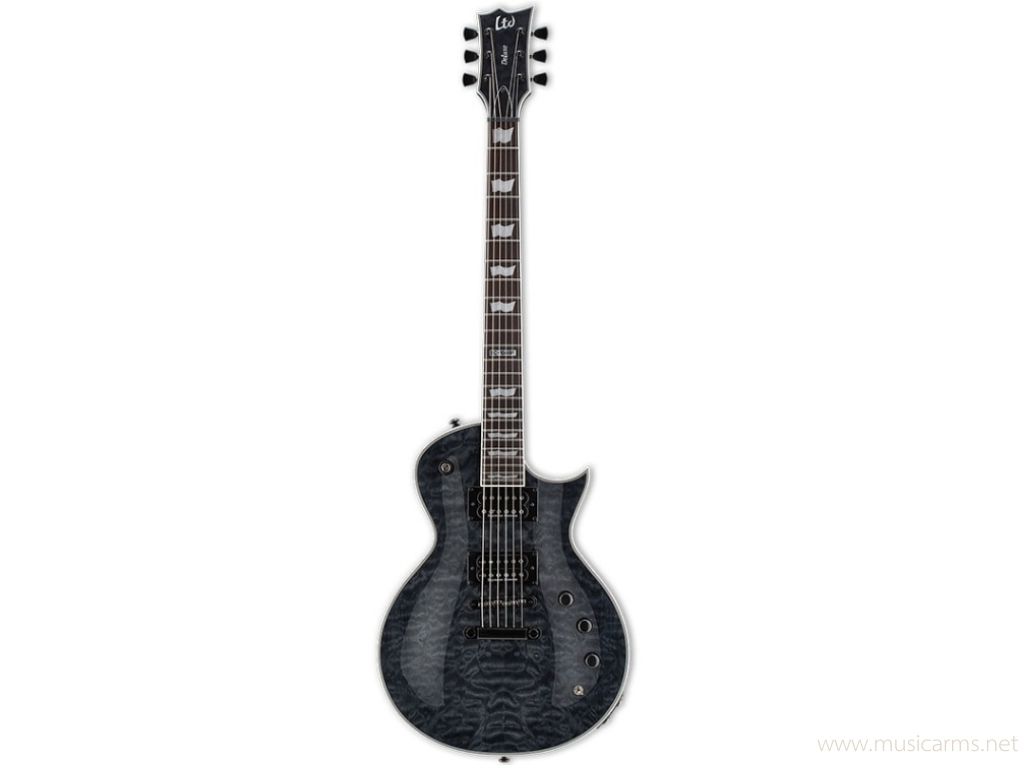

Finish Options See-Thru Black, See-Thru Blue
Country of Manufacture Indonesia (according to Reverb) or possibly including Korea

สเปค (Specifications)
รายการ รายละเอียด
การผลิต สายการผลิตที่เกาหลี (LTD 1000 Series)
วิกิพีเดีย

โครงสร้าง Set-Thru (คอเชื่อมตัว body)
The ESP Guitar Company
The Guitar Factory

ความยาวสเกล 24.75″ (~629 มม.)
The ESP Guitar Company
The Guitar Factory

วัสดุตัวกีตาร์ Body: Mahogany, Top: Quilted Maple
The ESP Guitar Company
The Guitar Factory

คอ 3-ชิ้น Mahogany, ทรง Thin U
The ESP Guitar Company
The Guitar Factory

ฟิงเกอร์บอร์ด Macassar Ebony (หรือ Pau Ferro ในบางรุ่น) – Radius 350 มม., 24 fret XL Stainless
The Guitar Factory
FindMyGuitar

ปิ๊กอัพ Neck: Seymour Duncan ’59, Bridge: Seymour Duncan JB; ระบบ Piezo: Fishman Powerbridge & tailpiece
The ESP Guitar Company
The Guitar Factory

อิเล็กทรอนิกส์ Active; มี Vol (mag), Tone (push/pull coil split), Piezo Vol, mini-toggle (เลือกแหล่งเสียง), toggle switch เพิ่ม, dual outputs
The ESP Guitar Company
The Guitar Factory

บริดจ์ Fishman Powerbridge TOM & Tailpiece
The ESP Guitar Company
The Guitar Factory

ลูกบิด LTD Locking tuners
The ESP Guitar Company
The Guitar Factory

สาย D’Addario XL110 (.010–.046)
The ESP Guitar Company

สีตัวเลือก See Thru Black, See Thru Blue
The ESP Guitar Company
Guitar Compare

ประเทศผลิต อินโดนีเซีย (ตาม Reverb) หรืออาจรวมถึงเกาหลี
