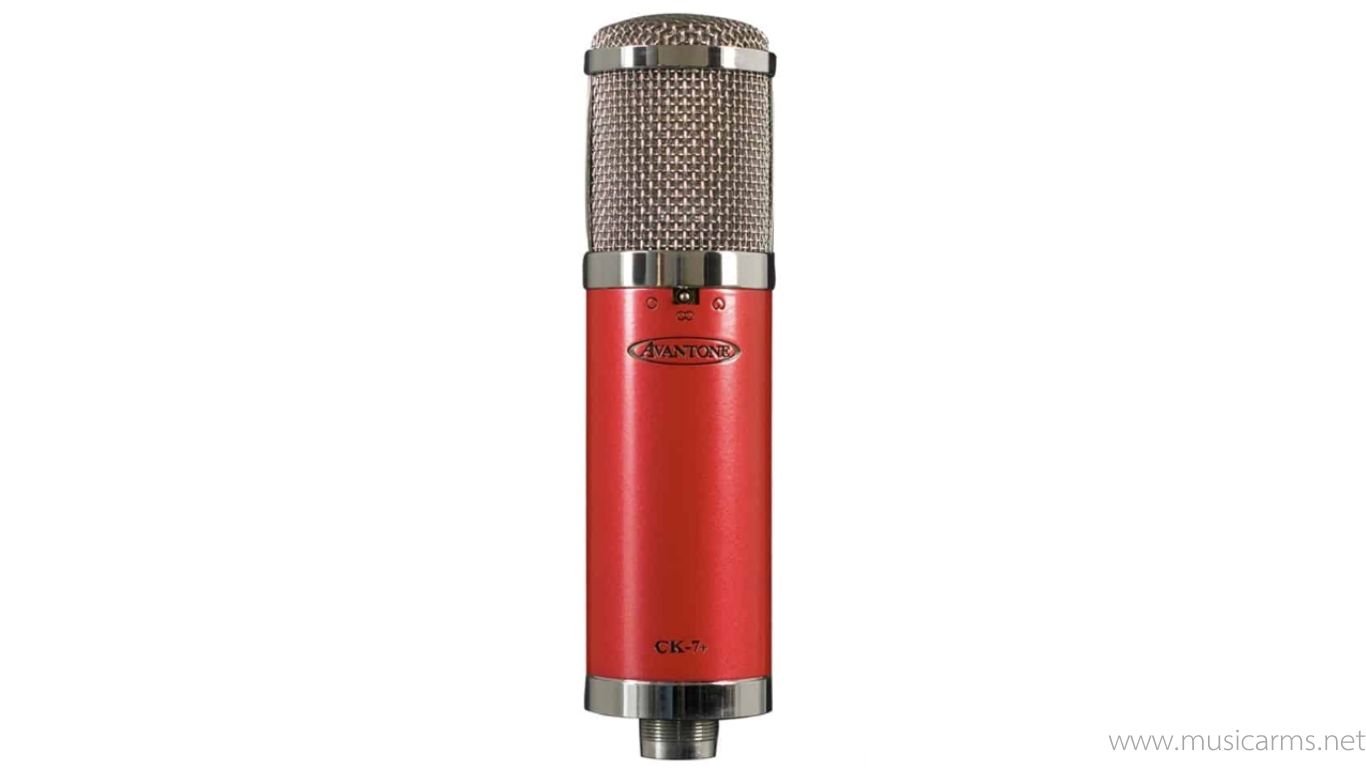

ไมโครโฟน Avantone CK-7+

🕰️ Background and Development

The CK-7+ is an evolution of Avantone’s earlier CK-7 model, introduced in 2006. While the CK-7 was well-received for its affordability and versatility, the CK-7+ incorporates several enhancements to improve performance and durability.

Key upgrades in the CK-7+ include:

34mm Gold-Sputtered Mylar Capsule: A larger diaphragm designed to enhance sensitivity and capture more detail in recordings.
scmsinc.com

Edge-Terminated Dual Backplate Design: A proprietary capsule design that contributes to a more natural and accurate sound.
Professional Audio Design, Inc

Solid Brass Construction: The microphone body is milled from a single piece of solid brass, providing a robust and durable build.
Professional Audio Design, Inc

Enhanced Circuitry: Upgraded Class-A FET circuitry with high-grade capacitors for improved audio fidelity.
Professional Audio Design, Inc

These improvements aim to offer a more refined and professional sound quality, making the CK-7+ suitable for a wide range of recording scenarios, from vocals to instruments.

🎙️ Features and Specifications

Polar Patterns: Cardioid, Omnidirectional, and Figure-8, selectable via a switch on the microphone.

Frequency Response: 20 Hz to 20 kHz, capturing a wide range of audio frequencies.

Maximum SPL: 139 dB, allowing for the recording of loud sound sources without distortion.

Impedance: 250 Ohms, compatible with most audio interfaces and preamps.

Output Connector: 3-pin XLR, standard for professional audio equipment.

Power Requirements: 48V phantom power, typical for condenser microphones.

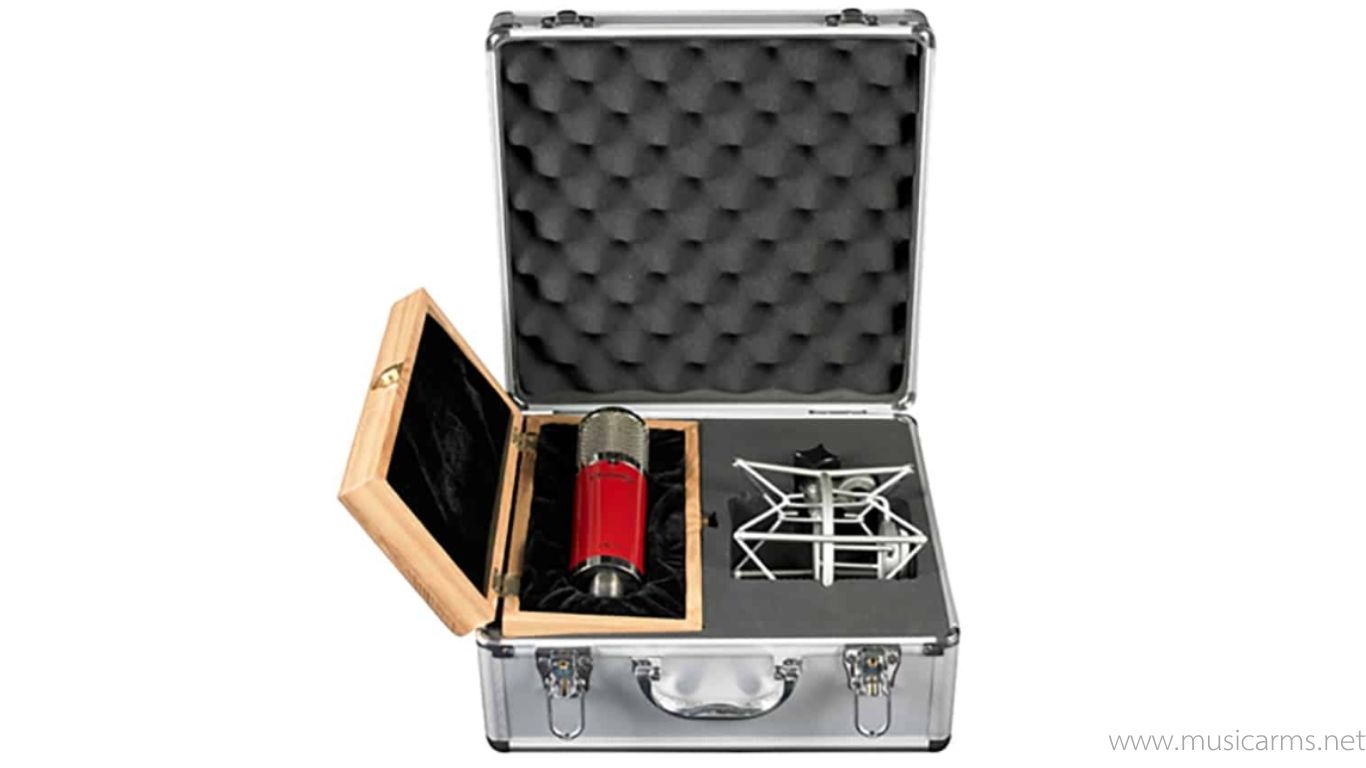

Included Accessories: Custom retro-style shock mount, wooden storage box, and padded aluminum travel case.

Microphone Type
Valve Condenser

Polar Patterns
Cardioid, Omnidirectional, Figure-8 (Selectable via switch on the mic)

Sensitivity
-37dB ±2dB @1kHz

Impedance
250 Ohms

Frequency Response
20Hz – 20kHz

Maximum SPL
139dB SPL

Connector
3-pin XLR

Power Requirement
48V Phantom Power

Included Accessories
Shock Mount, Wooden Storage Box, Aluminum Travel Case

ชนิดไมโครโฟน
คอนเดนเซอร์หลอด (Valve Condenser)

ขั้วรับเสียง
Cardioid, Omnidirectional, Figure-8 (เลือกได้ผ่านสวิตช์บนไมโครโฟน)

ความไว
-37dB ±2dB @1kHz

ความต้านทาน
250 โอห์ม (Impedance: 250Ω)

ความถี่ตอบสนอง
20Hz – 20kHz

ระดับความดันเสียงสูงสุด
139dB SPL

การเชื่อมต่อ
ขั้วต่อ XLR 3 ขา (3-pin XLR)

พลังงานที่ต้องการ
พลังงานแฟนท่อ 48V (48V Phantom Power)

อุปกรณ์เสริมที่มาพร้อม
Shock Mount, Wooden Storage Box, Aluminum Travel Case
