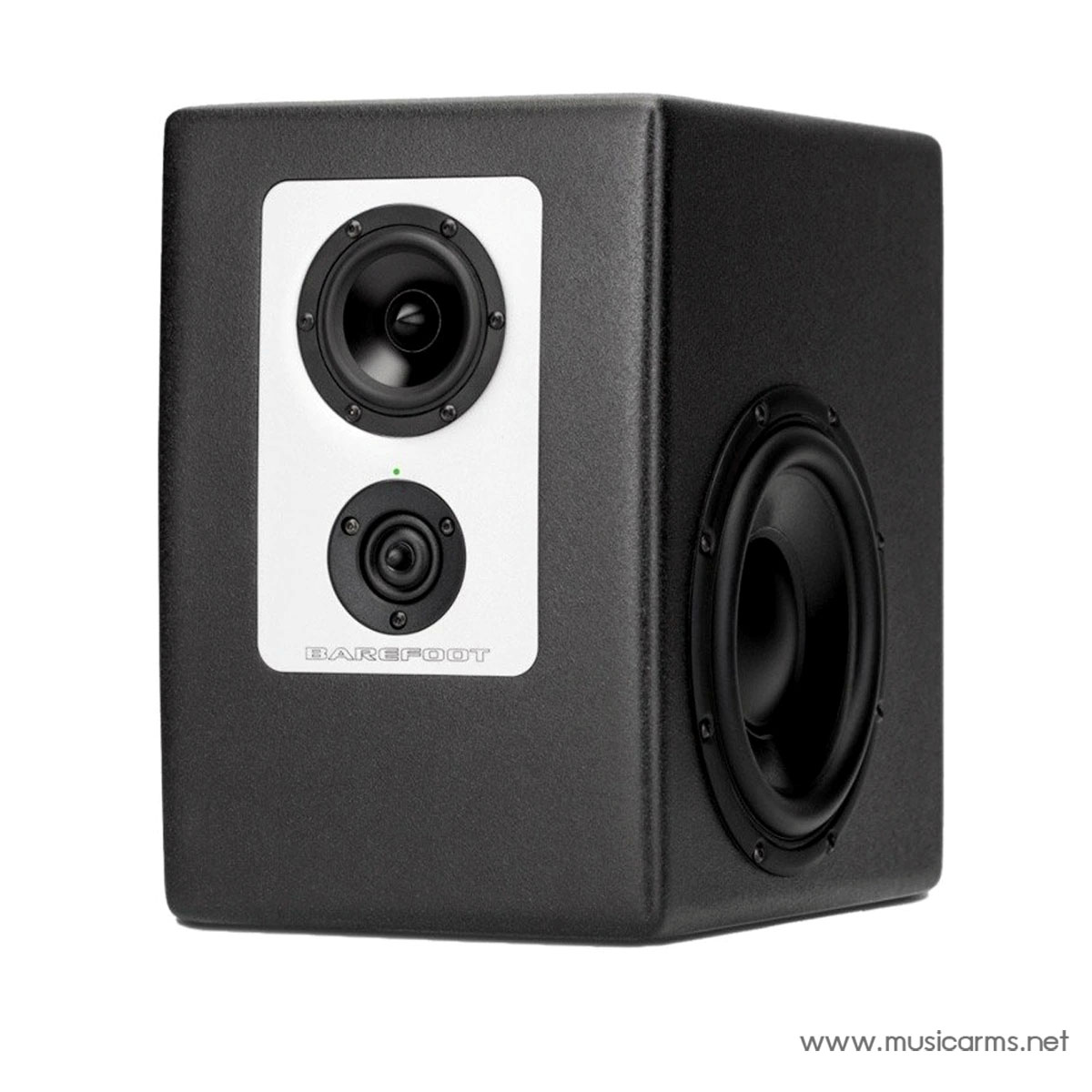

Barefoot Sound Footprint01 8-inch 3-way Active Studio Monitors – Pair

คลิ๊กที่ภาพเพื่อขยาย

ราคา : 179,000 บาท

รุ่น :  Barefoot Sound Footprint01 8-inch 3-way Active Studio Monitors – Pair ลำโพงมอนิเตอร์ Studio Monitor
🚚 การจัดส่ง

ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ

🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

💳 ช่องทางการชำระเงิน
จ่ายหน้าร้าน 13 สาขา โอนเงิน เก็บปลายทาง บัตรเครดิต ผ่อน 0% (บางรายการ) Shopee Lazada

🏢
ลูกค้าองค์กร / ขอใบเสนอราคา
สั่งซื้อ Barefoot Sound Footprint01 8-inch 3-way Active Studio Monitors – Pairผ่านline สั่งซื้อ Barefoot Sound Footprint01 8-inch 3-way Active Studio Monitors – Pairผ่าน messenger

Description

Barefoot Sound Footprint01: 8-inch 3-way Active Monitors with Flagship Technology

The Barefoot Footprint01™ is an active 3-way monitor speaker that incorporates the company’s signature designs: **Dual-Force™ opposing subwoofers**, **dual ring radiator tweeter**, and **Multi-Emphasis Monitor Emulation™ (MEME™)** technology, also found in the MicroMain and MasterStack lines.
It features **dual 8-inch paper cone subwoofers**, a **4-inch aluminum cone midrange driver**, and a **1-inch dual ring radiating tweeter**. These components share the same engineering lineage as Barefoot’s flagship monitors, ensuring exceptional fidelity and performance.

Key Features and Technology

  • Dual-Force™ Subwoofers: Features **dual opposing 8-inch subwoofers** to virtually eliminate cabinet vibration, delivering tight, clean, and extended bass response, mirroring the performance of the MicroMain series.
  • Powerful Bi-Amplification: Powered by dual high-quality Class D amplifiers, providing **500W to the subwoofers** and **150W to the mid/high drivers**, ensuring immense headroom and wide dynamic range.
  • Integrated MEME™ Technology: Includes **Multi-Emphasis Monitor Emulation™** technology, allowing engineers to audition their mixes through multiple classic monitor voices for superior mix translation.
  • Innovative Driver Geometry: The unique driver placement, with the midrange driver positioned above the tweeter, creates a precise, centered acoustic focus for accurate stereo imaging.

The Definitive Compact Reference Monitor

Designed for modern workflows, Footprint01 brings Barefoot’s ultra-high-performance sound to smaller studios, home-based production setups, and mobile environments. It ensures consistent Barefoot quality from recording to mixing and mastering. The Footprint01 is the ultimate choice for engineers demanding uncompromised accuracy in a versatile package.

Specification

Technical Specifications: Barefoot Sound Footprint01

Type 3-way active monitor with MEME™ Technology
Controls Input level stepped attenuator, MEME™ voice select
Performance & Frequency
Frequency Response (±3 dB) 36 Hz – 45 kHz
Frequency Response (±1 dB) 45 Hz – 40 kHz
Bass Response (-3 dB) @ 36 Hz, Q = 0.707, Slope = 18 dB/oct
Input Sensitivity 90 dB @ 1m with -15 dBV input
Drivers & Amplification (Per Speaker)
Tweeter (HF) 1″ Ring Radiator, Amp 150W (shared MF/HF)
Midrange (MF) 4″ Aluminum Cone, (Amp 150W shared MF/HF)
Woofers (LF) Dual 8″ Paper Composite Cones (Dual-Opposing), Amp 500W
Total Amplifier Power 650W (LF: 500W / MF/HF: 150W)
Cabinet & Crossover
Internal Volume 18 liters (Sealed Woofer/Midrange Enclosures)
Baffle Plate Solid Machined Aluminum
Crossover Frequencies 250 Hz / 3600 Hz (Passive between midrange & tweeter)
Connectivity & Power
Analog Input Balanced XLR, 20k Ohms Impedance
Mains Voltage (Universal) 85 – 265 VAC
Max Power Consumption 765W
Physical Specifications
Weight (Per Speaker) 15.9 kg (35 lbs)
Dimensions (Overall HxWxD) 356 x 260 x 345 mm (14.0 x 10.25 x 13.6 in)

ข้อมูลสินค้า

Barefoot Sound Footprint01: มอนิเตอร์ 3 ทางแอคทีฟ 8 นิ้ว ที่อัดแน่นด้วยเทคโนโลยีเรือธง

Barefoot Footprint01™ คือลำโพงมอนิเตอร์ 3 ทางแบบแอคทีฟที่รวมเอาการออกแบบอันเป็นเอกลักษณ์ของบริษัทไว้ด้วยกัน: **Dual-Force™ opposing subwoofers** (ซับวูฟเฟอร์คู่แบบหันหน้าเข้าหากัน), **dual ring radiator tweeter** (ทวีตเตอร์แบบวงแหวนคู่), และเทคโนโลยี **Multi-Emphasis Monitor Emulation™ (MEME™)** ซึ่งเป็นคุณสมบัติที่พบได้ในซีรีส์ MicroMain และ MasterStack ด้วย
Footprint01 มีองค์ประกอบไดรเวอร์ที่โดดเด่น ได้แก่ **ซับวูฟเฟอร์กรวยกระดาษขนาด 8 นิ้วคู่**, **ไดรเวอร์เสียงกลางกรวยอลูมิเนียมขนาด 4 นิ้ว**, และ **ทวีตเตอร์แบบวงแหวนคู่ขนาด 1 นิ้ว** ซึ่งทั้งหมดนี้ใช้สายงานวิศวกรรมเดียวกับมอนิเตอร์เรือธงของ Barefoot

คุณสมบัติเด่นและเทคโนโลยี

  • เทคโนโลยี Dual-Force™ Subwoofers: ใช้ซับวูฟเฟอร์ 8 นิ้วคู่แบบหันหน้าเข้าหากันเพื่อขจัดแรงสั่นสะเทือนของตู้ ให้เสียงเบสที่แม่นยำและสะอาด เหมือนกับรุ่น MicroMain
  • กำลังขับ Class D อันทรงพลัง: ขับเคลื่อนด้วยแอมพลิฟายเออร์ Class D แยกส่วน ให้กำลัง **500W สำหรับซับวูฟเฟอร์** และ **150W สำหรับไดรเวอร์เสียงกลาง/สูง** เพื่อช่วงไดนามิกที่กว้างและความชัดเจนสูงสุด
  • เทคโนโลยี MEME™ ในตัว: มีฟังก์ชัน **Multi-Emphasis Monitor Emulation™** ทำให้คุณสามารถจำลองเสียงมอนิเตอร์คลาสสิกหลายตัว เพื่อให้แน่ใจว่ามิกซ์ของคุณจะถ่ายทอดไปสู่ระบบเล่นอื่นได้อย่างแม่นยำ
  • การจัดเรียงไดรเวอร์ขั้นสูง: จัดตำแหน่งไดรเวอร์เสียงกลางไว้เหนือทวีตเตอร์ ซึ่งเป็นรูปทรงทางเรขาคณิตที่เป็นนวัตกรรมใหม่ที่สร้างจุดโฟกัสเสียงที่อยู่ตรงกลางเพื่อการจัดภาพเสียง (Imaging) ที่แม่นยำ

คุณภาพ Barefoot ที่เข้าถึงได้สำหรับทุกสตูดิโอ

Footprint01 ได้รับการออกแบบมาสำหรับเวิร์กโฟลว์สมัยใหม่ นำเสนอเสียงที่มีประสิทธิภาพสูงเป็นพิเศษของ Barefoot มาสู่สตูดิโอขนาดเล็ก, การตั้งค่าการผลิตที่บ้าน, และสภาพแวดล้อมแบบเคลื่อนที่ เพื่อให้มั่นใจในคุณภาพที่สม่ำเสมอตั้งแต่การบันทึกจนถึงการมิกซ์และการมาสเตอร์ริ่ง Footprint01 จึงเป็นตัวเลือกที่ดีที่สุดสำหรับวิศวกรที่ต้องการความแม่นยำสูงสุดในแพ็คเกจที่ใช้งานได้หลากหลาย

รายละเอียดคุณสมบัติ

ข้อมูลจำเพาะทางเทคนิค: Barefoot Sound Footprint01

ประเภท (Type) มอนิเตอร์แอคทีฟ 3 ทาง พร้อม MEME™ Technology
ส่วนควบคุม (Controls) ปุ่มลดทอนระดับอินพุตแบบสเต็ป, ปุ่มเลือกเสียง MEME™
ประสิทธิภาพและการตอบสนองความถี่
ช่วงความถี่ (±3 dB) 36 Hz – 45 kHz
ช่วงความถี่ (±1 dB) 45 Hz – 40 kHz
การตอบสนองเสียงเบส (-3 dB) @ 36 Hz, Q = 0.707, ความชัน = 18 dB/oct
ความไวอินพุต (Sensitivity) 90 dB @ 1m ด้วยอินพุต -15 dBV
ไดรเวอร์และแอมพลิฟายเออร์ (ต่อลำโพง)
ทวีตเตอร์ (HF) 1″ Ring Radiator, แอมป์ 150W
เสียงกลาง (MF) 4″ Aluminum Cone, (แอมป์ 150W ร่วมกับทวีตเตอร์)
วูฟเฟอร์ (LF) 8″ Paper Cone คู่แบบหันหน้าเข้าหากัน (Dual-Opposing), แอมป์ 500W
กำลังแอมป์รวม (Total Power) 650W (LF: 500W / HF/MF: 150W)
ตู้และครอสโอเวอร์
ปริมาตรภายในตู้ 18 ลิตร (ตู้แบบปิดสำหรับวูฟเฟอร์/เสียงกลาง)
แผงหน้า (Baffle Plate) อลูมิเนียมกลึง (Machined Aluminum)
ความถี่ครอสโอเวอร์ 250 Hz / 3600 Hz (ครอสโอเวอร์เสียงกลาง-ทวีตเตอร์เป็นแบบ Passive)
การเชื่อมต่อและพลังงาน
อินพุต Balanced XLR
อิมพีแดนซ์อินพุต 20k โอห์ม
อินพุต AC (Universal) 85 – 265 VAC
การใช้พลังงาน (สูงสุด) 765W
ขนาดและน้ำหนัก
น้ำหนัก (ต่อลำโพง) 15.9 กก. (35 lbs)
ขนาดโดยรวม (สูง x กว้าง x ลึก) 356 x 260 x 345 มม. (14.0 x 10.25 x 13.6 in)
