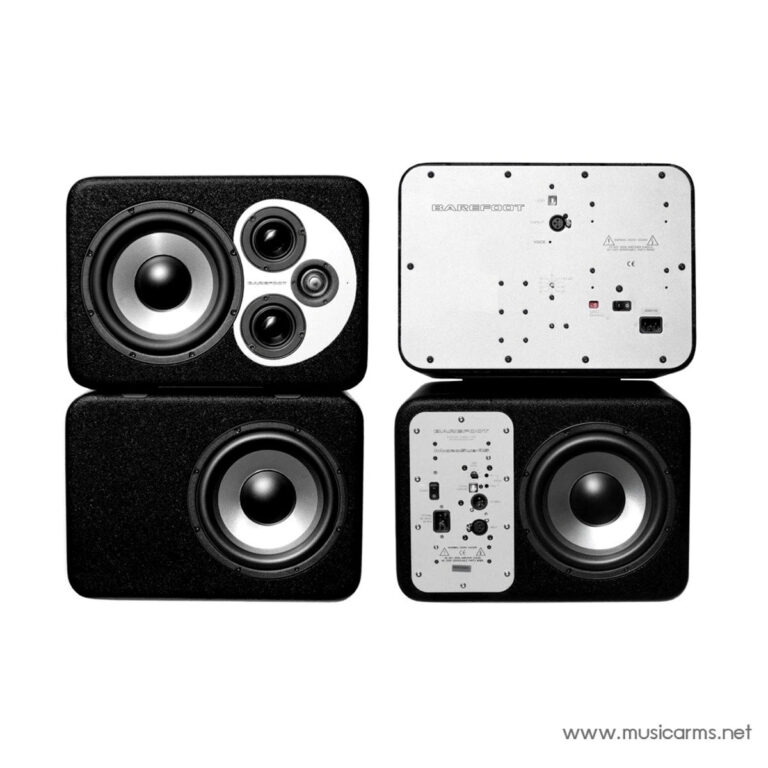

Barefoot Sound MicroStack45 – MicroMain45 + Subwoofers – Pair
ราคา : 459,000 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Barefoot Sound MicroStack45: Stereo System Combining MiniMain12-Level Detail with Deep 25 Hz Bass
MicroStack45 is a full-range active stereo monitoring system from Barefoot Sound, combining
two 3-way MicroMain45 reference monitors with
two MicroSub45 Dual-Force™ subwoofers.
The system includes six 8-inch woofers, four 2.5-inch midrange drivers, and two 1-inch tweeters, all powered seamlessly
with a total output of 2,220W, delivering pristine sound from 25 Hz up to 45 kHz.
Key Features
Power and Wide Frequency Range: The system delivers a total output of 2,220W, extending clean low frequencies down to 25 Hz while reproducing highs up to 45 kHz, ensuring full-spectrum detail.
Dual-Force™ Technology in MicroSub45: Utilizes opposing 8-inch woofers to cancel cabinet vibrations, reduce distortion, and provide the clearest low-frequency response possible.
MiniMain12-Level Accuracy in a Compact Size: MicroMain45 delivers the precision and detail of the flagship MiniMain12 in a smaller, more accessible package.
Enhanced Placement Features: MicroMain45 offers a Non-slip Tilt Feature to align speakers perfectly with the listening sweet spot.
Elevate Your Monitoring with MicroStack45
Barefoot Sound MicroStack45 is designed for audio engineers seeking the utmost accuracy and deep bass without cabinet vibration.
By combining Dual-Force™ technology with advanced DSP, the MicroStack45 operates as a single-point source system aligned with the tweeters,
a critical element for accurate mixing decisions. For MicroMain45 owners, adding MicroSub45 allows an instant upgrade to a full MicroStack45 system.
Specification
Barefoot Sound MicroStack45 Technical Specifications
| Type | 3-way Active Reference Monitors and Stereo Subwoofers with MEME Technology | |
| Input Impedance | 50k Ω | |
| Controls | Input level stepped attenuator, Equalization contour | |
| Frequency Response | ||
| MicroMain45 Range | 18 Hz – 50 kHz (±3 dB), 26 Hz – 40 kHz (±1 dB) | |
| System Bass Response | -3 dB @ 25 Hz, Q = 0.707, Slope = 12 dB/octave | |
| Crossover & Cabinet Design | ||
| Crossover Frequencies | 80 Hz / 600 Hz / 3600 Hz | |
| Internal Volume | 32 liters total (per stack) | |
| Enclosure Type | Sealed woofer and midrange enclosures | |
| Baffle Plate | Machined aluminum | |
| Drivers & Amplifiers (Per Stack) | ||
| Tweeter (1″ Ring Radiator) | 180W Hypex Amplifier | |
| Midranges (2 x 2.5″ Aluminum) | 180W Hypex Amplifier (±2 mm excursion) | |
| Woofers (2 x 8″ Aluminum) | 500W Amplifier (±13 mm excursion) | |
| Subwoofers (4 x 8″ Aluminum) | 1000W Amplifier (±25 mm excursion) | |
| Power & Weight | ||
| AC Input | 115 VAC or 230 VAC | |
| Power Consumption (Max) | 1165 W | |
| MicroMain45 Weight (Speaker) | 17 kg (37.5 lbs) | |
| MicroSub45 Weight (Speaker) | 20.5 kg (45 lbs) | |
| Dimensions (WxDxH, Per Unit) | ||
| MicroMain45 Cabinet/Overall | 394 x 273 x 279 mm (15.5 x 10.88 x 11.0 in) | |
| MicroSub45 Cabinet/Overall | 394 x 273 x 279 mm (15.5 x 10.88 x 11.0 in) | |
| Stacked Dimensions | 394 x 273 x 558 mm (15.5 x 10.88 x 22.0 in) | |
ข้อมูลสินค้า
Barefoot Sound MicroStack45: ระบบสเตอริโอที่ผสานความละเอียดระดับ MiniMain12 เข้ากับความถี่ต่ำลึกถึง 25 Hz
MicroStack45 คือระบบมอนิเตอร์สเตอริโอแบบแอคทีฟครบชุดจาก Barefoot Sound ที่รวมเอา
มอนิเตอร์อ้างอิง MicroMain45 แบบ 3 ทางสองตัว และ
ซับวูฟเฟอร์ MicroSub45 Dual-Force™ สองตัว ระบบนี้ประกอบด้วยวูฟเฟอร์ขนาด 8 นิ้ว 6 ตัว, ไดรเวอร์เสียงกลาง 2.5 นิ้ว 4 ตัว และทวีตเตอร์ 1 นิ้ว 2 ตัว ทั้งหมดขับเคลื่อนด้วยกำลังขับรวม 2,220W ให้เสียงครบถ้วนตั้งแต่ 25 Hz ถึง 45 kHz
คุณสมบัติเด่น
กำลังขับรวมและช่วงความถี่กว้าง: ระบบมอบกำลังขับรวม 2,220W พร้อมขยายย่านความถี่ต่ำสะอาดลึกถึง 25 Hz และตอบสนองย่านความถี่สูงถึง 45 kHz เพื่อรายละเอียดเสียงครบถ้วน
เทคโนโลยี Dual-Force™ ใน MicroSub45: ใช้ วูฟเฟอร์ 8 นิ้วแบบหันหน้าเข้าหากัน เพื่อลดแรงสั่นสะเทือนของตู้ลำโพง ลดความเพี้ยน และให้ย่านความถี่ต่ำชัดเจนที่สุด
ความแม่นยำระดับ MiniMain12 ในขนาดกะทัดรัด: MicroMain45 ถ่ายทอดความละเอียดและความแม่นยำของรุ่นเรือธง MiniMain12 ในแพ็กเกจขนาดเล็กและเข้าถึงง่ายกว่า
คุณสมบัติเสริมสำหรับการจัดวาง: MicroMain45 มีคุณสมบัติ ปรับเอียงแบบไม่ลื่น (Non-slip Tilt Feature) เพื่อปรับแนวลำโพงให้ตรงกับจุดรับฟังเสียง (Sweet Spot)
ยกระดับการมอนิเตอร์ของคุณด้วย MicroStack45
Barefoot Sound MicroStack45 ถูกออกแบบมาสำหรับวิศวกรเสียงที่ต้องการความแม่นยำสูงสุดและเบสลึกโดยไม่มีการสั่นสะเทือนรบกวน ด้วยการรวมเทคโนโลยี Dual-Force™ และ DSP ที่ล้ำสมัย MicroStack45 ทำงานเป็นหน่วยเสียงจุดเดียว (Single-Point Source) ที่สอดคล้องกับทวีตเตอร์ ซึ่งสำคัญต่อการตัดสินใจผสมเสียงอย่างแม่นยำ สำหรับผู้ที่มี MicroMain45 อยู่แล้ว สามารถเพิ่ม MicroSub45 เพื่ออัปเกรดเป็นระบบเต็ม MicroStack45 ได้ทันที
รายละเอียดคุณสมบัติ
สเปคเทคนิค Barefoot Sound MicroStack45
| ประเภท | ลำโพง Active 3 ทาง และซับวูฟเฟอร์สเตอริโอ พร้อม MEME Technology | |
| ค่าอิมพีแดนซ์อินพุต | 50 kΩ | |
| การควบคุม | ปรับระดับอินพุตแบบ stepped attenuator และการปรับ EQ contour | |
| การตอบสนองความถี่ | ||
| ช่วง MicroMain45 | 18 Hz – 50 kHz (±3 dB), 26 Hz – 40 kHz (±1 dB) | |
| การตอบสนองเบสระบบ | -3 dB @ 25 Hz, Q = 0.707, Slope = 12 dB/octave | |
| Crossover & การออกแบบตู้ | ||
| ความถี่ crossover | 80 Hz / 600 Hz / 3600 Hz | |
| ปริมาตรภายใน | 32 ลิตร ต่อสแต็ก | |
| ประเภทตู้ | ตู้ปิดสำหรับวูฟเฟอร์และมิดเรนจ์ | |
| แผ่นบาเฟิล | อะลูมิเนียมกลึง | |
| ไดรเวอร์ & แอมป์ (ต่อสแต็ก) | ||
| Tweeter (1″ Ring Radiator) | แอมป์ Hypex 180W | |
| Midranges (2 x 2.5″ อะลูมิเนียม) | แอมป์ Hypex 180W (±2 mm excursion) | |
| Woofers (2 x 8″ อะลูมิเนียม) | แอมป์ 500W (±13 mm excursion) | |
| Subwoofers (4 x 8″ อะลูมิเนียม) | แอมป์ 1000W (±25 mm excursion) | |
| กำลังไฟฟ้า & น้ำหนัก | ||
| AC Input | 115 VAC หรือ 230 VAC | |
| การใช้พลังงานสูงสุด | 1165 W | |
| น้ำหนัก MicroMain45 (ลำโพง) | 17 kg (37.5 lbs) | |
| น้ำหนัก MicroSub45 (ลำโพง) | 20.5 kg (45 lbs) | |
| ขนาด (กว้าง x ลึก x สูง ต่อยูนิต) | ||
| MicroMain45 Cabinet/Overall | 394 x 273 x 279 mm (15.5 x 10.88 x 11.0 in) | |
| MicroSub45 Cabinet/Overall | 394 x 273 x 279 mm (15.5 x 10.88 x 11.0 in) | |
| ขนาดสแต็ก | 394 x 273 x 558 mm (15.5 x 10.88 x 22.0 in) | |
