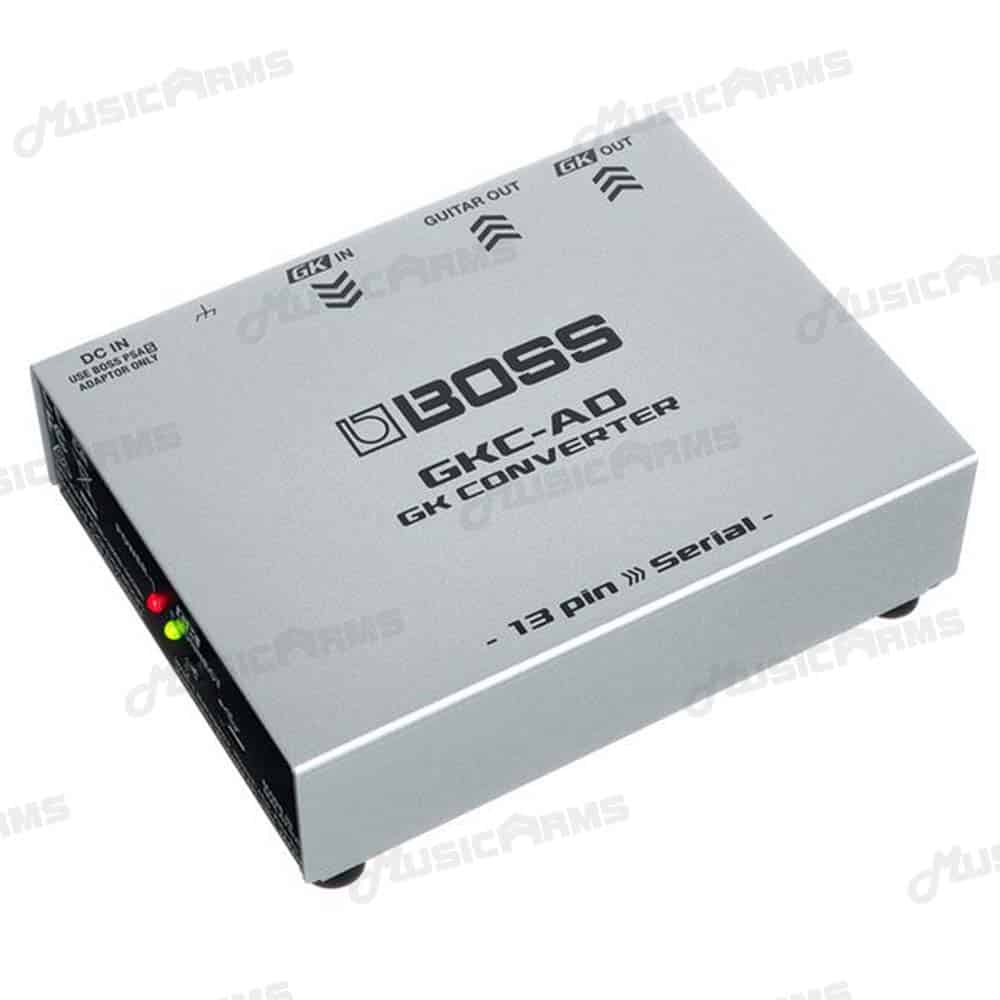

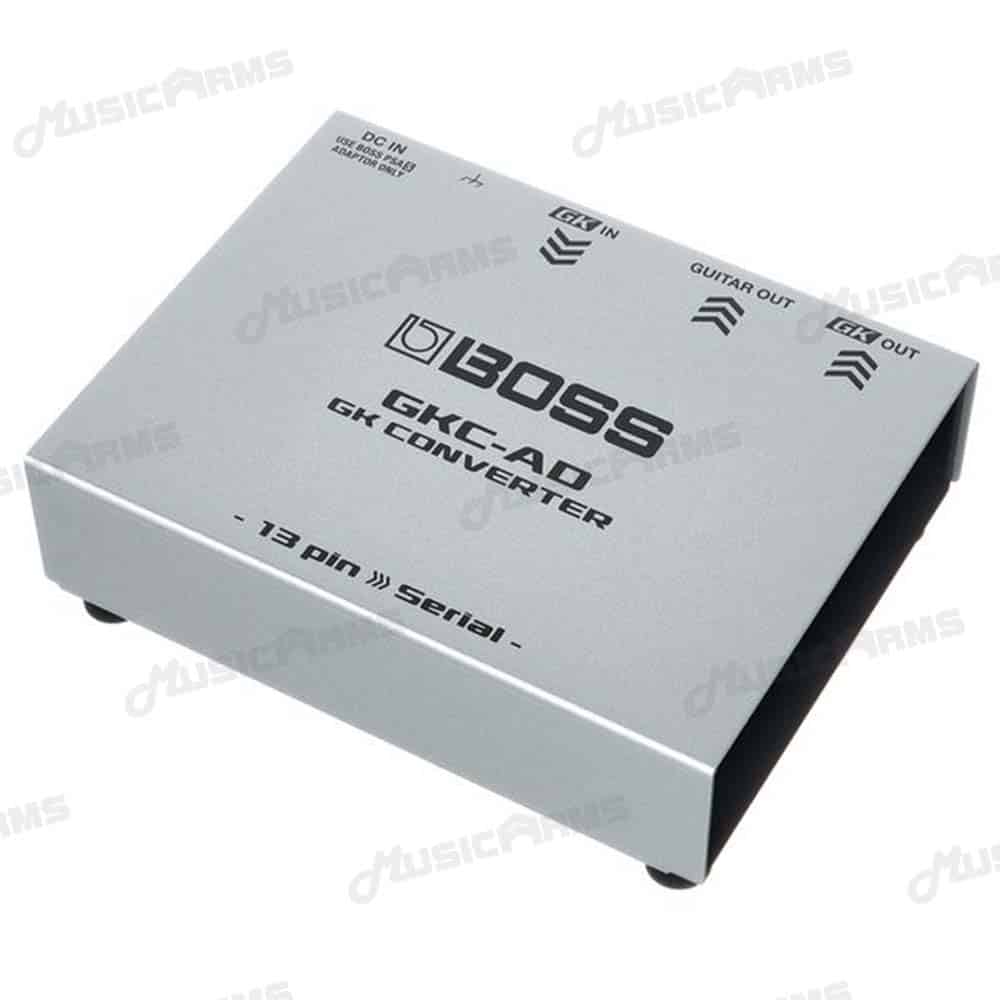

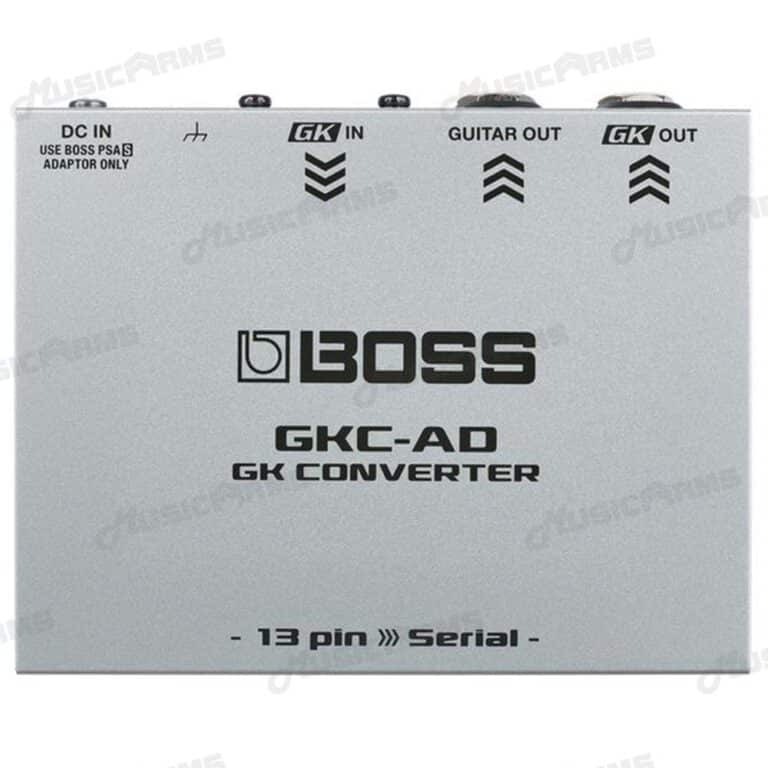

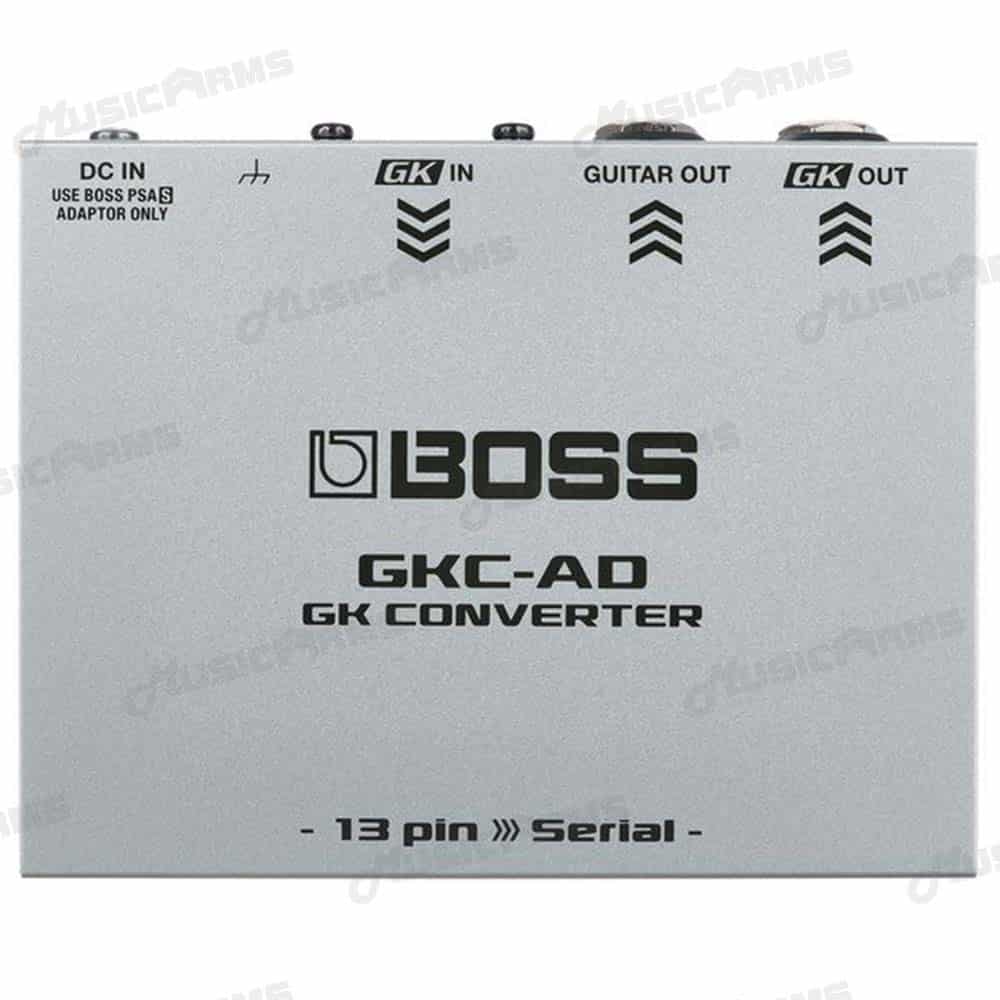

Boss GKC-AD Electric Guitar Converter

The latest Boss guitar synthesizer products feature the Serial GK digital interface, a newly-developed connection method that delivers evolved performance over the analogue 13-pin GK interface used in earlier Boss and Roland guitar synth and modelling products. The GKC-AD GK Converter allows you to drive the Serial GK input on the GM-800 Guitar Synthesizer from a Roland GK-3 or GK-3B Divided Pickup, or an instrument equipped with a 13-pin GK output.

AD Converter

• Converts analogue 13-pin GK pickups to the newly developed Serial GK digital interface
• Allows the Serial GK input of BOSS guitar synthesizer products to be controlled with the Serial GK interface from a Roland GK-3 or GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output

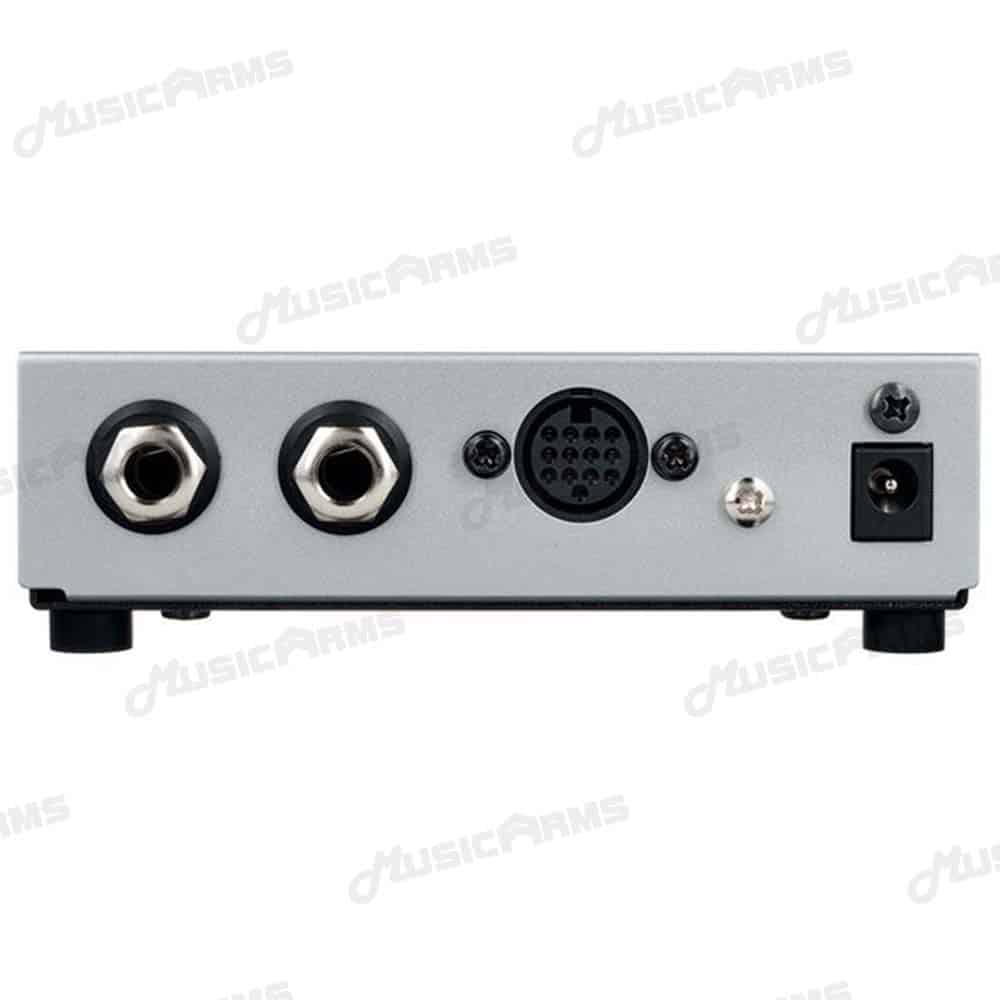

• Instrument output for routing normal guitar/bass pickup sounds embedded in the 13-pin connector
• Connection for power supply: Barrel plug, 5.5 x 2.1 mm, centre negative
• Current consumption: 240 mA

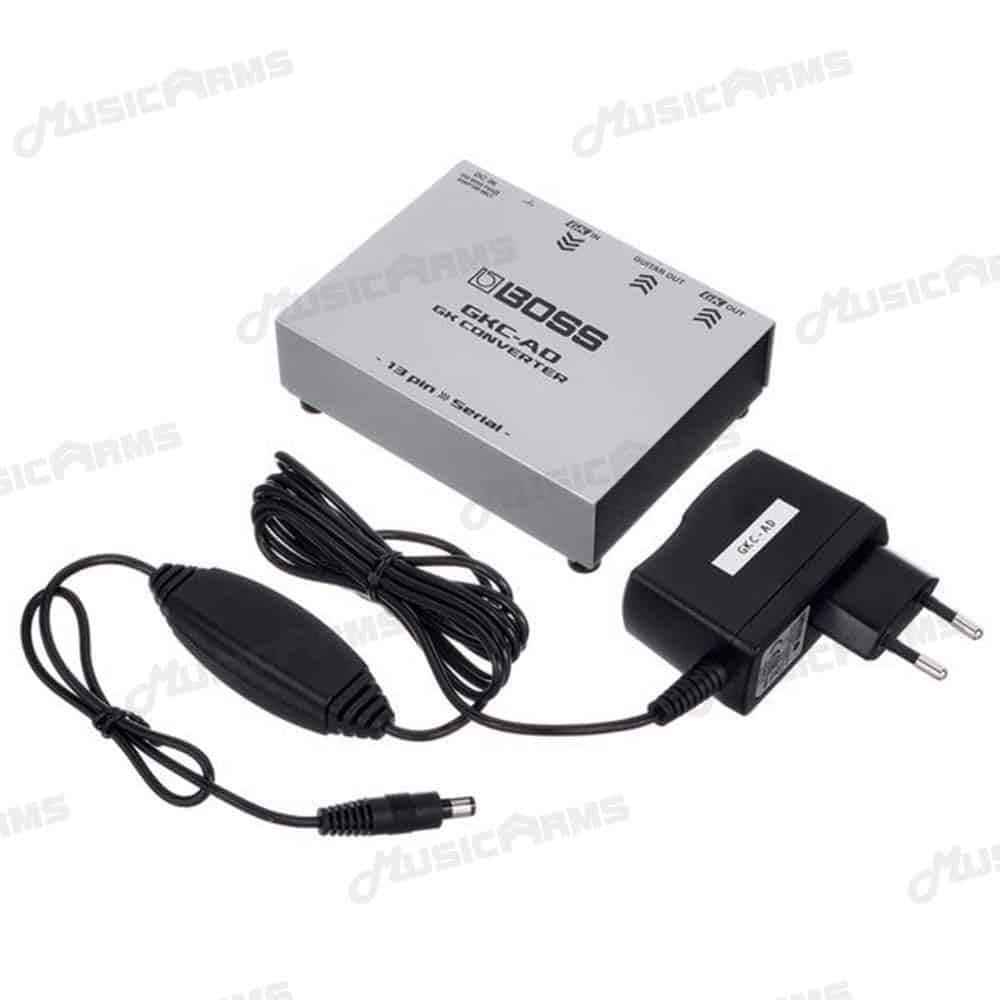

• Power via a DC power supply unit (included in the scope of delivery)
• Dimensions: (W x D x H): 115 x 92 x 36 mm
• Weight: 340 g
