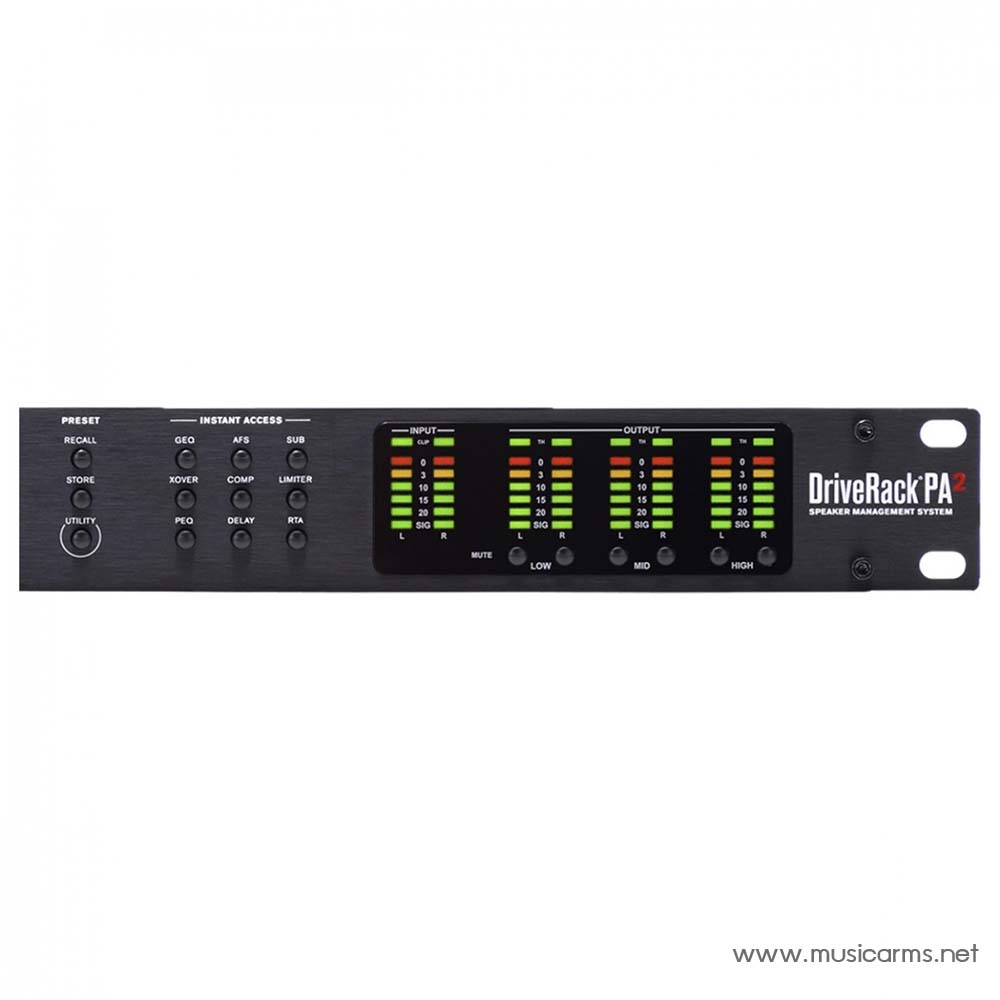

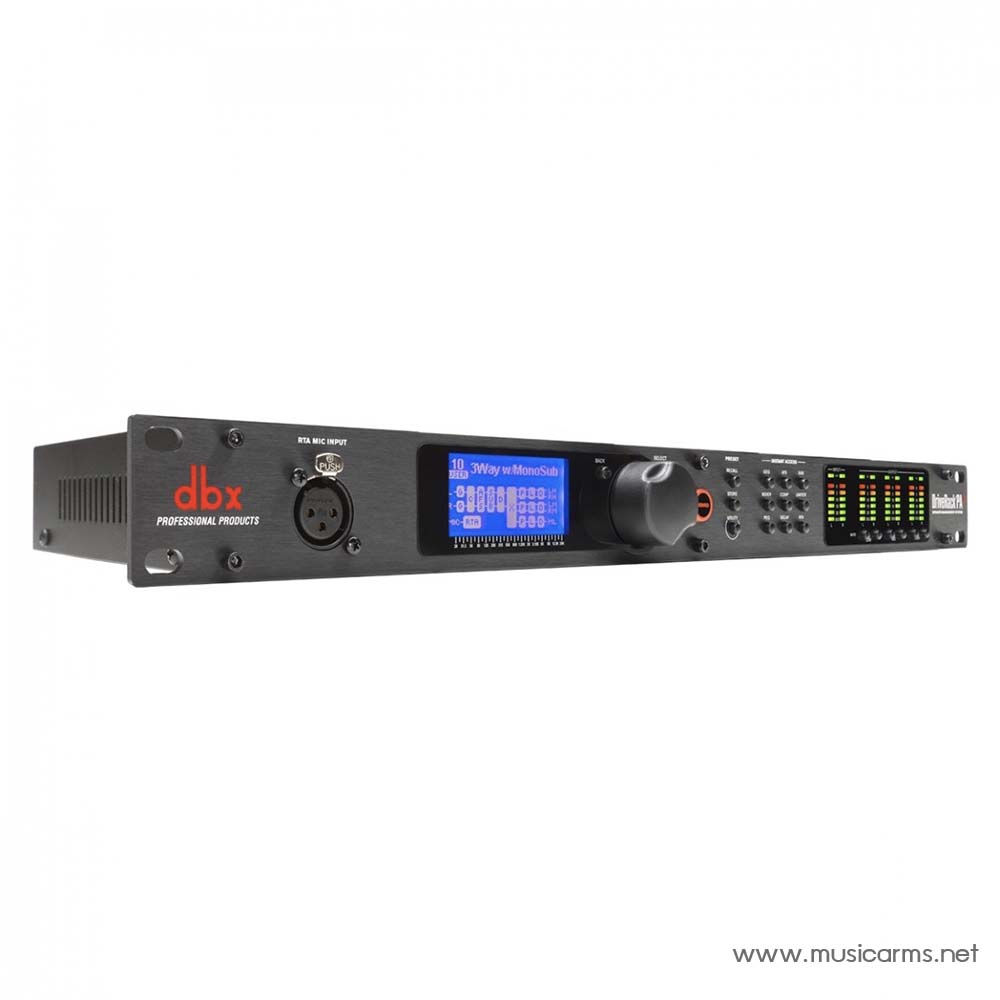

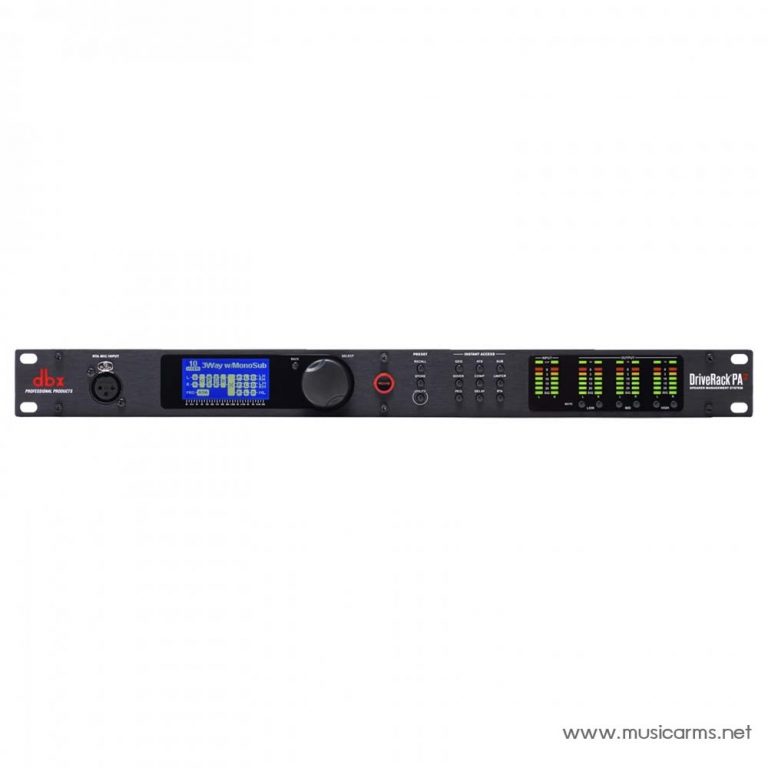

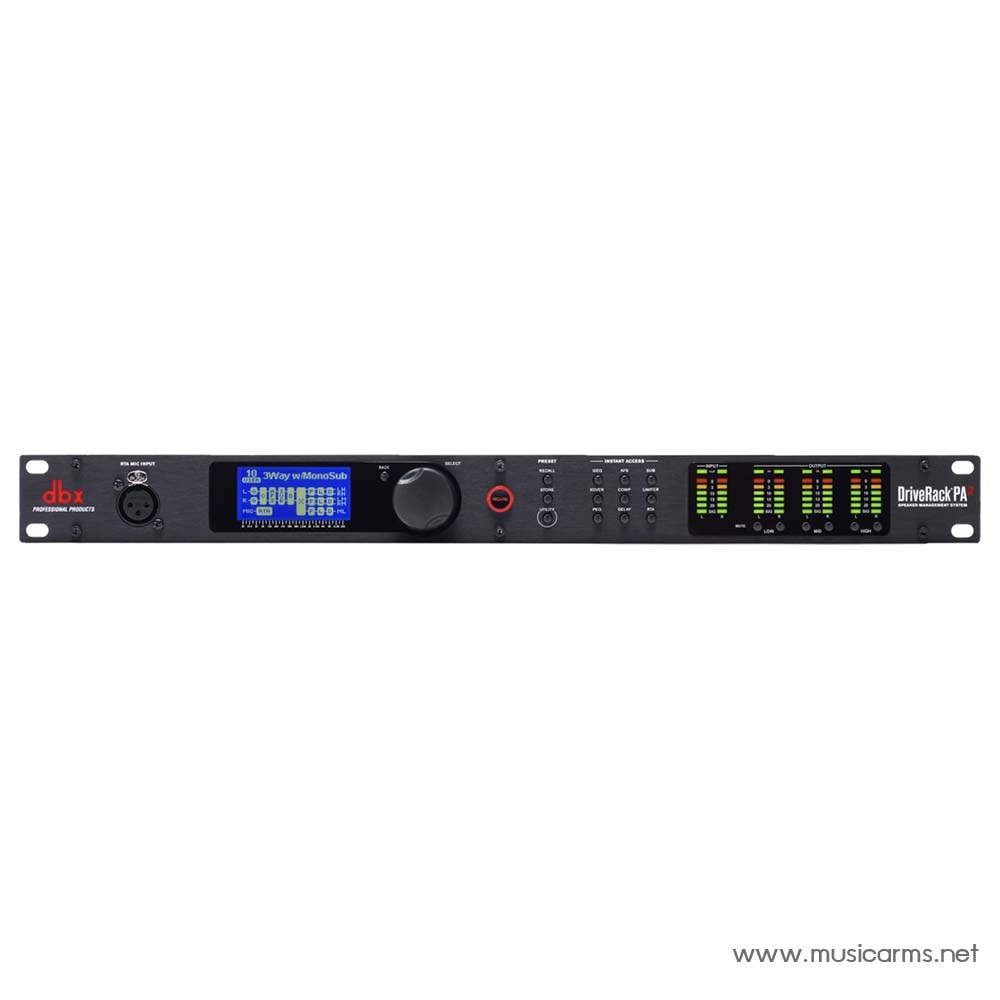

DBX DriveRack PA2

Tame your sound

The dbx DriveRack PA 2 Loud Speaker Management System is a clever bit of kit. Everything you need to keep your live sound in check. From intelligent equalization, to feedback suppression and limiting to keep your speakers protected. Installation is easy. With dbx’s setup Wizard you’ll be up and running in no time.

Complete control from the palm of your hand. The DriveRack PA 2 features built-in mobile connectivity. Use the DriveRack PA 2 app to adjust and manage your speakers on the fly. Freeing you up to direct your audio from any location.

AutoEQ

Take the pressure off. With dbx’s AutoEQ you can get the best sound possible. Without bending over backwards. Fast, accurate, and effective. AutoEQ’s algorithm sets speaker levels and room EQ automatically. Meaning you won’t have to bore your audience with sound tests.

Show feedback the door

Get rid of feedback. Without affecting your tone. dbx’s AFS feedback elimination system is fast and precise. Anticipating feedback before it even has a chance to strike. And adjusting speaker levels automatically. Ensuring your sound is clear and feedback-free.

Digital Speaker Management System

• 31-Band graphic equaliser
• 8-Band parametric input EQ with auto EQ function
• Limiter
• Crossover
• Compressor
• Subharmonic synthesiser
• Output delay up to 3.4 m/10 ms
• Input delay up to 34 m/100 ms
• Feedback suppressor with 12 notch filters 1/80 octave
• 8-Band parametric output EQ also for speaker tuning
• 1/3 Octave band real time analyser
• Pink noise generator
• Remote control via Mac/Windows/Android/iOS

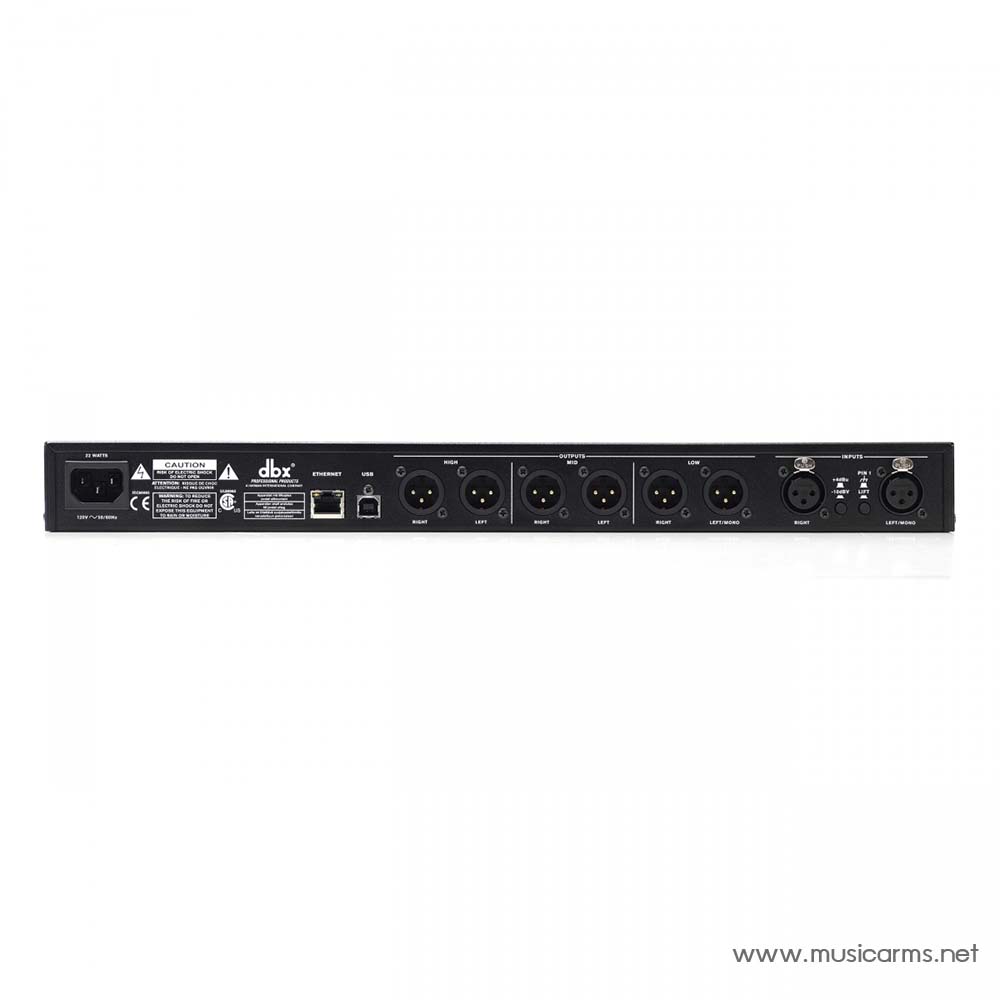

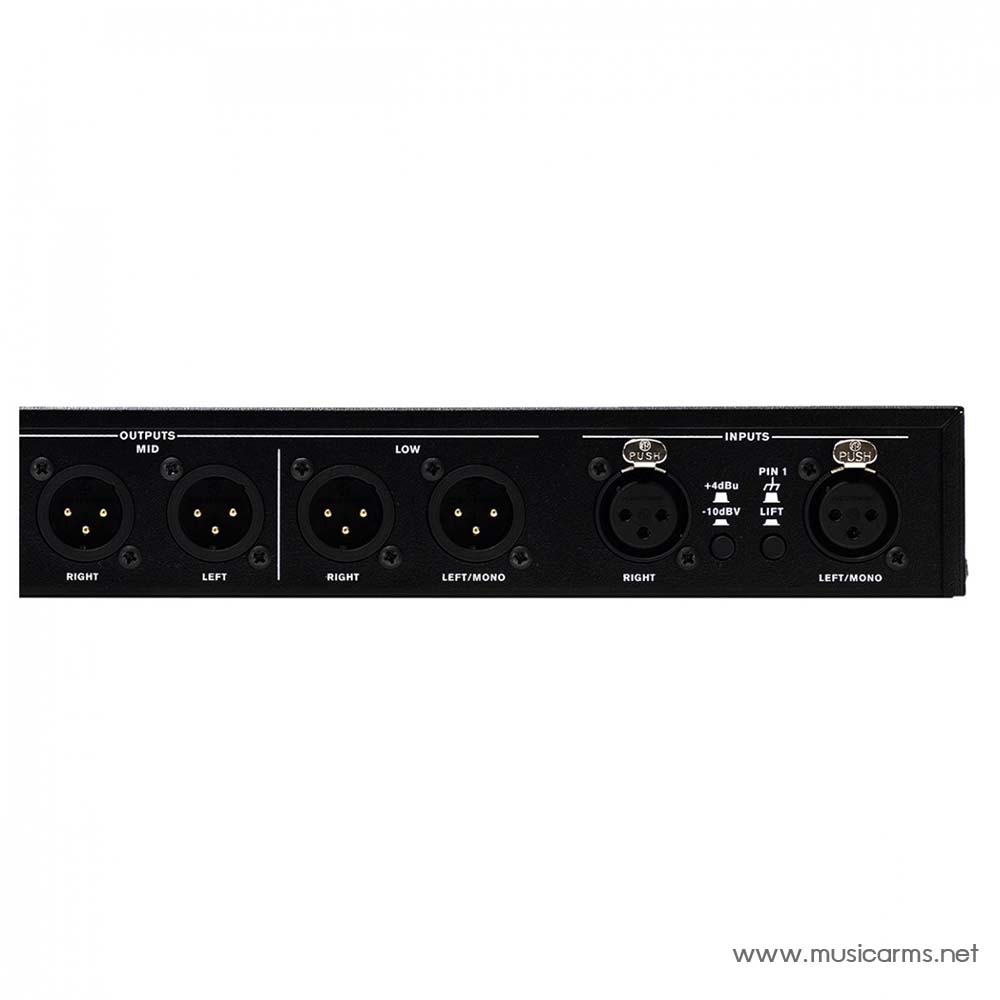

• 2 XLR inputs
• XLR input with 15 V phantom power for optional measuring microphone
• 6 XLR outputs male
• Ethernet connection
• USB connection
• Format: 19″ / 1 U
