Electro-Harmonix Guitar Micro Synth เอฟเฟคกีตาร์

The EHX Micro Synth can create some of the most popular synthesizer textures with its four voices: GUITAR, OCTAVE, SUB OCTAVE AND SQUARE WAVE, which are completely independent and fully mixable. The MICRO SYNTH can modify these signals with envelope control for a variety of “bowed” or “blown” sounds. In addition, a sophisticated swept filter control allows highly variable frequency adjustments to be applied to the overall output signal. When combined, these controls offer the user a creative capability that is virtually limitless.

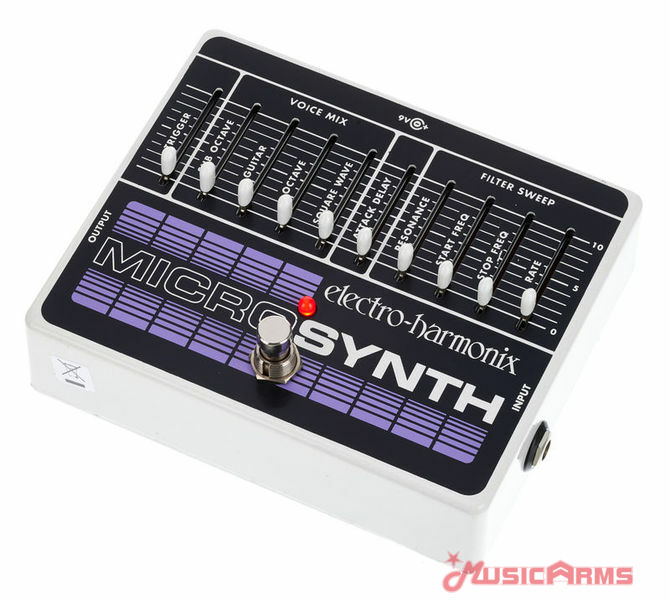

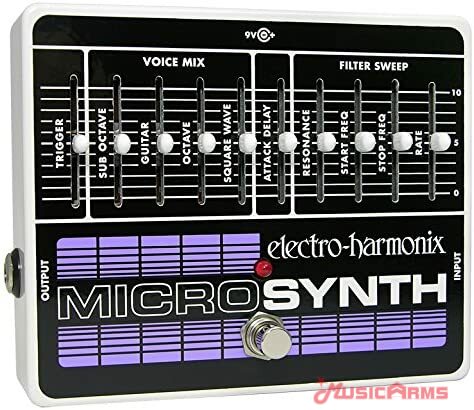

Compact ten-slider layout lets the sonically adventurous guitarist dial in a virtually limitless array of analog synthesizer sounds: from percussive stabs to backwards-sounding bowed effects.

• True bypass
• All analog design
• 3-pole analog resonant filter
• 4 voice mixer section mixes: sub octave, original, octave up and square wave
• Square wave voice can be used as a distortion tone
• Start, stop filter frequency sliders with adjustable rate for full control over the filter’s sweep direction and speed
• Adjustable filter resonance control
• Adjustable attack time control for fading-in notes
• Tough and compact die-cast chassis
• Power adapter included

SPECIFICATIONS

• Circuit Analog
• Bypass True Bypass
• Audio Mono
• Power Supply 9.6VDC-200mA power adapter included
• Dimensions (in) 5.75 x 4.75 x 2.5
• Current Draw 55mA
• Year Released 2008

Manual
