iCON iKeyboard 4Nano

iKeyboard 4Nano

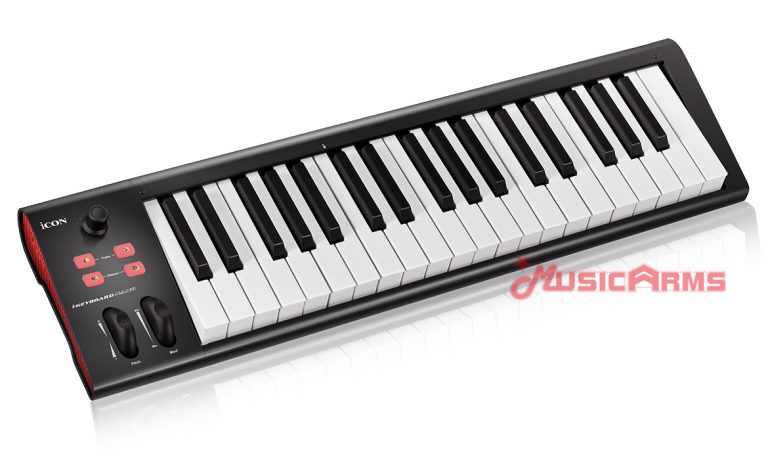

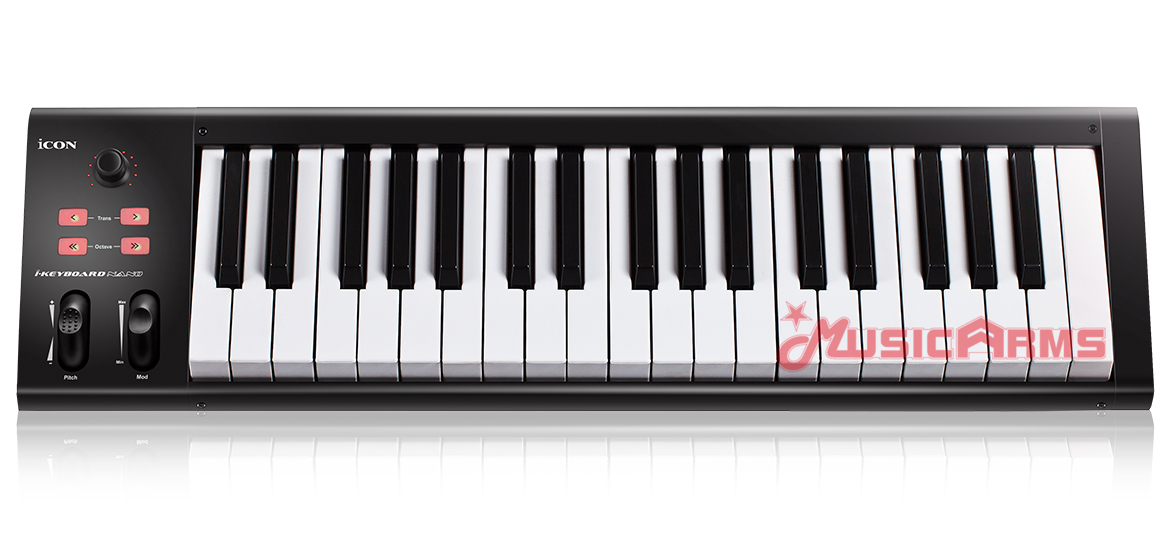

The Icon iKeyboard Nano Series combines 37-key semi-weighted keyboards with a single channel DAW controller in a rugged metal enclosure. The controller also provides pitch bend and modulation wheels, and Octave and Transpose up/down buttons.

The Icon iKeyboard Nano includes factory presets for most popular DAW’s including Cubase, Nuendo, Logic Pro, Reason, Pro Tools, Ableton Live, Samplitude and Studio One. Every control on the iKeyboard Nano can be custom-mapped to any MIDI application using the included iMap software. The iKeyboard Nano uses Mackie Control and HUI protocols for presets and automatic mapping, and can be configured for general MIDI values as well.

• Powerful controller is equipped and easy setup with Mackie Control and HUI protocol
• Dual function encoder knob (Enter & rotate)
• 11-segment LED surrounding the encoder to indicate the rotating position Velocity-sensitive piano style keyboard
• Modulation and Pitch jog-wheel
• Octave up/down buttons
• Transpose up/down buttons
• Multi velocity curves available for selection
• Midi output jack
• Expression & sustain pedal TRS connectors
• Sustain pedal connector polarity reversible
• Class-compliant with Windows 7, 8 & 10 (32-bit & 64-bit), Mac OS X (IntelMac) and iOS
• USB 2.0 high speed connectivity
• Mackie control build-in for Cubase, Nuendo, Samplitude, Reason, Logic Pro and Ableton Live
• Mackie HUI protocol build-in for Pro Tools
• iMapTM software included for easy mapping of MIDI functions
• Firmware upgrade available simply via USB connection and iMap software
• Robust metal casing with Kensington lock port

Specification

• Connector USB:USB connector (standard type)
• Connector Sustain & Expression:2×1/4″ TS connectors
• Connector MIDI I/O:5-pin Din connector
• Power supply 7V/1A DC
• Current consumption 100mA or less
• Weight 3.03kg 6.68(lb)
• Dimensions 641(L)x189(W)x72(H)mm
• Dimensions 25.4″(L)x7.44″(W)x2.83″(H)
