LD Systems DAVE 15 G4X ชุดลำโพง Powered PA System

LD Systems Dave 15 G4X, your search is over. This powered compact PA – which is made up of a 15″ subwoofer and two 8″ satellites (total power: 2060 W peak) – doesn’t just deliver a new, modern design with numerous handling optimisations. It also offers an integrated 6-channel mixer with all the important input options you could ever need. This allows you to create a wide variety of setups and combinations of instruments, vocals and audio sources – both wired and wireless – thanks to integrated Bluetooth for easy streaming via a smartphone or tablet.

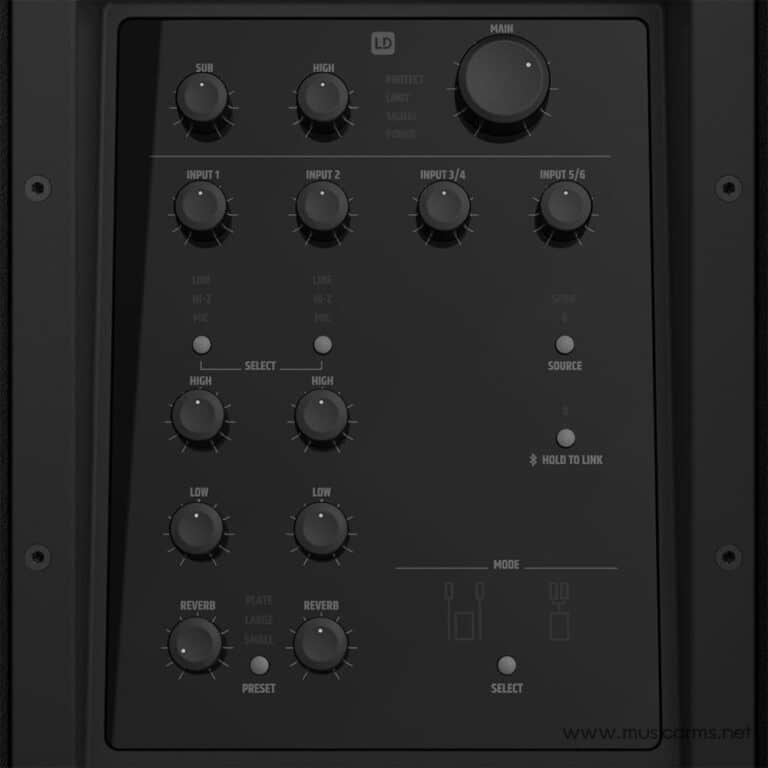

The first two channels of the mixer are designed as channel strips. Here, you can connect either a microphone, a high-impedance instrument – such as a guitar and/or bass – or line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (small, large, plate), are available for shaping the sound further. Channels 3 and 4 are designed as stereo line inputs, and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.

The DAVE 15 G4X becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to add a media player, computer or smartphone to your performance setup, allowing you to play and control backing tracks, sound effects or music during your breaks. The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV device in the sports bar for an impressive sound experience.

Speaking of impressive sound, the DAVE 15 G4X has been completely redesigned and developed from scratch. This not only benefits instruments and music, but also speech intelligibility when the PA is used for speech reinforcement. The acoustic concepts include new compression drivers and waveguides for a homogeneous and directional dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, colourless sound that brings the DAVE Series to a whole new level. The subwoofer, for example, is equipped with a larger voice coil and an optimised bass reflex system to reduce air flow noise to a minimum.

The DAVE 15 G4X is predestined for flexible use. The selectable mode presets (for classic stereo use or set up with two closely spaced satellites on a T-stand above the subwoofer) contribute to this – the DAVE G4X is convincing in terms of sound in all configurations. For example, the Cluster Mode preset allows the interference-free coupling of two satellites by means of a special M/S split and reproduction of the stereo signal for more headroom and directivity.

LD Systems has also thought of all common applications when it comes to accessories. These range from custom-fit bags and a castor board to the T-stand mentioned above.

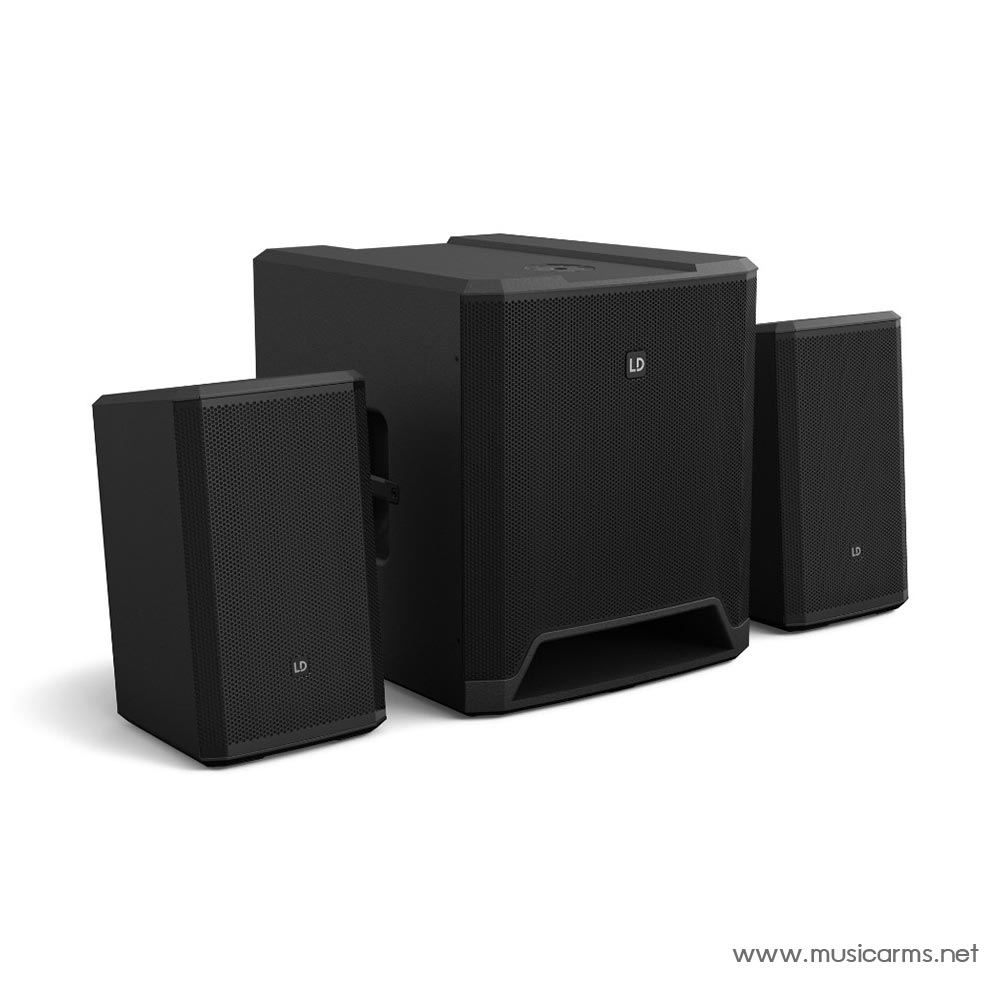

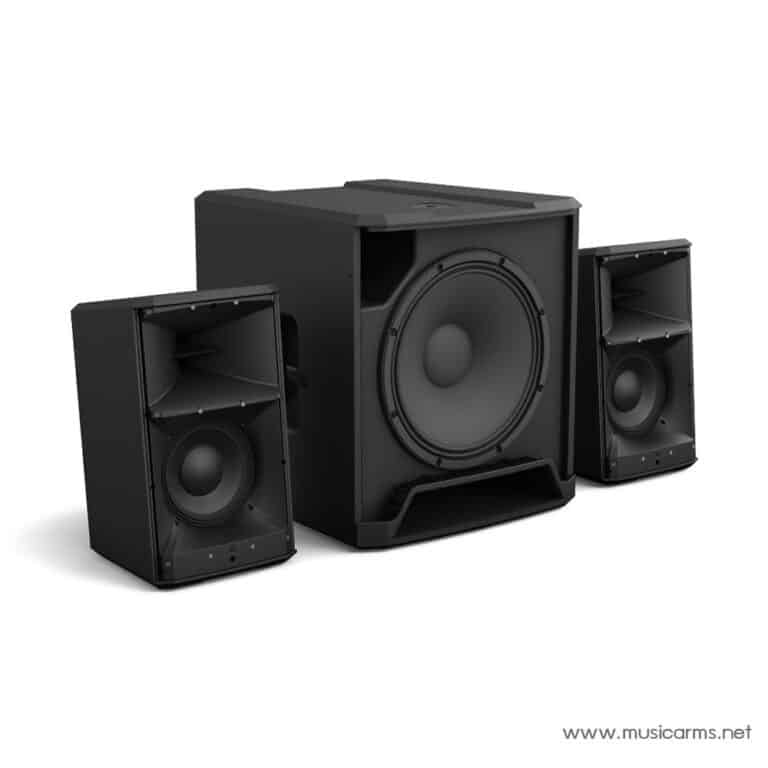

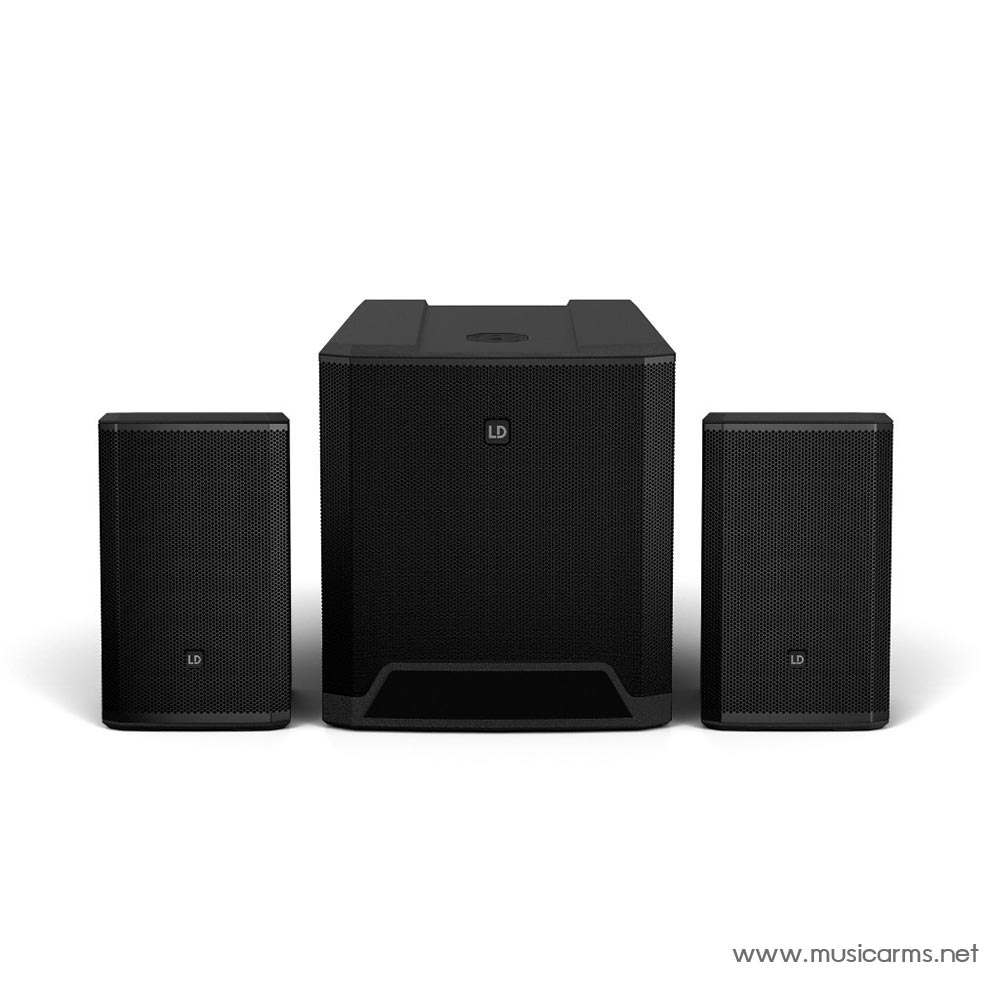

• Consisting of 15″ subwoofer and 2x 8″ satellite speakers
• Total power: 1030 W RMS / 2060 W peak
• Frequency response: 33 – 20000 Hz
• Maximum level: 130 dB (peak)
• Dispersion angle: 90° x 30° (HxV)
• DynX DSP
• 6-channel mixer

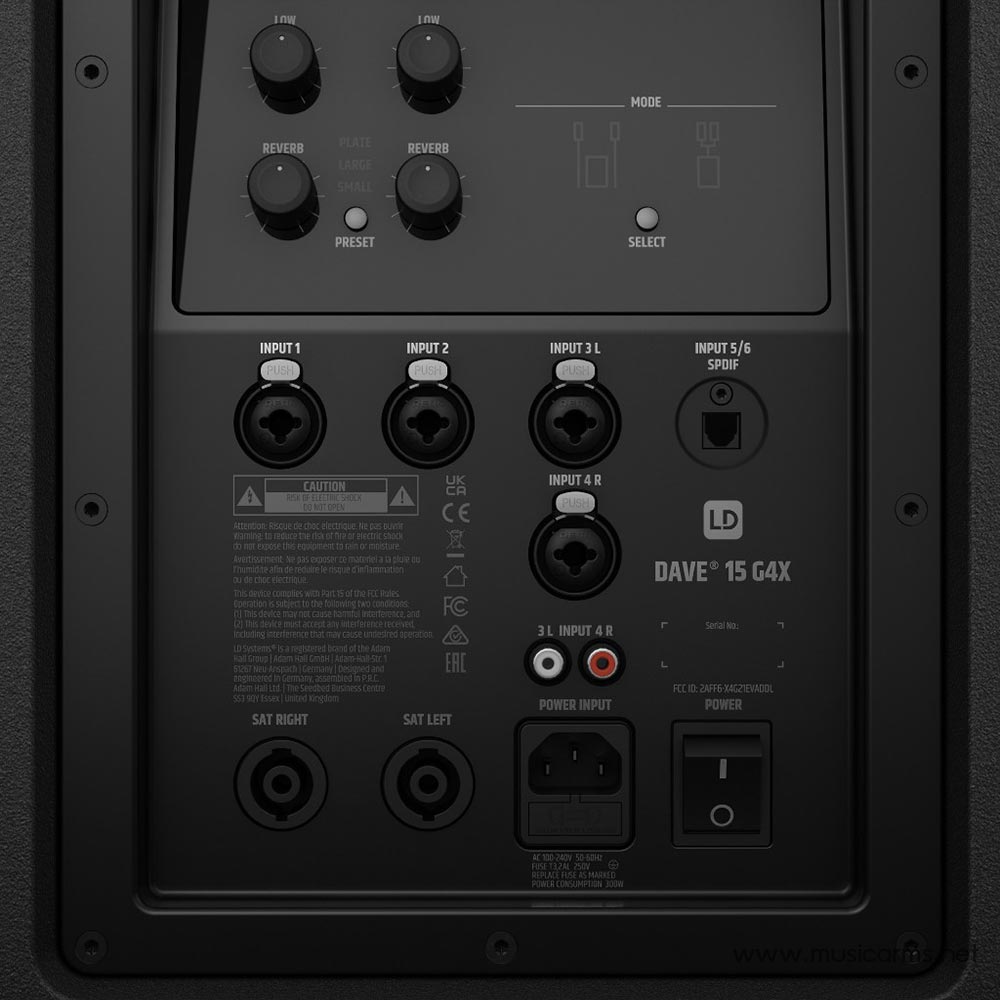

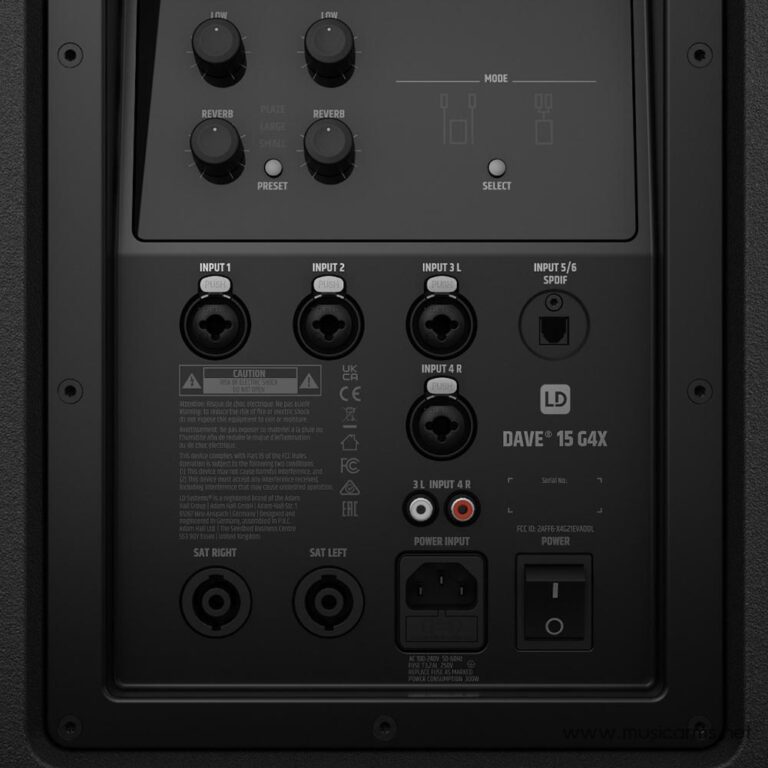

• Inputs channel 1/2: 2x Combo XLR/6.3 (Mic/Line/Hi-Z)
• Inputs channel 3/4: 2x Combo XLR/6.3
• SPDIF input channel (5/6)
• Bluetooth play channel (5/6)
• 3 Reverb presets
• Protection circuits: Short circuit, limiter, overload protection
• Neodymium tweeter
• Midrange waveguide for homogeneous reproduction
• Subwoofer with M20 thread for stand mounting
• Dimensions sub (L x W x H): 585 x 515 x 575 mm
• Satellite dimensions (L x W x H): 260 x 275 x 470 mm each
• Weight sub: 34.5 kg
• Weight per satellite: 9.7 kg
• Colour: Black

รายละเอียด LD Systems DAVE 15 G4X ชุดลำโพง Powered PA System

• ประกอบด้วยซับวูฟเฟอร์ขนาด 15 นิ้ว และลำโพงแซทเทิลไลท์ขนาด 8 นิ้ว 2 ตัว
• กำลังไฟทั้งหมด: สูงสุด 1030 W RMS / 2060 W
• การตอบสนองความถี่: 33 – 20,000 เฮิรตซ์
• ระดับสูงสุด: 130 dB (สูงสุด)
• มุมการกระจายตัว: 90° x 30° (HxV)
• DynX DSP
• มิกเซอร์ 6 ช่อง
• ช่องอินพุต 1/2: 2x Combo XLR/6.3 (ไมค์/ไลน์/Hi-Z)
• ช่องอินพุต 3/4: 2x Combo XLR/6.3
• ช่องสัญญาณเข้า SPDIF (5/6)
• ช่องเล่นบลูทูธ (5/6)
• รีเวิร์บที่ตั้งไว้ล่วงหน้า 3 แบบ
• วงจรป้องกัน: ไฟฟ้าลัดวงจร, ลิมิตเตอร์, ป้องกันการโอเวอร์โหลด
• ทวีตเตอร์นีโอไดเมียม
• ท่อนำคลื่นระดับกลางเพื่อการทำซ้ำที่เป็นเนื้อเดียวกัน
• ซับวูฟเฟอร์พร้อมเกลียว M20 สำหรับการติดตั้งแบบขาตั้ง
• ขนาด (ยาว x กว้าง x สูง) : 585 x 515 x 575 มม
• น้ำหนัก: 34.5 กก
• สี: ดำ
