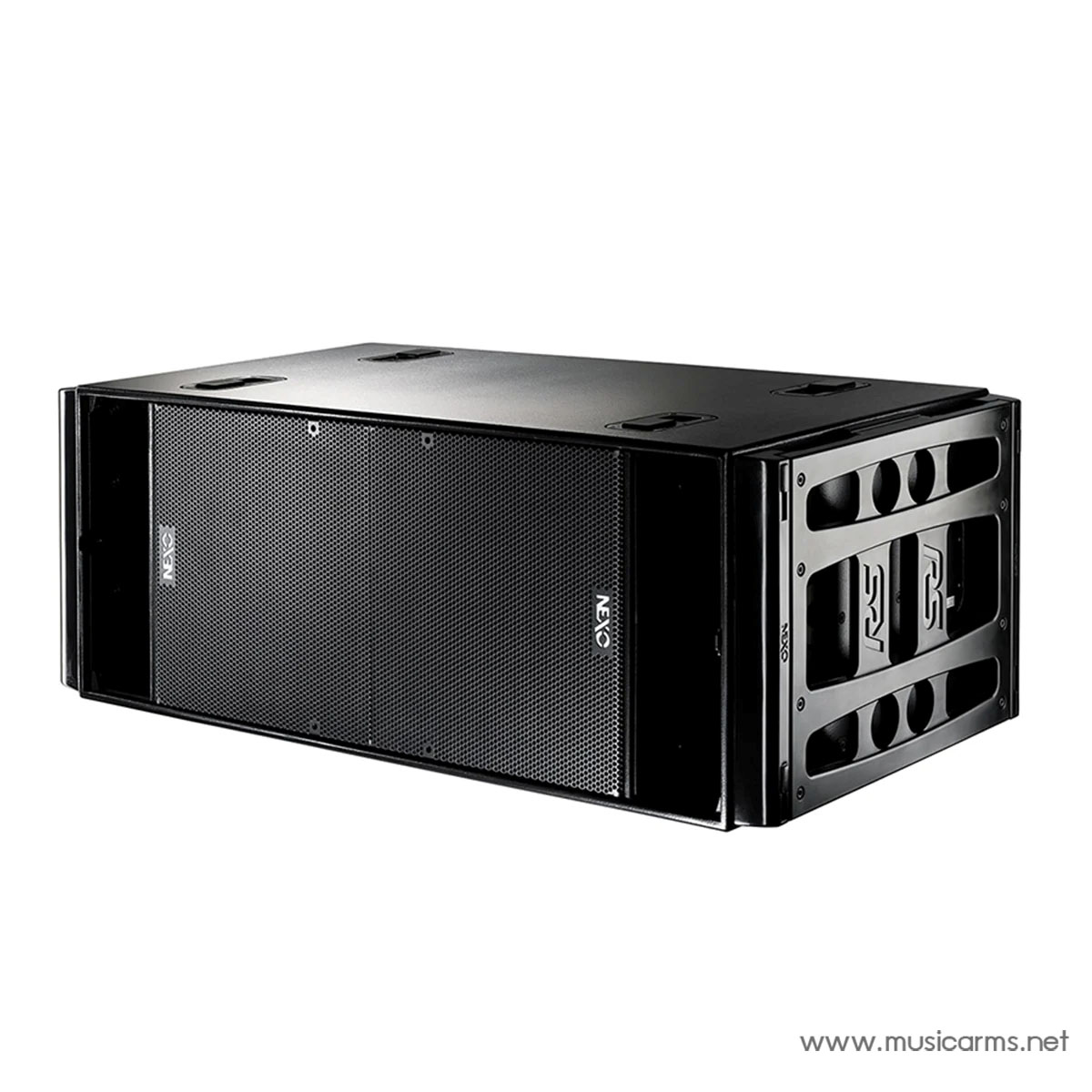

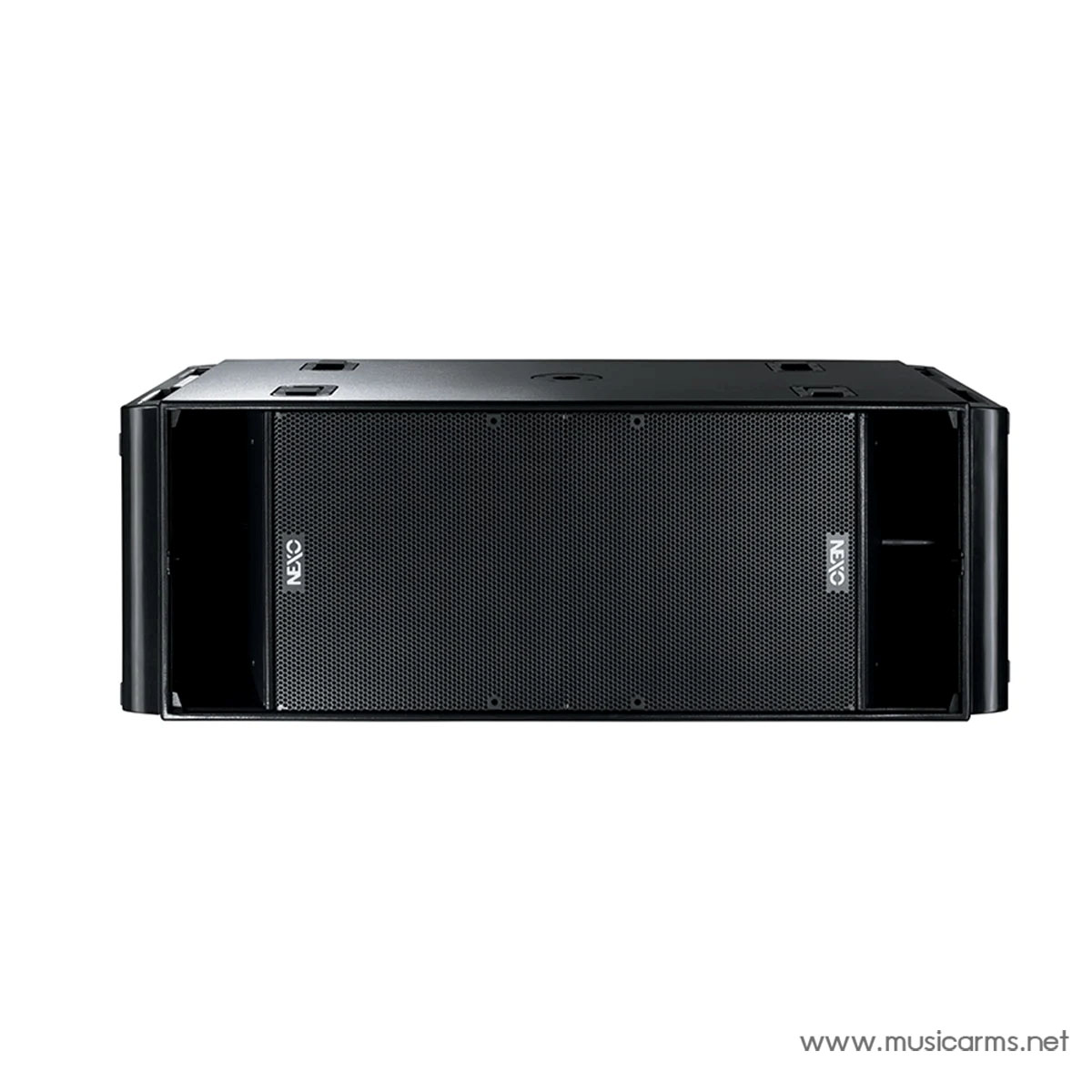

NEXO RS18 Ray Subwoofer 2×18″ Subwoofer

ราคา : 346,800 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
Description
NEXO RS18: Redefining Bass Performance with Revolutionary Subwoofer Technology
The NEXO RS18 is an innovative subwoofer meticulously designed to transform your low-frequency sound experience. Delivering deep, powerful, and highly controlled bass, it integrates exclusive RAY SUB technology to set new standards in audio performance and elevate your sound to unprecedented levels.
Key Features
- Groundbreaking RAY SUB Technology: Patented technology effectively combines front and rear sound output throughout the subwoofer’s frequency range, resulting in an average 5dB increase in frontal SPL while significantly reducing rear sound and unwanted reflections.
- Superior Directivity Control: Offers configurable sound dispersion patterns, including a Cardioid mode that minimizes rear sound. This reduces reflections from side and rear walls, ensuring a cleaner stage sound and precise bass delivery.
- Deep and Powerful Bass Output: Equipped with two 18″ Neodymium long-excursion drivers, the RS18 extends frequency response down to an impressive 30Hz with a sensitivity of 105 dB, providing robust and accurate low-end performance.
- Smart and Robust Design: Its high-power, low-profile enclosure features aerodynamically designed vents that reduce noise by 20dB and enhance stability even at high SPLs, ensuring reliable and flawless operation.
Conclusion
Whether for large-scale concerts, entertainment venues, or professional audio systems demanding absolute perfection, the NEXO RS18 is the ultimate choice to elevate your bass experience. With unparalleled power, precision, and control, it delivers a flawless low-frequency foundation. Discover the complete bass experience with the NEXO RS18 today!
Specification
Technical Specifications |
|
|---|---|
| Frequency Response @-3dB | 30Hz – 100Hz |
| Usable Range @-6dB (Omni Mode) | 29Hz – 250Hz |
| Usable Range @-6dB (Directional Mode) | 29Hz – 150Hz |
| Sensitivity 1W @1m (Omni Mode) | 105 dB SPL |
| Sensitivity 1W @1m (Directional Mode) | 103 dB SPL |
| Peak SPL @1m (Omni Mode) | 143–146 dB |
| Peak SPL @1m (Directional Mode) | 140–143 dB |
| Crossover Frequency | 75Hz – 100Hz |
| Recommended Amplifier Power (Omni Mode) | 1 Channel: 2000–4000W / 4Ω |
| Recommended Amplifier Power (Directional Mode) | 2 Channels: 1000–2000W / 8Ω per channel |
| Nominal Impedance | 2 x 8 Ω |
| Components | 2 x 18″ (46 cm) Long Excursion Neodymium 8Ω Drivers |
| Dimensions (HxWxD) (Touring Version) | 520 x 1403 x 732 mm (with handles) |
| Dimensions (HxWxD) (Installation Version) | 520 x 1238 x 732 mm (without handles) |
| Shape | Rectangular |
| Weight (Installation Version) | 90 kg |
| Weight (With Handles) | 105 kg |
| Weight (With Rigging System) | 126 kg |
| Connectors | 4 x NL4MP Speakon 4-pole on 2 connection panels (In & Through) |
| Construction | Baltic Birch Ply, black or white finish, optional dark grey carpet |
ข้อมูลสินค้า
NEXO RS18: สุดยอดซับวูฟเฟอร์ที่ปฏิวัติวงการเสียงเบส
NEXO RS18 คือนวัตกรรมซับวูฟเฟอร์ที่รังสรรค์มาเพื่อปฏิวัติประสบการณ์เสียงเบสของคุณ ออกแบบมาเพื่อมอบความถี่ต่ำที่ลึก ทรงพลัง และควบคุมได้ ด้วยเทคโนโลยี RAY SUB ที่เป็นเอกสิทธิ์เฉพาะ พร้อมพาคุณเข้าสู่มิติใหม่ของพลังเสียง
Key Features
- เทคโนโลยี RAY SUB สุดล้ำ: ผสานพลังเสียงด้านหน้าและด้านหลังได้อย่างมีประสิทธิภาพตลอดช่วงความถี่ซับวูฟเฟอร์ ทำให้ได้ค่า SPL เฉลี่ยเพิ่มขึ้น 5dB ในทิศทางด้านหน้า และลดเสียงรบกวนจากด้านหลังลงอย่างมาก
- การควบคุมทิศทางเสียงที่เหนือกว่า: สามารถกำหนดรูปแบบการแพร่เสียง (Directivity) ได้อย่างอิสระ พร้อมโหมด Cardioid ที่ช่วยลดระดับเสียงด้านหลัง ลดการสะท้อนจากผนังด้านข้างและด้านหลัง เพื่อเวทีเสียงที่สะอาดบริสุทธิ์
- ประสิทธิภาพเสียงเบสที่ลึกและทรงพลัง: อัดแน่นด้วยไดรเวอร์ Neodymium 18″ แบบ Long Excursion จำนวน 2 ตัว มอบการตอบสนองความถี่ต่ำลงไปถึง 30Hz ด้วยความไว 105 dB สร้างพลังเสียงเบสที่หนักแน่นและแม่นยำ
- การออกแบบที่ชาญฉลาดและทนทาน: ตู้โปรไฟล์ต่ำที่แข็งแกร่ง พร้อมช่องระบายอากาศที่ออกแบบตามหลักอากาศพลศาสตร์ ลดเสียงรบกวนได้ถึง 20dB และเพิ่มความเสถียรแม้ในระดับ SPL สูง เพื่อการทำงานที่ไร้ที่ติ
Conclusion
ไม่ว่าจะเป็นงานคอนเสิร์ตขนาดใหญ่, สถานบันเทิง, หรือระบบเสียงมืออาชีพที่ต้องการความสมบูรณ์แบบ, NEXO RS18 คือตัวเลือกที่จะยกระดับเสียงเบสของคุณไปอีกขั้น ด้วยพลัง, ความแม่นยำ, และการควบคุมที่ไม่เคยมีมาก่อน สัมผัสประสบการณ์เสียงเบสที่เหนือกว่ากับ NEXO RS18 วันนี้!
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะทางเทคนิค |
|
|---|---|
| Frequency Response @-3dB | 30Hz – 100Hz |
| Usable Range @-6dB (โหมด Omni) | 29Hz – 250Hz |
| Usable Range @-6dB (โหมด Directional) | 29Hz – 150Hz |
| Sensitivity 1W @1m (โหมด Omni) | 105 dB SPL |
| Sensitivity 1W @1m (โหมด Directional) | 103 dB SPL |
| Peak SPL @1m (โหมด Omni) | 143–146 dB |
| Peak SPL @1m (โหมด Directional) | 140–143 dB |
| Crossover Frequency | 75Hz – 100Hz |
| กำลังแอมป์ที่แนะนำ (โหมด Omni) | 1 แชนเนล: 2000–4000W / 4Ω |
| กำลังแอมป์ที่แนะนำ (โหมด Directional) | 2 แชนเนล: 1000–2000W / 8Ω ต่อแชนเนล |
| Nominal Impedance | 2 x 8 Ω |
| Components | 2 x 18″ (46 cm) Long Excursion Neodymium 8Ω Drivers |
| ขนาด (HxWxD) (เวอร์ชันทัวร์ริ่ง) | 520 x 1403 x 732 mm (มีมือจับ) |
| ขนาด (HxWxD) (เวอร์ชันติดตั้ง) | 520 x 1238 x 732 mm (ไม่มีมือจับ) |
| Shape | Rectangular |
| น้ำหนัก (เวอร์ชันติดตั้ง) | 90 kg |
| น้ำหนัก (พร้อมมือจับ) | 105 kg |
| น้ำหนัก (พร้อมระบบ Rigging) | 126 kg |
| Connectors | 4 x NL4MP Speakon 4-pole บน 2 แผงเชื่อมต่อ (In & Through) |
| Construction | Baltic Birch Ply เคลือบพื้นผิวสีดำหรือขาว, มีตัวเลือกพรมสีเทาเข้ม |
