NTS TOP4-1680 เพาเวอร์มิกเซอร์ 16 ช่อง มีแอมป์ในตัว กำลังขับ 4 x 800 วัตต์ ที่ 4 โอห์ม

ราคา : 14,580 บาท
Description

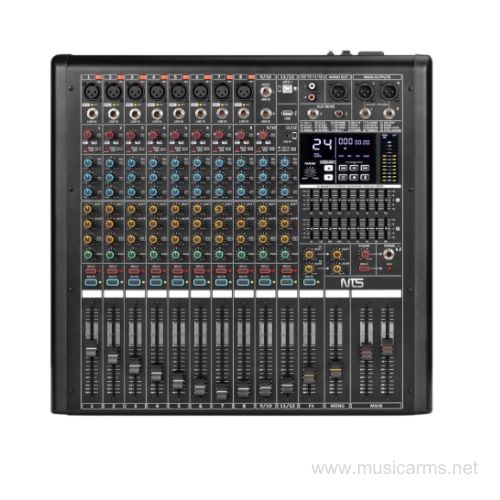

NTS TOP4-1680: 16-Channel Powered Mixer with 4-Channel Amplifier (800W x4)
The NTS TOP4-1680 is the flagship powered mixer in the TOP4 Series, designed to handle medium to large-scale sound systems in a single unit. It features 16 input channels (12 mono + 2 stereo), making it ideal for full bands, live performances, and large events.
Its most powerful feature is the built-in 4-channel amplifier, delivering 535W x4 at 8 ohms and up to 800W x4 at 4 ohms. This allows it to drive up to four PA speakers simultaneously. Additionally, it includes LPF and SUB FREQ controls, enabling direct subwoofer management without the need for an external crossover.
For sound shaping, it offers 3-band EQ on every channel, a Dual 9-Band Graphic EQ for precise master control, and 24 DSP digital effects for enhanced audio quality. It also supports Bluetooth streaming, USB MP3 playback, and includes a USB audio interface for recording and live streaming via computer.
Key Features
- 16-Channel Powered Mixer: 12 Mono + 2 Stereo inputs for full-band setups
- 4-Channel Amplifier: 535W x4 (8Ω) / 800W x4 (4Ω) for driving multiple speakers
- LPF & Sub Frequency Control: Direct subwoofer output management
- 3-Band EQ per Channel: With Phantom, PAD, SOLO, and MUTE controls
- Dual 9-Band Graphic EQ: Precise left/right master sound shaping
- 24 DSP Effects: High-quality digital reverb and delay
- Bluetooth & USB Playback: Wireless streaming and MP3 playback
- USB Audio Interface: For recording and live streaming
- 2 Aux Sends: For monitor or external effects routing
- Flexible Outputs: Supports both stereo and mono output
Who is it for?
- Full Bands: Handles complex live setups with multiple instruments
- Large Events & Stages: All-in-one solution for powerful sound systems
- Audio Professionals: Reduces the need for separate mixer and amplifier units
Conclusion
The NTS TOP4-1680 is a complete all-in-one solution for professional audio setups. Combining a high-capacity mixer with a powerful 4-channel amplifier and modern connectivity, it is ideal for demanding live and event environments.
Specification
Product Details |
|
|---|---|
| Maximum Channels | 16 Channels |
| Mic Inputs | 8 Channels |
| Aux Sends (Monitor) | 1 Aux |
| Built-in Effects | Yes |
| EQ | 3-band |
| Output EQ | Yes |
| Faders | Yes |
| Phantom Power | Yes (16 Channels) |
| Audio Playback | USB Supported |
| Bluetooth | Yes |
| Busses / Groups | No |
| Compressor | No |
| EQ Sweep | No |
| Hi-Z (Instrument Input) | No |
| 2-Track Recording | No |
| Multitrack Recording | No |
| Power Supply | 50 / 60 Hz, 100 – 240V |
| Dimensions | 595 x 460 x 155 mm |
| Weight | 24 kg |
ข้อมูลสินค้า
NTS TOP4-1680: เพาเวอร์มิกเซอร์ 16 ช่อง พร้อมแอมป์ 4 แชนเนล กำลังขับสูงสุด 800W x 4
NTS TOP4-1680 คือเพาเวอร์มิกเซอร์รุ่นเรือธงในซีรีส์ TOP4 ที่ออกแบบมาเพื่อรองรับงานระบบเสียงขนาดกลางถึงใหญ่แบบครบจบในตัวเดียว มาพร้อมช่องสัญญาณอินพุต 16 แชนเนล (12 Mono + 2 Stereo) รองรับไมโครโฟนและเครื่องดนตรีสำหรับวงดนตรีเต็มรูปแบบได้อย่างสบาย
จุดเด่นสำคัญคือภาคขยายเสียงแบบ 4 แชนเนล ที่ทรงพลัง ให้กำลังขับ 535 วัตต์ x 4 ที่ 8 โอห์ม และสูงสุด 800 วัตต์ x 4 ที่ 4 โอห์ม สามารถขับลำโพง PA ได้พร้อมกันถึง 4 ใบ เหมาะสำหรับงานเวทีขนาดใหญ่ นอกจากนี้ยังมีฟังก์ชัน LPF และ SUB FREQ สำหรับปรับความถี่ซับวูฟเฟอร์ได้โดยตรง โดยไม่ต้องใช้ครอสโอเวอร์แยก
ด้านการปรับแต่งเสียงจัดเต็มระดับมืออาชีพ ด้วย EQ 3 แบนด์ในทุกแชนเนล, Graphic EQ แบบ 9+9 แบนด์ สำหรับ Master และเอฟเฟกต์ Digital DSP 24 โปรแกรม นอกจากนี้ยังรองรับ Bluetooth, USB MP3 และ USB Interface สำหรับเชื่อมต่อคอมพิวเตอร์เพื่อบันทึกเสียงหรือไลฟ์สตรีมได้ทันที
คุณสมบัติเด่น
- เพาเวอร์มิกเซอร์ 16 ช่อง: 12 Mono + 2 Stereo รองรับงานระดับ Full Band
- แอมป์ในตัว 4 แชนเนล: 535W x4 (8Ω) / 800W x4 (4Ω) ขับลำโพงได้สูงสุด 4 ใบ
- LPF & SUB FREQ: ปรับความถี่ซับวูฟเฟอร์ได้โดยตรง ไม่ต้องใช้ครอสโอเวอร์เพิ่ม
- EQ 3 แบนด์ทุกแชนเนล: พร้อม PHANTOM, PAD, SOLO และ MUTE ครบ
- Graphic EQ 9+9 แบนด์: ปรับเสียง Master ซ้าย-ขวาได้ละเอียด
- เอฟเฟกต์ DSP 24 โปรแกรม: เพิ่มมิติเสียงร้องและดนตรี
- Bluetooth & USB MP3: รองรับการเล่นเพลงไร้สายและแฟลชไดรฟ์
- USB Interface: เชื่อมต่อ PC เพื่อ Recording และ Streaming
- Aux Send 2 ช่อง: สำหรับมอนิเตอร์หรือเอฟเฟกต์ภายนอก
- Output ครบ: รองรับ Stereo และ Mono Output
เหมาะกับใคร?
- วงดนตรี Full Band: รองรับทั้งกลอง เครื่องเป่า และเครื่องดนตรีหลายชิ้น
- งานเวที / อีเวนต์ขนาดใหญ่: จบระบบเสียงในเครื่องเดียว
- ทีมงานเครื่องเสียง: ต้องการความสะดวก ลดอุปกรณ์แยกหลายชิ้น
สรุป
NTS TOP4-1680 คือโซลูชันแบบ All-in-One สำหรับงานเสียงระดับมืออาชีพ รวมมิกเซอร์และเพาเวอร์แอมป์ 4 แชนเนลไว้ในเครื่องเดียว พร้อมฟีเจอร์ครบทั้งการปรับเสียง การเชื่อมต่อ และพลังขับ เหมาะสำหรับงานใหญ่ที่ต้องการความสะดวกและประสิทธิภาพสูงสุด
รายละเอียดคุณสมบัติ
รายละเอียดสินค้า |
|
|---|---|
| จำนวนแชนแนลสูงสุด | 16 ช่อง |
| ช่องเสียบไมโครโฟน | 8 ช่อง |
| Aux Sends (มอนิเตอร์) | 1 Aux |
| เอฟเฟคในตัว | มี |
| EQ | 3-band |
| EQ Output | มี |
| สไลด์เฟดเดอร์ | มี |
| Phantom Power | มี (16 ช่อง) |
| การเล่นไฟล์เสียง | รองรับ USB |
| Bluetooth | มี |
| Busses / Groups | ไม่มี |
| Compressor | ไม่มี |
| EQ Sweep | ไม่มี |
| Hi-Z (เครื่องดนตรี) | ไม่มี |
| Record 2-Track | ไม่มี |
| Record Multitrack | ไม่มี |
| กำลังไฟ | 50 / 60 Hz, 100 – 240V |
| ขนาด | 595 x 460 x 155 มม. |
| น้ำหนัก | 24 กก. |
