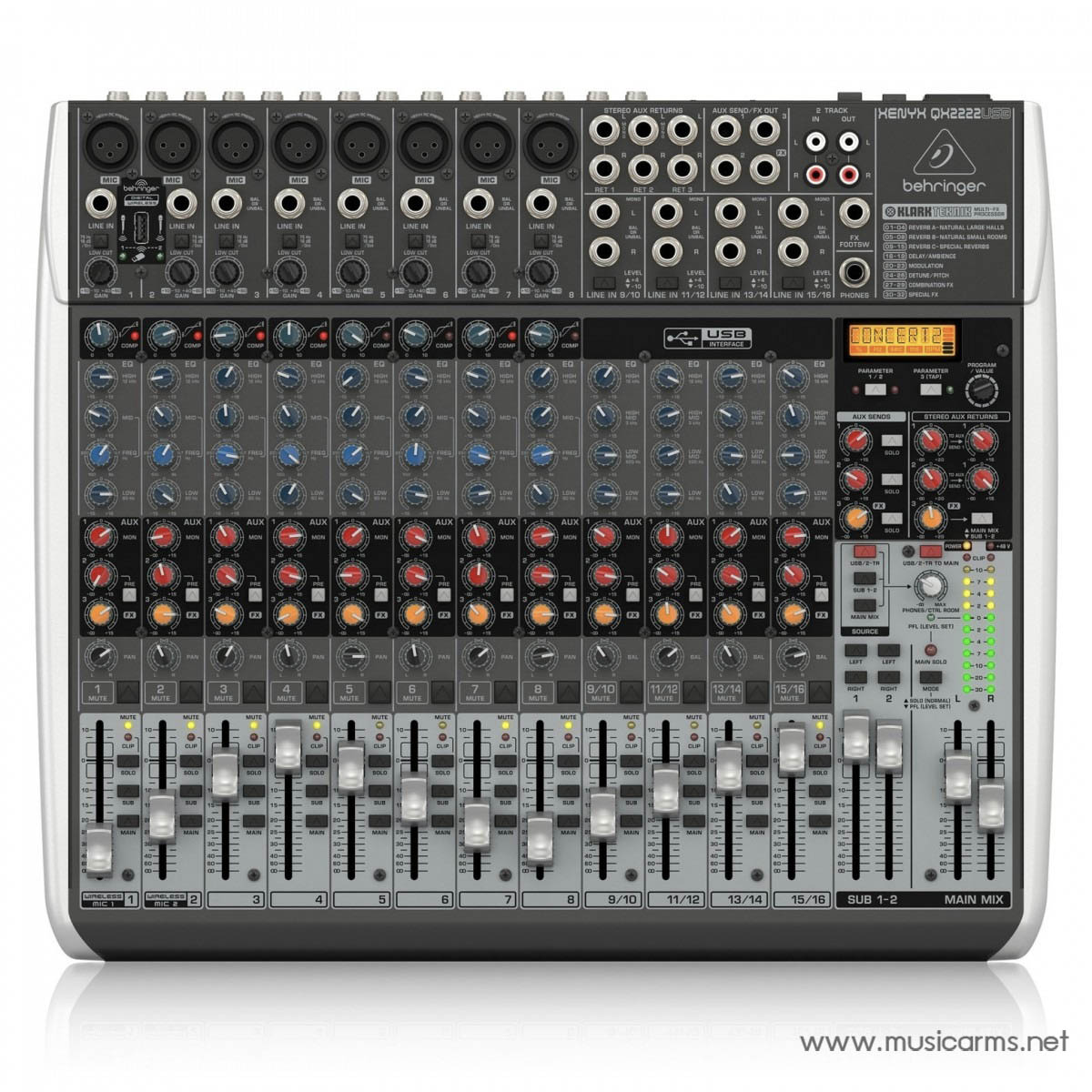

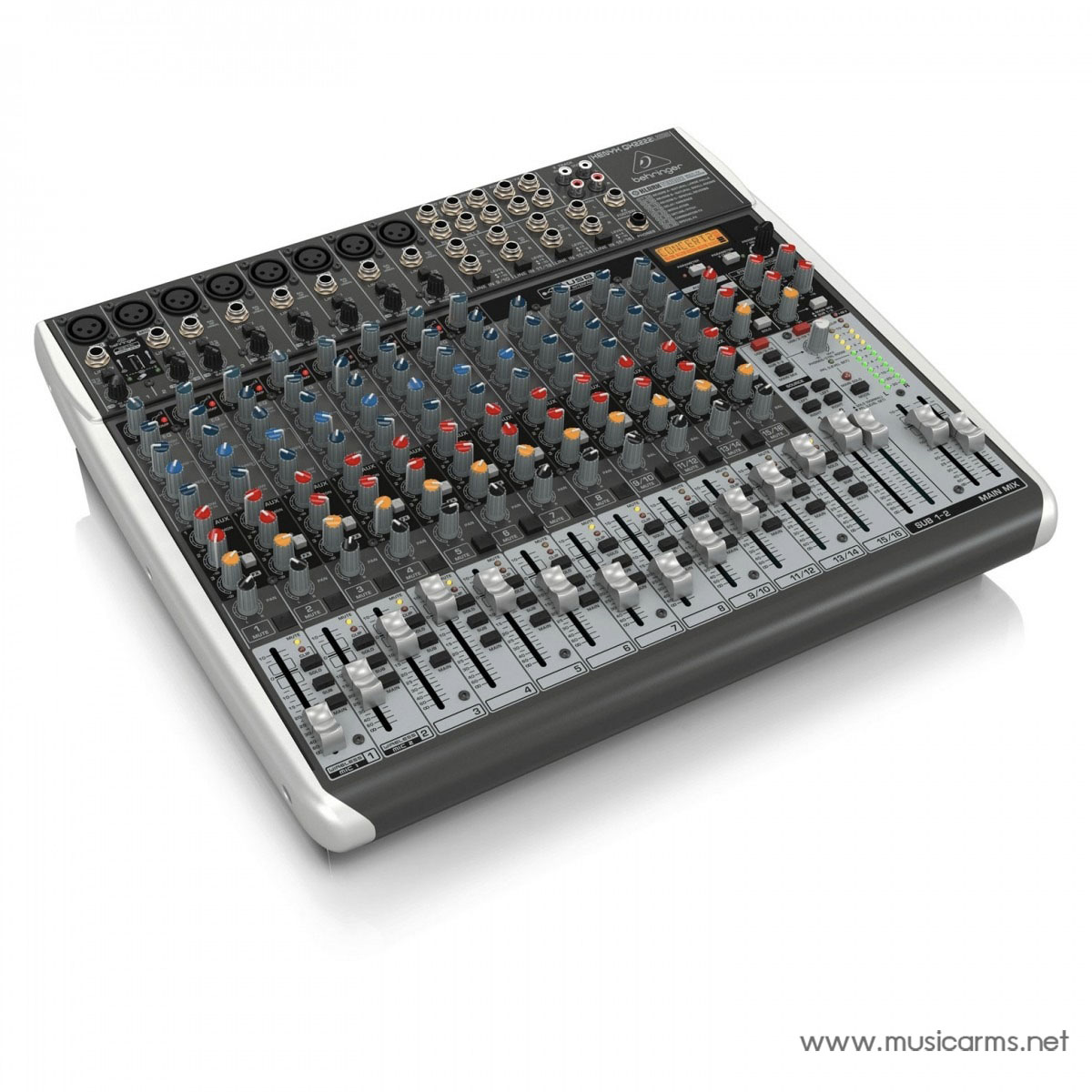

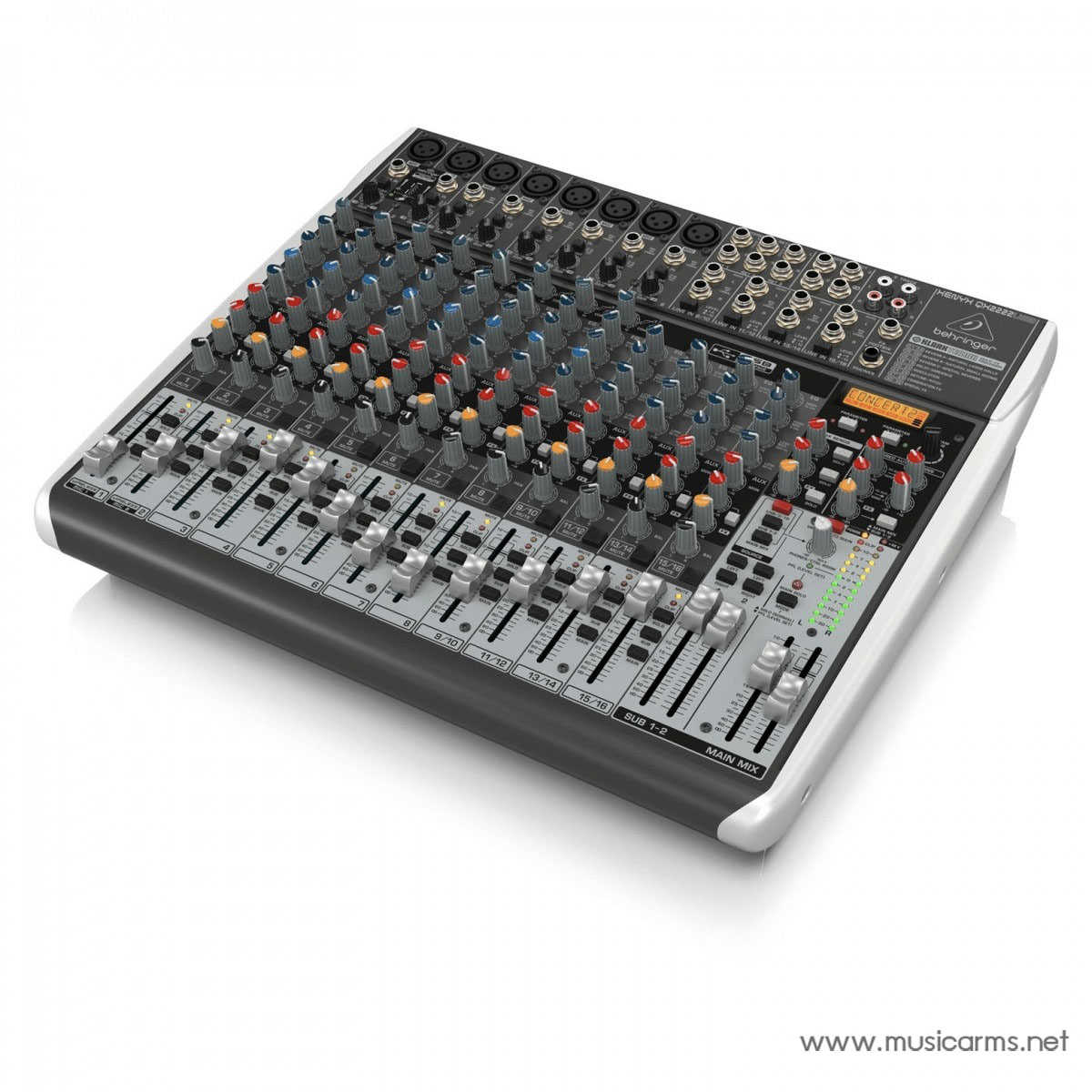

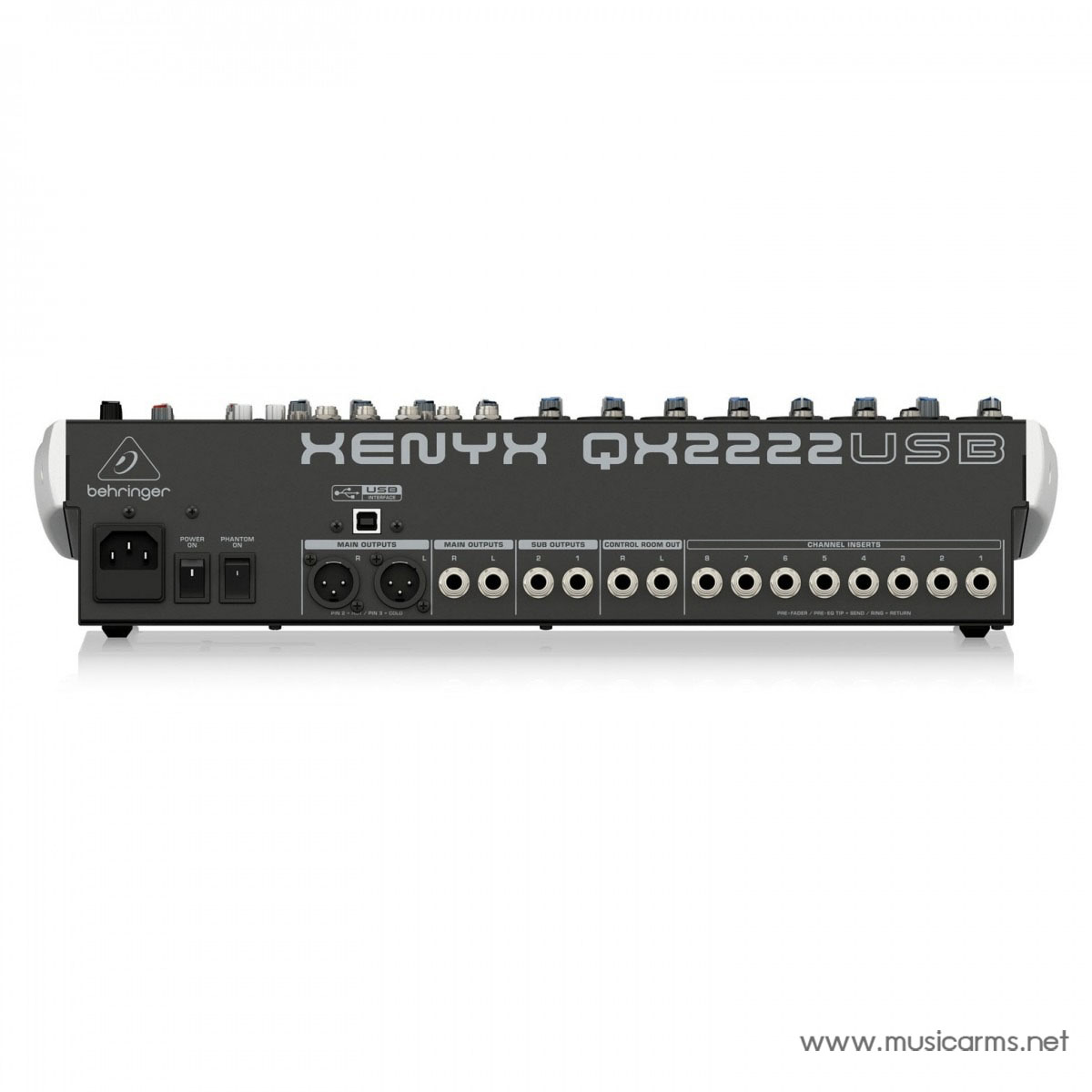

Behringer XENYX QX2222USB Analog Mixer

Sonically superior preamps

Behringer XEYNX preamps are renowned for their unique sonic performance. With an impressive 130dB of dynamic range and a frequency bandwidth of 10Hz to 20kHz the XEYNX preamps are the ideal choice for home recording and live use. Ensuring high quality and outstanding clarity, you’ll own preamps which excel on a wide array of sources. From guitars to percussion, to vocals and bass. There’s nothing that the XEYNX preamps won’t shine on.

Sublimely musical British EQ

British mixing consoles are renowned for their analog warmth and unique sonic qualities. Behringer have meticulously studied and incorporated the same style circuitry on the QX2222USB’s three band channel EQ, providing incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

One-knob compression

The ”one-knob” compression function is available on all mono channels and allows you to dial in the perfect amount of compression for both instruments and vocals. Delivering powerful mixes with punch and clarity, the ”one-knob” compression is easy to operate and a rare feature for mixers within this price range.

Built-in digital multi-FX processor

The QX2222USB features a built-in KLARK TEKNIK digital Multi-FX Processor designed to offer you an arsenal of premium-grade digital effect presets. A unique feature of the Multi-FX Processor is the time-based functions that can be controlled manually by pressing the tap button in time with the music. The 100 digital effect presets included with the Multi-FX Processor include: delay, chorus, flanger, pitch shifting, reverb and more.

Create an affordable wireless microphone system

Another unique and innovative feature of the QX2222USB is the wireless-ready design. This allows you to easily connect the mixer to Behringer’s digital wireless microphones (not included). The USB connector on the top of the mixing console is designed to accommodate the 2.4GHz wireless receiver dongle that comes supplied with Behringer’s wireless microphone sets.

Eliminate the need for excess cables. Simply purchase the ULM300USB or ULM202USB and create the perfect single or dual wireless handheld microphone system for an affordable price.

Features

• Premium ultra-low noise, high headroom mixer
• 8 state-of-the-art, phantom-powered XENYX Mic Preamps
• 8 studio-grade compressors with ”one-knob” functionality and control LED for professional vocal and instrument sound
• Ultra-high quality Klark Teknik FX processor with LCD display, dual-parameters, Tap function and storable user parameter settings
• ”Wireless-ready” for high-quality Behringer digital wireless systems (Not Included)
• Built-in stereo USB/Audio interface to connect directly to your computer
• Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins
• Classic ”British” 3-band EQs with semi-parametric mid band for warm and musical audio
• Channel inserts on each mono channel for flexible connection of outboard equipment
• 3 aux sends per channel: 1 pre fader for monitoring, 1 pre/post fader switchable for monitoring/FX applications, 1 post fader
• Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
• 2 subgroups with separate outputs for added routing flexibility; 3 multi-function stereo aux returns
• Balanced main mix outputs with 1/4” jack and gold-plated XLR connectors, separate control room, headphones and stereo rec outputs
• Control room/phones outputs with multi-input source matrix; rec inputs assignable to main mix or control room/phones outputs
• Long-wearing 60mm logarithmic-taper faders and sealed rotary controls
• ”Planet Earth” switching power supply for noise-free audio, superior transient responses plus low power consumption
• Designed and engineered by Behringer Germany

• Type: Analog
• Channels: 14
• Computer Connectivity: USB (2 x 2)
• Faders: 12 x 60mm throw
• Inputs – Mic Preamps: 8 x XLR
• Phantom Power: 8
• Inputs – Line: 16 x TRS, 2 x RCA
• Inputs – Other: 1 x 1/4” (footswitch)
• Outputs – Main: 2 x XLR, 6 x TRS
• Outputs – Other: 2 x RCA, 1 x 1/4” (footswitch)
• USB: 1 x type
• EQ Bands: 3-band
• Effects: Yes
• AUX Sends: 1 x pre/post, 1 x post
• Send/Return I/O: 4 x 1/4” (send), 6 x 1/4” (return)
• Busses/Groups: 2 x bus
• Channel Inserts: Yes
• Headphones: 1 x 1/4”
• Dimensions: 88.9 x 429.26 x 379.84mm (HxWxD)
• Weight: 4.8kg

• ประเภท: อนาล็อก
• ช่องสัญญาณ: 14
• การเชื่อมต่อคอมพิวเตอร์: USB (2 In x 2 Out)
• เฟดเดอร์: 12 ตัว ขนาด 60 มม.
• อินพุต – ไมค์ปรีแอมป์: 8 x XLR
• Phantom Power: 8 (ช่อง)
• อินพุต – Line: 16 x TRS, 2 x RCA
• อินพุต – อื่นๆ: 1 x 1/4” (สำหรับ Footswitch)
• เอาต์พุต – หลัก: 2 x XLR, 6 x TRS
• เอาต์พุต – อื่นๆ: 2 x RCA, 1 x 1/4” (สำหรับ Footswitch)
• USB: 1 x Type B
• EQ Bands: 3-band
• เอฟเฟกต์: มี
• AUX Sends: 1 x Pre/Post, 1 x Post
• Send/Return I/O: 4 x 1/4” (Send), 6 x 1/4” (Return)
• Busses/Groups: 2 x Bus
• Channel Inserts: มี
• หูฟัง: 1 x 1/4”
• ขนาด (สูง x กว้าง x ลึก): 88.9 x 429.26 x 379.84 มม.
• น้ำหนัก: 4.8 กก.
