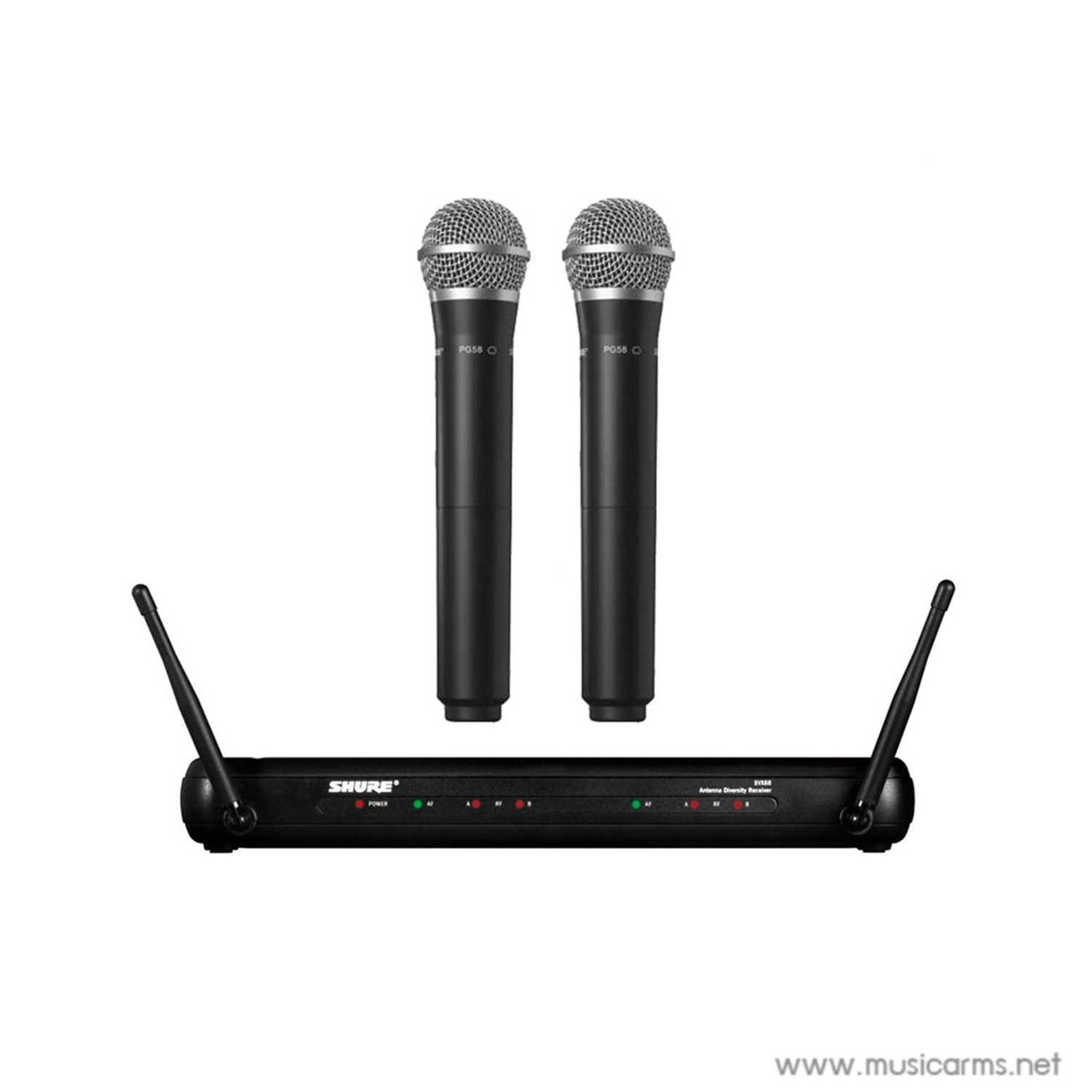

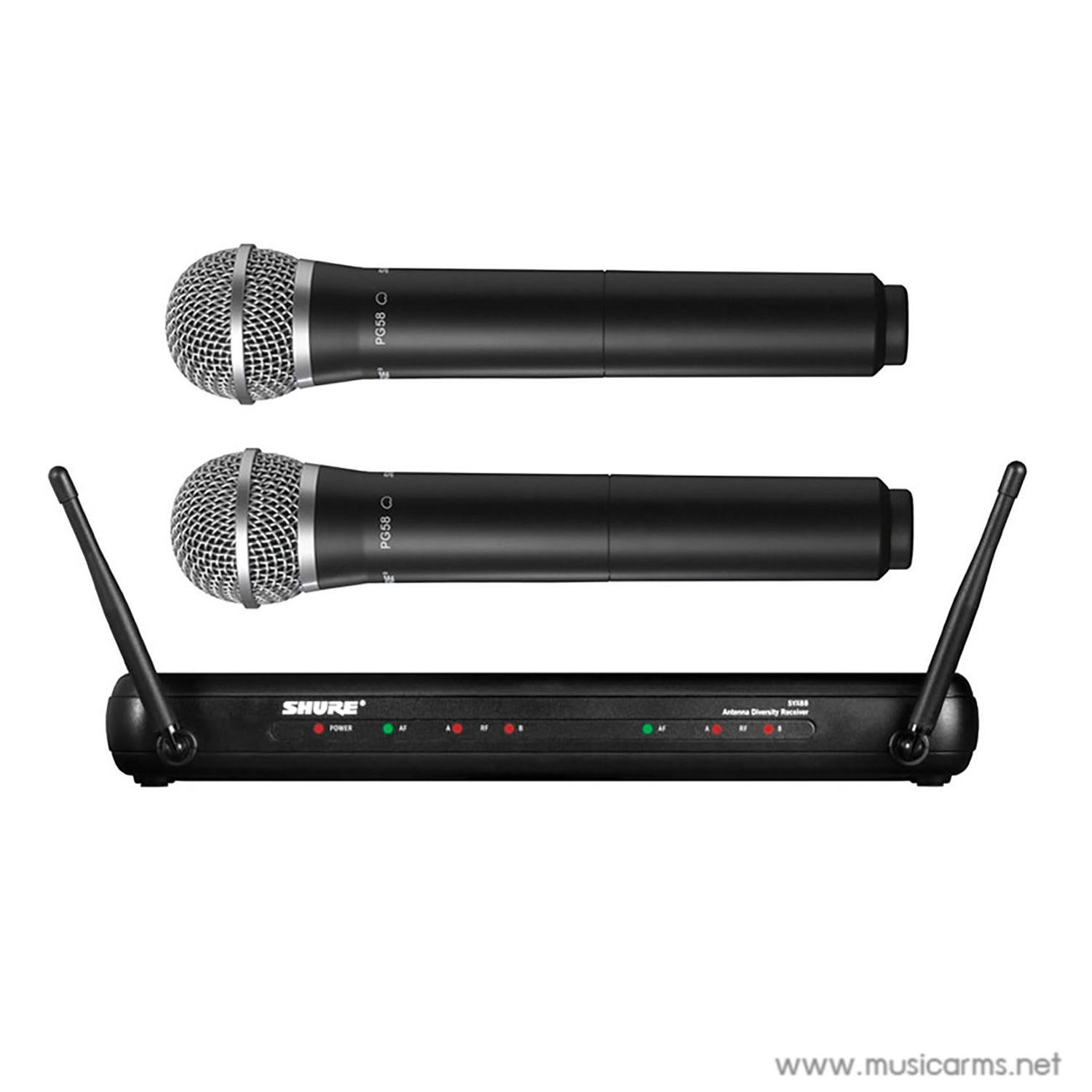

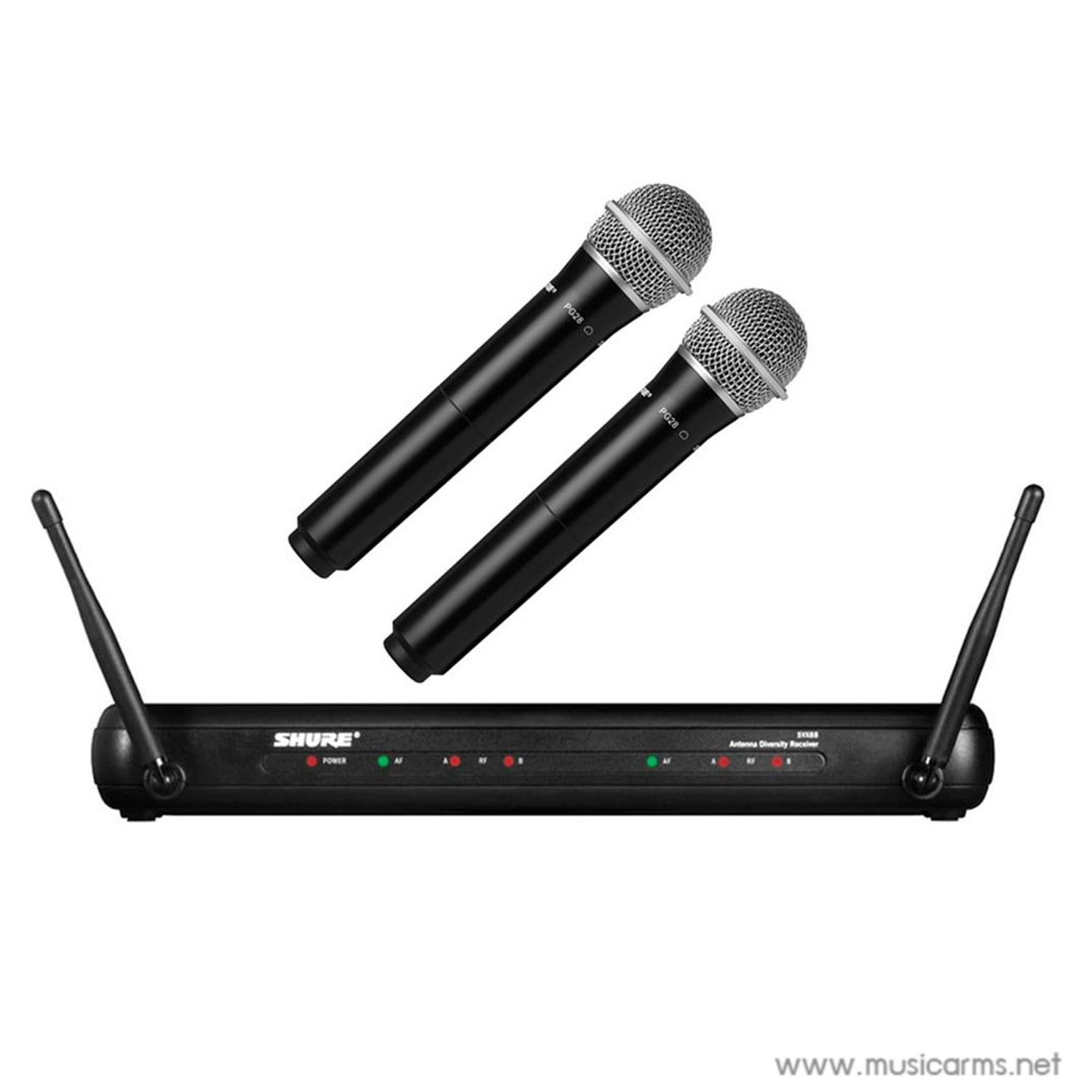

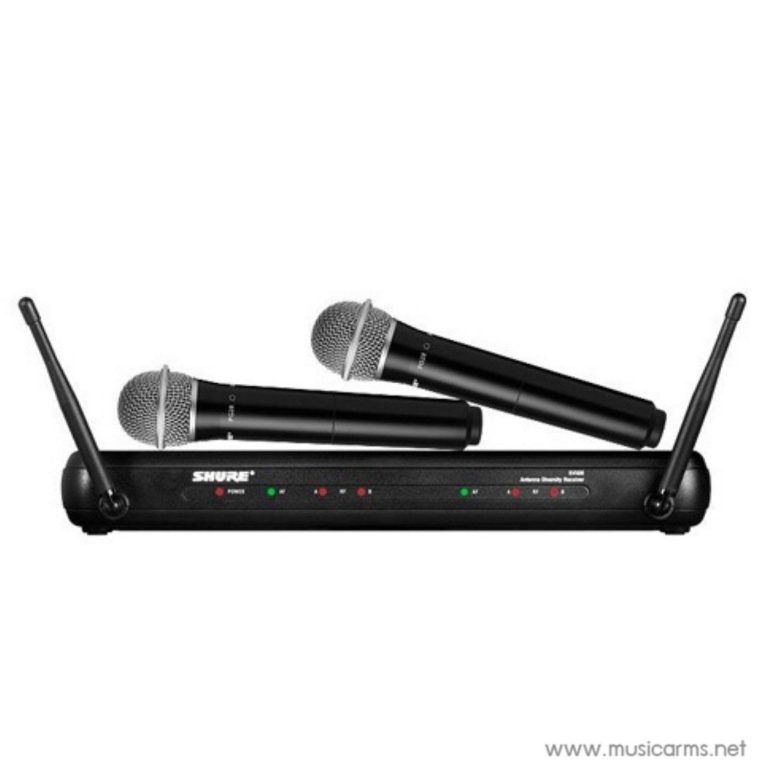

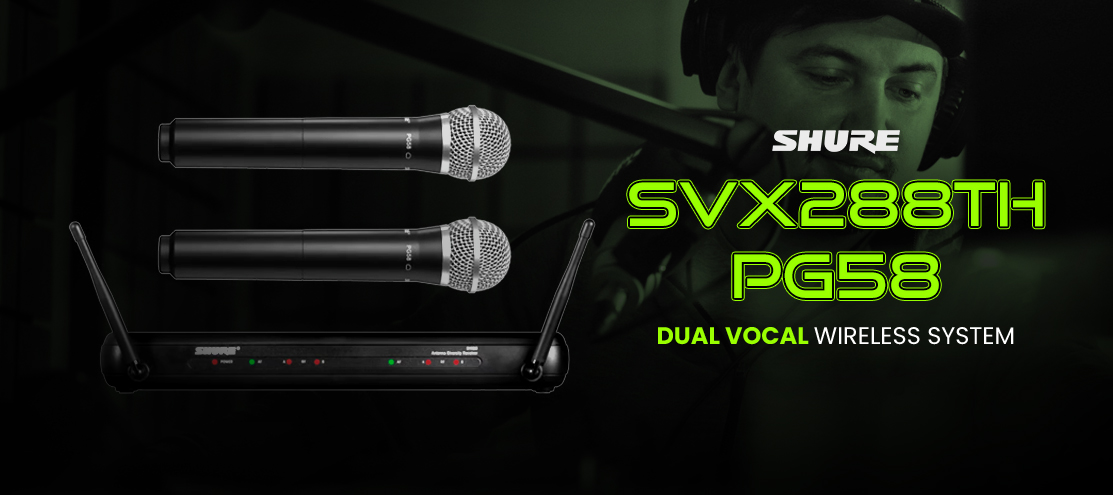

SHURE SVX288A/PG58-M19 ชุดไมค์ลอย มือถือคู่ ย่าน UHF คลื่นความถี่ 694-703 MHz

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Shure
รุ่น :  Shure SVX288A/PG58-M19 กีต้าร์โปร่ง/โปร่งไฟฟ้า Acoustic Guitar
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 17,900 บาท

28,300 บาท ประหยัด37%
การชำระเงิน : ผ่อนไม่ใช้บัตรเครดิต / จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ SHURE SVX288A/PG58-M19 ชุดไมค์ลอย มือถือคู่ ย่าน UHF คลื่นความถี่ 694-703 MHzผ่านline สั่งซื้อ SHURE SVX288A/PG58-M19 ชุดไมค์ลอย มือถือคู่ ย่าน UHF คลื่นความถี่ 694-703 MHzผ่าน messenger

Description

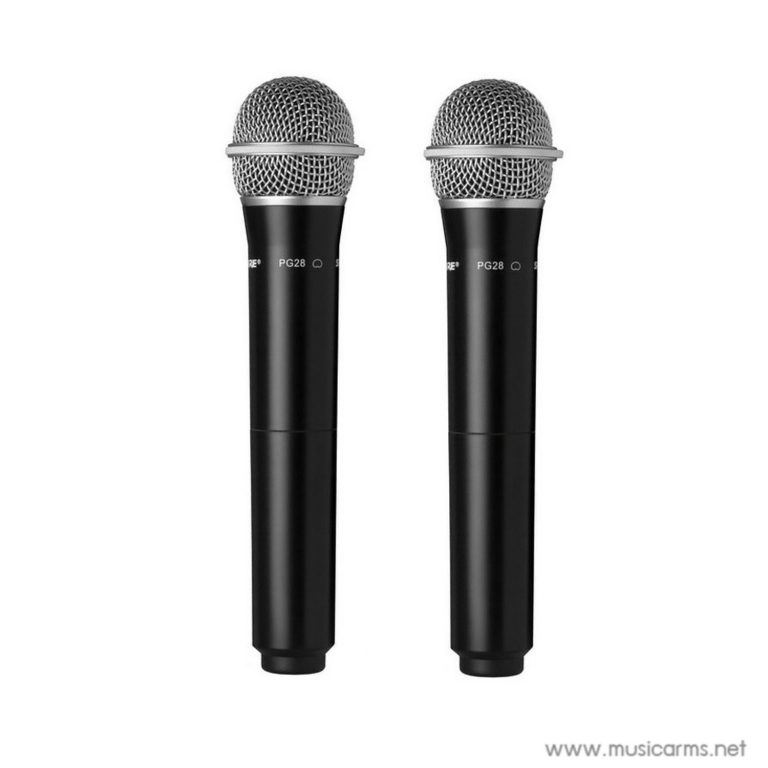

SHURE SVX2 Wireless Handheld Transmitter

The SVX Wireless Handheld Transmitter comes with a PG28 or PG58 microphone option.

Features :

  • RF Level Switch between 1mW and 10mW
  • 2 “AA” batteries
  • Up to 10 hours of battery life
  • Bottom on/off switch design
  • Anti-rolling ring on grille for PG28
  • Power and battery status LED
  • 6 color rings for microphone identification



Specifications :

  • Transmitter Type: Handheld
  • Dimensions: 254 mm X 51 mm diameter
  • RF Output Power: 1
  • Battery, endurance: 10 h
  • Weight: 270 g
  • Further technical specifications:
    • Audio Input Level: –20 dBV maximumInput Impedance: 22 kΩ
    • RF Output (dependent on applicable country regulations):
    • HI power mode: 10 mW maximum
    • LO power mode: 1 mW maximum
    • Weight: 270 g (10.2 oz.)(without batteries) Housing: Molded ABS
    • Power Requirements: 2 “AA” size alkaline or rechargeable batteries



SHURE SVX88 Dual Diversity Receiver

Dual channel diversity receiver for use with Shure SVX Wireless systems.

Features :

  • Up to 8 selectable channels
  • Up to 4 compatible systems*
  • Antenna Switching Diversity
  • Adjustable Squelch Level
  • 1/4″ and XLR output
  • Available with Handheld and Lavalier system packages



Specifications :

  • Power supply: 12 to 18 V DC @ 220 mA, supplied by external power supply
  • Maximum output level: XLR connector into 100 kΩ load: -16 dBV, 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV mW
  • Further specs :
    • Dimensions: 32 mm X 168 mm X 104.5 mm (1.26 in. x 6.625 in. x 4.2 in.)
    • Weight: 245 g (11.5 oz.)
    • Housing: Molded ABS
    • Audio Output Level (Ref. ±48 kHz deviation with 1 kHz tone):
    • XLR connector into 100 kΩ load: -16 dBV (MIC)
    • 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV (MIC)
  • Output Impedance :
    • XLR connector: 600 Ω
    • 6.35 mm (1/4”) connector: 600 Ω
    • Sensitivity: –105 dBm for 12 dB SINAD, typical
    • Image Rejection: >50 dBm, typical
    • Power Requirements: 12 to 18 V DC @ 130 mA, supplied by external power supply

Specification

SHURE SVX2 Wireless Handheld Transmitter

The SVX Wireless Handheld Transmitter comes with a PG28 or PG58 microphone option.

Specifications :

  • Transmitter Type: Handheld
  • Dimensions: 254 mm X 51 mm diameter
  • RF Output Power: 1
  • Battery, endurance: 10 h
  • Weight: 270 g
  • Further technical specifications:

– Audio Input Level: –20 dBV maximumInput Impedance: 22 kΩ

– RF Output (dependent on applicable country regulations):

– HI power mode: 10 mW maximum

– LO power mode: 1 mW maximum

– Weight: 270 g (10.2 oz.)(without batteries)

– Housing: Molded ABS

– Power Requirements: 2 “AA” size alkaline or rechargeable batteries

SHURE SVX88 Dual Diversity Receiver

Dual channel diversity receiver for use with Shure SVX Wireless systems.

Specifications :

  • Power supply: 12 to 18 V DC @ 220 mA, supplied by external power supply
  • Maximum output level: XLR connector into 100 kΩ load: -16 dBV, 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV mW
  • Further specs :

– Dimensions: 32 mm X 168 mm X 104.5 mm (1.26 in. x 6.625 in. x 4.2 in.)

– Weight: 245 g (11.5 oz.)

– Housing: Molded ABS

– Audio Output Level (Ref. ±48 kHz deviation with 1 kHz tone):

– XLR connector into 100 kΩ load: -16 dBV (MIC)

– 6.35 mm (1/4”) connector into 100 kΩ load: -22 dBV (MIC)

Output Impedance :

– XLR connector: 600 Ω

– 6.35 mm (1/4”) connector: 600 Ω

– Sensitivity: –105 dBm for 12 dB SINAD, typical

– Image Rejection: >50 dBm, typical

– Power Requirements: 12 to 18 V DC @ 130 mA, supplied by external power supply

×
