Solid State Logic SSL X-Desk

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Solid State Logic
รุ่น :  Solid State Logic SSL X-Desk Analog Mixer
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 108,000 บาท

120,000 บาท ประหยัด10%
การชำระเงิน : ผ่อนไม่ใช้บัตรเครดิต / จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ Solid State Logic SSL X-Deskผ่านline สั่งซื้อ Solid State Logic SSL X-Deskผ่าน messenger

วีดีโอ


YouTube video

Description

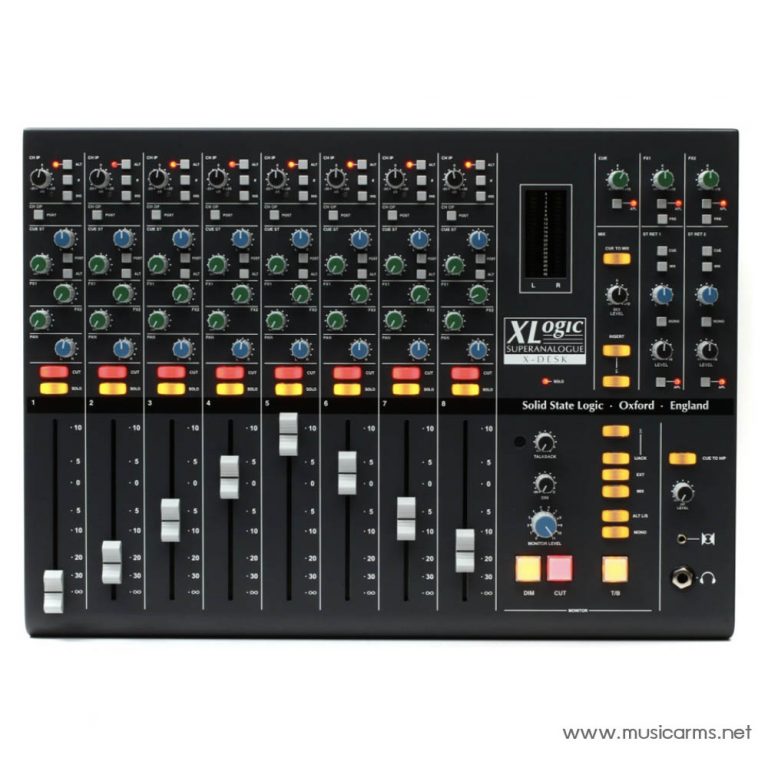

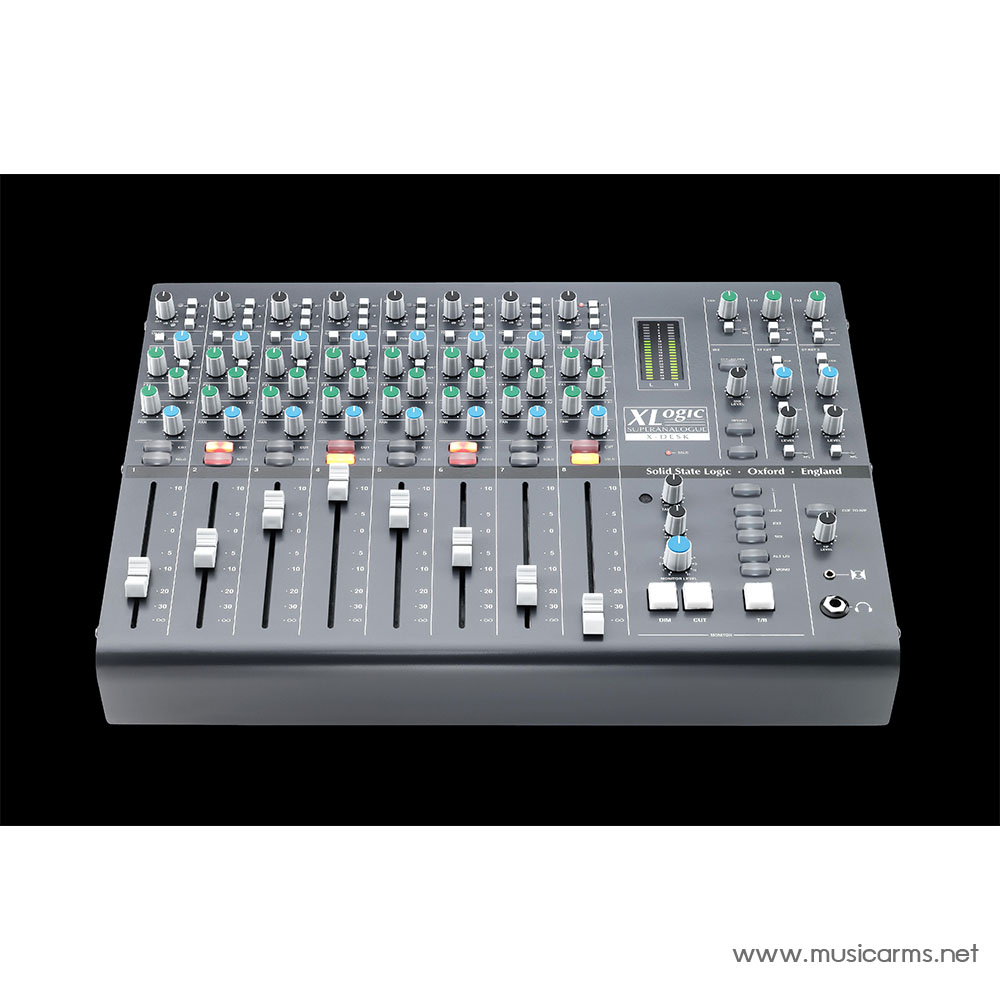

Solid State Logic SSL X-Desk

The centre of your scalable studio

Built from the same SuperAnalogue™ DNA as our AWS, Duality and Matrix consoles, we are proud to deliver the X-Desk.

X-Desk brings benchmark audio performance to the compact mixer format, meeting the demand for a world class, compact SSL mixing desk. X-Desk combines a 16 channel SSL SuperAnalogue™ summing mixer with a compact analogue monitoring hub for your studio. Small enough to be easily transported, X-Desk fulfills the essentials of the audio mixing process, with typical SSL attention to detail, including smooth 100mm faders, comprehensive artist & studio monitoring with Dim & Cut buttons, Stereo and Mono Aux sends, channel and Master Bus Inserts and accurate bar graph level metering.

For easy integration into your existing studio, X-Desk can be used as an elegant and and ergonomically refined desktop mixer with removable rack ears for standard 19″ rack mounting (7U space required). Like all SSL SuperAnalogue™ products, it is extremely robust, hand-built in the UK with an all metal chassis and high quality controls and components. Up to eight X-Desks or X-Desk & X-Rack combinations can be cascaded via D-Sub connection to expand up to 160 inputs on mixdown.

Specification

Solid State Logic X-Desk 16-channel Compact Analog

  • Eight dual input mono line channels -16-channel mixdown
  • Eight insert send/returns on channels
  • Stereo cue and two mono auxiliary sends
  • Cascade with X-Rack and other X-Desks for bigger systems
  • Talkback functionality for artist communication
  • Dim and Cut buttons
  • Independent main and alternate stereo monitor outputs
  • SSL stereo mix bus with external summing and Inserts
  • Two stereo returns with level, pan and bus assignment
  • iJack front panel input for portable playback devices
  • High-quality internal PSU
  • D-Sub channel I/O connection for studio integration
  • 19″ rackmount ears include

Tech Specs

  • Type:Analog
  • Channels:8
  • Faders:8 x 100mm
  • Inputs – Line:1 x DB25 (Line), 1 x DB25 (Alt)
  • Inputs – Other:1 x 1/8″ (iJack)
  • Outputs – Main:2 x XLR (Main), 2 x XLR (Alt)
  • Outputs – Direct:1 x DB25 (CH 1-8)
  • Outputs – Other:1 x DB25 (Centre: Mix, Cue, FX 1 &2)
  • Headphones:1 x 1/4″
  • Aux Sends:2 x FX
  • Send/Return I/O:1 x DB25 (Insert Send), 1 x DB25 (Insert Return), 1 x DB25 (Cen In: Mix, Cue, FX 1/2), 1 x DB25 (Cen Out: Mix, Cue, FX 1/2)
  • Busses/Groups:Cue/Mix
  • Channel Inserts:Yes
  • Talkback:Yes
  • Rackmountable:Yes
  • Height:4.75″
  • Width:17.1″ (19″ w/Rack Ears)
  • Depth:12.25″
  • Weight:10.5 lbs.
  • Manufacturer Part Number:729712X1

×
