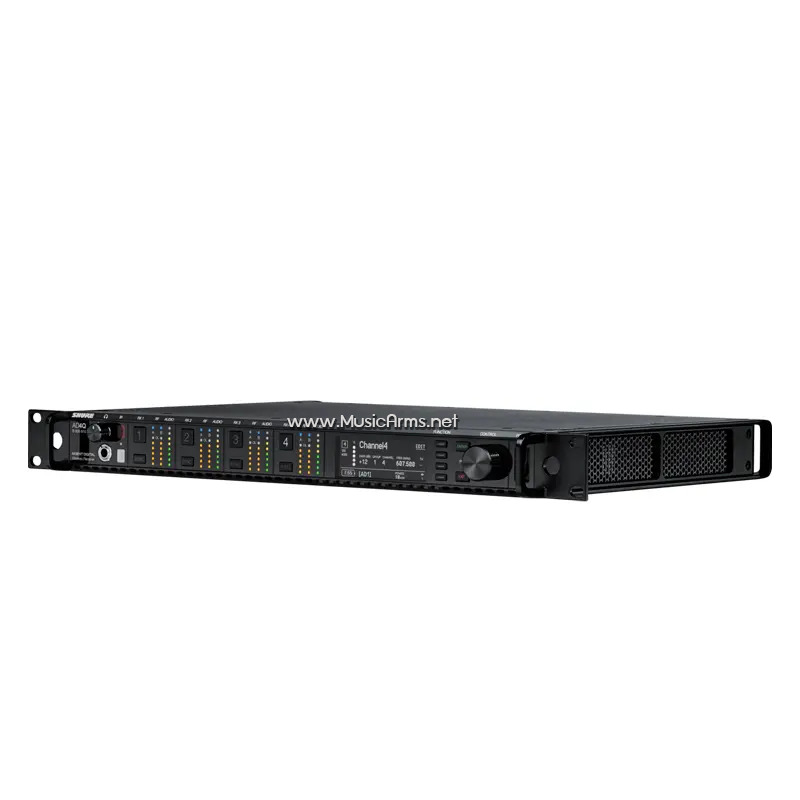

ตัวรับสัญญาณ SHURE AD4QA=-P55 ตัวรับสัญญาณไร้สายแบบดิจิตอล 4 ชาแนล

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Shure
รุ่น :  Shure AD4QA
การจัดส่ง ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 244,900 บาท

394,900 บาท ประหยัด38%
การชำระเงิน จ่ายหน้าร้าน / โอนเงิน / เก็บปลายทาง / บัตรเครดิต / ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ ตัวรับสัญญาณ SHURE AD4QA=-P55 ตัวรับสัญญาณไร้สายแบบดิจิตอล 4 ชาแนล

วีดีโอ


YouTube video

YouTube video

Description

The SHURE AD4QA = -P55 4-channel digital wireless transceiver has advanced performance features. Compatible with all AD and ADX series transmitters from the SHURE brand.

PRODUCT DETAILS

Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

The AD4Q Four-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, High Density (HD) mode, and Quadversity, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.

  • Wide tuning range up to 184 MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
  • Quadversity mode for extended antenna coverage and improved RF signal-to-noise
  • Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
  • Configurable Ethernet switch for redundant Dante or AES67 digital output
  • Switchable XLR and AES3 outputs
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors
  • DC module version available to support redundant power

Specification

S P E C I F I C A T I O N S
(SUBJECT TO CHANGE)

  • Dimensions (H × W × D)
    1.7 × 19.0 × 13.1 in
    (44 × 483 × 333 mm)
  • Weight
    10.6 lb (4.8 kg)
    without antennas
  • Housing
    Steel; extruded aluminum
  • Power Requirements
    100 to 240 VAC, 50–60 Hz
    0.68 A max
  • Thermal Dissipation
    Maximum: 31 W (106 BTU/hr)
    Idle: 21 W (72 BTU/hr)

AUDIO OUTPUT

  • Gain Adjustment Range
    –18 to +42 dB in 1 dB steps (plus Mute setting)
  • Configuration
    1/4″ (6.35 mm): Transformer-coupled Balanced
    (Tip=audio, Ring=no audio,Sleeve=ground)
    XLR: Transformer-Coupled Balanced
    (1=ground, 2=audio +, 3=audio –)
  • Impedance Typical, XLR Line Out
    100 Ω
  • Full Scale Output 200 kΩ load
    1/4″ (6.35 mm): +8 dBV
    XLR (LINE setting): +18 dBV
    XLR (MIC setting): –12 dBV
  • Mic/Line Switch
    30 dB pad
  • Phantom Power Protection
    Yes

NETWORKING

  • Network Interface
    10/100 Mbps, 1 Gbps, Dante Digital Audio
  • Network Addressing Capability
    DHCP or Manual IP address
  • Maximum Cable Length
    100 m (328 ft)

CASCADE OUTPUT

  • Connector Type
    BMC
    Note: For connection of one additional receiver in the same band
  • Configuration
    Unbalanced, passive
  • Impedance
    50 Ω
  • Insertion Loss
    0 dB, typical

RF INPUT

  • Spurious Rejection
    >80 dB, typical
  • Connector Type
    BNC
  • Impedance
    50 Ω
  • Bias Voltage
    12-13.5 VDC, 150 mA maximium, per
    antenna, switchable on/off
  • RF Carrier Frequency Range Model-Dependent
    AD4Q=A: 470–636 MHz
    AD4Q=B: 606–810 MHz
    AD4Q=C: 750–960 MHz

×
