ลำโพงมอนิเตอร์ Adam Audio A77X

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Adam
รุ่น :  Adam A77X Active Studio Monitor
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

ราคา : 83,800 บาท

93,112 บาท ประหยัด10%
การชำระเงิน : ผ่อนไม่ใช้บัตรเครดิต / จ่ายหน้าร้าน 6สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

สั่งซื้อ ลำโพงมอนิเตอร์ Adam Audio A77Xผ่านline สั่งซื้อ ลำโพงมอนิเตอร์ Adam Audio A77Xผ่าน messenger

วีดีโอ


YouTube video

Description

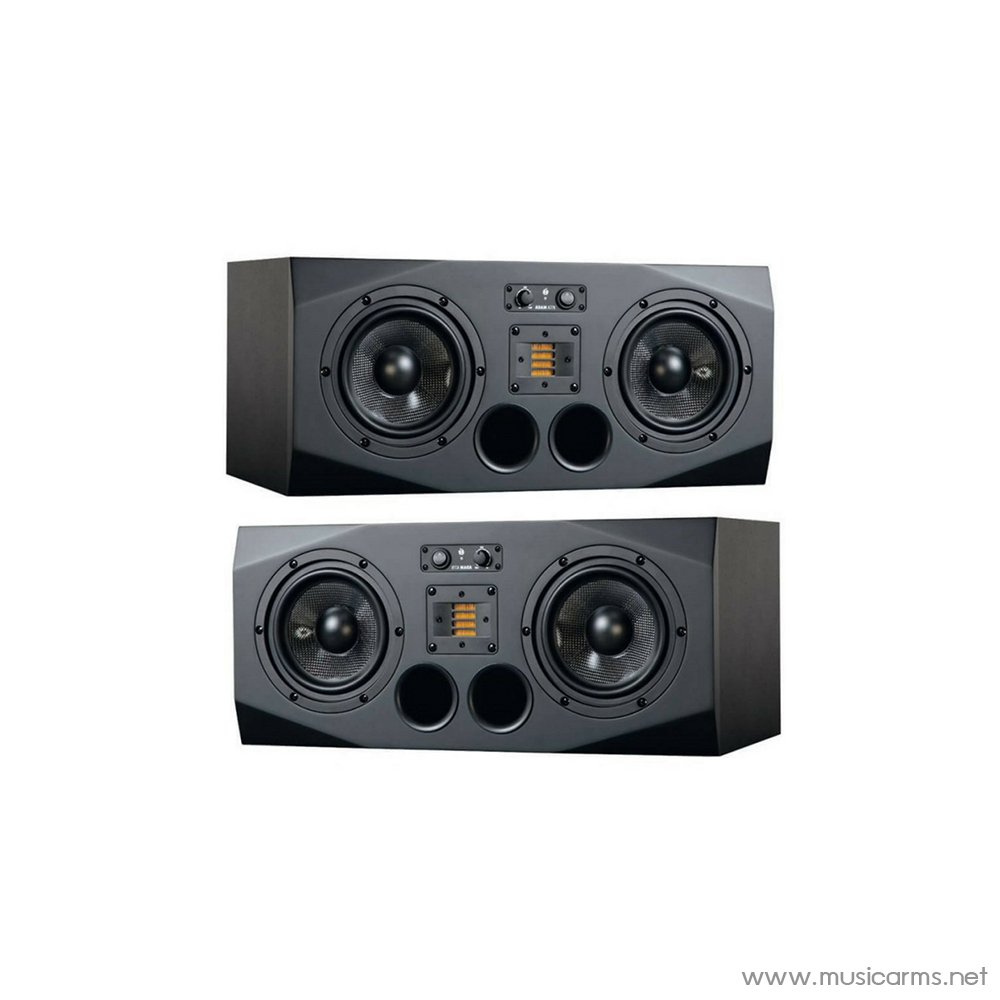

The A77X dual 7″ powered studio monitor, due to its outstanding features, might become a true game changer: Equipped with the same advanced technologies as the A7X, it therefore is very similar to the two-way speaker. The A77X, however, distinguishes itself by much higher, compression-free maximum sound pressure levels and dynamics. Due to its power and radiation characteristics, it also is perfectly suited for both near- and midfield monitoring.

Driver technology
Like all models of the AX series, the A77X features the ADAM Audio proprietary X-ART tweeter. The X stands for eXtended frequency response, and thus, for one of the features of the Accelerating Ribbon Technology that has been drastically improved: the frequency response. It now extends all the way up to 50kHz. In addition, the X-ART tweeter has higher efficiency and higher maximum sound pressure levels.

The two 7″ woofers are identical with that of the A7X. With their large voice coils (1.5 mm) and powerful amplifiers, they are capable of both very high maximum sound pressure levels as well as very deep registers. The woofers do not cover the same frequency bands: while both of them are responsible for the (sub-) bass frequencies up to about 400Hz, only one of them reproduces the midrange. This prevents interferences between the two drivers.

Amplifiers/Controls

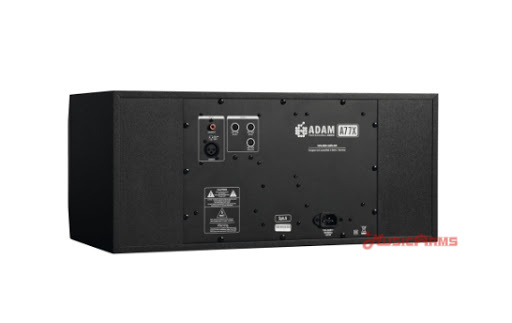

Each driver has its own dedicated amplifier. A 50W A/B amp is responsible for the X-ART tweeter, while the bass-/midwoofers are driven by a 100W PWM amp each. The front panel includes a power switch and a control for the volume that retains the volume setting independently from the on/off switch. The rear panel features several additional controls: a gain for the high frequencies (±4dB) and two shelf filters for high and low frequencies. To ensure greater compatibility, there are both XLR (balanced) and RCA (unbalanced) connectors.

Features

  • Solid response down to 38Hz
  • Award-winning X-ART high frequency
  • Medium size, ideal for project or professional studios
  • Usable for near- and mid-field monitoring
  • Three built-in amplifiers

Specification

General

  • Size: Near-field
  • System type: Active
  • Configuration: 2.5-way

Drivers

  • Low-frequency driver: Two 7″
  • Mid-frequency driver: Not applicable
  • High-frequency driver: 2″
  • Full-range driver: Not applicable
  • Driver type: Carbon Fiber

Sound

  • Frequency response: 38Hz–50kHz
  • Max peak SPL: 114dB
  • Amplifier class: A/B
  • Output power: 75W

Onboard Features

  • Input connectors: XLR, RCA
  • Standby mode: Info not available
  • Acoustic space control: No
  • Power indicator: Yes

Other

  • Width: 21″
  • Height: 9.5″
  • Depth: 11″
  • Weight: 28.2 lb.
  • Enclosure type: Ported

×
