ไมโครโฟน Audio Technica AT5047

ราคา : 133,215 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com


Description
AT5047 Cardioid Condenser Microphone
The AT5047 is a premium cardioid condenser microphone designed to capture both vocals and instruments with exceptional precision and musicality. Offering an ultra-wide dynamic range, it faithfully reproduces the full character of any sound source—whether soft and subtle or powerful and intense.
Derived from the renowned AT5040, the AT5047 features a specially developed quad rectangular diaphragm design. This design utilizes four matched 2-micron-thick diaphragms functioning as a single unit, delivering twice the surface area of a standard 1-inch circular diaphragm. The result is unparalleled sensitivity, smooth frequency response, and high-resolution detail across the entire audio spectrum—from the delicate sweep of a drum brush to commanding vocal performances.
Key Features:

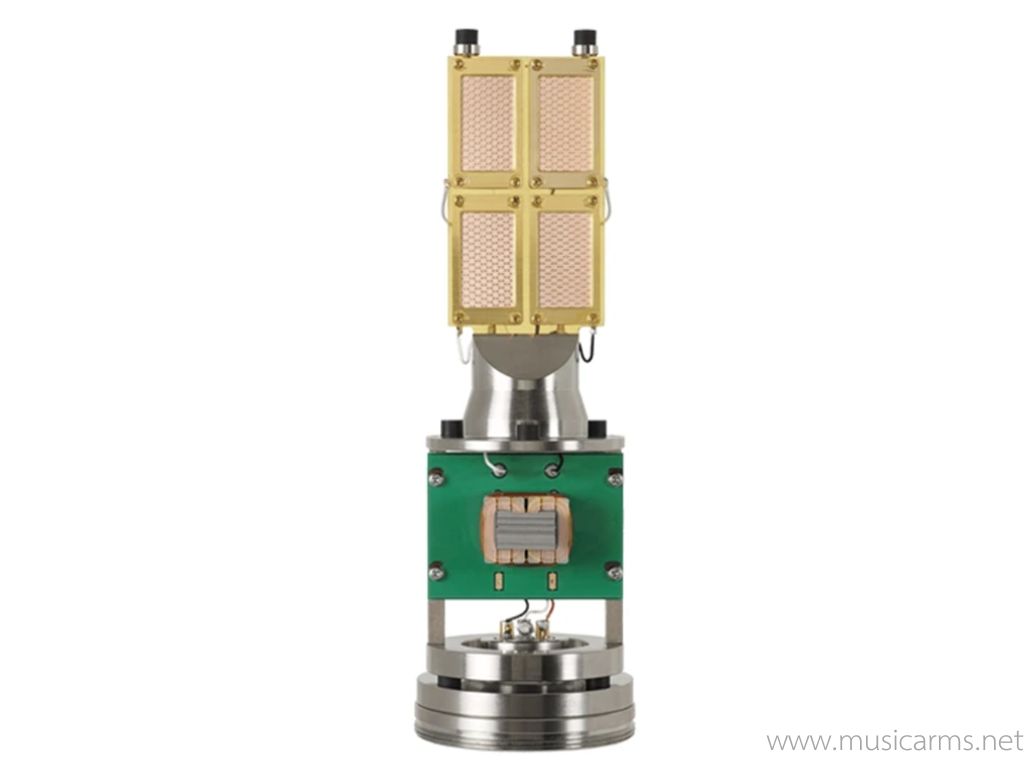

Quad-Diaphragm Capsule: Four precisely matched rectangular diaphragms (2-micron thickness) provide greater surface area for capturing rich and nuanced audio.
Transformer-Coupled Output: Ensures smooth signal delivery with natural warmth and depth, ideal for pairing with high-quality outboard mic preamps and console inputs.
Premium Components: Selected for maximum performance, with meticulous hand assembly and 100% quality inspection for consistency and excellence.
Advanced Internal Shock Mounting: Isolates the capsule from mechanical vibrations and handling noise.
Durable Housing: Crafted from precision-machined aluminum and brass for a strong yet elegant build.

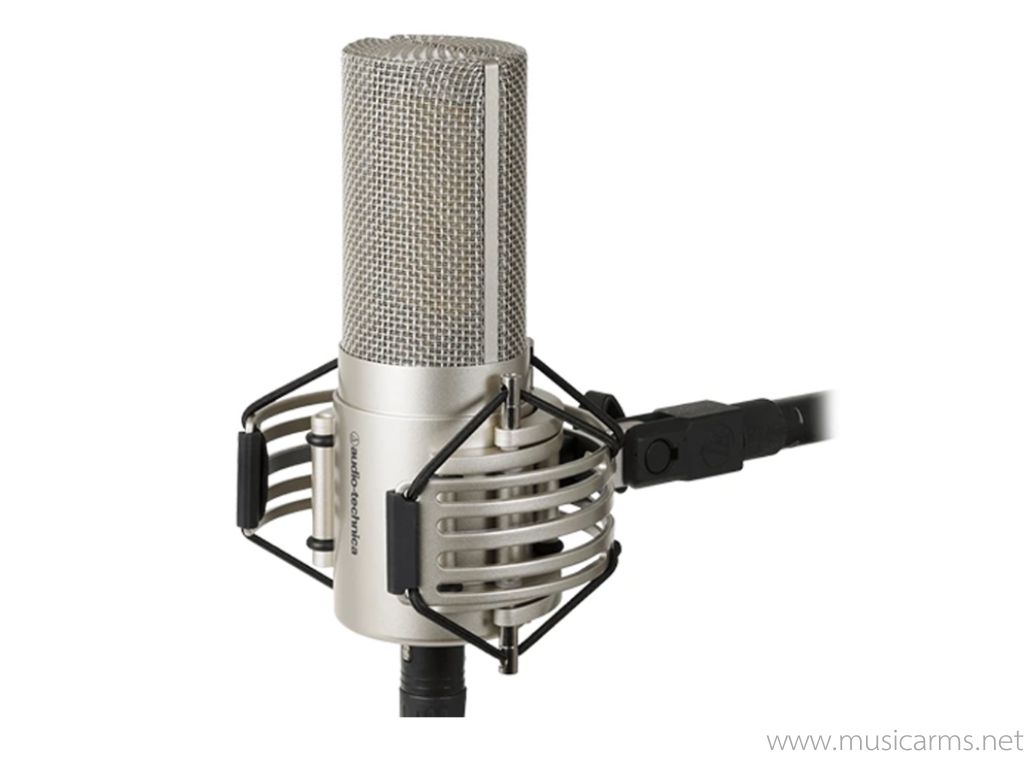

Custom Shock Mount: Comes with the AT8480 isolation mount, engineered for superior vibration control and stability.
Protective Hard Case: Supplied with a rugged, foam-lined carrying case to ensure safe storage and transport.
Specification
Specifications – AT5047 Cardioid Condenser Microphone
Microphone
Sound Field: Mono
Operating Principle: Pressure Gradient
Capsule Type: Condenser
Polar Pattern: Cardioid
Circuitry: Solid-State
Pad: None
High-Pass Filter: None
Performance
Frequency Response: 20 Hz – 20 kHz
Maximum SPL: 148 dB SPL
Impedance: 150 Ohms
Sensitivity: -29 dB
Dynamic Range: 142 dB
Signal-to-Noise Ratio: 88 dB
Equivalent Noise Level: 6 dB
Connectivity

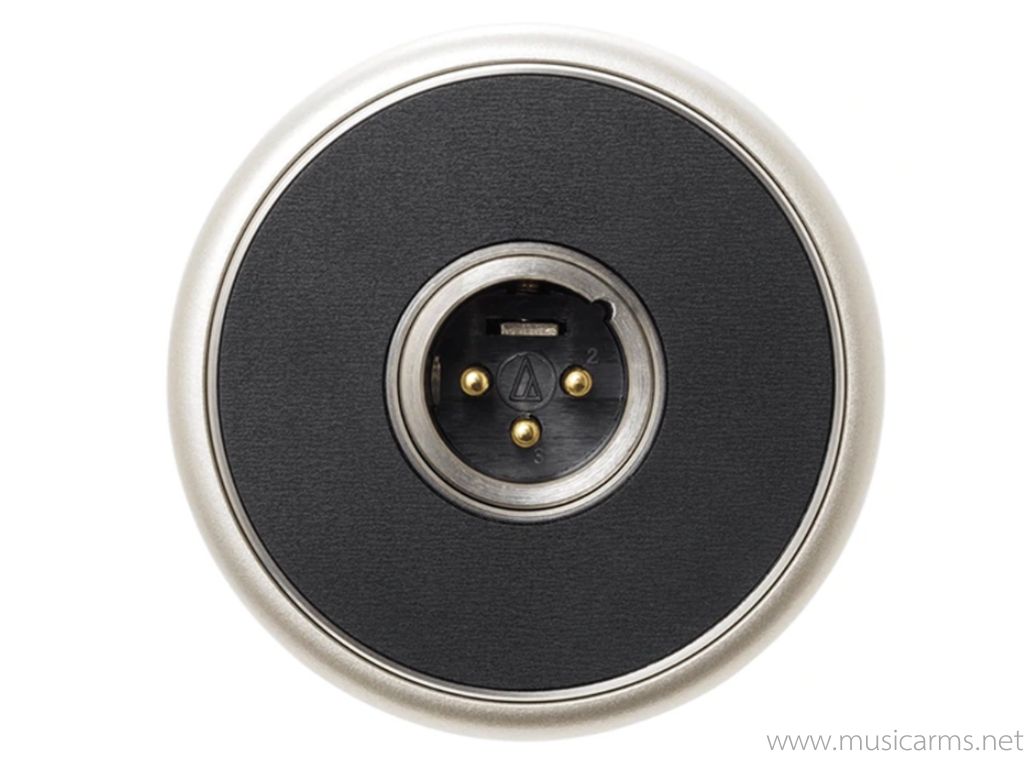

Analog Output Connector: 1 x XLR 3-Pin
Power
Operating Voltage: 48V Phantom Power
Physical
Dimensions: ø 2.24″ x L 6.51″ / ø 57 x L 165.3 mm
Weight: 1.3 lb / 592 g
ข้อมูล
ไมโครโฟนคอนเดนเซอร์แบบคาร์ดิออยด์: AT5047
AT5047 คือไมโครโฟนคอนเดนเซอร์ระดับพรีเมียมจาก Audio-Technica ที่ออกแบบมาเพื่อการบันทึกเสียงร้องและเครื่องดนตรีอย่างมีประสิทธิภาพสูงสุด โดยมีคุณสมบัติโดดเด่นดังนี้:
🔸 คุณสมบัติเสียง
การตอบสนองความถี่กว้าง: เก็บรายละเอียดเสียงได้ตั้งแต่เสียงเบา เช่น การปัดแปรงกลอง ไปจนถึงเสียงร้องทรงพลัง
ช่วงไดนามิกกว้างเป็นพิเศษ: รองรับทั้งเสียงเบาและเสียงดังอย่างแม่นยำ จับลักษณะเฉพาะของแหล่งกำเนิดเสียงได้อย่างเต็มที่
เอาต์พุตแบบหม้อแปลง (Transformer-coupled Output): ให้โทนเสียงที่กลมกล่อมและอบอุ่น พร้อมความสามารถในการจัดการสัญญาณเสียงแรงสูงได้ดีเยี่ยม
🔸 โครงสร้างแคปซูล (Capsule)
ใช้ ไดอะแฟรมสี่เหลี่ยมขนาด 2 ไมครอน จำนวน 4 แผ่น ซึ่งจับคู่อย่างประณีต
ให้ พื้นที่ผิวรับเสียงรวมกันมากกว่าไดอะแฟรมกลมขนาด 1 นิ้วมาตรฐานถึง 2 เท่า
เป็นองค์ประกอบที่ใหญ่ที่สุดเท่าที่เคยมีในไมโครโฟน Audio-Technica
🔸 วัสดุและงานประกอบ
ตัวเครื่องผลิตจาก อลูมิเนียมและทองเหลือง ให้ความแข็งแรงและความสวยงาม
ระบบ กันสะเทือนภายในขั้นสูง: ช่วยแยกแคปซูลออกจากตัวไมโครโฟนเพื่อลดการสั่นสะเทือน
ประกอบและตรวจสอบด้วยมือ 100% เพื่อการควบคุมคุณภาพอย่างพิถีพิถัน
🔸 อุปกรณ์เสริมที่มาพร้อม
AT8480 Shock Mount: ขาตั้งกันสะเทือนแบบออกแบบพิเศษ ช่วยลดการสั่นสะเทือนได้ดีเยี่ยม
กระเป๋าเดินทางแบบแข็ง: บุด้วยโฟมกันกระแทก ปกป้องไมโครโฟนระหว่างการจัดเก็บและเคลื่อนย้าย
สเปค
สเปกไมโครโฟน – AT5047 (คอนเดนเซอร์แบบคาร์ดิออยด์)
ข้อมูลไมโครโฟน
ลักษณะเสียง: โมโน (Mono)
หลักการทำงาน: แบบแรงดันต่าง (Pressure Gradient)
ประเภทแคปซูล: คอนเดนเซอร์ (Condenser)
รูปแบบการรับเสียง: คาร์ดิออยด์ (Cardioid)
วงจรภายใน: โซลิดสเตต (Solid-State)
แผ่นลดเสียง (Pad): ไม่มี
ฟิลเตอร์ตัดเสียงต่ำ (High-Pass Filter): ไม่มี
ประสิทธิภาพการทำงาน
ช่วงความถี่: 20 Hz – 20 kHz
ระดับความดังเสียงสูงสุด (Max SPL): 148 dB SPL
ค่าความต้านทาน (Impedance): 150 โอห์ม
ค่าความไว (Sensitivity): -29 dB
ช่วงไดนามิก (Dynamic Range): 142 dB
อัตราส่วนสัญญาณต่อเสียงรบกวน (SNR): 88 dB
ระดับเสียงรบกวนเทียบเท่า (Equivalent Noise): 6 dB
การเชื่อมต่อ
ขั้วต่อสัญญาณเสียงแบบอนาล็อก: XLR 3 ขา (1 ช่อง)
พลังงานที่ใช้
แรงดันไฟฟ้าใช้งาน: 48 โวลต์ (Phantom Power)
ข้อมูลทางกายภาพ
ขนาด: เส้นผ่านศูนย์กลาง 2.24 นิ้ว x ความยาว 6.51 นิ้ว / 57 x 165.3 มม.
น้ำหนัก: 1.3 ปอนด์ / 592 กรัม
