มิกเซอร์ NTS RX-1202FX

RX1202FX

Product Features

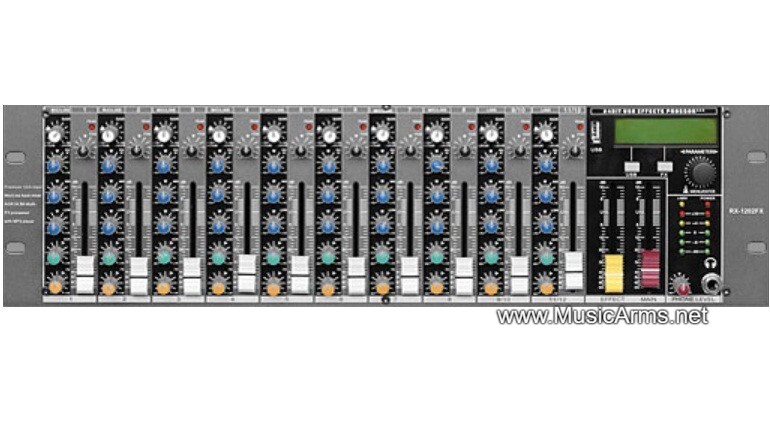

The rack-mountable, 12-Input RX1202FX mixer enables you to effortlessly achieve premium-quality sound, thanks to 8 onboard studio-grade XENYX Mic Preamps, 2 stereo Line Inputs and ultra-musical “British” channel EQs. Add to this our 24-Bit Multi-FX processor with 100 awesome presets including studio-class reverbs, delays, pitch shifter and various multi-effects – and the RX1202FX becomes an incredibly-versatile mixer for your live performances. Ideally suited for musicians, houses of worship and a wide variety of business applications, the incredible RX1202FX is also perfect for sub-mixing keyboards, drums or multiple vocal mics – and is an absolute “must-have” for monitoring your multitrack recording projects!

Sonically Superior Mic Preamps

Our legendary, high headroom XENYX mic preamps have been praised by audio engineers all over the world. These state-of-the-art mic pres represent a major step in the evolution of audio technology – and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps off er a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the RX1202FX provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren’t looking.

Sublimely Musical British EQ

The British consoles of the 1960s and ‘70s changed the sound of rock and roll – without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on our RX1202FX mixer is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

Main Feature

• 12 channel mixer (8 mono input and 2 stereo input)
• 3 band EQ on all input
• 1 Aux send for external effects and monitoring
• Peak LED on all input
• 24 bit multi effect processor
• USB interface for MP3 input and playback with digital display
• USB interface for recording with digital display

Technical Specification

Frequency Response

• 20Hz – 40KHz, +0/-1dB
• 20Hz – 60KHz, +0/-3dB

Total Harmonic Distortion (THD)

• < 0.0007% @ 20Hz to 20KHz

Main Mix Noise

• -86.5dBu @ main mix fader unity, channel fader down
• -86dBu @ main mix fader unity, channel fader unity

Attenuation (Crosstalk)

• -82dBu @ 20Hz to 20KHz

Equivalent Input Noise (EIN)

• -129.5dBu @ 20Hz to 20KHz

EQ

• High +/-15dB, 12KHz
• Mid +/-15dB, 100Hz-8KHz
• Low +/-15dB, 80Hz

Power Requirement

• AC 120V to 240V, 50/60Hz

การตอบสนองต่อความถี่

• 20Hz – 40KHz, +0/-1dB
• 20Hz – 60KHz, +0/-3dB

ค่าบ่งบอก Harmonic Distortion

• < 0.0007% @ 20Hz to 20KHz

Main Mix Noise

• -86.5dBu @ main mix fader unity, channel fader down
• -86dBu @ main mix fader unity, channel fader unity

Attenuation (Crosstalk) (ค่าที่เกิดจากความสัมพันธ์ระหว่าง Attenuation และ NEXT ซึ่งแสดงให้เห็นประสิทธิภาพของสายสัญญาณ โดยดูจากผลของค่าลดทอนและการรบกวนจากสายนอกควบคู่กัน)

• -82dBu @ 20Hz to 20KHz

Equivalent Input Noise (EIN)

• -129.5dBu @ 20Hz to 20KHz

EQ (Equalizer การปรับระดับความดังของย่านเสียงย่านต่างๆ)

• High +/-15dB, 12KHz
• Mid +/-15dB, 100Hz-8KHz
• Low +/-15dB, 80Hz

ความต้องการพลังงาน

• AC 120V to 240V, 50/60Hz
