มัลติเอฟเฟคกีตาร์ Mooer Red Truck

Effects Mooer Red Truck

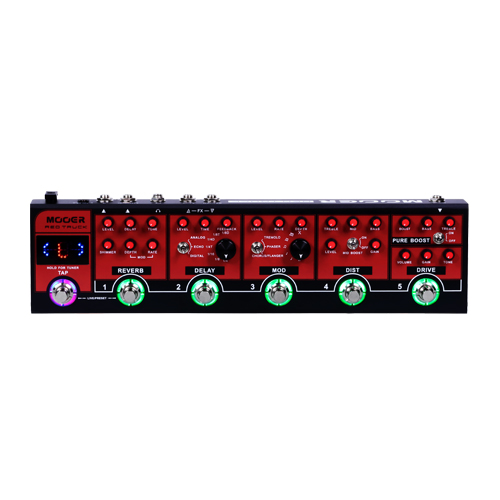

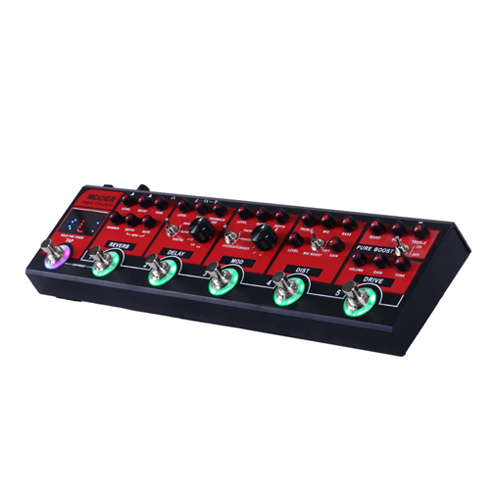

The MOOER ‘Red Truck’ is an all in one solution for the professional guitarist on the go. Following diligent research we’ve integrated a combination of the most commonly used and desirable effects pedals into one, simple to use, floor unit.

The all analogue Boost, Overdrive and distortion circuits provide lush warm tones. A fully comprehensive collection of high quality digital effects including Modulations, Delays and Reverbs with Tap tempo control provide spacious and ambient atmosphere via the stereo outputs. A highly visible and precise tuner will make sure you are always in tune on stage.

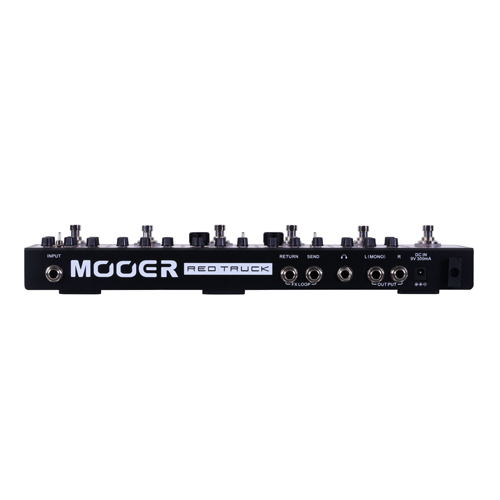

A built in parallel effects loop makes it easy to use with your favorite stompboxes or connect to your favorite amplifiers using the 4 cable method. The Red Truck has stereo outputs and a dedicated Mixer output with speaker simulation for direct connection to your favorite mixing board or audio interface. All the parameters and functions are laid out in front of you just like a traditional pedalboard. Easy to view and adjust on the fly.

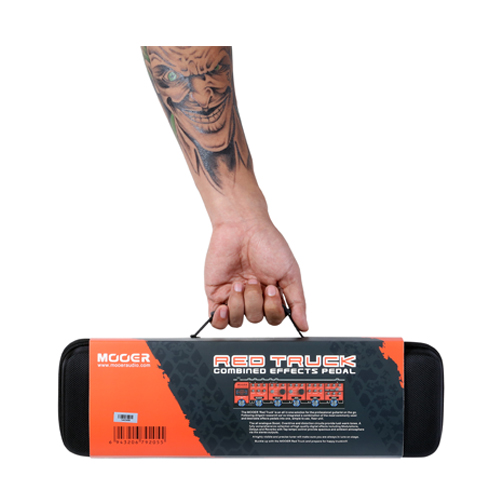

The Red Truck is compact and easy to transport with the tidy soft-case we have included in the box.  No matter where in the world you are going to play and what you need to connect to you can always take a fully professional pedal effects rig with you with ease.

Happy Truckin!!!

Features

เอฟเฟค Mooer Red Truck

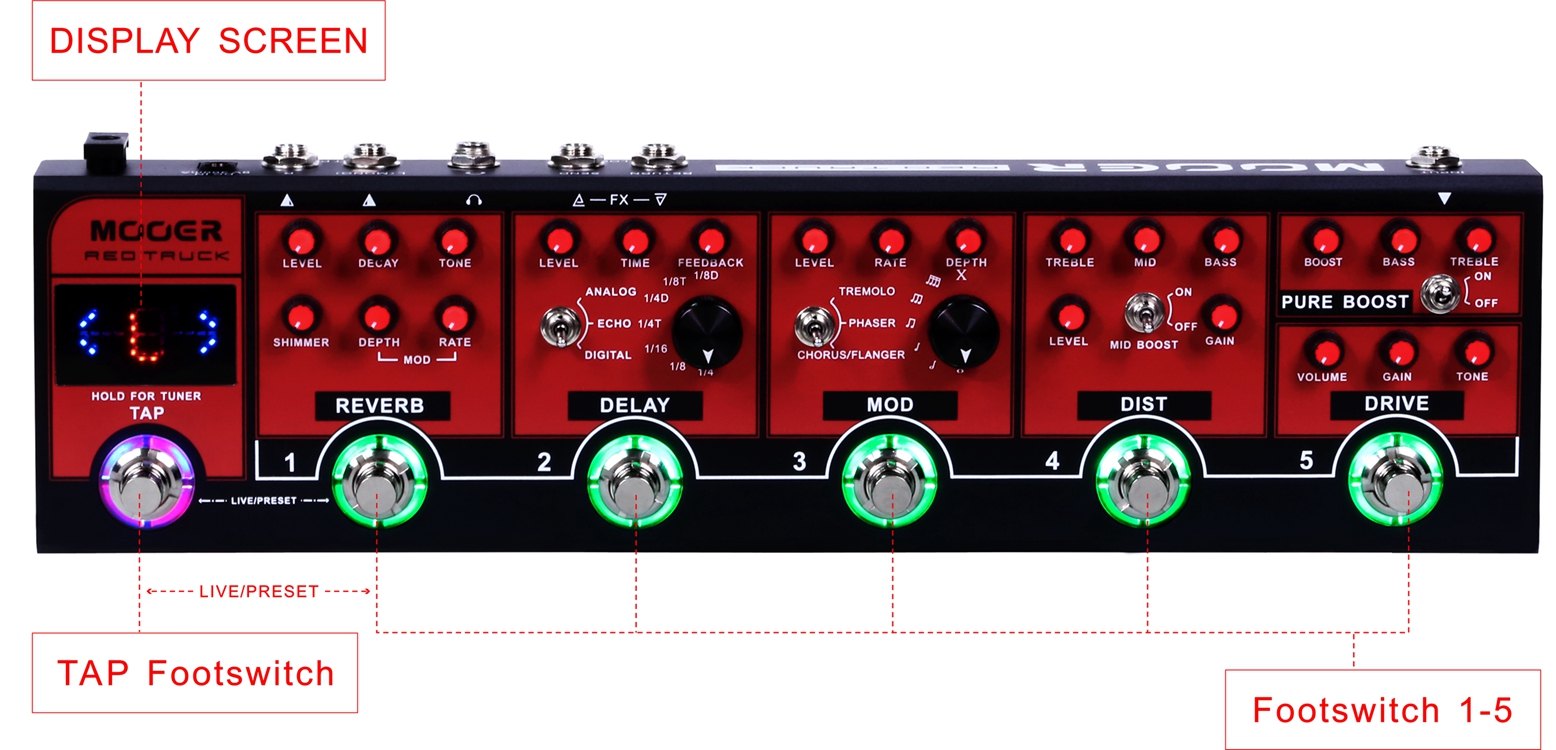

TAP: Press several times for tap tempo. Hold for Tuner
Footswitch 1: REVERB on/off in LIVE mode. Preset 1 in PRESET mode
Footswitch 2: DELAY on/off in LIVE mode. Preset 2 in PRESET mode
Footswitch 3: MOD on/off in LIVE mode. Preset 3 in PRESET mode
Footswitch 4: DIST on/off in LIVE mode. Preset 4 in PRESET mode
Footswitch 5: DRIVE on/off in LIVE mode. Preset 5 in PRESET mode
DISPLAY SCREEN: Displays the current operation mode of red truck. Displays the tuner when activated

Specification

• Input: 1/4’ signal input audio interface (impedance 2M ohms)
• Output: 1/4 “left and right channel audio interface x2 (impedance 100 ohms)
• Sampling rate: 44.1K
• Sampling accuracy: 24bit
• Power supply: DC 9V≥1A power adapter (negative inside positive)
• Size: 370 mm (D) X 96 mm (W) X 51 mm (H)
• Weight: 1200g

รายละเอียด มัลติเอฟเฟค Mooer Red Truck

• มีช่องเสียบสัญญาณ Input ขนาด 1/4’ (ต้านทาน 2M โอห์ม)
• มีช่องเสียบ Output ขนาด 1/4  ช่องเสียบออดิโอซ้ายและขวา 2 ตัว (ต้านทาน 100 โอห์ม)
• ความละเอียด Sampling : 44.1K
• ความแม่นยำ: 24bit
• ตัวจ่ายไฟ: อะแดปเตอร์กำลัง DC 9V≥1A  (negative inside positive)
• ขนาด 370 X 96  X 51 mm (H)
• น้ำหนัก 1200g
