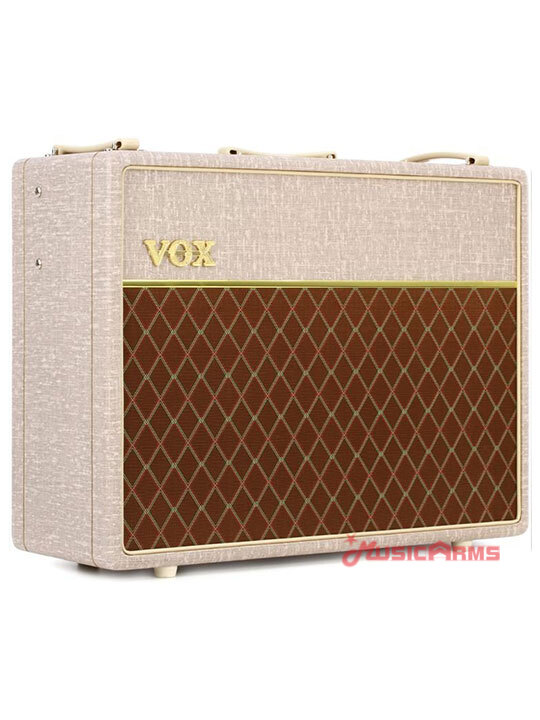

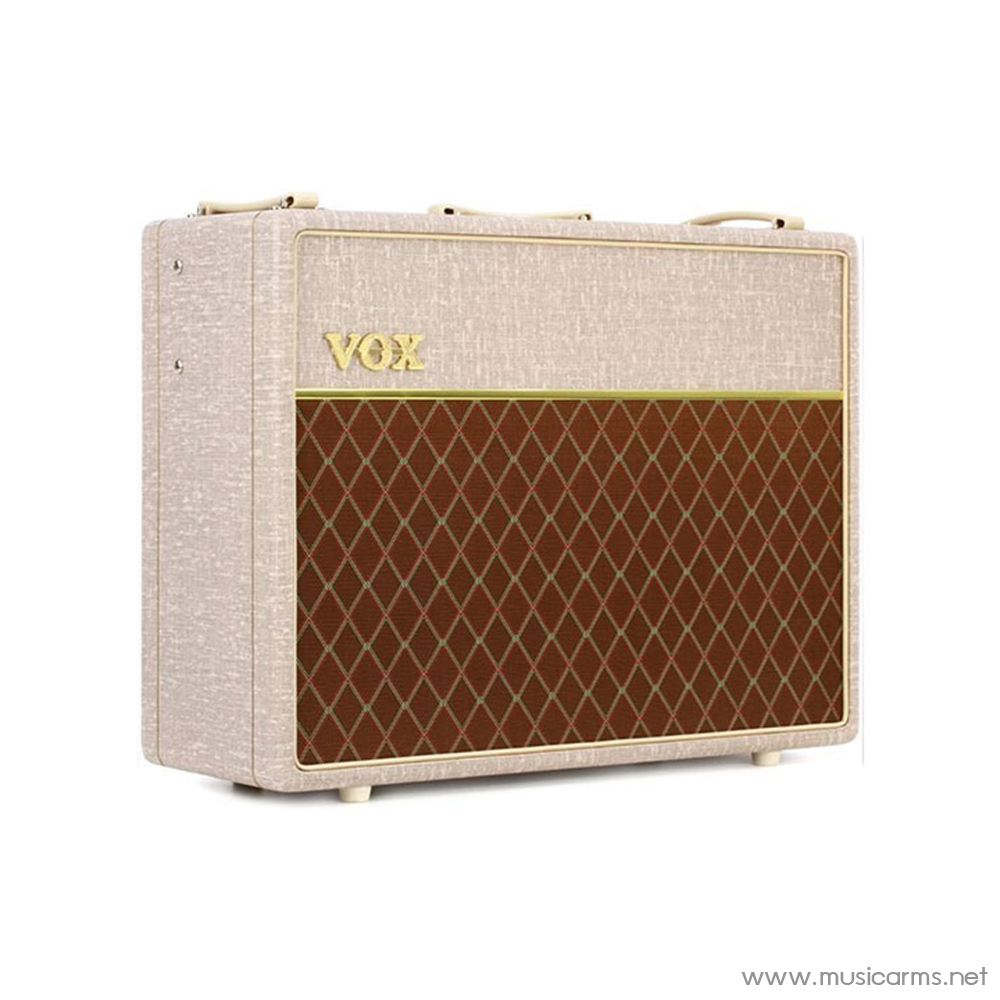

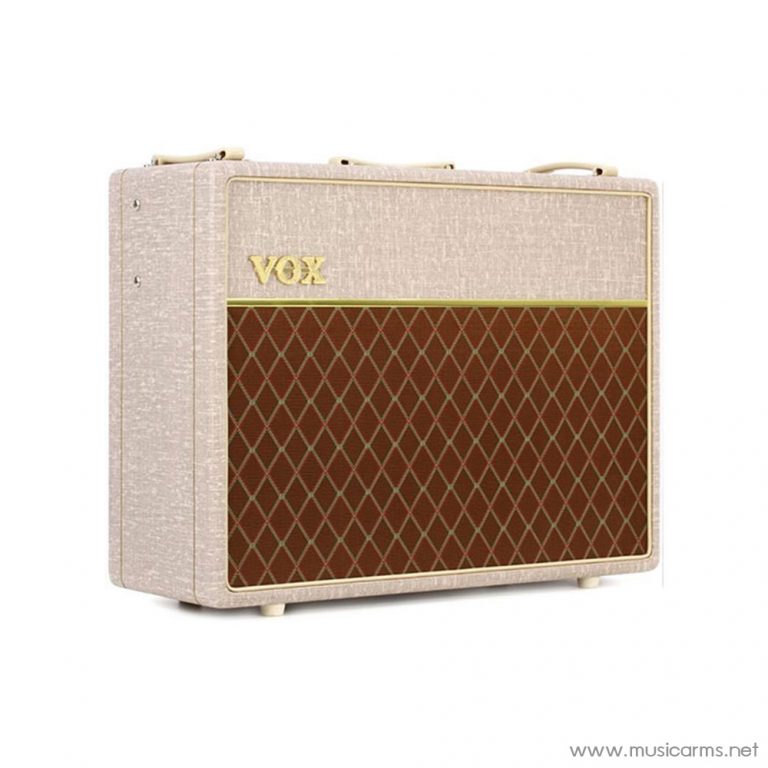

VOX AC30HW2

A Classic, Hand-wired Vox Amp!

The 30-watt Vox AC30HW2 handwired combo guitar amplifier transports you to the golden age of Vox tone. A retro oxblood grill cover and vintage fawn-colored vinyl over a birch plywood cabinet gives the AC30HW2 a classic style and sound. It’s a traditional 2-channel design, with both a top boost channel that has a hot/cool switch and a normal channel that has a bright switch. At its heart, the AC30HW2 sports a painstakingly handwired turret board assembly, containing three ECC83/12AX7 preamp tubes, four EL84 power tubes, and a GZ34 rectifier tube – all of which are matched Ruby Tubes, which provide impeccable tone and extended dynamic range. A pair of 12″ Celestion G12M Greenback speakers give you a bold and clear tone, and the OP mode switch lets you cut the output power level in half, which makes the AC30HW2 also an excellent recording/practice amp.

Vox AC30HW2 Combo Guitar Amplifier Features at a Glance:

• 30-watt power output (8 and 16 ohms)
• Handwired turret board construction
• Birch plywood cabinet features solid bracing and a natural high-frequency diffuser
  All-tube design
• 2 x 12″ G12M Greenback speakers
• 3 x ECC83/12AX7 preamp tubes, 4 x EL84 power tubes, and 1 x GZ34 rectifier tube
• Fitted with matched Ruby Tubes for extended dynamic range
• Traditional Vox 2-channel design
• Top boost and normal channels, each with high and low inputs
• Normal channel provides an additional bright switch
• Top boost channel provides a hot/cool switch to achieve even more gain
• Master volume/bypass switch completely bypasses the master volume section
  OP mode switch cuts the output power level in half
• Vintage fawn-colored vinyl, reminiscent of the 1960 classic AC30
• 2 x 1/4″ output jacks for extension cabinets
• Included VFS1 footswitch controls the top boost channel’s hot/cool switch
• Premium, custom-fit dust cover included

Tech Specs

• Type: Tube
• Number of Channels: 2
• Total Power: 30W
• Speaker Size: 2 x 12″
• Preamp Tubes: 3 x ECC83/12AX7
• Power Tubes: 4 x EL84, 1 x GZ34 (Rectifier)
• EQ: 2-band
• Inputs: 2 x Instrument (Channel 1), 2 x Instrument (Channel 2)
• Outputs: 2 x Speaker
• Footswitch I/O: 1 x 1/4″ (boost hot/cool)
• Footswitch Included: Yes, 1-button footswitch
• Construction Material: Birch Plywood
• Power Source: Standard IEC AC cable
• Height: 21.65″
• Width: 27.76″
• Depth: 10.24″
• Weight: 67.9 lbs.
