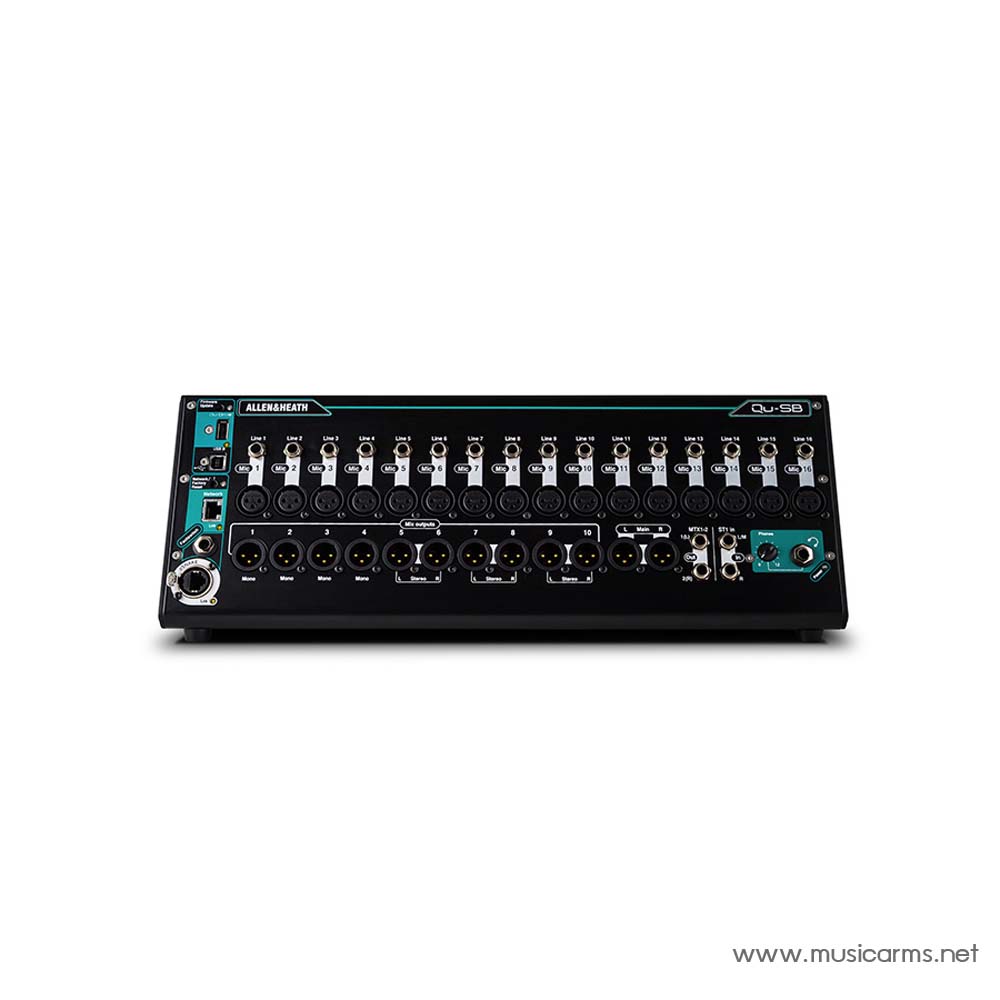

Allen & Heath QU-SB Digital Mixer

The Allen & Heath Qu-SB is an 18-in/14-out rack-mountable, console-less digital mixer that doubles as a 32×32 USB recording interface. Featuring 16 of the company’s recallable AnalogiQ microphone preamps, and powered by a 5-core ARM processor, the Qu-SB provides a variety of integrated effects and processing, including channel-independent 4-band parametric EQs, compressors, delay, and reverb.

The mixer is compatible with both the ME Personal Mixing System and dSNAKE digital connectivity system from Allen & Heath, which allows for up to 38 inputs. The Qu-SB is designed to be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.

• 16 Mono Inputs (TRS + XLR) 1 Stereo Input (TRS)
• 12 on-board Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3)
• 1 Stereo Matrix Out (TRS)
• Qu-32 Core inside (32 Mono + 3 Stereo Input Channels)
• Up to 11 Monitor Mixes (4 mono + 7 stereo)
• 4 FX Engines, 4 FX Sends/Returns, 4 Mute Groups, 4 DCA Groups
• Recallable AnaLOGIQ Preamps
• iLive FX Library, dSNAKE Remote Audio Port expansion up to 38 inputs
• Automatic Mic Mixer, 32×32 USB Audio Interface
• Qu-Drive direct Multitrack Recording/Playback on USB drives
• Compatible with ME Personal Mixing System
• Qu-Pad iPad App, Qu-You iPhone/Android personal monitoring app
• Trim, polarity, HPF, gate, insert/ducker, 4-band PEQ, compressor and delay on all Inputs
• Insert, 1/3 octave GEQ, 4-band PEQ, compressor and delay on all Mix outputs
• Built-in Signal Generator, RTA with Peak Band indication, 19” Rack Mountable with optional rack ears
