Apogee SYM2-16X16S2-A8MP-PTHD

Apogee SYM2-16X16S2-A8MP-PTHD | Symphony I/O MKII PTHD Chassis with 16 Analog In + 16 Analog Out+8 Mic Pre Amp Module

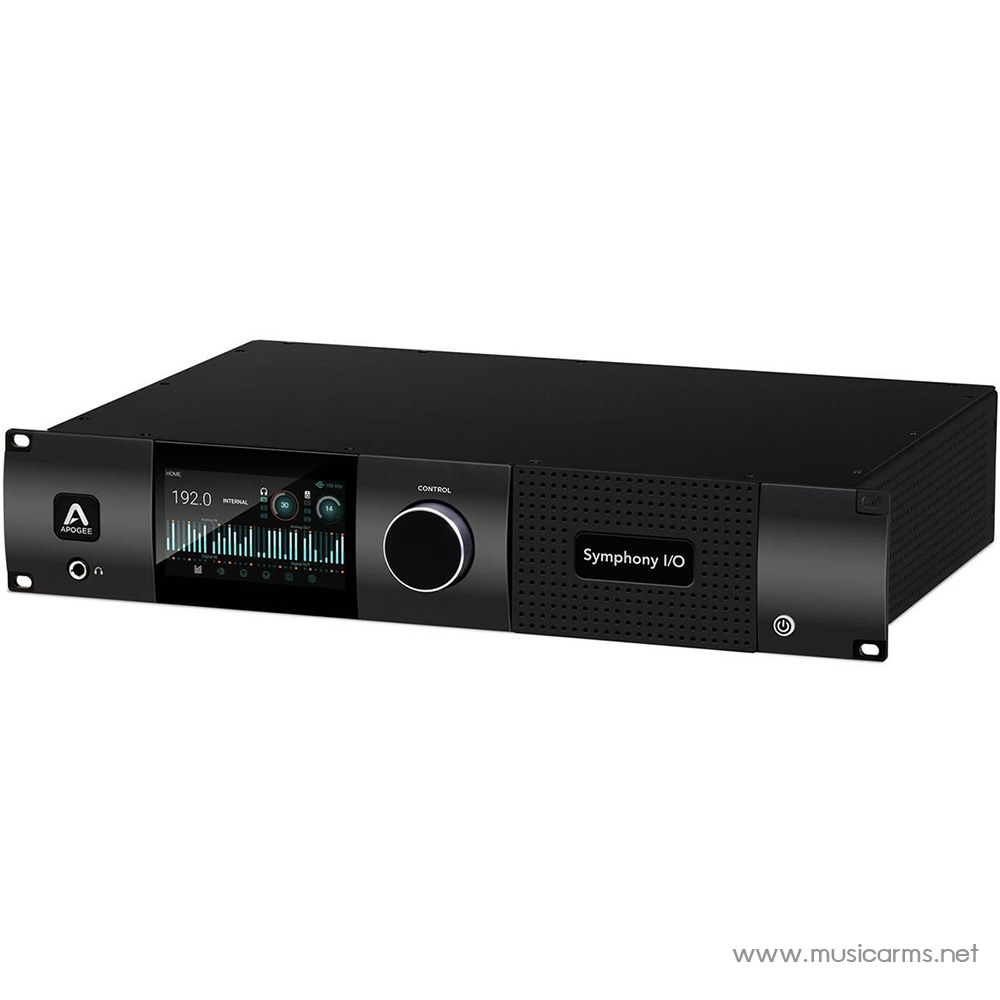

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s newest flagship AD/DA conversion, modular I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio. The new Symphony I/O Mk II comes with direct connectivity to one of three different platforms – Thunderbolt, Pro Tools HD or Waves SoundGrid network.

Best AD/DA conversion of any Thunderbolt audio interface

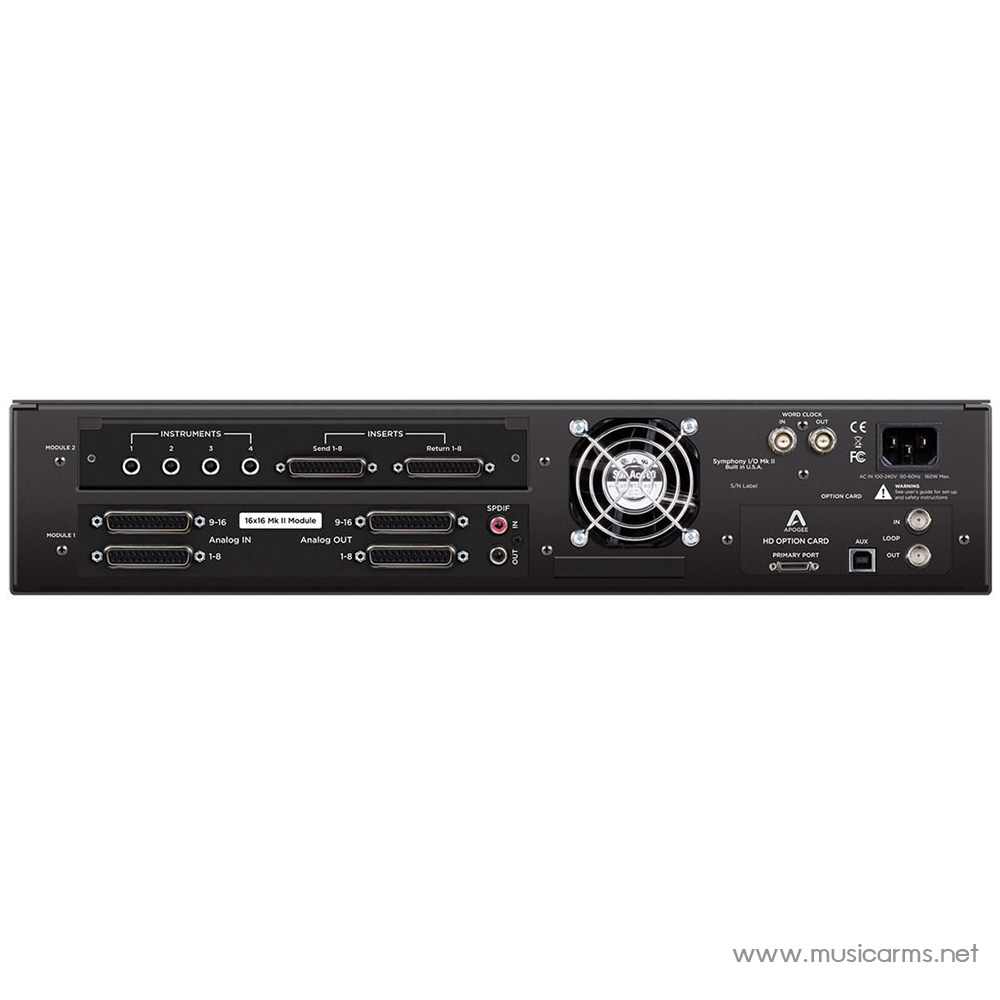

• Up to 32 channels of modular analog I/O with optional 8 mic preamps
• Original Symphony I/O modules are compatible with new Mk II chassis
• Best per-channel value of any interface in its category
• Choice of Thunderbolt or Pro Tools HD (Mac/PC) connectivity-Waves SoundGrid and Dante connectivity coming soon
• Ultra-low latency performance – 1.35ms with Thunderbolt and Logic Pro X
• All new, highly customizable Symphony Control software provides easy access to all I/O parameters

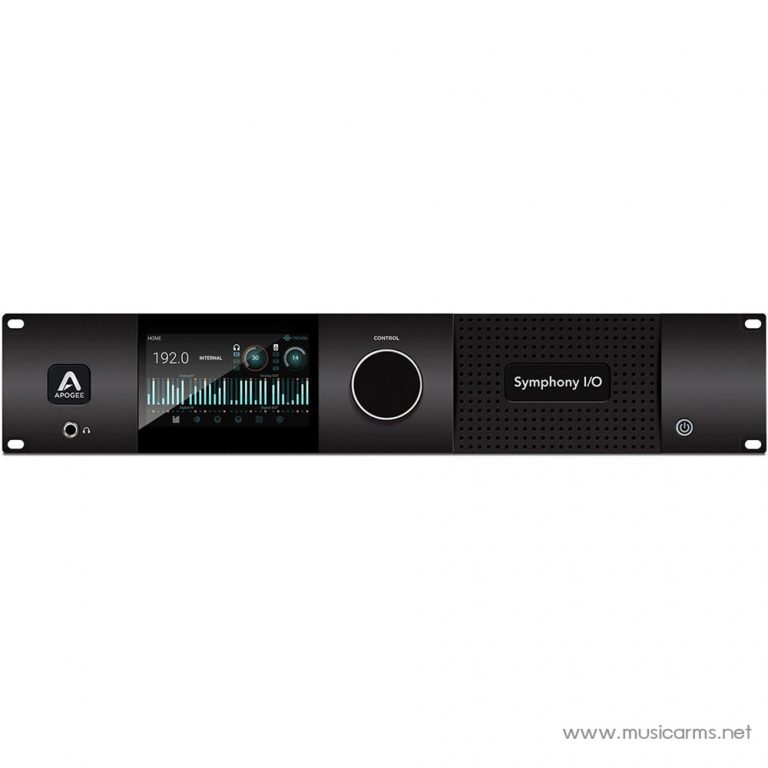

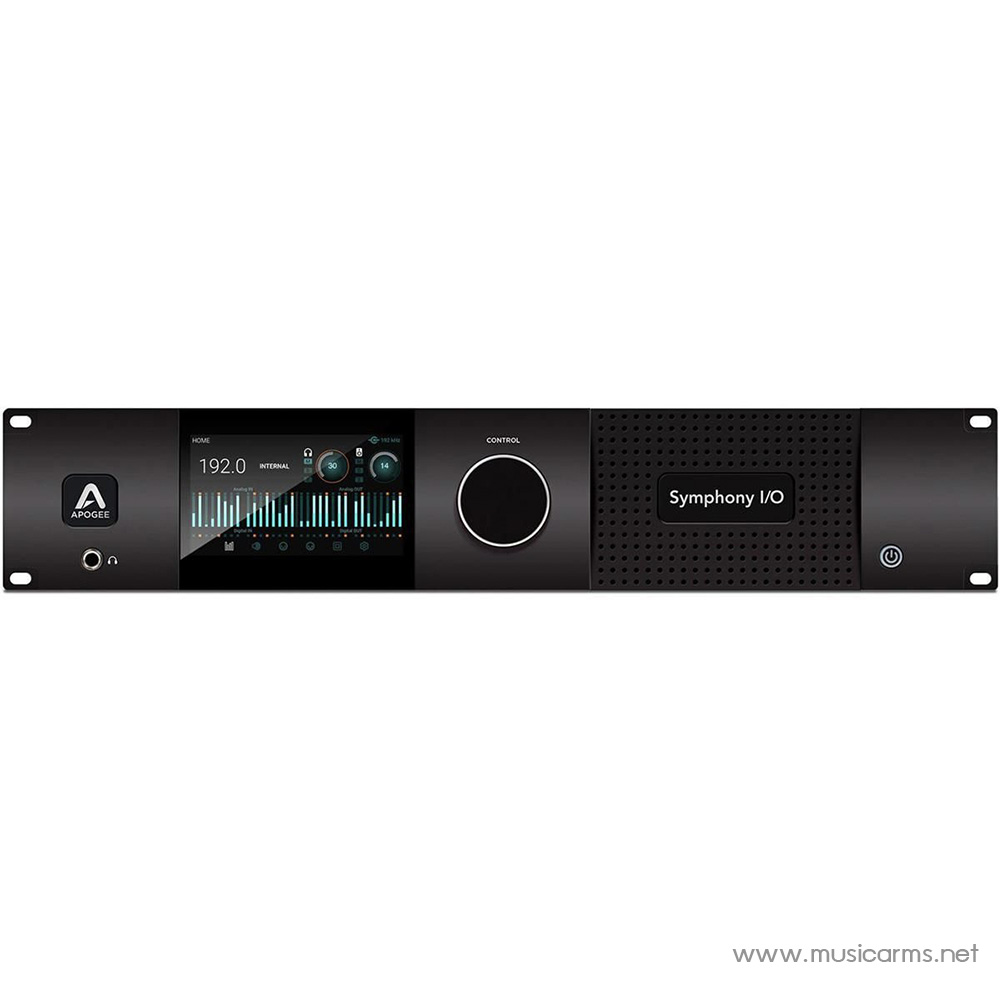

• Intuitive touchscreen display and front panel control
• Designed in California, Built in the U.S.A.

Specification

• Analog to Digital
• ADC THD+N: -114 dB @ 22 dBu (0.00020%)
• Dynamic Range: 122 dB (A weighted)
• Maximum Input Levels:
• +4 dB Setting: +24 dBu
• -10dB Setting: +6 dBV
• Frequency Response at 44.1 kHz: 1 Hz to 20 kHz (±0.05 dB)
• Input impedance: 10 kOhms
• Digital to Analog
• DAC THD+N: -117 dB @ 21 dBu (0.00014%)
• Dynamic Range: 129 dB (A weighted)
• Max Output Levels: -∞ to +24 dBu
• Frequency Response at 44.1 kHz: DC to 20 kHz (±0.05 dB)
• Output Impedance: 25 Ohms
• Outputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)
• Headphone Output
• Headphone Stereo Headphone Output (Front Panel): 1/4″ / 6.35 mm
• THD+N:
• -110 dB @ 19 dBu into 600 Ohm (=80 mW)
• -101 dB @ 14 dBu into 32 Ohm (=470 mW)
• Dynamic Range: 121 dB (A weighted)
• Output: Apogee’s proprietary Constant Current Drive provides smooth frequency response with any headphones
• System Requirements
• System Requirements Computer: Thunderbolt-equipped Mac
• Memory: 4 GB RAM minimum, 8 GB RAM recommended
• OS X 10.9.5 or greater
• Thunderbolt cable (sold separately)
• General Specifications
• Power 90 to 240 VAC, 50/60 Hz, 150 W
• Dimensions (W x D x H) Without Rack Ears: 17.8 x 11.5 x 3.5″ / 450.9 x 292.1 x 88.9 mm
• With Rack Ears: 19.0 x 11.5 x 3.5″ / 482.6 x 292.1 x 88.9 mm
• Weight Not specified by manufacturer
• Packaging Info
• Package Weight 18.4 lb
• Box Dimensions (LxWxH) 22.8 x 17.9 x 9.9″
